Collect Coverage for Tests and Address Missing Coverage
In this step, you collect coverage for tests by using the MATLAB Test Manager and view the coverage results in a report. You identify source code that is not covered by tests and increase the coverage by adding tests.
Collect Coverage and View Results
Open the MATLAB Test Manager.

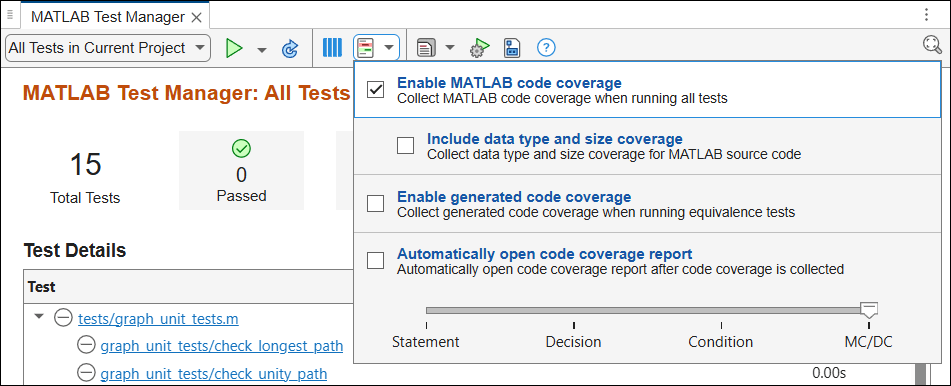

Enable coverage by clicking the Coverage button and selecting Enable Coverage. Set the metric level to MC/DC.

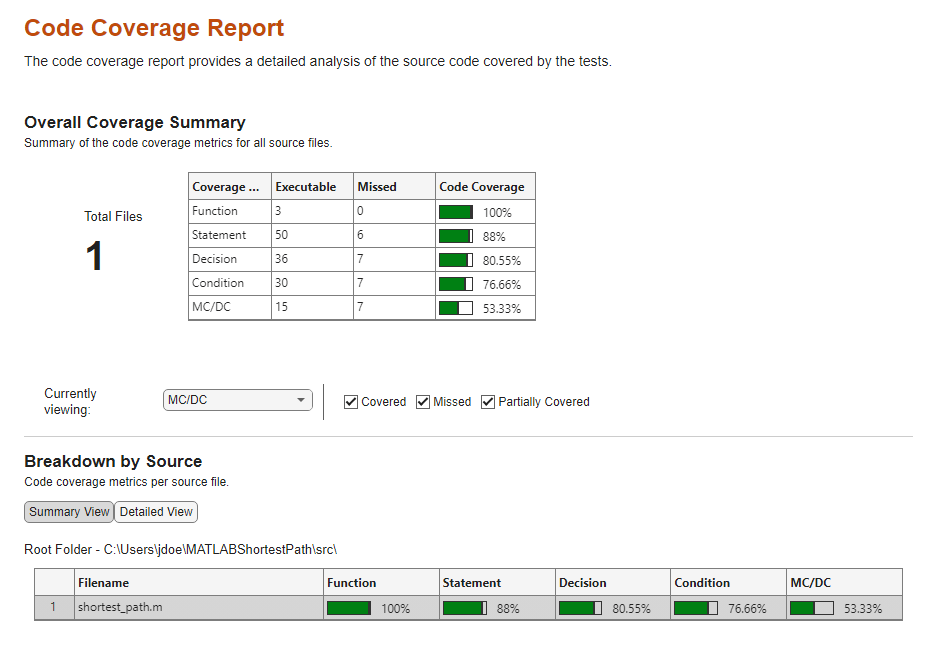

Run all tests in the project by clicking the Run button. View the coverage report by clicking the Report button, then clicking View latest coverage report for all tests.
Identify and Address Missing Coverage
In the coverage report, set Currently viewing to
Statement. In the Breakdown by Source table, select

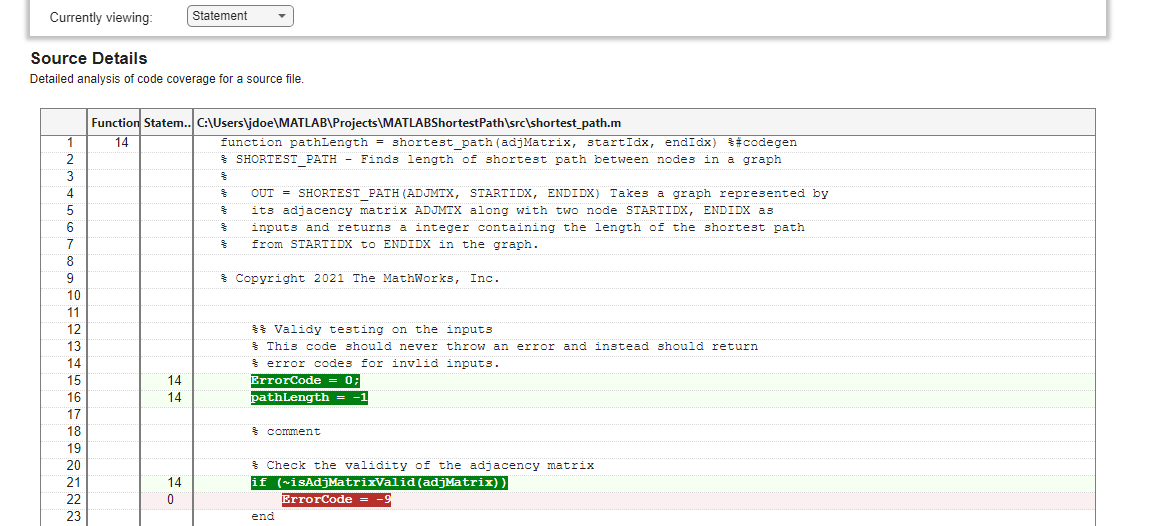

Red highlighting indicates that the tests do not execute line 22 in
shortest_path.m. Address this missing coverage by adding a test that executes the code. Open
graph_unit_tests.m and copy and paste this test in line 5:
function check_invalid_nonsquare(testCase) adjMatrix = zeros(2,3); startIdx = 1; endIdx = 1; expOut = -9; verify_path_length(testCase, adjMatrix, startIdx, endIdx, expOut, ... 'Graph is not square'); end
Re-run the tests in the project and view the code coverage report.

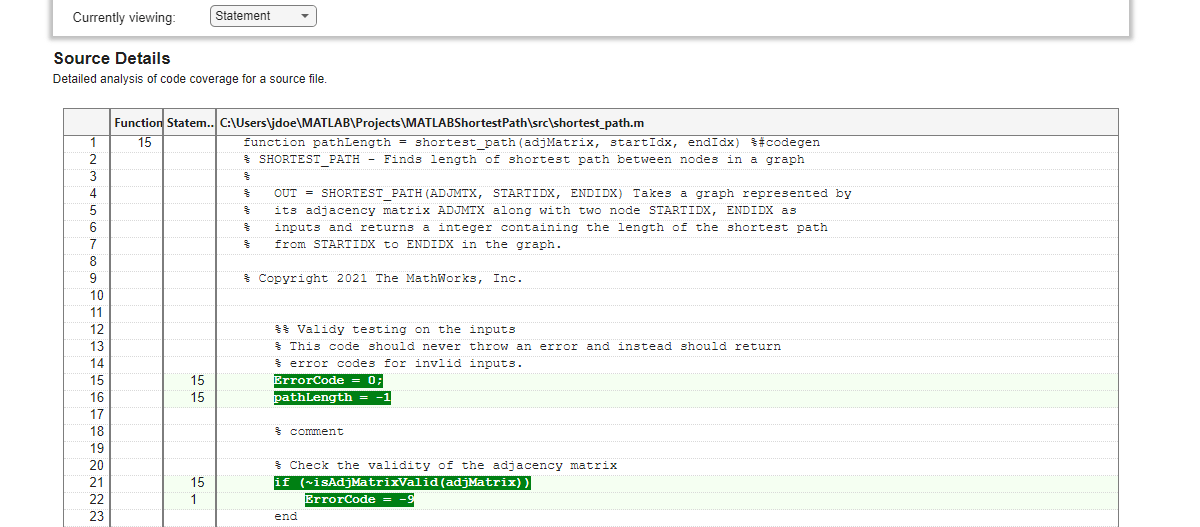

The report indicates that the tests now execute line 22.
