regions
访问 polyshape
区域
说明
示例
多边形区域数组
计算包含两个实心区域的多边形。然后创建一个向量,其元素是多边形的一个区域。

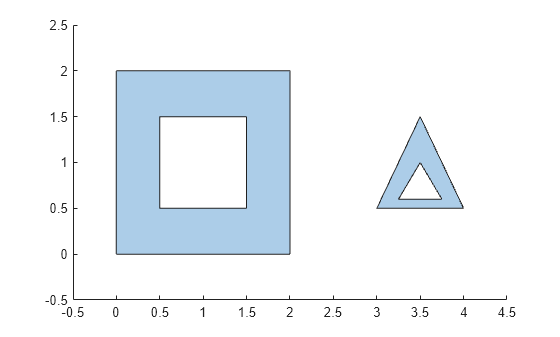

P = [0 0; 0 2; 2 2; 2 0; NaN NaN; 0.5 0.5; 0.5 1.5; 1.5 1.5; 1.5 0.5; NaN NaN; 3 0.5; 3.5 1.5; 4 0.5; NaN NaN; 3.25 0.6; 3.75 0.6; 3.5 1]; polyin = polyshape(P); plot(polyin) xlim([-0.5 4.5]) ylim([-0.5 2.5])
polyout = regions(polyin)
polyout = 2x1 polyshape array with properties: Vertices NumRegions NumHoles

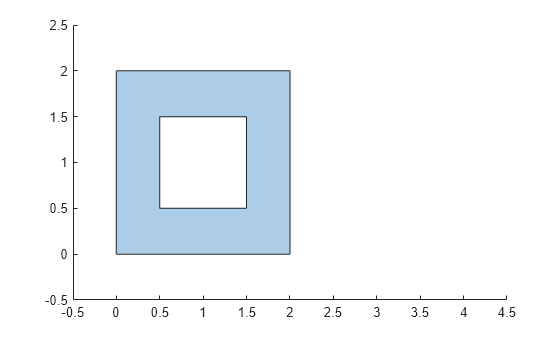

plot(polyout(1)) xlim([-0.5 4.5]) ylim([-0.5 2.5])
plot(polyout(2)) xlim([-0.5 4.5]) ylim([-0.5 2.5])
输入参数
polyin
— 输入 polyshape
标量
输入 polyshape
,指定为标量。
数据类型: polyshape
版本历史记录
在 R2017b 中推出
另请参阅
boundary
| sortregions
| polyshape
| holes
