pointLocation

Triangle or tetrahedron enclosing point

collapse all in page

Syntax

ID = pointLocation(TR,P)
ID = pointLocation(TR,x,y)
ID = pointLocation(TR,x,y,z)
[ID,B] = pointLocation(___)

Description

ID = pointLocation(TR,P) returns the IDs of the triangles or tetrahedra enclosing the query points in P. Each row in the matrix P contains the coordinates of a query point.

example

ID = pointLocation(TR,x,y) specifies the x-coordinates and y-coordinates of 2-D query points as separate column vectors.

ID = pointLocation(TR,x,y,z) specifies the x-coordinates, y-coordinates, and z-coordinates of 3-D query points as separate column vectors.

[ID,B] = pointLocation(___) also returns the barycentric coordinates of each query point with respect to its enclosing triangle or tetrahedron for any of the previous syntaxes.

example

Examples

collapse all

Open Live Script

Find the triangles of a triangulation that enclose a set of query points.

Define the points and connectivity of a triangulation.

TP = [2.5 8.0; 6.5 8.0; 2.5 5.0; 6.5 5.0; 1.0 6.5; 8.0 6.5];
C = [5 3 1; 3 2 1; 3 4 2; 4 6 2];
TR = triangulation(C,TP);

Define two query points.

P = [2.25 7; 6 6.5];

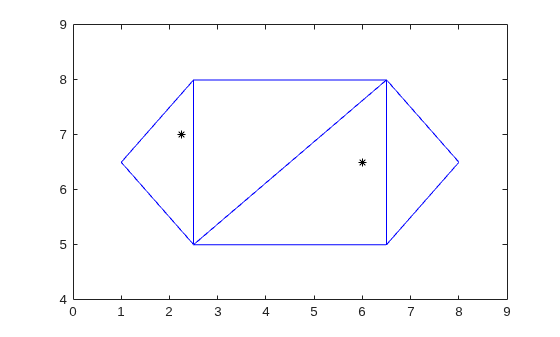

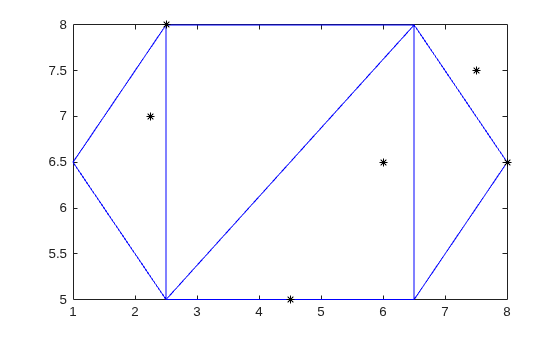

Plot the triangulation and the query points.

triplot(TR)
hold on
plot(P(:,1),P(:,2),'k*')
ylim([4 9])
xlim([0 9])

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Determine the IDs of the triangles that enclose each query point.

ID = pointLocation(TR,P)
ID = 2×1

     1
     3

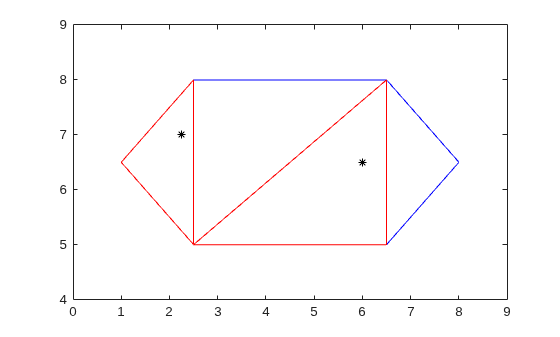

Highlight the triangles that enclose the query points in red.

triplot(TR.ConnectivityList(ID,:),TP(:,1),TP(:,2),'r')

Figure contains an axes object. The axes object contains 3 objects of type line. One or more of the lines displays its values using only markers

Open Live Script

Find the tetrahedra of a 3-D triangulation that enclose a set of query points.

Create a Delaunay triangulation from a set of 3-D points.

rng('default')
x = rand([20 1]);
y = rand([20 1]);
z = rand([20 1]);
TR = delaunayTriangulation(x,y,z);

Find the IDs of the tetrahedra that enclose the query points, and compute the barycentric coordinates of the query points.

P = [0.7 0.6 0.3; 0.5 0.5 0.5];
[ID,B] = pointLocation(TR,P)
ID = 2×1

     9
     8


B = 2×4

    0.2046    0.0893    0.5721    0.1340
    0.1900    0.1495    0.6422    0.0183

Input Arguments

collapse all

Triangulation representation, specified as a scalar triangulation or delaunayTriangulation object.

Data Types: triangulation | delaunayTriangulation

Query points, specified as a 2-column matrix (2-D) or a 3-column matrix (3-D). P contains the x-coordinates, y-coordinates, and (possibly) z-coordinates of the query points.

Data Types: double

x-coordinates of query points, specified as a column vector.

Data Types: double

y-coordinates of query points, specified as a column vector.

Data Types: double

z-coordinates of query points, specified as a column vector.

Data Types: double

Output Arguments

collapse all

Triangle or tetrahedra IDs of the triangles or tetrahedra enclosing the query points, returned as a column vector. A triangle or tetrahedron ID is the row number of the corresponding triangle or tetrahedron in the ConnectivityList property.

If a query point lies on the boundary of two or more triangles or tetrahedra, then the largest ID is returned.

ID contains NaN values for points that are not located in a triangle or tetrahedron of the triangulation.

Data Types: double

Barycentric coordinates of each query point with respect to its enclosing triangle or tetrahedron, returned as a 3-column matrix (2-D) or a 4-column matrix (3-D).

Data Types: double

Extended Capabilities

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2013a
