collisionCapsule

Capsule primitive collision geometry

Since R2022b

expand all in page

    Description

    The collisionCapsule object is a capsule primitive collision geometry defined by a radius and length, with the central line segment of the capsule aligning with its z-axis and the origin of the body-fixed frame located at the midpoint of the central line segment.

    Creation

    Syntax

    CAPS = collisionCapsule(radius,length)
    CAPS = collisionCapsule(___,Pose=pose)

    Description

    CAPS = collisionCapsule(radius,length) creates a capsule primitive with the specified radius radius and length length. The radius and length arguments set the Radius and Length properties, respectively.

    example

    CAPS = collisionCapsule(___,Pose=pose) sets the Pose property of the capsule to pose, relative to the world frame.

    Properties

    expand all

    Radius of the spherical ends of the capsule, specified as a nonnegative scalar. Units are in meters.

    Example: 2.5

    Length of the central line segment of the capsule, specified as a nonnegative scalar. Units are in meters.

    Note

    This is not the length from end-to-end of the capsule. The total length of the capsule is Length+2(Radius).

    Example: 4.5

    Pose of the capsule relative to the world frame, specified as a 4-by-4 homogeneous transformation matrix or an se3 (Robotics System Toolbox) object. Units are in meters.

    Example: trvec2tform([4 2 5])

    Object Functions

    checkCollisionCheck if two geometries are in collision
    genspheresGenerate spheres along central line segment of capsule
    convertToCollisionMeshConvert collision primitive geometry into collision mesh geometry
    showShow collision geometry

    Examples

    collapse all

    Open Live Script

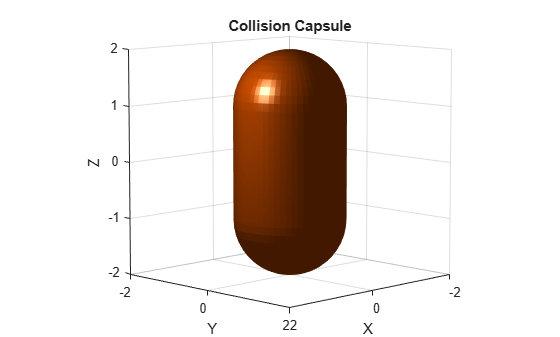

    Create a collision capsule with a radius of 2 and length of 10. Visualize the capsule.

    cCapsule = collisionCapsule(2,10);
[~,p] = show(cCapsule);

    Generate spheres at ratios 0.0, 0.5, and 1.0 of the capsule length.

    spheres = genspheres(cCapsule,linspace(0,1,3));

    Display the positions of the spheres.

    for i = 1:length(spheres)
    disp(tform2trvec(spheres{i}.Pose))
end
         0     0    -5

     0     0     0

     0     0     5

    Set the face and edge alphas of the capsule to low values. This ensures that both the spheres are visible when you add them to the figure.

    p.FaceAlpha = 0.4;
p.EdgeAlpha = 0.01;
hold on

    Display the generated spheres on the capsule.

    cellfun(@show,spheres);

    Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 4 objects of type patch.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2022b
