removeFactor

Remove factor from factor graph

Since R2024a

collapse all in page

    Syntax

    removeFactor(fg,factorID)
    removedNodeIDs = removeFactor(fg,factorID)

    Description

    removeFactor(fg,factorID) removes a factor with the specified factor ID from the factor graph as well as removing any nodes related to the factor that would become disconnected from any factor in the factor graph as a result of removing the factor.

    removedNodeIDs = removeFactor(fg,factorID) optionally returns the IDs of any nodes that were removed along with the specified factor.

    example

    Examples

    collapse all

    Open Live Script

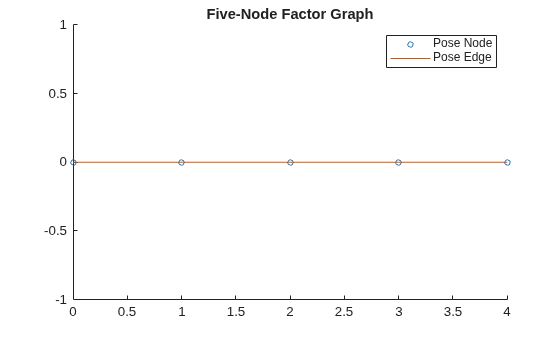

    Import a factor graph with five 2-D pose nodes and then visualize the factor graph.

    fg = importFactorGraph("fiveNodeFactorGraph.g2o");
show(fg,Legend="on");
title("Five-Node Factor Graph")

    Figure contains an axes object. The axes object with title Five-Node Factor Graph contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Pose Node, Pose Edge.

    lim = axis;

    Remove the last factor in the factor graph.

    removedNodeIDs = removeFactor(fg,fg.NumFactors-1)
    removedNodeIDs =
5

    Note that removeFactor removed the last node with an ID of 5 along with the last factor because after removeFactor removes the last factor, the last node has no other factors connected to it.

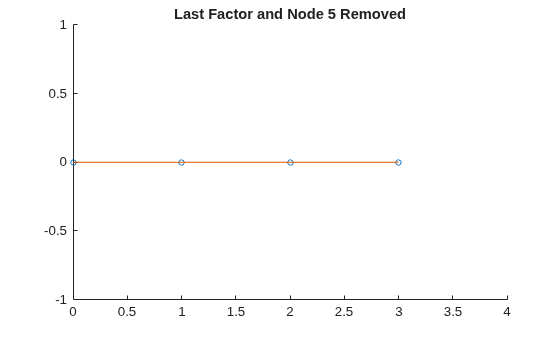

    Show the factor graph again to visualize this change.

    show(fg);
title("Last Factor and Node 5 Removed")
axis(lim)

    Figure contains an axes object. The axes object with title Last Factor and Node 5 Removed contains 2 objects of type line. One or more of the lines displays its values using only markers

    Input Arguments

    collapse all

    Factor graph, specified as a factorGraph object.

    ID of factor to remove, specified as a nonnegative integer or an N-element array of nonnegative integers. N is the total number of factors to remove.

    Output Arguments

    collapse all

    IDs of removed nodes that became disconnected after removing the specified factor, returned as an M-element vector of nonnegative integers. M is the number of nodes that would become completely disconnected as a result of removing related factors.

    Extended Capabilities

    Version History

    Introduced in R2024a
