importFactorGraph

Import factor graph from g2o log file

Since R2022a

collapse all in page

    Syntax

    graph = importFactorGraph(filename)

    Description

    graph = importFactorGraph(filename) imports a factor graph from the specified G2o file filename.

    example

    Examples

    collapse all

    Open Live Script

    Import factor graph from the huskyGazebo2DPG.g2o file.

    fg = importFactorGraph("huskyGazebo2DPG.g2o")
    fg =
  factorGraph with properties:

      NumNodes: 152
    NumFactors: 357

    Get the node type of the first pose node.

    type = nodeType(fg,1)
    type =
"POSE_SE2"

    Get all of the pose nodes of the same type.

    poseIDs = nodeIDs(fg,NodeType=type)
    poseIDs = 1×152

     0     1     2     3     4     5     6     7     8     9    10    11    12    13    14    15    16    17    18    19    20    21    22    23    24    25    26    27    28    29    30    31    32    33    34    35    36    37    38    39    40    41    42    43    44    45    46    47    48    49

    Fix the first node so it is an anchor during optimization and then optimize the factor graph with default solver options.

    fixNode(fg,0);
optimize(fg);
poses = nodeState(fg,poseIDs);

    Plot the poses of the factor graph as an SE(2) transformations.

    poseTFs = se2(poses,"xytheta");
plotTransforms(poseTFs,FrameSize=0.5);
xlabel("x(m)")
ylabel("y(m)")
title("Imported Factor Graph")

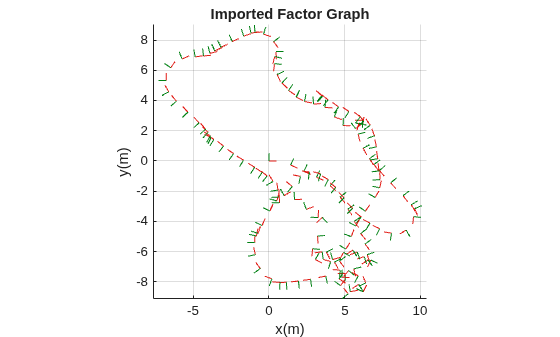

    Figure contains an axes object. The axes object with title Imported Factor Graph, xlabel x(m), ylabel y(m) contains 456 objects of type patch, line.

    Input Arguments

    collapse all

    Name of the G2o log file to import a factor graph from, specified as a string scalar or character vector. The specified G2o log file must contain either only 'EDGE_SE2' and 'VERTEX_SE2' tokens, or only 'EDGE_SE3:QUAT' and 'VERTEX_SE3:QUAT' tokens.

    Output Arguments

    collapse all

    Factor graph imported from the G2o file, returned as a factorGraph object.

    Version History

    Introduced in R2022a
