stateSamplerGaussian

Sample State Space Using Gaussian State Sampler

Create a Gaussian state sampler with default parameter values. By default:

sampler_orig = stateSamplerGaussian(sv)

sampler_orig =
  stateSamplerGaussian with properties:

           StateSpace: [1x1 stateSpaceSE2]
       StateValidator: [1x1 validatorOccupancyMap]
    StandardDeviation: [0.1000 0.1000 0.0628]
          MaxAttempts: 10

Generate 40 samples for motion planning from the input state space.

states_orig = sample(sampler_orig,40);

You can generate optimal samples by modifying the maximum number of attempts and standard deviation values. If the samples are scattered all over the input space, increase the maximum number of attempts and the standard deviation values to concentrate the state samples around the obstacle boundary.

Vary Maximum Number of Attempts

Create copies of the original state sampler object and modify the maximum number of attempts, property of the sampler, MaxAttempts, to study its impact on the sampling results. Set the standard deviation values to default values.

Set the maximum number of attempts to find valid samples to 100, and generate 40 new samples from the input state space.

sampler_2 = copy(sampler_orig);
sampler_2.MaxAttempts = 100;
states_2 = sample(sampler_2,40);

Set the maximum number of attempts to find valid samples to 200, and generate 40 new samples from the input state space.

sampler_3 = copy(sampler_orig);
sampler_3.MaxAttempts = 200;
states_3 = sample(sampler_3,40);

Display the results using the helperDisplayStates helper function. Note that, as the number of attempts increases, the samples concentrate more around the obstacle boundary.

helperDisplayStates(map,states_orig,sampler_2,states_2,sampler_3,states_3,"MaxAttempts");

Vary Standard Deviation

Create copies of the original state sampler object and modify the standard deviation, property of the sampler, StandardDeviation, to study its impact on the sampling results. Set the maximum number of attempts to 200.

Generate 40 samples with the default standard deviation values.

sampler_orig.MaxAttempts = 200;
states_orig = sample(sampler_orig,40);

Set the standard deviation values to [0.01 0.01 0.06]. Generate 40 new samples from the input state space.

sampler_4 = copy(sampler_orig);
sampler_4.StandardDeviation = [0.01 0.01 0.06];
states_4 = sample(sampler_4,40);

Set the standard deviation values to [0.5 0.5 0.06]. Generate 40 new samples from the input state space.

sampler_5 = copy(sampler_orig);
sampler_5.StandardDeviation = [0.5 0.5 0.06];
states_5 = sample(sampler_5,40);

Display the results using the helperDisplayStates helper function. Note that, as you increase the standard deviation values, the samples concentrate more around the obstacle boundary. However, if the standard deviation values are greater than the width of the narrow passages in the input space, the sampler generates incorrect results.

helperDisplayStates(map,states_orig,sampler_4,states_4,sampler_5,states_5,"Std.Deviation");

Helper Function

helperDisplayStates displays results using a custom figure window.

function helperDisplayStates(map,states_orig,sampler_2,states_2,sampler_3,states_3,select)
if select == "MaxAttempts"
    title_1 = "MaxAttempts = 10 (Default value)";
    title_2 = strcat("MaxAttempts = ",num2str(sampler_2.MaxAttempts));
    title_3 = strcat("MaxAttempts = ",num2str(sampler_3.MaxAttempts));
elseif select == "Std.Deviation"
    title_1 = "StandardDeviation = [0.1 0.1 0.06] (Default value)";
    title_2 = strcat("StandardDeviation = [0.01 0.01 0.06]");
    title_3 = strcat("StandardDeviation = [0.5 0.5 0.06]");
end

fig_1 = figure(Position=[0 0 700 300]);
movegui("center")
panel_1 = uipanel(fig_1, ...
    Position=[0 0 0.33 1], ...
    Title=title_1);
hPlot1 = axes(panel_1);
show(map,Parent=hPlot1);
hold on;
plot(states_orig(:,1),states_orig(:,2),plannerLineSpec.state{:})
hold off

panel_2 = uipanel(fig_1, ...
    Position=[0.33 0 0.33 1], ...
    Title=title_2);
hPlot2 = axes(panel_2);
show(map,Parent=hPlot2);
hold on;
plot(states_2(:,1),states_2(:,2),plannerLineSpec.state{:})
hold off

panel_3 = uipanel(fig_1, ...
    Position=[0.66 0 0.33 1], ...
    Title=title_3);
hPlot3 = axes(panel_3);
show(map,Parent=hPlot3);
hold on;
plot(states_3(:,1),states_3(:,2),plannerLineSpec.state{:})
hold off
end

Create Occupancy Map and Find State Variables

Load a binary map representing the input state space environment into MATLAB® workspace.

load("mapData.mat")

Create an occupancy map from the input.

map = occupancyMap(narrowPassageMap);

Find the lower and upper limits of the state space variables x, y, and theta from the occupancy map.

x = map.XWorldLimits;
y =  map.YWorldLimits;
theta = [-pi pi];

Create Gaussian State Sampler

Create a state space SE(2) object using the specified state space variables.

stateSpace = stateSpaceSE2([x; y; theta]);

Check the validity of the states in the input state space by using a state validator.

stateValidator = validatorOccupancyMap(stateSpace,Map=map);

Create a Gaussian state sampler to sample the specified state space. Set the standard deviation values.

sampler = stateSamplerGaussian(stateValidator,StandardDeviation=[25 5 0.05]);

Configure PRM Path Planner

Configure the PRM path planner. Use the Gaussian state sampler to sample the input state space.

planner = plannerPRM(stateSpace,stateValidator,StateSampler=sampler);

Find Optimal Path Between Two States

Specify the start point and the goal point in the input state space.

start = [55 50 0];
goal = [210 190 0];

Compute the optimal path between the start point and the goal point using the PRM path planner.

[path,info] = plan(planner,start,goal);

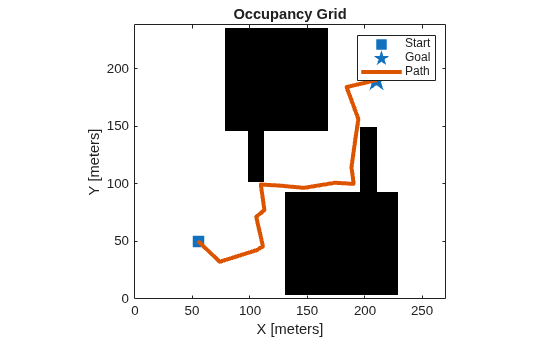

Visualize the Results

Display the occupancy map.

figure
show(map)
hold on

Plot the start point and the goal point. Specify the default color and line properties for plotting the start and goal points by using the plannerLineSpec.startt and plannerLineSpec.goal functions, respectively.

plot(start(1),start(2),plannerLineSpec.start{:});
plot(goal(1),goal(2),plannerLineSpec.goal{:});

If the planner has found an optimal path between the start and goal states, plot the results. Use the plannerLineSpec.path function to specify the default color and line properties for plotting the path.

if info.IsPathFound
    plot(path.States(:,1),path.States(:,2),plannerLineSpec.path{:})
    legend
else
    disp("Path not found. Try modifying the planner parameters.");
end
