Run parfor-Loops Without a Parallel Pool

Create Cluster Object

Create the cluster object to and display the number of workers available in the cluster. HPCProfile is a profile for a MATLAB® Job Scheduler cluster.

cluster = parcluster("HPCProfile");
maxNumWorkers = cluster.NumWorkers;
fprintf("Number of workers available: %d",maxNumWorkers)

Number of workers available: 496

Define Simulation Parameters

Set the simulation period, time interval, and initial states for the mass-spring system ODE.

period = [0 2]; % Use a period from 0 to 2 seconds
h = 0.001; % time step
t_interval = period(1):h:period(2);
y0 = [0 0.1];

Set the number of iterations.

nReps = 10000000;

Initialize the random number generator and create an array of damping coefficients sampled from a uniform distribution with the range [800,1200].

rng(0);
a = 800;
b = 1200;
d = (b-a).*rand(nReps,1)+a;

Run ODE Solver in Parallel

Initialize the results variable for the reduction operation.

y_sum = zeros(numel(t_interval),1);

Execute the ODE solver in a parfor-loop to simulate the system with varying damping coefficients. To run the parfor computations directly on the cluster, pass the cluster object as the second input argument to parfor. Use a reduction variable to compute the sum of the motion at each time step.

parfor(n = 1:nReps,cluster)
    f = @(t,y) massSpringODE(t,y,d(n));
    [tOut,yOut] = ode45(f,t_interval,y0);
    y_sum = y_sum + yOut(:,1);
end

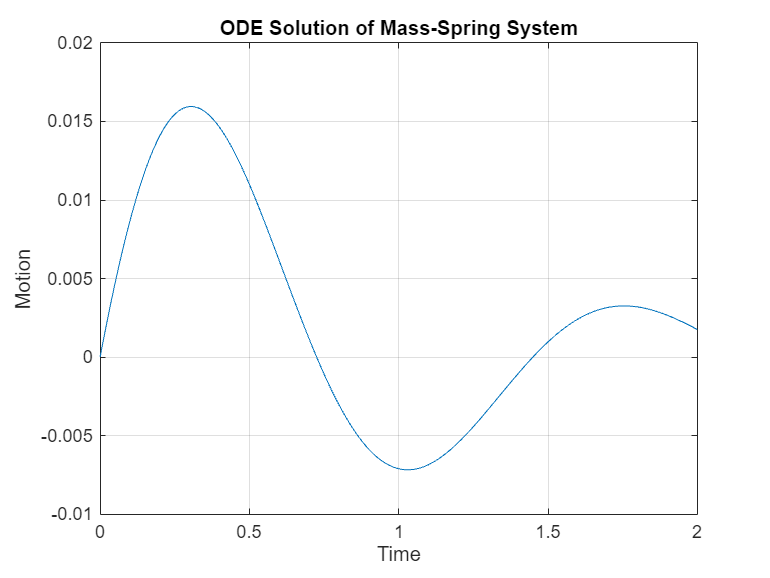

Compute the mean response of the system and plot the response against time.

meanY = y_sum./numel(d);
plot(t_interval,meanY)
title("ODE Solution of Mass-Spring System")
xlabel("Time")
ylabel("Motion")
grid on

Compare Computational Speedup

Compare the computational speedup of running the parfor-loop directly on the cluster to that of running the parfor-loop on a parallel pool.

Use the timeExecution helper function attached to this example to measure the execution time of the parfor-loop workflow on the client, on a parallel pool with 496 workers, and directly on a cluster with 496 workers available.

[serialTime,hpcPoolTime,hpcClusterTime] = timeExecution("HPCProfile",maxNumWorkers);
elapsedTimes = [serialTime hpcPoolTime hpcClusterTime];

Calculate the computational speedup.

speedUp = elapsedTimes(1)./elapsedTimes;
fprintf("Speedup on cluster = %4.2f\nSpeedup on pool = %4.2f",speedUp(3),speedUp(2))

Speedup on cluster = 154.11
Speedup on pool = 171.23

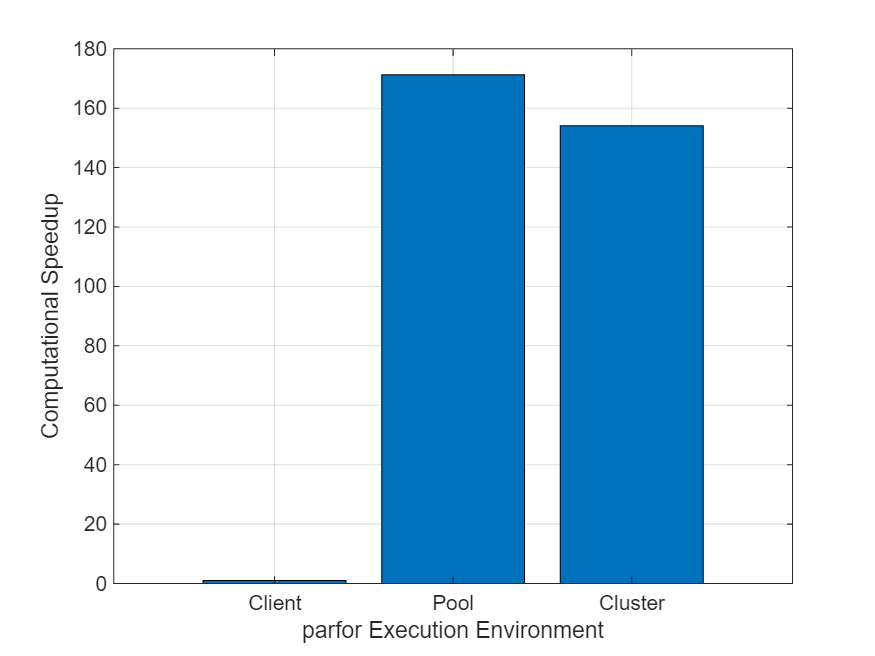

Create a bar chart comparing the speedup of each execution. The chart shows that running the parfor-loop directly on the cluster has a similar speedup to that of running the parfor-loop on a parallel pool.

figure;
x = ["Client","Pool","Cluster"];
bar(x,speedUp);
ylabel("Computational Speedup")
xlabel("parfor Execution Environment")
grid on

The speedup values are similar because the example uses a MATLAB Job Scheduler cluster. When you run the parfor-loop directly on a MATLAB Job Scheduler cluster, parfor can sometimes resuse workers without restarting them between iterations, which reduces overheads. If you run the parfor-loop directly on a third-party scheduler cluster, parfor restarts workers between iterations, which can result in significant overheads and much lower speedup values.

Helper Functions

This helper function represents the mass-spring system's ODEs that the solver uses.

You can rewrite the differential equation that describes the spring-mass system (eq1) as a system of first-order ODEs (eq2) that you can solve using the ode45 solver.

$d\underset{}{\overset{\dot{}}{x}}(t)+kx(t)+m\underset{}{\overset{¨}{x}}(t)=0$ (eq1)

$$\begin{array}{l}{\underset{}{\overset{\dot{}}{y}}}_1=y_2\\ {\underset{}{\overset{\dot{}}{y}}}_2=-\frac{d{y}_2+k{y}_1}{m}\end{array}$$ (eq2)

function dy = massSpringODE(t,y0,d)
k = 9000; % spring stiffness (N/m)
m = 450; % mass (kg)

dy = zeros(2,1);
dy(1) = y0(2);
dy(2) = -(d*y0(2)+k*y0(1))/m;
end

References

[1] Breitenecker, Felix, Gerhard Höfinger, Thorsten Pawletta, Sven Pawletta, and Rene Fink. "ARGESIM Benchmark on Parallel and Distributed Simulation." Simulation News Europe SNE 17, no. 1 (2007): 53-56.

[2] Jammer, David, Peter Junglas, and Sven Pawletta. “Solving ARGESIM Benchmark CP2 ’Parallel and Distributed Simulation’ with Open MPI/GSL and Matlab PCT - Monte Carlo and PDE Case Studies.” SNE Simulation Notes Europe 32, no. 4 (December 2022): 211–20. https://doi.org/10.11128/sne.32.bncp2.10625.
