addFace

Fill void regions in 2-D and split cells in 3-D geometry

Since R2020a

Description

h = addFace(g,edges) adds a new face to the geometry g. The specified edges must form a closed contour. For a 2-D geometry, adding a new face lets you fill voids in the geometry. For a 3-D geometry, adding a new face lets you split one cell into multiple cells.

You can add several new faces simultaneously by specifying their contours in a cell array. Each contour in the cell array must be unique.

Note

After modifying a geometry, always call generateMesh to ensure a proper mesh association with the new geometry.

example

[h,FaceID] = addFace(g,edges) also returns a row vector containing IDs of the added faces.

example

Examples

collapse all

Add a face to a 2-D geometry to fill an internal void.

Create an fegeometry object representing a plate with a hole in its center. This geometry has one face.

gm = fegeometry("PlateSquareHolePlanar.stl")
gm =
  fegeometry with properties:

       NumCells: 0
       NumFaces: 1
       NumEdges: 8
    NumVertices: 8
       Vertices: [8x3 double]
           Mesh: []

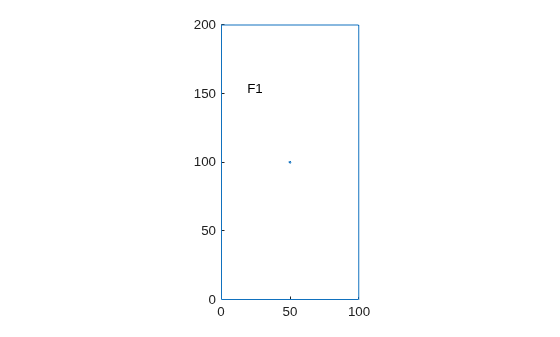

Plot the geometry and display the face labels.

pdegplot(gm,FaceLabels="on")

Figure contains an axes object. The axes object contains an object of type line.

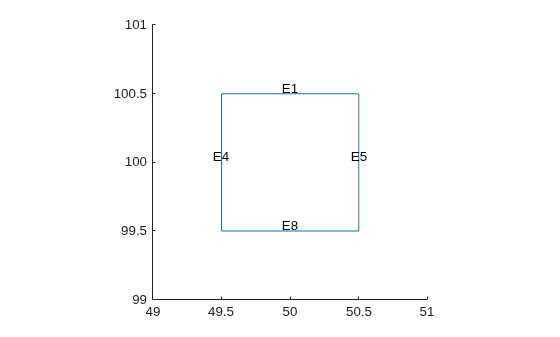

Zoom in and display the edge labels of the small hole at the center.

figure
pdegplot(gm,EdgeLabels="on")
axis([49 51 99 101])

Figure contains an axes object. The axes object contains an object of type line.

Fill the hole by adding a face. The number of faces in the geometry changes to 2.

gm = addFace(gm,[1 8 4 5])
gm =
  fegeometry with properties:

       NumCells: 0
       NumFaces: 2
       NumEdges: 8
    NumVertices: 8
       Vertices: [8x3 double]
           Mesh: []

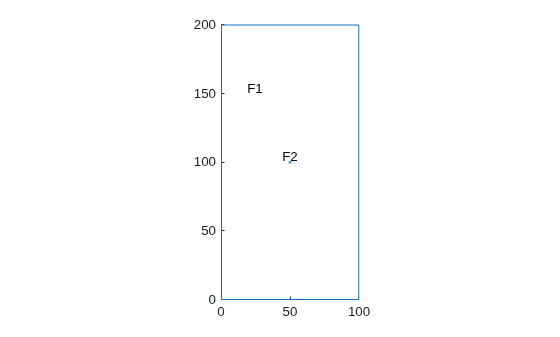

Plot the modified geometry and display the face labels.

pdegplot(gm,FaceLabels="on")

Figure contains an axes object. The axes object contains an object of type line.

Add a face in a 3-D geometry to split a cell into two cells.

Create a geometry that consists of one cell.

gm = fegeometry("MotherboardFragment1.stl")
gm =
  fegeometry with properties:

       NumCells: 1
       NumFaces: 26
       NumEdges: 46
    NumVertices: 34
       Vertices: [34x3 double]
           Mesh: []

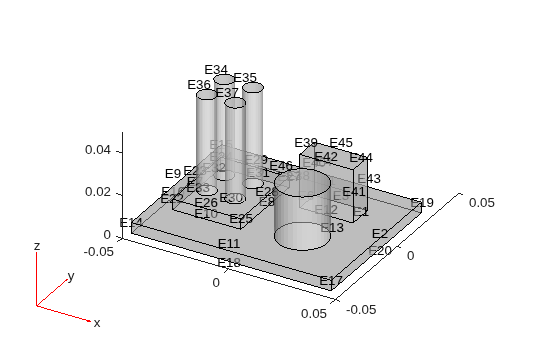

Plot the geometry and display the edge labels. Zoom in on the corresponding part of the geometry to see the edge labels there more clearly.

pdegplot(gm,EdgeLabels="on",FaceAlpha=0.5)

xlim([-0.05 0.05])
ylim([-0.05 0.05])
zlim([0 0.05])

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Split the cuboid on the right side into a separate cell. For this, add a face bounded by edges 1, 3, 6, and 12.

[gm,ID] = addFace(gm,[1 3 6 12])
gm =
  fegeometry with properties:

       NumCells: 2
       NumFaces: 27
       NumEdges: 46
    NumVertices: 34
       Vertices: [34x3 double]
           Mesh: []

ID =
27

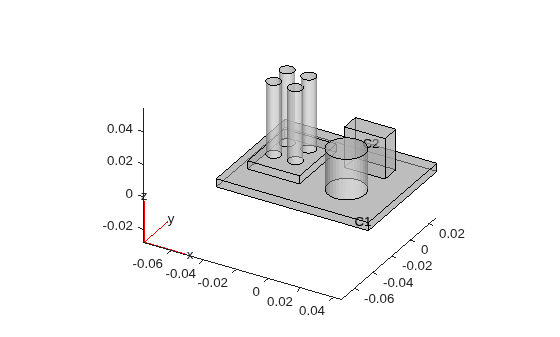

Plot the modified geometry and display the cell labels.

pdegplot(gm,CellLabels="on",FaceAlpha=0.5)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Now split the cuboid on the left side of the board and all cylinders into separate cells by adding a face at the bottom of each shape. To see edge labels more clearly, zoom and rotate the plot. Use a cell array to add several new faces simultaneously.

[gm,IDs] = addFace(gm,{[5 7 8 10], ...
                        30, ...
                        31, ...
                        32, ...
                        33, ...
                        13})
gm =
  fegeometry with properties:

       NumCells: 8
       NumFaces: 33
       NumEdges: 46
    NumVertices: 34
       Vertices: [34x3 double]
           Mesh: []

IDs = 6×1

    28
    29
    30
    31
    32
    33

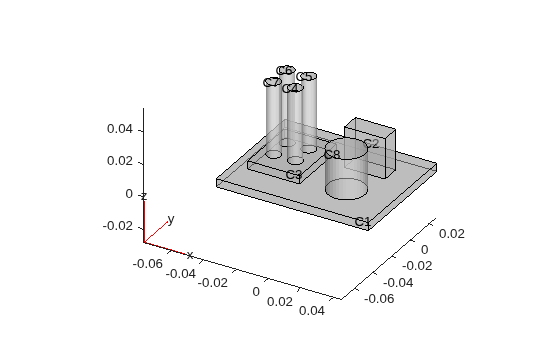

Plot the modified geometry and display the cell labels.

pdegplot(gm,CellLabels="on",FaceAlpha=0.5)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Input Arguments

collapse all

Geometry, specified as an fegeometry object, a DiscreteGeometry, or an AnalyticGeometry object.

Edges forming a unique closed flat contour, specified as a vector of positive integers or a cell array of such vectors. You can specify edges within a vector in any order.

When you use a cell array to add several new faces, each contour in the cell array must be unique.

Example: addFace(g,[1 3 4 7])

Output Arguments

collapse all

  • If the original geometry g is an fegeometry object, then h is a new fegeometry object representing the modified geometry. The original geometry g remains unchanged.

  • If the original geometry g is a DiscreteGeometry AnalyticGeometry object, then h is a handle to the modified object g.

Face ID, returned as a positive number or a row vector of positive numbers. Each number represents a face ID. When you add a new face to a geometry with N faces, the ID of the added face is N + 1.

Tips

  • addFace errors when the specified contour defines an already existing face.

  • If the original geometry g is a DiscreteGeometry or AnalyticGeometry object, addFace modifies the original geometry g.

  • If the original geometry g is an fegeometry object, and you want to replace it with the modified geometry, assign the output to the original geometry, for example, g = addFace(g,[1 3 4 7]).

Version History

Introduced in R2020a
