phased.SubbandMVDRBeamformer

Wideband minimum-variance distortionless-response beamformer

Description

The phased.SubbandMVDRBeamformer System object™ implements a wideband minimum variance distortionless response beamformer (MVDR) based on the subband processing technique. This type of beamformer is also called a Capon beamformer.

To beamform signals arriving at an array:

Create the phased.SubbandMVDRBeamformer object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

beamformer = phased.SubbandMVDRBeamformer

beamformer = phased.SubbandMVDRBeamformer(Name,Value)

Description

beamformer = phased.SubbandMVDRBeamformer creates a subband MVDR beamformer System object, beamformer. The object performs subband MVDR beamforming on the received signal.

beamformer = phased.SubbandMVDRBeamformer(Name,Value) creates a subband MVDR beamformer System object, beamformer, with each specified property Name set to the specified Value. You can specify additional name-value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: beamformer = phased.SubbandMVDRBeamformer('SensorArray',phased.URA('Size',[5 5]),'OperatingFrequency',500e6) sets the sensor array to a 5-by-5 uniform rectangular array (URA) with all other default URA property values. The beamformer has an operating frequency of 500 MHz.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`SensorArray` — Sensor array
`phased.ULA` array with default property values (default) | Phased Array System Toolbox™ array

Sensor array, specified as an array System object belonging to Phased Array System Toolbox. The sensor array can contain subarrays.

Example: phased.URA

`PropagationSpeed` — Signal propagation speed (meters/second)
`physconst('LightSpeed')` (default) | real-valued positive scalar

Signal propagation speed, specified as a real-valued positive scalar. Units are in meters per second. The default propagation speed is the value returned by physconst('LightSpeed').

Example: 3e8

Data Types: single | double

`OperatingFrequency` — Operating frequency (Hz)
`300e6` (default) | positive scalar

Operating frequency, specified as a positive scalar. Units are in Hz.

Example: 1e9

Data Types: single | double

`SampleRate` — Sample rate of signal
`1e6` (default) | positive scalar

Sample rate of signal, specified as a positive scalar. Units are in Hz. The System object uses this quantity to calculate the propagation delay in units of samples.

Example: 1e6

Data Types: single | double

`NumSubbands` — Number of processing subbands
`64` (default) | positive integer

Number of processing subbands, specified as a positive integer.

Example: 128

Data Types: double

`DirectionSource` — Source of beamforming direction
`'Property'` (default) | `'Input port'`

Source of beamforming direction, specified as 'Property' or 'Input port'. Specify whether the beamforming direction comes from the Direction property of this object or from the input argument, ANG. Values of this property are:

`'Property'`	Specify the beamforming direction using the `Direction` property.
`'Input port'`	Specify the beamforming direction using the input argument, `ANG`.

Data Types: char

`Direction` — Beamforming directions
`[0;0]` (default) | real-valued 2-by-1 vector | real-valued 2-by-L matrix

Beamforming directions, specified as a real-valued 2-by-1 vector or a real-valued 2-by-L matrix. For a matrix, each column specifies a different beamforming direction. Each column has the form [AzimuthAngle;ElevationAngle]. Azimuth angles must lie between –180° and 180° and elevation angles must lie between –90° and 90°. All angles are defined with respect to the local coordinate system of the array. Units are in degrees.

Example: [40;30]

Dependencies

To enable this property, set the DirectionSource property to 'Property'.

Data Types: single | double

`DiagonalLoadingFactor` — Diagonal loading factor
`0` (default) | nonnegative scalar

Diagonal loading factor, specified as a nonnegative scalar. Diagonal loading is a technique used to achieve robust beamforming performance, especially when the sample size is small. A small sample size can lead to an inaccurate estimate of the covariance matrix. Diagonal loading also provides robustness due to steering vector errors. The diagonal loading technique adds a positive scalar multiple of the identity matrix to the sample covariance matrix.

Tunable: Yes

Data Types: single | double

`TrainingInputPort` — Enable training data input
`false` (default) | `true`

Enable training data input, specified as false or true. When you set this property to true, use the training data input argument, XT, when running the object. Set this property to false to use the input data, X, as the training data.

Data Types: logical

`WeightsOutputPort` — Enable beamforming weights output
`false` (default) | `true`

Enable the output of beamforming weights, specified as false or true. To obtain the beamforming weights, set this property to true and use the corresponding output argument, W. If you do not want to obtain the weights, set this property to false.

Data Types: logical

`SubbandsOutputPort` — Option to enable output of subband center frequencies
`false` (default) | `true`

Option to enable output of subband center frequencies, specified as either true or false. To obtain the subband center frequencies, set this property to true and use the corresponding output argument FREQS when calling the object.

Data Types: logical

Usage

Syntax

Y = beamformer(X)

Y = beamformer(X,XT)

Y = beamformer(X,ANG)

[Y,W]
= beamformer(___)

[Y,FREQS] = beamformer(___)

[Y,W,FREQS]
= beamformer(X,XT,ANG)

Description

Y = beamformer(X) performs wideband MVDR beamforming on the input, X, and returns the beamformed output in Y. This syntax uses X for training samples to calculate the beamforming weights. Use the Direction property to specify the beamforming direction.

Y = beamformer(X,XT) uses XT for training samples to calculate the beamforming weights.

Y = beamformer(X,ANG) uses ANG as the beamforming direction. This syntax applies when you set the DirectionSource property to 'Input port'.

[Y,W] = beamformer(___) returns the beamforming weights, W. This syntax applies when you set the WeightsOutputPort property to true.

[Y,FREQS] = beamformer(___) returns the center frequencies of the subbands, FREQS. This syntax applies when you set the SubbandsOutputPort property to true.

You can combine optional input arguments when you set their enabling properties. Optional input arguments must be listed in the same order as their enabling properties. For example, [Y,W,FREQS] = beamformer(X,XT,ANG) is valid when you specify TrainingInputPort as true and set DirectionSource to 'Input port'.

example

Input Arguments

expand all

`X` — Wideband input signal
M-by-N complex-valued matrix

Wideband input signal, specified as an M-by-N matrix, where N is the number of array elements. M is the number of samples in the data. If the sensor array consists of subarrays, N is then the number of subarrays.

The size of the first dimension of the input matrix can vary to simulate a changing signal length. A size change can occur, for example, in the case of a pulse waveform with variable pulse repetition frequency.

If you set the TrainingInputPort to false, then the object uses X as training data. In this case, the dimension M must be greater than N×NB. where NB is the number of subbands specified in the NumSubbands.

If you set TrainingInputPort to true, use the XT argument to supply training data. In this case, the dimension M can be any positive integer.

Example: [1,1;j,1;0.5,0]

Data Types: single | double
Complex Number Support: Yes

`XT` — Wideband training samples
P-by-N complex-valued matrix

Wideband training samples, specified as a P-by-N matrix where N is the number of elements. If the sensor array consists of subarrays, then N represents the number of subarrays.

This argument applies when you set TrainingInputPort to true. The dimension P is the number of samples in the training data. P must be larger than N×NB, where NB is the number of subbands specified in the NumSubbands property.

Example: FT = [1,1;j,1;0.5,0]

Data Types: single | double
Complex Number Support: Yes

`ANG` — Beamforming direction
2-by-L real-valued matrix

Beamforming direction, specified as a 2-by-L real-valued matrix, where L is the number of beamforming directions. This argument applies only when you set the DirectionSource property to 'Input port'. Each column takes the form of [AzimuthAngle;ElevationAngle]. Angle units are in degrees. The azimuth angle must lie between –180° and 180°. The elevation angle must lie between –90° and 90°. Angles are defined with respect to the local coordinate system of the array.

Example: [40 30;0 10]

Data Types: single | double

Output Arguments

expand all

`Y` — Beamformed output
M-by-L complex-valued matrix

Beamformed output, returned as an M-by-L complex-valued matrix. The quantity M is the number of signal samples and L is the number of beamforming directions specified in the ANG argument.

`W` — Beamforming weights
N-by-K-by-L complex-valued matrix

Beamforming weights, returned as an N-by-K-by-L complex-valued matrix. The quantity N is the number of sensor elements or subarrays and K is the number of subbands specified by the NumSubbands property. The quantity L is the number of beamforming directions. Each column of W contains the narrowband beamforming weights used in the corresponding subband for the corresponding directions.

Dependencies

To return this output, set the WeightsOutputPort property to true.

Data Types: single | double

`FREQS` — Center frequencies of subbands
K-by-1 real-valued column vector

Center frequencies of subbands, returned as a K-by-1 real-valued column vector. The quantity K is the number of subbands specified by the NumSubbands property.

Dependencies

To return this output, set the SubbandsOutputPort property to true.

Data Types: single | double

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Examples

collapse all

Subband MVDR Beamforming of ULA

Open Live Script

Apply subband MVDR beamforming to an underwater acoustic 11-element ULA. The incident angle of the signal is $1 0^{\circ}$ azimuth and $0^{\circ}$ elevation. The signal is an FM chirp having a bandwidth of 1 kHz. The speed of sound is 1500 m/s.

Simulate signal

array = phased.ULA('NumElements',11,'ElementSpacing',0.3);
fs = 2e3;
carrierFreq = 2000;
t = (0:1/fs:2)';
sig = chirp(t,0,2,fs/2);
c = 1500;
collector = phased.WidebandCollector('Sensor',array,'PropagationSpeed',c,...
    'SampleRate',fs,'ModulatedInput',true,...
    'CarrierFrequency',carrierFreq);
incidentAngle = [10;0];
sig1 = collector(sig,incidentAngle);
noise = 0.3*(randn(size(sig1)) + 1j*randn(size(sig1)));
rx = sig1 + noise;

Apply MVDR beamforming

beamformer = phased.SubbandMVDRBeamformer('SensorArray',array,...
    'Direction',incidentAngle,'OperatingFrequency',carrierFreq,...
    'PropagationSpeed',c,'SampleRate',fs,'TrainingInputPort',true, ...
    'SubbandsOutputPort',true,'WeightsOutputPort',true);
[y,w,subbandfreq] = beamformer(rx, noise);

Plot the signal that is input to the middle sensor (channel 6) vs the beamformer output.

plot(t(1:300),real(rx(1:300,6)),'r:',t(1:300),real(y(1:300)))
xlabel('Time')
ylabel('Amplitude')
legend('Original','Beamformed');

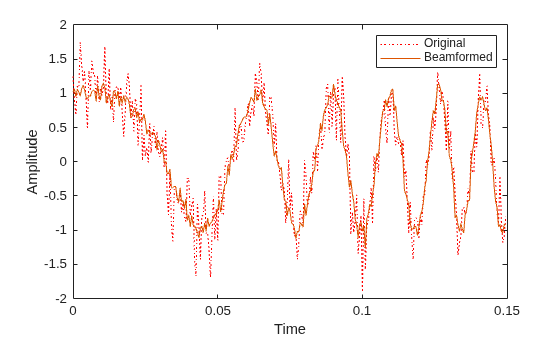

Figure contains an axes object. The axes object with xlabel Time, ylabel Amplitude contains 2 objects of type line. These objects represent Original, Beamformed.

Plot array response

Plot the response pattern for five bands

pattern(array,subbandfreq(1:5).',-180:180,0,...
    'PropagationSpeed',c,'Weights',w(:,1:5));

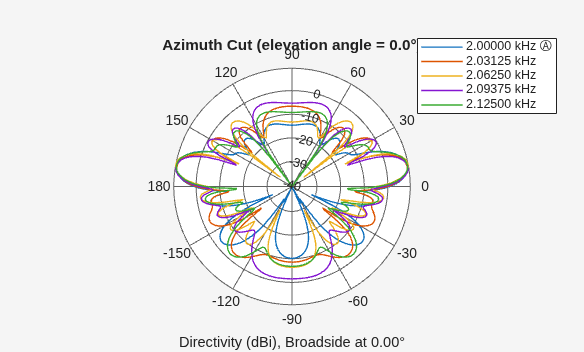

Figure contains an axes object. The hidden axes object contains 7 objects of type line, text. These objects represent 2.00000 kHz Ⓐ , 2.03125 kHz , 2.06250 kHz , 2.09375 kHz , 2.12500 kHz .

Subband MVDR Beamforming of Array with Interference

Open Live Script

Apply subband MVDR beamforming to an underwater acoustic 11-element ULA. Beamform the arriving signals to optimize the gain of a linear FM chirp signal arriving from 0 degrees azimuth and 0 degrees elevation. The signal has a bandwidth of 2.0 kHz. In addition, there unit amplitude 2.250 kHz interfering sine wave arriving from 28 degrees azimuth and 0 degrees elevation. Show how the MVDR beamformer nulls the interfering signal. Display the array pattern for several frequencies in the neighborhood of 2.250 kHz. The speed of sound is 1500 meters/sec.

Simulate Arriving Signal and Noise

array = phased.ULA('NumElements',11,'ElementSpacing',0.3);
fs = 2000;
carrierFreq = 2000;
t = (0:1/fs:2)';
sig = chirp(t,0,2,fs/2);
c = 1500;
collector = phased.WidebandCollector('Sensor',array,'PropagationSpeed',c,...
    'SampleRate',fs,'ModulatedInput',true,...
    'CarrierFrequency',carrierFreq);
incidentAngle = [0;0];
sig1 = collector(sig,incidentAngle);
noise = 0.3*(randn(size(sig1)) + 1j*randn(size(sig1)));

Simulate Interfering Signal

Combine both the desired and interfering signals.

fint = 250;
sigint = sin(2*pi*fint*t);
interfangle = [28;0];
sigint1 = collector(sigint,interfangle);
rx = sig1 + sigint1 + noise;

Apply MVDR Beamforming

Use the combined noise and interfering signal as training data.

beamformer = phased.SubbandMVDRBeamformer('SensorArray',array,...
    'Direction',incidentAngle,'OperatingFrequency',carrierFreq,...
    'PropagationSpeed',c,'SampleRate',fs,'TrainingInputPort',true,...
    'NumSubbands',64,...
    'SubbandsOutputPort',true,'WeightsOutputPort',true);
[y,w,subbandfreq] = beamformer(rx,sigint1 + noise);
tidx = [1:300];
plot(t(tidx),real(rx(tidx,6)),'r:',t(tidx),real(y(tidx)))
xlabel('Time')
ylabel('Amplitude')
legend('Original','Beamformed')

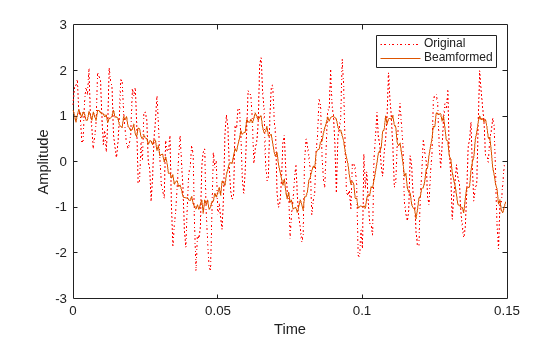

Figure contains an axes object. The axes object with xlabel Time, ylabel Amplitude contains 2 objects of type line. These objects represent Original, Beamformed.

Plot Array Response Showing Beampattern Null

Plot the response pattern for five bands near 2.250 kHz.

fdx = [5,7,9,11,13];
pattern(array,subbandfreq(fdx).',-50:50,0,...
    'PropagationSpeed',c,'Weights',w(:,fdx),...
    'CoordinateSystem','rectangular');

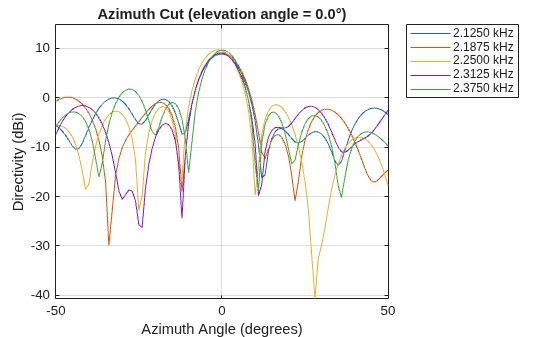

Figure contains an axes object. The axes object with title Azimuth Cut (elevation angle = 0.0°), xlabel Azimuth Angle (degrees), ylabel Directivity (dBi) contains 5 objects of type line. These objects represent 2.1250 kHz, 2.1875 kHz, 2.2500 kHz, 2.3125 kHz, 2.3750 kHz.

The beamformer places a null at 28 degrees for the subband containing 2.250 kHz.

More About

expand all

Diagonal Loading

Diagonal loading is a technique to improve beamformer robustness when stability issues arise from steering vector errors or finite sample size effects. This technique adds a positive real-valued multiple of the identity matrix to the correlation matrix of the received array data vector. You can apply diagonal loading using the DiagonalLoadingFactor property.

Algorithms

expand all

Data Precision

This System object supports single and double precision for input data, properties, and arguments. If the input data X is single precision, the output data is single precision. If the input data X is double precision, the output data is double precision. The precision of the output is independent of the precision of the properties and other arguments.

Subband Frequency Processing

Subband processing decomposes a wideband signal into multiple subbands and applies narrowband processing to the signal in each subband. The signals for all subbands are summed to form the output signal.

When using wideband frequency System objects or blocks, you specify the number of subbands, N_B, in which to decompose the wideband signal. Subband center frequencies and widths are automatically computed from the total bandwidth and number of subbands. The total frequency band is centered on the carrier or operating frequency, f_c. The overall bandwidth is given by the sample rate, f_s. Frequency subband widths are Δf = f _s/N_B. The center frequencies of the subbands are

$f_{m} = {\begin{matrix} f_{c} - \frac{f_{s}}{2} + (m - 1) Δ f, N_{B} even \\ f_{c} - \frac{(N_{B} - 1) f_{s}}{2 N_{B}} + (m - 1) Δ f, N_{B} odd \end{matrix}, m = 1, \dots, N_{B}$

Some System objects let you obtain the subband center frequencies as output when you run the object. The returned subband frequencies are ordered consistently with the ordering of the discrete Fourier transform. Frequencies above the carrier appear first, followed by frequencies below the carrier.

References

[1] Van Trees, H. Optimum Array Processing. New York: Wiley-Interscience, 2002.

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:.

See System Objects in MATLAB Code Generation (MATLAB Coder)
This System object supports single and double precision for input data, properties, and arguments. If the input data X is single precision, the output data is single precision. If the input data X is double precision, the output data is double precision. The precision of the output is independent of the precision of the properties and other arguments.

Version History

Introduced in R2015b

phased.SubbandMVDRBeamformer

Description

Creation

Syntax

Description

Properties

SensorArray — Sensor array phased.ULA array with default property values (default) | Phased Array System Toolbox™ array

PropagationSpeed — Signal propagation speed (meters/second) physconst('LightSpeed') (default) | real-valued positive scalar

OperatingFrequency — Operating frequency (Hz) 300e6 (default) | positive scalar

SampleRate — Sample rate of signal 1e6 (default) | positive scalar

NumSubbands — Number of processing subbands 64 (default) | positive integer

DirectionSource — Source of beamforming direction 'Property' (default) | 'Input port'

Direction — Beamforming directions [0;0] (default) | real-valued 2-by-1 vector | real-valued 2-by-L matrix

Dependencies

DiagonalLoadingFactor — Diagonal loading factor 0 (default) | nonnegative scalar

TrainingInputPort — Enable training data input false (default) | true

WeightsOutputPort — Enable beamforming weights output false (default) | true

SubbandsOutputPort — Option to enable output of subband center frequencies false (default) | true

Usage

Syntax

Description

Input Arguments

X — Wideband input signal M-by-N complex-valued matrix

XT — Wideband training samples P-by-N complex-valued matrix

ANG — Beamforming direction 2-by-L real-valued matrix

Output Arguments

Y — Beamformed output M-by-L complex-valued matrix

W — Beamforming weights N-by-K-by-L complex-valued matrix

Dependencies

FREQS — Center frequencies of subbands K-by-1 real-valued column vector

Dependencies

Object Functions

Common to All System Objects

Examples

Subband MVDR Beamforming of ULA

Subband MVDR Beamforming of Array with Interference

More About

Diagonal Loading

Algorithms

Data Precision

Subband Frequency Processing

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

See Also

`SensorArray` — Sensor array
`phased.ULA` array with default property values (default) | Phased Array System Toolbox™ array

`PropagationSpeed` — Signal propagation speed (meters/second)
`physconst('LightSpeed')` (default) | real-valued positive scalar

`OperatingFrequency` — Operating frequency (Hz)
`300e6` (default) | positive scalar

`SampleRate` — Sample rate of signal
`1e6` (default) | positive scalar

`NumSubbands` — Number of processing subbands
`64` (default) | positive integer

`DirectionSource` — Source of beamforming direction
`'Property'` (default) | `'Input port'`

`Direction` — Beamforming directions
`[0;0]` (default) | real-valued 2-by-1 vector | real-valued 2-by-L matrix

`DiagonalLoadingFactor` — Diagonal loading factor
`0` (default) | nonnegative scalar

`TrainingInputPort` — Enable training data input
`false` (default) | `true`

`WeightsOutputPort` — Enable beamforming weights output
`false` (default) | `true`

`SubbandsOutputPort` — Option to enable output of subband center frequencies
`false` (default) | `true`

`X` — Wideband input signal
M-by-N complex-valued matrix

`XT` — Wideband training samples
P-by-N complex-valued matrix

`ANG` — Beamforming direction
2-by-L real-valued matrix

`Y` — Beamformed output
M-by-L complex-valued matrix

`W` — Beamforming weights
N-by-K-by-L complex-valued matrix

`FREQS` — Center frequencies of subbands
K-by-1 real-valued column vector

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
