viewLayout

Draws the layout of the transmitter

Since R2025a

collapse all in page

    Syntax

    viewLayout(transmitter)
    viewLayout(transmitter,Parent=hax)

    Description

    Draws the layout of the transmitter for the current configuration.

    viewLayout(transmitter) draws the layout of the transmitter.

    example

    viewLayout(transmitter,Parent=hax) draws the transmitter layout on the hax axes. The default behavior creates a new figure and axes.

    Examples

    collapse all

    Open Live Script

    Draw the phased.Transmitter System object in the "Budget" configuration for three channels specified by the PhaseOffset property.

    tx = phased.Transmitter(Configuration="Budget", ...
    GainMethod="Cubic polynomial",Gain=10,OIP3=30, ...
    NoiseMethod="Noise temperature", ...
    PhaseOffset=[-5 0 5]);
viewLayout(tx)

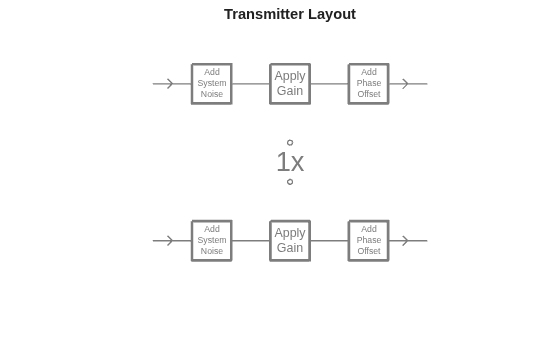

    Figure contains an axes object. The hidden axes object with title Transmitter Layout contains 27 objects of type line, text.

    Input Arguments

    collapse all

    Transmitter, specified as a phased.Transmitter System object.

    Axes of parent plot, specified as an axes handle.

    Example: Parent=hax

    Version History

    Introduced in R2025a
