Manually Configure Your Build

You have the option of manually configuring your build. Manual setup of the analysis involves specifying build options. You can extract build options from a build command, a Visual Studio C/C++ project, or a JSON Compilation Database file or specify them in a Polyspace build options file.

Some options require you to generate your build options after specifying your options file. Click the icon in the Configuration view to generate your build options.

For this tutorial, leave Build set as Build options file not required.

For more information on build options, see Configure Analysis Settings.

 Manual Build Configuration

Automatically Add Files to Quality Monitoring List

Polyspace has a Quality Monitoring list that keeps track of edited files. Polyspace can analyze all files in the Quality Monitoring list at the same time. You can choose to have Polyspace automatically add files to the Quality Monitoring list or manually add files.

For this example, automatically add files to the quality monitoring list. Click the configure options icon in the Configuration pane and select the check box for Add to Quality Monitoring list on save.

 Automatically Add Files to Quality Monitoring List

Analyze Files Automatically

Polyspace can automatically run an analysis of any file in the Quality Monitoring list when you save the file. Alternatively, you can manually run analysis of individual files or a group of files.

You can manually trigger an analysis in these ways:

Turn on automatic analysis of files. Click the configure options icon in the Configuration pane and select the check box for Start analysis on save.

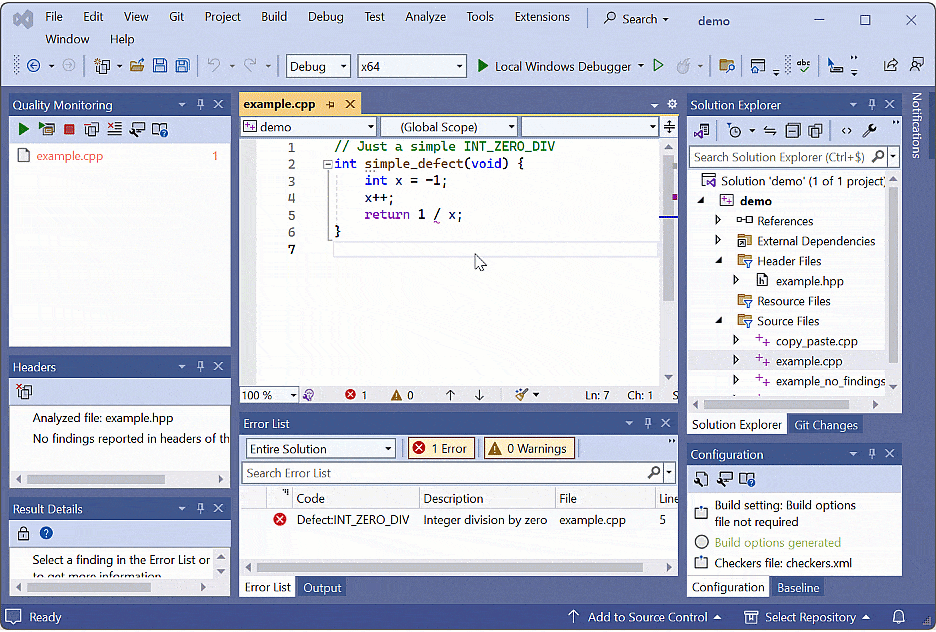

 Automatically Run Analysis on Save

Configure Polyspace Checkers

Polyspace checks for a default set of checkers. You can customize this set of standards and defects to check for specific certification standards. Use the option Checkers File to set the checkers XML file for your project.

Turn on the AUTOSAR C++14 checkers for your project. In the Configuration pane, click the Configure Checkers icon to open the Checkers selection window.

You can create, save, and open saved checkers selection files. For more information, see Configure Checkers for Polyspace as You Code in Visual Studio.

Click AUTOSAR C++14 on the left pane of the Checkers Selection window. In the right pane, select the All check box to enable all of the AUTOSAR C++14 rules. Click Save Changes in the top right corner to save your checker selection and close the window to return to the Visual Studio application.

 Configure Polyspace Checkers

View Header File Findings

You can run an analysis on header files as if they were source files by adding them to the Quality Monitoring list and running an analysis.

Manually add the example.hpp header file to the Quality Monitoring list and initiate an analysis by clicking the icon.

 View Header File Findings

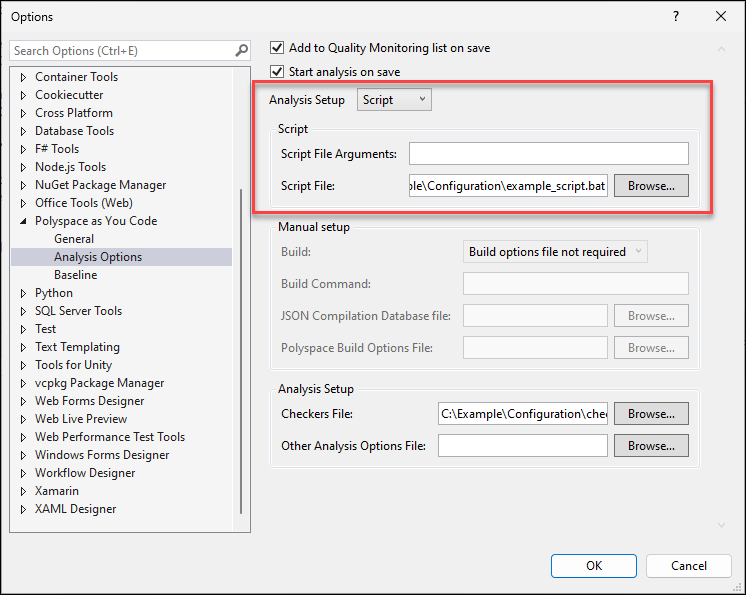

Configure Analysis Script

You can provide a script to configure and run your Polyspace analysis in Polyspace as You Code.

For this tutorial, you do not set a script.

If you have a script, click the icon in the Configuration pane and select Analysis Options. For the option Analysis Setup, select Script. Provide the path to your script under the option Script file by clicking Browse and opening your script.

Once you configure the Polyspace as You Code extension, you are ready to run an analysis and review your results.
