tfsmoment

Conditional spectral moment of the time-frequency distribution of a signal

collapse all in page

Syntax

momentS = tfsmoment(xt,order)

momentS = tfsmoment(x,fs,order)

momentS = tfsmoment(x,ts,order)

momentS = tfsmoment(p,fp,tp,order)

momentS = tfsmoment(___,Name,Value)

[momentS,t] = tfsmoment(___)

tfsmoment(___)

Description

Time-frequency moments provide an efficient way to characterize signals whose frequencies change in time (that is, are nonstationary). Such signals can arise from machinery with degraded or failed hardware. Classical Fourier analysis cannot capture the time-varying frequency behavior. Time-frequency distribution generated by short-time Fourier transform (STFT) or other time-frequency analysis techniques can capture the time-varying behavior, but directly treating these distributions as features carries a high computational burden, and potentially introduces unrelated and undesirable feature characteristics. In contrast, distilling the time-frequency distribution results into low-dimension time-frequency moments provides a method for capturing the essential features of the signal in a much smaller data package. Using these moments significantly reduces the computational burden for feature extraction and comparison — a key benefit for real-time operation [1], [2].

The Predictive Maintenance Toolbox™ implements the three branches of time-frequency moment:

Conditional spectral moment — tfsmoment
Conditional temporal moment — tftmoment
Joint time-frequency moment — tfmoment

momentS = tfsmoment(xt,order) returns the conditional spectral moment of timetable xt as a timetable. The momentS variables provide the spectral moments for the orders you specify in order. The data in xt can be nonuniformly sampled.

example

momentS = tfsmoment(x,fs,order) returns the conditional spectral moment of time-series vector x, sampled at rate Fs. The moment is returned as a matrix, in which each column represents a spectral moment corresponding each element in order. With this syntax, x must be uniformly sampled.

example

momentS = tfsmoment(x,ts,order) returns the conditional spectral moment of x sampled at the time instants specified by ts in seconds.

If ts is a scalar duration, then tfsmoment applies it uniformly to all samples.
If ts is a vector, then tfsmoment applies each element to the corresponding sample in x. Use this syntax for nonuniform sampling.

example

momentS = tfsmoment(p,fp,tp,order) returns the conditional spectral moment of a signal whose power spectrogram is p. fp contains the frequencies corresponding to the spectral estimate contained in p. tp contains the vector of time instants corresponding to the centers of the windowed segments used to compute short-time power spectrum estimates. Use this syntax when:

You already have the power spectrum or spectrogram you want to use.
You want to customize the options for pspectrum, rather than accept the default pspectrum options that tfsmoment applies. Use pspectrum first with the options you want, and then use the output p as input for tfsmoment. This approach also allows you to plot the power spectrogram.

example

momentS = tfsmoment(___,Name,Value) specifies additional properties using name-value pair arguments. Options include moment centralization and frequency-limit specification.

You can use Name,Value with any of the input-argument combinations in previous syntaxes.

example

[momentS,t] = tfsmoment(___) returns time vector t.

You can use t with any of the input-argument combinations in previous syntaxes.

example

tfsmoment(___) with no output arguments plots the conditional spectral moment. The plot x-axis is time, and the plot y-axis is the corresponding spectral moment.

You can use this syntax with any of the input-argument combinations in previous syntaxes.

example

Examples

collapse all

Plot the Conditional Spectral Moment of a Time Series Vector

Open Live Script

Plot the second-order conditional spectral moment (variance) of a time series using the plot-only approach and the return-data approach. Visualize the moment differently by plotting the histogram. Compare the moments for data arising from faulty and healthy machine conditions.

This example is adapted from Rolling Element Bearing Fault Diagnosis, which provides a more comprehensive treatment of the data sources and history.

Load the data, which contains vibration measurements for two conditions. x_inner1 and sr_inner1 contain the data vector and sample rate for a faulty condition. x_baseline and sr_baseline contain the data vector and sample rate for a healthy condition.

load tfmoment_data.mat x_inner1 sr_inner1 x_baseline1 sr_baseline1

Examine the faulty-condition data. Construct a time vector from the sample rate, and plot the data. Then zoom in to an 0.1-s section so that the behavior can be seen more clearly.

t_inner1 = (0:length(x_inner1)-1)/sr_inner1; % Construct time vector of [0 1/sr 2/sr ...] matching dimension of x
figure
plot(t_inner1,x_inner1)
title ('Inner1 Signal')
hold on
xlim([0 0.1]) % Zoom in to an 0.1 s section
hold off

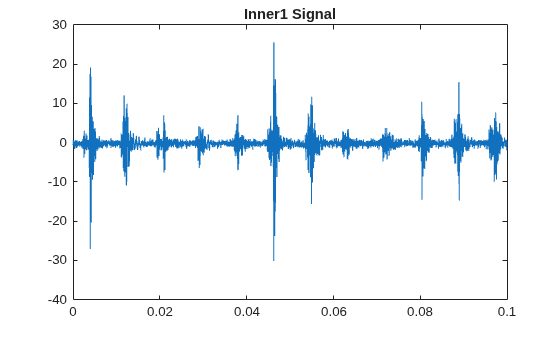

Figure contains an axes object. The axes object with title Inner1 Signal contains an object of type line.

The plot shows periodic impulsive variations in the acceleration measurements over time.

Plot the second spectral moment (order=2), using the tfsmoment syntax with no output arguments.

order = 2;
figure
tfsmoment(x_inner1,t_inner1,order)
title('Second Spectral Moment of Inner1')

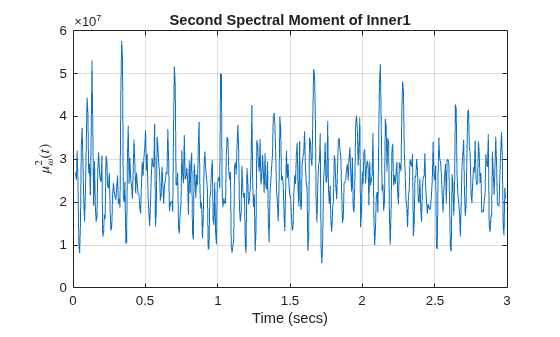

Figure contains an axes object. The axes object with title Second Spectral Moment of Inner1, xlabel Time (secs), ylabel $ muSubScript omega SuperScript 2 baseline (t)$ contains an object of type line.

The plot illustrates the changes in the variance of the x_inner1 spectrum over time. You are limited to this visualization (moment versus time) because tfsmoment returned no data. Now use tfsmoment again to compute the second spectral moment, this time using the syntax that returns both the moment values and the associated time vector. You can use the sample rate directly in the syntax (sr_inner1), rather than the time vector you constructed (t_inner1).

[momentS_inner1,t1_inner1] = tfsmoment(x_inner1,sr_inner1,order);

You can now plot moment versus time as you did before, using moment_inner1 and t1_inner1, with the same result as earlier. You can also perform additional analysis and visualization of the moment vector, since tfsmoment returned the data. A histogram can provide concise information on the signal characteristics.

figure
histogram(momentS_inner1)
title('Second Spectral Moment of Inner1')

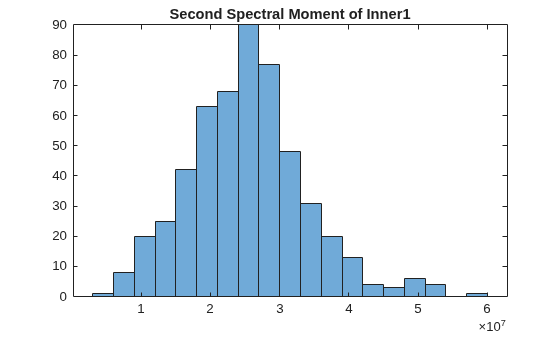

Figure contains an axes object. The axes object with title Second Spectral Moment of Inner1 contains an object of type histogram.

On its own, the histogram does not reveal obvious fault information. However, you can compare it to the histogram produced by the healthy-condition data.

First, compare the inner and baseline time series directly using the same time-vector construction for the baseline1 data as previously for the inner1 data.

t_baseline1 = (0:length(x_baseline1)-1)/sr_baseline1;

figure
plot(t_inner1,x_inner1)
hold on
plot(t_baseline1,x_baseline1)
hold off
legend('Faulty Condition','Healthy Condition')
title('Vibration versus Time for Faulty and Healthy Conditions')

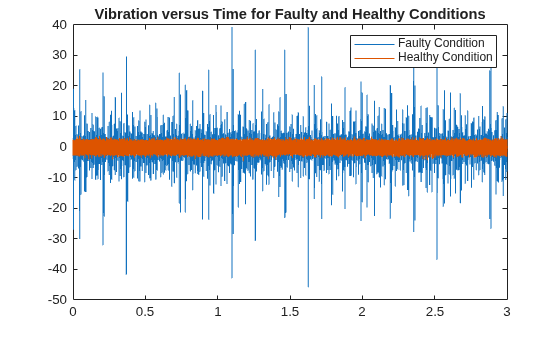

Figure contains an axes object. The axes object with title Vibration versus Time for Faulty and Healthy Conditions contains 2 objects of type line. These objects represent Faulty Condition, Healthy Condition.

Calculate the second spectral moment of the baseline1 data. Compare the baseline1 and inner1 time histories.

[momentS_baseline1,t1_baseline1] = tfsmoment(x_baseline1,sr_baseline1,2);

figure
plot(t1_inner1,momentS_inner1)
hold on
plot(t1_baseline1,momentS_baseline1)
hold off
legend('Faulty Condition','Healthy Condition')
title('Second Spectral Moment versus Time for Faulty and Healthy Conditions')

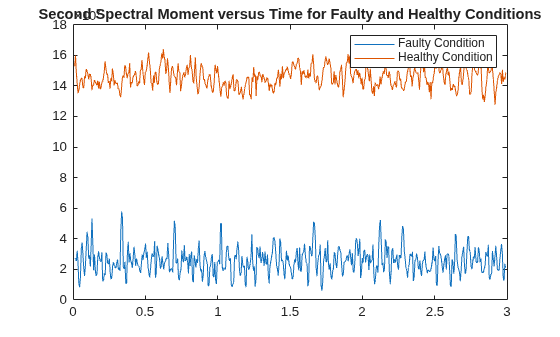

Figure contains an axes object. The axes object with title Second Spectral Moment versus Time for Faulty and Healthy Conditions contains 2 objects of type line. These objects represent Faulty Condition, Healthy Condition.

The moment plot shows behavior different from the earlier vibration plot. The vibration data for the faulty case is much noisier with higher-magnitude spikes than for the healthy case, although both appear to be zero mean. However, the spectral variance (second spectral moment) is significantly lower for the faulty case. The moment of the faulty case is still more noisy than the healthy case.

Plot the histograms.

figure
histogram(momentS_inner1);
hold on
histogram(momentS_baseline1);
hold off
legend('Faulty Condition','Healthy Condition')
title('Second Spectral Moment for Faulty and Healthy Conditions')

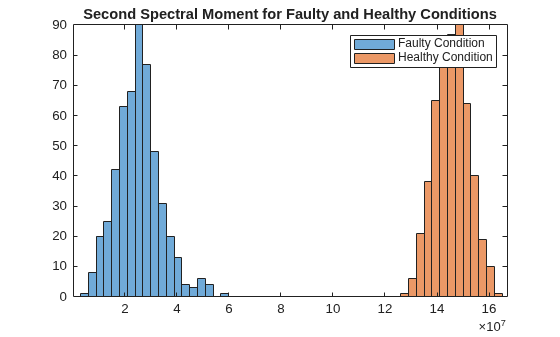

Figure contains an axes object. The axes object with title Second Spectral Moment for Faulty and Healthy Conditions contains 2 objects of type histogram. These objects represent Faulty Condition, Healthy Condition.

The moment behaviors distinguish the faulty condition from the healthy condition in both plots. The histogram provides distinct distribution characteristics — center point along x-axis, spread, and peak histogram bin.

Determine Multiple Orders of Conditional Spectral Moment for a Time Series

Open Live Script

Determine the first four conditional spectral moments of a time-series data set, and extract the moments that you want to visualize with a histogram.

Load the data, which contains vibration measurements (x_inner1) and sample rate(sr_inner1) for machinery. Then use tfsmoment to compute the first four moments. These moments represent the statistical quantities of: 1) Mean; 2) Variance; 3) Skewness; and 4) Kurtosis.

You can specify the moment designators as a vector within the order argument.

load tfmoment_data.mat x_inner1 sr_inner1
momentS_inner1 = tfsmoment(x_inner1,sr_inner1,[1 2 3 4]);

Compare the dimensions of the input vector and the output matrix.

xsize = size(x_inner1)

xsize = 1×2

      146484           1

msize = size(momentS_inner1)

msize = 1×2

   524     4

The data vector x_inner is considerably longer than the vectors in the moment matrix momentS_inner1 because the spectrogram computation produces optimally-sized lower-resolution time windows. In this case, tfsmoment returns a moment matrix containing four columns, one column for each moment order.

Plot the histograms for the third (skewness) and fourth (kurtosis) moments. The third and fourth columns of momentS_inner1 provide these.

momentS_3 = momentS_inner1(:,3);
momentS_4 = momentS_inner1(:,4);
figure
histogram(momentS_3)
title('Third Spectral Moment (Skewness) of x inner1')

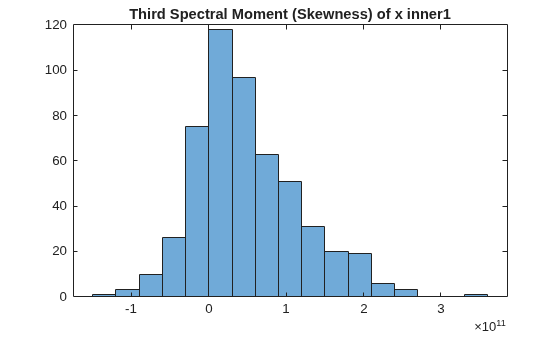

Figure contains an axes object. The axes object with title Third Spectral Moment (Skewness) of x inner1 contains an object of type histogram.

figure
histogram(momentS_4)
title('Fourth Spectral Moment (Kurtosis) of x inner1')

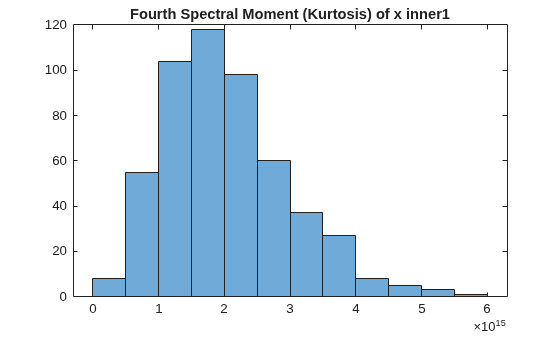

Figure contains an axes object. The axes object with title Fourth Spectral Moment (Kurtosis) of x inner1 contains an object of type histogram.

The plots are similar, but each has some unique characteristics with respect to number of bins and slope steepness.

Use a Customized Power Spectrogram to Compute the Conditional Spectral Moment

Open Live Script

By default, tfsmoment calls the function pspectrum internally to generate the power spectrogram that tfsmoment uses for the moment computation. You can also import an existing power spectrogram for tfsmoment to use instead. This capability is useful if you already have a power spectrogram as a starting point, or if you want to customize the pspectrum options by generating the spectrogram explicitly first.

Input a power spectrogram that has been generated with customized options. Compare the resulting spectral-moment histogram with one that tfsmoment generates using its pspectrum default options.

Load the data, which includes two power spectrums and the associated frequency and time vectors.

The p_inner1_def spectrum was created using the default pspectrum options. It is equivalent to what tfsmoment computes internally when an input spectrum is not provided in the syntax.

The p_inner1_MinThr spectrum was created using the MinThreshold pspectrum option. This option puts a lower bound on nonzero values to screen out low-level noise. For this example, the threshold was set to screen out noise below the 0.5% level.

load tfmoment_data.mat p_inner1_def f_p_def t_p_def ...
    p_inner1_MinThr f_p_MinThr t_p_MinThr
load tfmoment_data.mat x_inner1 x_baseline1

Determine the second spectral moments (variance) for both cases.

moment_p_def = tfsmoment(p_inner1_def,f_p_def,t_p_def,2);
moment_p_MinThr = tfsmoment(p_inner1_MinThr,f_p_MinThr,t_p_MinThr,2);

Plot the histograms together.

figure
histogram(moment_p_def);
hold on
histogram(moment_p_MinThr);
hold off
legend('Moment from Default P','Moment from Customized P')
title('Second Spectral Moment for Inner1 from Input Spectrograms')

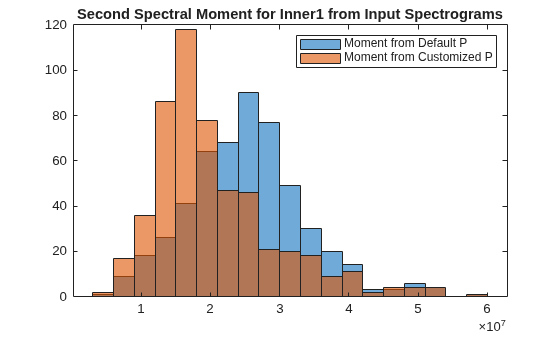

Figure contains an axes object. The axes object with title Second Spectral Moment for Inner1 from Input Spectrograms contains 2 objects of type histogram. These objects represent Moment from Default P, Moment from Customized P.

The histograms have the same overall spread, but the thresholded moment histogram has a higher peak bin at a lower moment magnitude level than the default moment. This example is for illustration purposes only, but does show the impact that preprocessing in the spectrum computation stage can have.

Calculate a Conditional Spectral Moment That Is Not Centralized

Open Live Script

By default, tfsmoment centralizes the moment as part of its calculation. That is, it subtracts the sensor-data mean (which is the first moment) from the sensor data as part of the Conditional Spectral Moments. If you want to preserve the offset, you can set the input argument Centralize to false.

Load the data, which contains vibration measurements x and sample rate sr for machinery. Calculate the 2nd moment (order = 2) both with centralization (default), and without centralization (Centralize = false). Plot the histograms together.

load tfmoment_data.mat x_inner1 sr_inner1
momentS_centr = tfsmoment(x_inner1,sr_inner1,2);
momentS_nocentr = tfsmoment(x_inner1,sr_inner1,2,'Centralize',false);

figure
histogram(momentS_centr)
hold on
histogram(momentS_nocentr);
hold off
legend('Centralized','Noncentralized')
title('Second Spectral Moment of x inner1 With and Without Centralization')

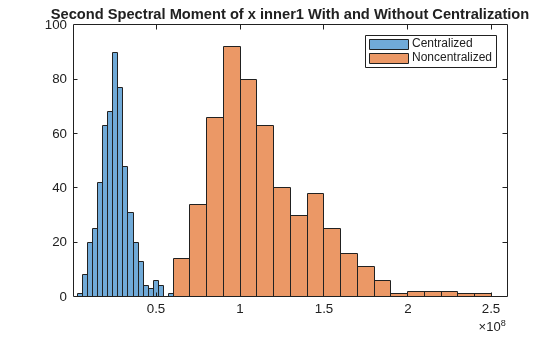

Figure contains an axes object. The axes object with title Second Spectral Moment of x inner1 With and Without Centralization contains 2 objects of type histogram. These objects represent Centralized, Noncentralized.

The noncentralized distribution is offset to the right.

Find the Conditional Spectral Moments of Data Measurements in a Timetable

Open Live Script

Real-world measurements often come packaged as part of a time-stamped table that records actual time and readings rather than relative times. You can use the timetable format for capturing this data. This example shows how tfsmoment operates with a timetable input, in contrast to the data vector inputs used for the other tfsmoment examples, such as Plot the Conditional Spectral Moment of a Time Series Vector.

Load the data, which consists of a single timetable xt_inner1 containing measurement readings and time information for a piece of machinery. Examine the properties of the timetable.

load tfmoment_tdata.mat xt_inner1;
xt_inner1.Properties

ans =
  TimetableProperties with properties:

             Description: ''
                UserData: []
          DimensionNames: {'Time'  'Variables'}
           VariableNames: {'x_inner1'}
           VariableTypes: "double"
    VariableDescriptions: {}
           VariableUnits: {}
      VariableContinuity: []
                RowTimes: [146484x1 duration]
               StartTime: 0 sec
              SampleRate: 4.8828e+04
                TimeStep: 2.048e-05 sec
                  Events: []
        CustomProperties: No custom properties are set.
      Use addprop and rmprop to modify CustomProperties.

This table consists of columns for Time and the variables, where the only variable is x_inner1.

Find the second and fourth conditional spectral moments for the data in the timetable. Examine the properties of the resulting moment timetable.

order = [2 4];
momentS_xt_inner1 = tfsmoment(xt_inner1,order);
momentS_xt_inner1.Properties

ans =
  TimetableProperties with properties:

             Description: ''
                UserData: []
          DimensionNames: {'Time'  'Variables'}
           VariableNames: {'CentralSpectralMoment2'  'CentralSpectralMoment4'}
           VariableTypes: ["double"    "double"]
    VariableDescriptions: {}
           VariableUnits: {}
      VariableContinuity: []
                RowTimes: [524x1 duration]
               StartTime: 0.011725 sec
              SampleRate: 175.6403
                TimeStep: 0.0056935 sec
                  Events: []
        CustomProperties: No custom properties are set.
      Use addprop and rmprop to modify CustomProperties.

The returned timetable represents the moments in the variable 'CentralSpectralMoment2' and 'CentralSpectralMoment4', providing information not only on what specific moment was calculated, but also on whether it was centralized.

You can access the time and moment information directly from the timetable properties. Compute the second and fourth moments. Plot the fourth moment.

tt_inner1 = momentS_xt_inner1.Time;
momentS_inner1_2 = momentS_xt_inner1.CentralSpectralMoment2;
momentS_inner1_4 = momentS_xt_inner1.CentralSpectralMoment4;

figure
plot(tt_inner1,momentS_inner1_4)
title('Fourth Spectral Moment of Timetable Data')

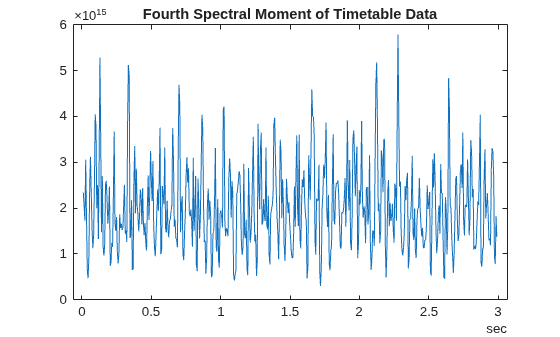

Figure contains an axes object. The axes object with title Fourth Spectral Moment of Timetable Data contains an object of type line.

As is illustrated inPlot the Conditional Spectral Moment of a Time Series Vector, a histogram is a very useful visualization for moment data. Plot the histogram, directly referencing the CentralSpectralMoment2 variable property.

figure
histogram(momentS_xt_inner1.CentralSpectralMoment2)
title('Second Spectral Moment of xt inner1 Timetable')

Figure contains an axes object. The axes object with title Second Spectral Moment of xt inner1 Timetable contains an object of type histogram.

Input Arguments

collapse all

`xt` — Signal Timetable
timetable

Signal Timetable for which tfsmoment returns the moments, specified as a timetable that contains a single variable with a single column. xt must contain increasing, finite row times. If the timetable has missing or duplicate time points, you can fix it using the tips in Clean Timetable with Missing, Duplicate, or Nonuniform Times. xt can be nonuniformly sampled, with the pspectrum constraint that the median time interval and the mean time interval must obey.

$\frac{1}{100} < \frac{Median time interval}{Mean time interval} < 100.$

For an example of timetable input, see Find the Conditional Spectral Moments of Data Measurements in a Timetable

`order` — Moment orders to return
integer scalar | integer vector

Moment orders to return, specified as one of the following:

Integer — Compute one moment
Vector — Compute multiple moments at once.

Example: momentS = tfsmoment(x,2) specifies the second-order spectral moment (variance) of the time-frequency distribution of x.

Example: momentS = tfsmoment(x,[1 2 3 4]) specifies the first four moment orders of the time-frequency distribution of x.

You can specify any order and number of orders, but low-order moments carry less computational burden and are better suited to real-time applications. The first four moment orders correspond to the statistical moments of a data set:

Mean
Variance
Skewness (degree of asymmetry about the mean)
Kurtosis (length of outlier tails in the distribution — a normal distribution has a kurtosis of 3)

For examples, see:

Timetable data input — Find the Conditional Spectral Moments of Data Measurements in a Timetable
Time-series vector data input — Determine Multiple Orders of Conditional Spectral Moment for a Time Series

`x` — Time-series signal
vector

Time-series signal from which tfsmoment returns the moments, specified as a vector.

For an example of a time-series input, see Plot the Conditional Spectral Moment of a Time Series Vector

`fs` — Sample rate
positive scalar

Sample rate of x, specified as positive scalar in hertz when x is uniformly sampled.

`ts` — Sample-time values
`duration` scalar | vector | `duration` vector | `datetime` vector

Sample-time values, specified as one of the following:

duration scalar — time interval between consecutive samples of X.
Vector, duration array, or datetime array — time instant or duration corresponding to each element of x.

ts can be nonuniform, with the pspectrum constraint that the median time interval and the mean time interval must obey:

$\frac{1}{100} < \frac{Median time interval}{Mean time interval} < 100.$

`p` — Power spectrogram or spectrum of signal
vector | matrix

Power spectrogram or spectrum of a signal, specified as a matrix (spectrogram) or a column vector (spectrum). p contains an estimate of the short-term, time-localized power spectrum of a time-series signal. If you specify p, tfsmoment uses p rather than generate its own power spectrogram. For an example, see Use a Customized Power Spectrogram to Compute the Conditional Spectral Moment.

`fp` — Frequencies for p
vector

Frequencies for power spectrogram or spectrum p when p is supplied explicitly to tfsmoment, specified as a vector in hertz. The length of fp must be equal to the number of rows in p.

`tp` — Time information for p
vector | `duration` vector | `datetime` vector | `duration` scalar

Time information for power spectrogram or spectrum p when p is supplied explicitly to tfsmoment, specified as one of the following:

Vector of time points, whose data type can be numeric, duration, or datetime. The length of vector tp must be equal to the number of columns in p.
duration scalar that represents the time interval in p. The scalar form of tp can be used only when p is a power spectrogram matrix.
For the special case where p is a column vector (power spectrum), tp can be a numeric, duration, or datetime scalar representing the time point of the spectrum.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Centralize',false,'FrequencyLimits',[10 100] computes the noncentralized conditional spectral moment for the portion of the signal ranging from 10 Hz to 100 Hz.

`Centralize` — Centralize-moment option
`true` (default) | `false`

Centralize-moment option, specified as the comma-separated pair consisting of 'Centralize' and a logical.

If Centralize is true, then tfsmoment returns the centralized conditional moment by subtracting the conditional mean (which is the first moment) in the computation.
If Centralize is false, then tfsmoment returns the noncentralized moment, preserving any data offset.

For an example, see Calculate a Conditional Spectral Moment That Is Not Centralized.

`FrequencyLimits` — Frequency limits
full frequency band (default) | [f1 f2]

Frequency limits to use, specified as the comma-separated pair consisting of 'FrequencyLimits' and a two-element vector containing lower and upper bounds f1 and f2 in hertz. This specification allows you to exclude a band of data at either end of the spectral range.

Output Arguments

collapse all

`momentS` — Conditional spectral moment
timetable array | matrix

Conditional spectral moment returned as a timetable or a matrix.

If you use timetable data xt, then momentS is a timetable array, containing variables which are the spectral moments for the orders specified in order. For an example, see Find the Conditional Spectral Moments of Data Measurements in a Timetable.
If you use vector data x, or spectrogram data p, then momentS is an array whose columns represent the spectral moments. For an example, see Determine Multiple Orders of Conditional Spectral Moment for a Time Series.

`t` — Times of moment estimates
double vector

Times of moment estimates in seconds. t results from the time windowing that the internal spectrogram computation computes. The spectrogram windows require less time resolution than the original sample vector. Therefore, the returned t vector is more compact than the input data vectors, as is momentS. If time information has been provided by sample rate or sample time,t starts from the center of the first time window. If time information has been provided in duration or datetime format, t preserves the start-time offset.

More About

collapse all

Conditional Spectral Moments

The conditional spectral moments of a nonstationary signal comprise a set of time-varying parameters that characterize the signal spectrum as it evolves in time. They are related to the conditional temporal moments and the joint time-frequency moments. The conditional spectral moment is an integral function of frequency, given time, and marginal distribution. The conditional temporal moment is an integral function of time, given frequency, and marginal distribution. The calculation of the joint time-frequency moment is a double integral that varies both time and frequency [1], [2].

Each moment is associated with a specific order, with the first four orders being the statistical properties of 1) mean, 2) variance, 3) skewness, and 4) kurtosis.

tfsmoment computes the conditional spectral moments of the time-frequency distribution for a signal x, for the orders specified in order. The function performs these steps:

Compute the spectrogram power spectrum, P(t,f), of the input using the pspectrum function and uses it as a time-frequency distribution. If the syntax used supplies an existing P(t,f), then tfsmoment uses that instead.
Estimate the conditional spectral moment ${〈 ω^{m} 〉}_{t}$ of the signal using, for the noncentralized case:

${〈 ω^{m} 〉}_{t} = \frac{1}{P (t)} \int ω^{m} P (t, ω) d ω,$
where m is the order and P(t) is the marginal distribution.
For the centralized conditional spectral moment $μ_{ω}^{m} (t)$ , the function uses

$μ_{ω}^{m} (t) = \frac{1}{P (t)} {\int (ω - {〈 ω^{1} 〉}_{t})}^{m} P (t, ω) d ω .$

References

[1] Loughlin, P. J. "What Are the Time-Frequency Moments of a Signal?" Advanced Signal Processing Algorithms, Architectures, and Implementations XI, SPIE Proceedings. Vol. 4474, November 2001.

[2] Loughlin, P., F. Cakrak, and L. Cohen. "Conditional Moment Analysis of Transients with Application to Helicopter Fault Data." Mechanical Systems and Signal Processing. Vol 14, Issue 4, 2000, pp. 511–522.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

The input argument order must be a scalar and not a vector.

Version History

Introduced in R2018a

tfsmoment

Syntax

Description

Examples

Plot the Conditional Spectral Moment of a Time Series Vector

Determine Multiple Orders of Conditional Spectral Moment for a Time Series

Use a Customized Power Spectrogram to Compute the Conditional Spectral Moment

Calculate a Conditional Spectral Moment That Is Not Centralized

Find the Conditional Spectral Moments of Data Measurements in a Timetable

Input Arguments

xt — Signal Timetable timetable

order — Moment orders to return integer scalar | integer vector

x — Time-series signal vector

fs — Sample rate positive scalar

ts — Sample-time values duration scalar | vector | duration vector | datetime vector

p — Power spectrogram or spectrum of signal vector | matrix

fp — Frequencies for p vector

tp — Time information for p vector | duration vector | datetime vector | duration scalar

Name-Value Arguments

Centralize — Centralize-moment option true (default) | false

FrequencyLimits — Frequency limits full frequency band (default) | [f1 f2]

Output Arguments

momentS — Conditional spectral moment timetable array | matrix

t — Times of moment estimates double vector

More About

Conditional Spectral Moments

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

See Also

`xt` — Signal Timetable
timetable

`order` — Moment orders to return
integer scalar | integer vector

`x` — Time-series signal
vector

`fs` — Sample rate
positive scalar

`ts` — Sample-time values
`duration` scalar | vector | `duration` vector | `datetime` vector

`p` — Power spectrogram or spectrum of signal
vector | matrix

`fp` — Frequencies for p
vector

`tp` — Time information for p
vector | `duration` vector | `datetime` vector | `duration` scalar

`Centralize` — Centralize-moment option
`true` (default) | `false`

`FrequencyLimits` — Frequency limits
full frequency band (default) | [f1 f2]

`momentS` — Conditional spectral moment
timetable array | matrix

`t` — Times of moment estimates
double vector

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
