lenspl

Calculate loss due to tropospheric lens effect

Since R2021a

collapse all in page

Syntax

L = lenspl(R,H,EL)
L = lenspl(___,Name,Value)

Description

L = lenspl(R,H,EL) calculates the one-way loss due to the tropospheric lens effect using the International Telecommunication Union (ITU) standard atmospheric model known as the mean annual global reference atmosphere (MAGRA), which approximates the U.S. Standard Atmosphere 1976 with insignificant relative error. The variation in refraction versus altitude makes the atmosphere act like a lens with loss independent of frequency. Rays leaving an antenna are refracted in the troposphere and the energy radiated within some angular extent is distributed over a slightly greater angular sector, thereby reducing the energy density relative to propagation in a vacuum.

example

L = lenspl(___,Name,Value) specifies options using one or more name-value arguments in addition to the input arguments in the previous syntax.

Examples

collapse all

Open Live Script

Calculate the two-way lens loss curve for a radar platform at sea level at an elevation angle of 0.03 deg over a slant range of 0.1 to 5.0 km.

h = 0; % m
el = 0.03; % deg
R = (100:5000).*1e3; % m
L = 2*lenspl(R,h,el); % Factor of 2 for two-way propagation

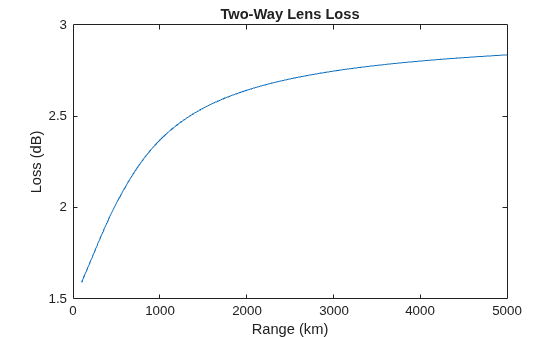

Plot the lens loss against the slant range.

plot(R.*1e-3,L);
xlabel('Range (km)');
ylabel('Loss (dB)');
title('Two-Way Lens Loss');

Figure contains an axes object. The axes object with title Two-Way Lens Loss, xlabel Range (km), ylabel Loss (dB) contains an object of type line.

Input Arguments

collapse all

Slant range, specified as a scalar or an M-length real vector. Units are in meters.

Example: 0.5

Data Types: single | double

Mean sea level (MSL) altitude of the radar platform, specified as a scalar from 0 to 100 km. Values outside the specified range result in NaN output. Units are in meters.

Example: 200e3

Data Types: single | double

Elevation angle of the propagation path, specified as a scalar or M-length real vector. Units are in degrees.

Example: 10

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example:

Standard ground-level water vapor density, specified as a positive scalar. Applicable only for the default standard model (MAGRA). Units are in grams per meter cubed.

Data Types: single | double

Altitude above mean sea level (MSL), specified as a scalar. Applicable only for the default standard model (MAGRA). For dry atmosphere conditions, set to 6e3 m. Units are in meters.

Data Types: single | double

Reference latitude model, specified as one of these.

ModelDescription
'Standard'(default)

This model is the mean annual global reference atmosphere (MAGRA) that reflects the mean annual temperature and pressure averaged across the world.

'Low'

This model is for low latitudes less than 22 degrees, where there is little seasonal variation.

'Mid'

This model is for mid latitudes between 22 and 45 degrees with seasonal profiles for 'Summer' and 'Winter', which can be specified using the 'Season' name-value argument.

'High'

This model is for high latitudes greater than 45 degrees with seasonal profiles for 'Summer' and 'Winter', which can be specified using the 'Season' name-value argument.

Season for the 'Mid' and 'High' latitude models, specified as 'Summer' or 'Winter'. Other models ignore this input. Defaults to 'Summer'.

Custom atmospheric measurements for the calculation of the refractive index, specified as an N-by-4 matrix, where N corresponds to the number of altitude measurements. N must be greater than or equal to 2. The first column is the atmospheric temperature in kelvins, the second column is the atmospheric pressure in hPa, the third column is the water vapor density in g/m3, and the fourth column is the MSL altitude of the measurements in meters. When you use a custom model, all other name-value arguments are ignored and the output refractive index is applicable for the input height.

Note

The model used by lenspl assumes geometrical optics conditions, as a result anomalous propagation like ducting and subrefraction cannot be present in provided measurements. If atmospheric measurements evidencing ducting and subrefraction are provided, this function throws an error.

Data Types: single | double

Output Arguments

collapse all

The one-way lens loss, returned as a scalar or M-length real vector. Units are in decibels.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2021a
