Train TD3 Agent for PMSM Control

Create Environment Interface

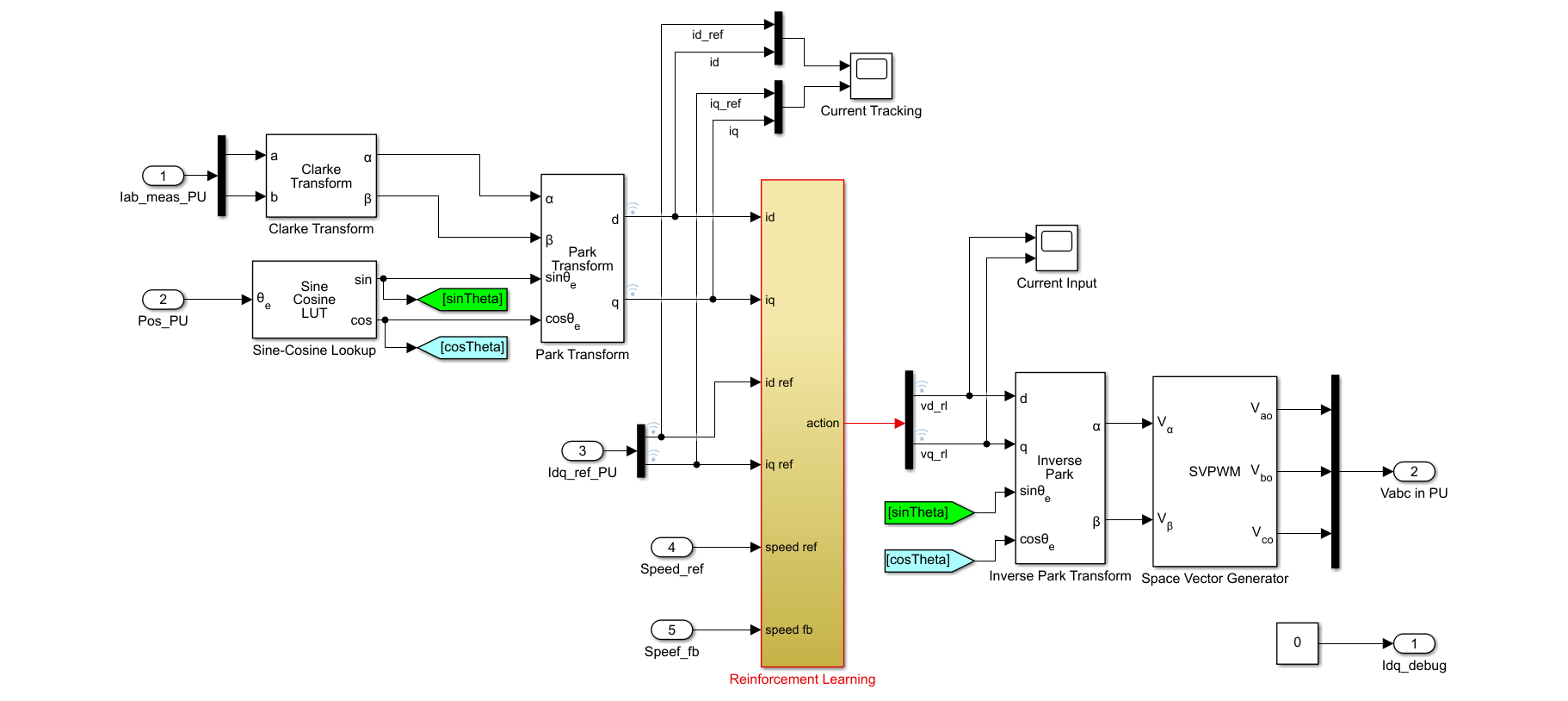

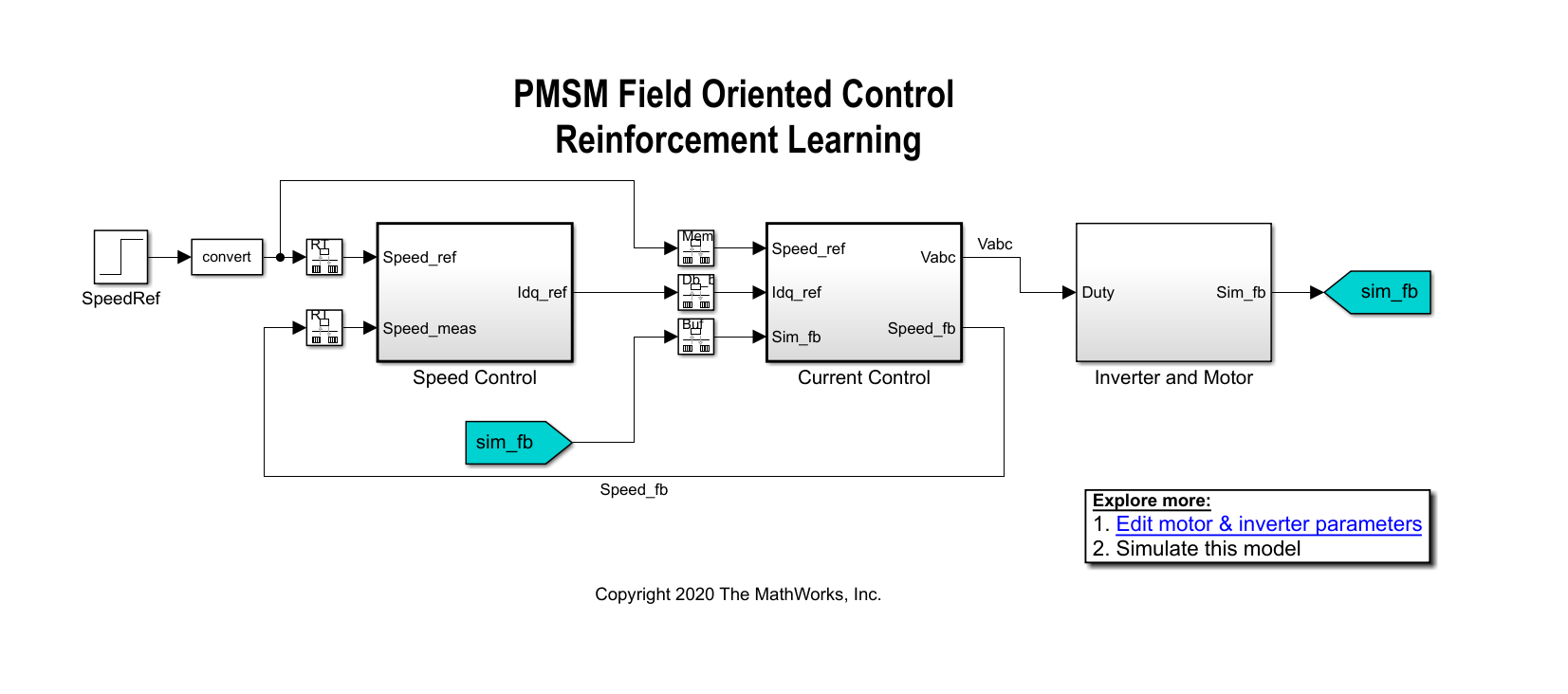

The environment in this example consists of the PMSM system, excluding the inner-loop current controller, which is the reinforcement learning agent. To view the interface between the reinforcement learning agent and the environment, open the Closed Loop Control subsystem.

open_system(mdl + ...
    "/Current Control/Control_System/Closed Loop Control")

The Reinforcement Learning subsystem contains an RL Agent block, the creation of the observation vector, and the reward calculation.

For this environment:

$${\mathit{r}}_{\mathit{t}}=-\left({\mathit{Q}}_1*{{\mathrm{id}}_{\mathrm{error}}}^2+{\mathit{Q}}_2*{{\mathrm{iq}}_{\mathrm{error}}}^2+\mathit{R}*\sum _{\mathit{j}}{{{\mathit{u}}^{\mathit{j}}}_{\mathit{t}-1}}^2\right)-100\mathit{d}$$.

Here, ${\mathit{Q}}_1={\mathit{Q}}_2=5$, and $\mathit{R}=0.1$ are constants, ${\mathrm{id}}_{\mathrm{error}}$ is the d-axis current error, ${\mathrm{iq}}_{\mathrm{error}}$ is the q-axis current error, ${{\mathit{u}}^{\mathit{j}}}_{\mathit{t}-1}$ are the actions from the previous time step, and $\mathit{d}$ is a flag that is equal to 1 when the simulation is terminated early.

Create the observation and action specifications for the environment. For information on creating continuous specifications, see rlNumericSpec.

% Create observation specifications.
numObs = 8;
obsInfo = rlNumericSpec( ...
    [numObs 1], ...
    DataType=dataType);
obsInfo.Name = "observations";
obsInfo.Description = "Error and reference signal";

% Create action specifications.
numAct = 2;
actInfo = rlNumericSpec([numAct 1], "DataType", dataType);
actInfo.Name = "vqdRef";

Create the Simulink environment interface using the observation and action specifications. For more information on creating Simulink environments, see rlSimulinkEnv.

agentblk = "mcb_pmsm_foc_sim_RL/Current Control/" + ...
   "Control_System/Closed Loop Control/" + ...
   "Reinforcement Learning/RL Agent";

env = rlSimulinkEnv(mdl, agentblk, obsInfo, actInfo);

Provide a reset function for this environment using the ResetFcn parameter. At the beginning of each training episode, the resetPMSM function randomly initializes the final value of the reference speed in the SpeedRef block to 695.4 rpm (0.2 pu), 1390.8 rpm (0.4 pu), 2086.2 rpm (0.6 pu), or 2781.6 rpm (0.8 pu).

env.ResetFcn = @resetPMSM;

Create Agent

The agent used in this example is a twin-delayed deep deterministic policy gradient (TD3) agent. TD3 agents use two parametrized Q-value function approximators to estimate the value (that is the expected cumulative long-term reward) of the policy.

To model the parametrized Q-value function within both critics, use a neural network with two inputs (the observation and action) and one output (the value of the policy when taking a given action from the state corresponding to a given observation). For more information on TD3 agents, see Twin-Delayed Deep Deterministic (TD3) Policy Gradient Agent.

The actor and critic networks are initialized randomly. Ensure reproducibility by fixing the seed of the random generator.

rng(0)

Define each network path as an array of layer objects. Assign names to the input and output layers of each path. These names allow you to connect the paths and then later explicitly associate the network input and output layers with the appropriate environment channel.

% State input path
statePath = [
    featureInputLayer(numObs, Name="StateInLyr")
    fullyConnectedLayer(64, Name="fc1")
    ];

% Action input path
actionPath = [
    featureInputLayer(numAct, Name="ActionInLyr")
    fullyConnectedLayer(64, Name="fc2")
    ];

% Common output path
commonPath = [
    additionLayer(2, Name="add")
    reluLayer
    fullyConnectedLayer(32)
    reluLayer
    fullyConnectedLayer(1, Name="QValueOutLyr")
    ];

% Create dlnetwork object and add layers.
criticNet = dlnetwork();
criticNet = addLayers(criticNet, statePath);
criticNet = addLayers(criticNet, actionPath);
criticNet = addLayers(criticNet, commonPath);

% Connect layers.
criticNet = connectLayers(criticNet, "fc1", "add/in1");
criticNet = connectLayers(criticNet, "fc2", "add/in2");

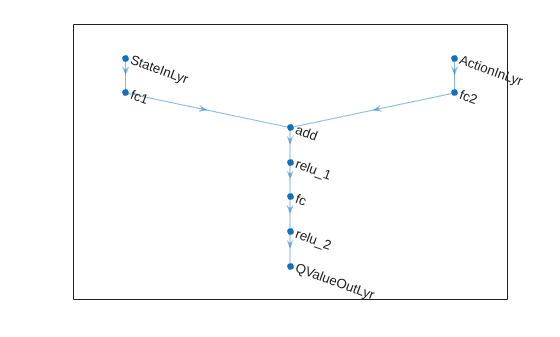

Plot the critic network structure.

plot(criticNet);

Display the number of weights.

summary(initialize(criticNet));

   Initialized: true

   Number of learnables: 2.8k

   Inputs:
      1   'StateInLyr'    8 features
      2   'ActionInLyr'   2 features

Create the critic objects using rlQValueFunction. The critics are function approximator objects that use the deep neural network as approximation model. To make sure the critics have different initial weights, explicitly initialize each network before using them to create a critic.

critic1 = rlQValueFunction(initialize(criticNet),obsInfo,actInfo);
critic2 = rlQValueFunction(initialize(criticNet),obsInfo,actInfo);

TD3 agents use a parametrized deterministic policy over continuous action spaces, which is learned by a continuous deterministic actor. This actor takes the current observation as input and returns as output an action that is a deterministic function of the observation.

To model the parametrized policy within the actor, use a neural network with one input layer (which receives the content of the environment observation channel, as specified by obsInfo) and one output layer (which returns the action to the environment action channel, as specified by actInfo). For more information on creating approximator objects such as actors and critics, see Create Policies and Value Functions.

Define the network as an array of layer objects.

actorNet = [
    featureInputLayer(numObs, Name="StateInLyr")
    fullyConnectedLayer(64)
    reluLayer
    fullyConnectedLayer(32)
    reluLayer
    fullyConnectedLayer(numAct)
    tanhLayer(Name="ActionOutLyr")
    ];

Convert to dlnetwork object.

actorNet = dlnetwork(actorNet);

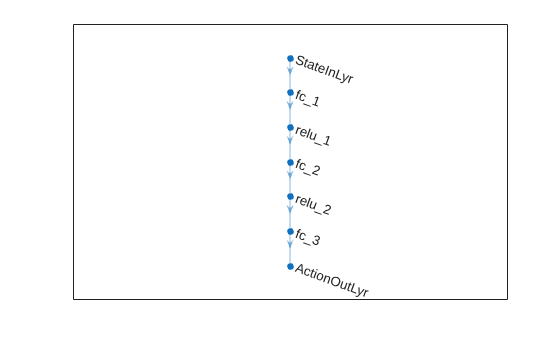

Plot the actor network.

plot(actorNet);

Initialize network and display the number of weights.

actorNet = initialize(actorNet);
summary(actorNet)

   Initialized: true

   Number of learnables: 2.7k

   Inputs:
      1   'StateInLyr'   8 features

Create the actor using rlContinuousDeterministicActor, passing the actor network and the environment specifications as input arguments.

actor = rlContinuousDeterministicActor(actorNet,obsInfo,actInfo);

To create the TD3 agent, first specify the agent options using an rlTD3AgentOptions object. Alternatively, you can create the agent first, and then access its option object and modify all the options using dot notation.

The agent trains from an experience buffer of maximum capacity 2e6 by randomly selecting mini-batches of size 512. Use a discount factor of 0.995 to favor long-term rewards. TD3 agents maintain time-delayed copies of the actor and critics known as the target actor and critics. Configure the targets to update every 10 agent steps during training with a smoothing factor of 0.005.

Ts_agent = Ts;
agentOpts = rlTD3AgentOptions( ...
    SampleTime=Ts_agent, ...
    DiscountFactor=0.995, ...
    ExperienceBufferLength=1e5, ...
    MiniBatchSize=512);

Specify training options for the critics and the actor using rlOptimizerOptions. For this example, set a learning rate of 1e-3 for the actor and critics respectively.

% Critic optimizer options
for idx = 1:2
    agentOpts.CriticOptimizerOptions(idx).LearnRate = 1e-3;
    agentOpts.CriticOptimizerOptions(idx).GradientThreshold = 1;
    agentOpts.CriticOptimizerOptions(idx).L2RegularizationFactor = 1e-3;
end

% Actor optimizer options
agentOpts.ActorOptimizerOptions.LearnRate = 1e-3;
agentOpts.ActorOptimizerOptions.GradientThreshold = 1;
agentOpts.ActorOptimizerOptions.L2RegularizationFactor = 1e-3;

During training, the agent explores the action space using a Gaussian action noise model. Set the noise standard deviation using the ExplorationModel property. For more information on the noise model, see rlTD3AgentOptions.

agentOpts.ExplorationModel.StandardDeviationMin =  0.05;
agentOpts.ExplorationModel.StandardDeviation = 0.05;

The agent also uses a Gaussian action noise model for smoothing the target policy updates. Specify the noise standard deviation for this model using the TargetPolicySmoothModel property.

agentOpts.TargetPolicySmoothModel.StandardDeviation = 0.1;

Create the agent using the specified actor, critics, and options.

agent = rlTD3Agent(actor, [critic1,critic2], agentOpts);

Train Agent

To train the agent, first specify the training options using rlTrainingOptions. For this example, use the following options.

T = 1.0;
maxepisodes = 1000;
maxsteps = ceil(T/Ts_agent);
trainOpts = rlTrainingOptions(...
    MaxEpisodes=maxepisodes, ...
    MaxStepsPerEpisode=maxsteps, ...
    StopTrainingCriteria="EvaluationStatistic",...
    StopTrainingValue=-75,...
    ScoreAveragingWindowLength=10);

To evaluate the agent during training, create an rlEvaluator object. Configure the evaluator to run 3 consecutive evaluation episodes every 10 training episodes.

evaluator = rlEvaluator(...
    NumEpisodes=3,...
    EvaluationFrequency=10);

Train the agent using the train function. Training this agent is a computationally intensive process that takes several minutes to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;
if doTraining
    trainResult = train(agent, env, trainOpts, Evaluator=evaluator);
else
    load("rlPMSMAgent.mat","agent")
end

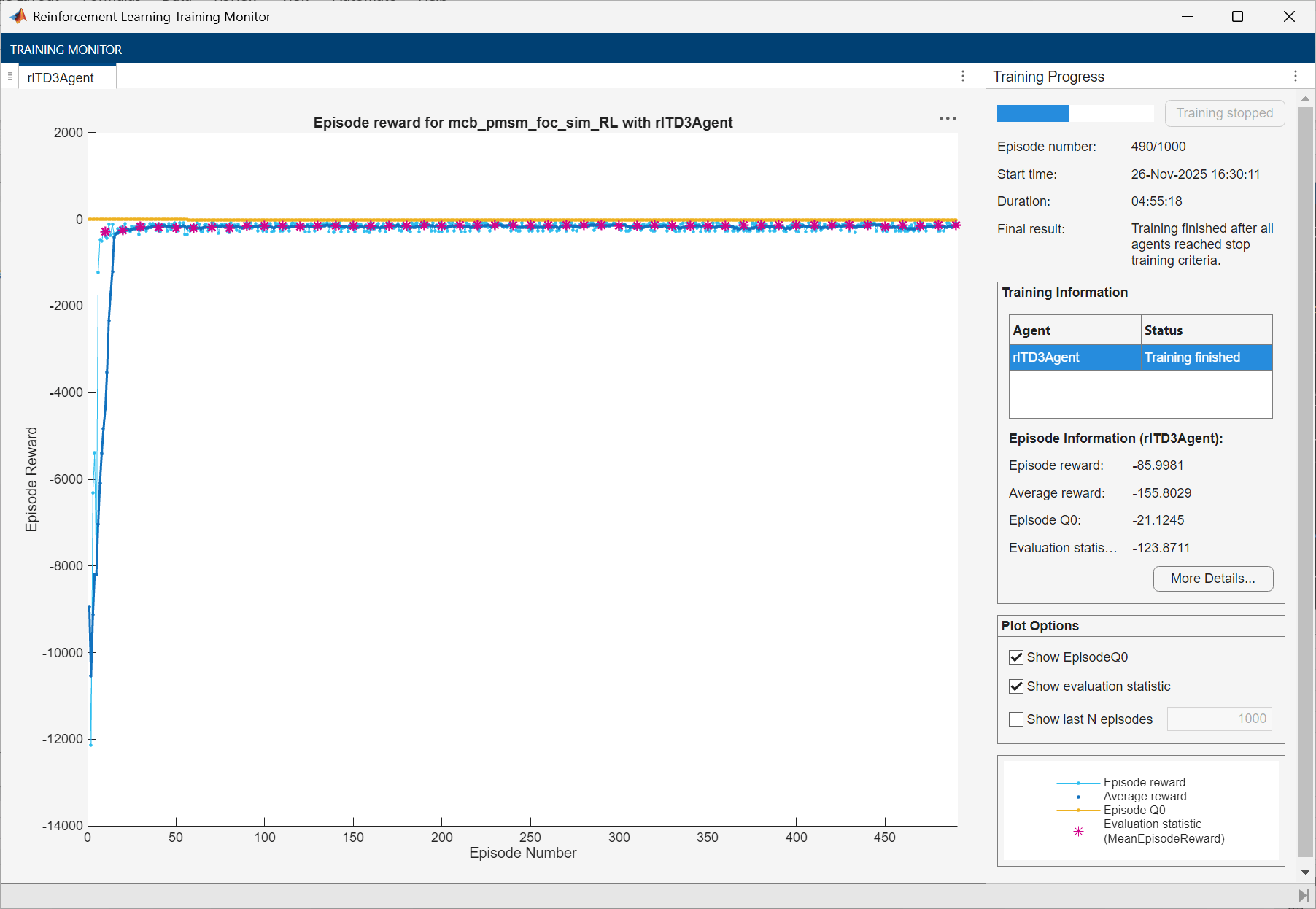

A snapshot of the training progress is shown in the following figure. You can expect different results due to randomness in the training process.

Simulate Agent

To validate the performance of the trained agent, simulate the model and view the closed-loop performance through the Speed Tracking Scope block. Use a Simulink.SimulationInput object to temporarily modify block parameters and simulate the model.

in = Simulink.SimulationInput(mdl);
sim(in);

You can also simulate the model at different reference speeds. Set the reference speed in the SpeedRef block to a different value between 0.2 and 1.0 per-unit and simulate the model again.

in = setBlockParameter(in,"mcb_pmsm_foc_sim_RL/SpeedRef","After", "0.6");
sim(in);

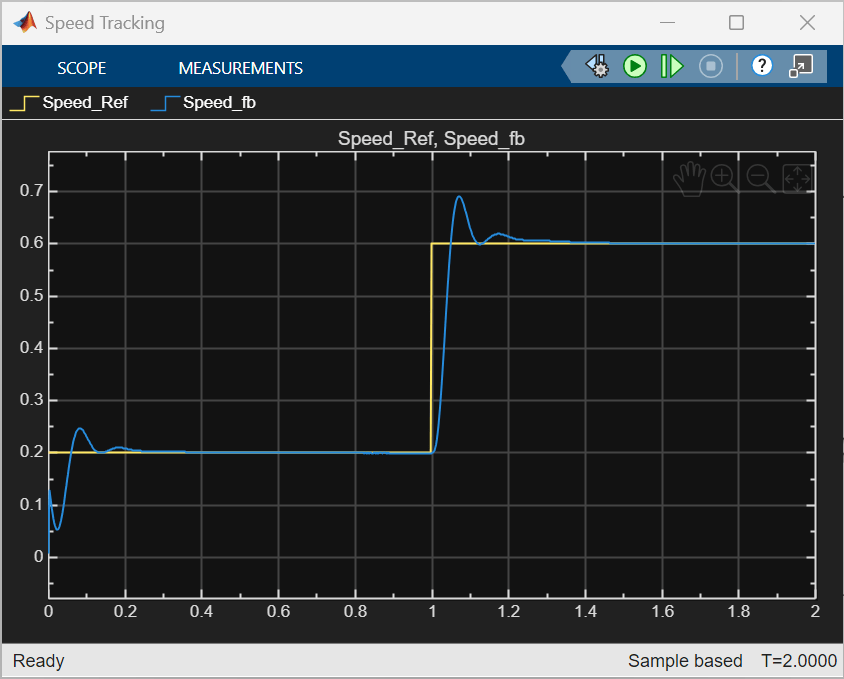

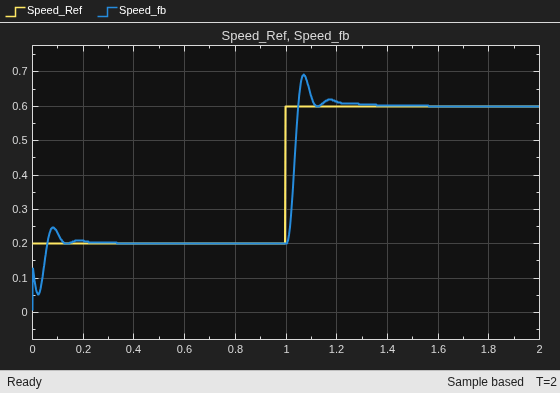

The following figure shows an example of closed-loop tracking performance. In this simulation, the reference speed steps through values of 695.4 rpm (0.2 per-unit) and 1738.5 rpm (0.5 pu). The PI and reinforcement learning controllers track the reference signal changes within 0.5 seconds.

Although the agent was trained to track the reference speed of 0.2 per-unit and not 0.5 per-unit, it was able to generalize well.

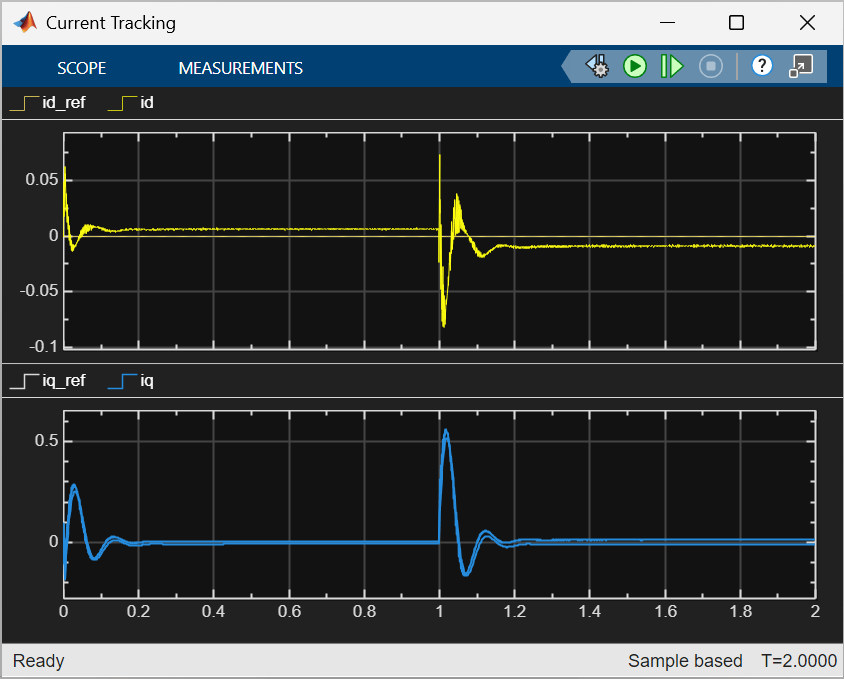

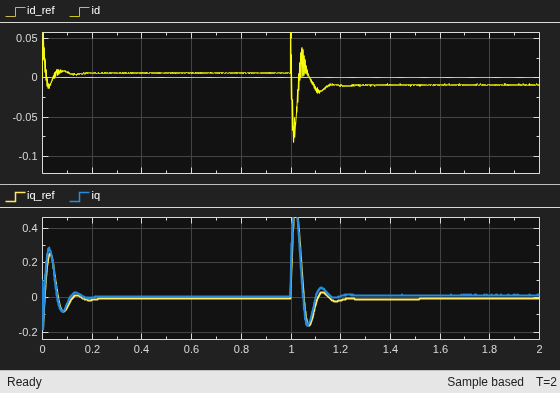

The following figure shows the corresponding current tracking performance. The agent was able to track the $\mathrm{id}$ and $\mathrm{iq}$ current references with steady-state error less than 2%.
