collisionSphere

Create sphere collision geometry

expand all in page

Description

Use collisionSphere to create a sphere collision geometry with the origin of the geometry-fixed frame at the center of the sphere.

Creation

Syntax

SPH = collisionSphere(Radius)
SPH = collisionSphere(___,Pose=pose)

Description

SPH = collisionSphere(Radius) creates a sphere collision geometry with a specified Radius centered at the origin of the world frame. The origin of the geometry-fixed frame is at the center of the sphere.

example

SPH = collisionSphere(___,Pose=pose) sets the Pose property of the sphere to pose, relative to the world frame.

Properties

expand all

Radius of sphere, specified as a positive scalar. Units are in meters.

Data Types: double

Pose of the collision geometry relative to the world frame, specified as a 4-by-4 homogeneous matrix or an se3 object. You can change the pose after you create the collision geometry.

Note

Note that when the pose is specified as an se3 object, the Pose property stores the pose as a numeric 4-by-4 matrix.

Data Types: single | double

Object Functions

checkCollisionCheck if two geometries are in collision
convertToCollisionMeshConvert collision primitive geometry into collision mesh geometry
fitCollisionCapsuleFit collision capsule around collision geometry
showShow collision geometry

Examples

collapse all

Open Live Script

Create a sphere collision geometry centered at the origin. The sphere has a radius of 1 meter.

rad = 1;
sph = collisionSphere(rad)
sph =
  collisionSphere with properties:

    Radius: 1
      Pose: [4x4 double]

Visualize the sphere.

show(sph)
title("Sphere")

Figure contains an axes object. The axes object with title Sphere, xlabel X, ylabel Y contains an object of type patch.

Create a cylinder collision geometry of radius 1 meter and length 3 meters.

cyl = collisionCylinder(1,3);

Create a homogeneous transformation that corresponds to a translation of 2.5 meters up the z-axis. Set the pose of the sphere to the matrix. Show the sphere and the cylinder.

mat = trvec2tform([0 0 2.5]);
sph.Pose = mat;
show(sph)
hold on
show(cyl)
view(90,0)
zlim([-2 4])

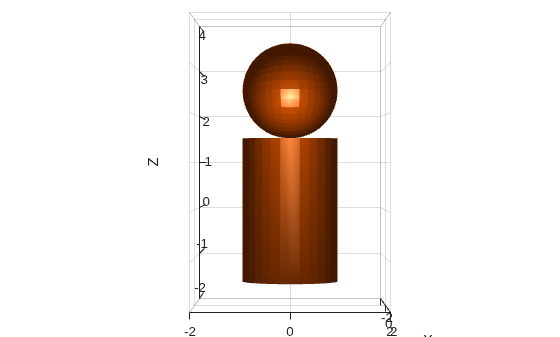

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 2 objects of type patch.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019b
