Receive Transformations

Now that the transformations are available, you can inspect them. Any transformation is described by a ROS 2 geometry_msgs/TransformStamped message and has a translational and rotational component.

Retrieve the transformation that describes the relationship between the mounting point and the camera center. Use the getTransform function to do that.

mountToCamera = getTransform(tftree, 'mounting_point', 'camera_center');
mountToCameraTranslation = mountToCamera.transform.translation

mountToCameraTranslation = struct with fields:
    MessageType: 'geometry_msgs/Vector3'
              x: 0
              y: 0
              z: 0.5000

quat = mountToCamera.transform.rotation

quat = struct with fields:
    MessageType: 'geometry_msgs/Quaternion'
              x: 0
              y: 0.7071
              z: 0
              w: 0.7071

mountToCameraRotationAngles = rad2deg(quat2eul([quat.w quat.x quat.y quat.z]))

mountToCameraRotationAngles = 1×3

     0    90     0

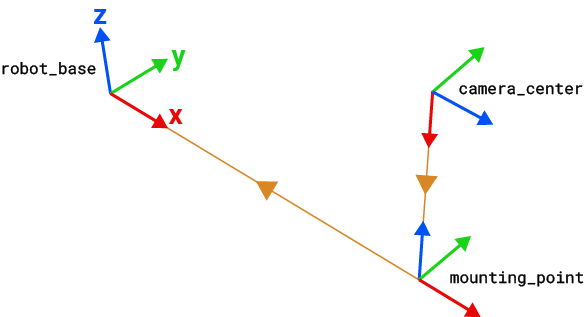

Relative to the mounting point, the camera center is located 0.5 meters along the z-axis and is rotated by 90 degrees around the y-axis.

To inspect the relationship between the robot base and the camera's mounting point, call getTransform again.

baseToMount = getTransform(tftree, 'robot_base', 'mounting_point');
baseToMountTranslation = baseToMount.transform.translation

baseToMountTranslation = struct with fields:
    MessageType: 'geometry_msgs/Vector3'
              x: 1
              y: 0
              z: 0

baseToMountRotation = baseToMount.transform.rotation

baseToMountRotation = struct with fields:
    MessageType: 'geometry_msgs/Quaternion'
              x: 0
              y: 0
              z: 0
              w: 1

baseToMountRotationRotationAngles = rad2deg(quat2eul([baseToMountRotation.w baseToMountRotation.x baseToMountRotation.y baseToMountRotation.z]));

The mounting point is located at 1 meter along the robot base's x-axis.

Apply Transformations

Assume now that you have a 3D point that is defined in the camera_center coordinate frame and you want to calculate what the point coordinates in the robot_base frame are.

Use the getTransform function to wait until the transformation between the camera_center and robot_base coordinate frames becomes available. This call blocks until the transformation that takes data from camera_center to robot_base is valid and available in the transformation tree.

getTransform(tftree,'robot_base','camera_center','Timeout', Inf);

Now define a point at position [3 1.5 0.2] in the camera center's coordinate frame. You will subsequently transform this point into robot_base coordinates.

pt = ros2message('geometry_msgs/PointStamped');
pt.header.frame_id = 'camera_center';
pt.point.x = 3;
pt.point.y = 1.5;
pt.point.z = 0.2;

You can transform the point coordinates by calling the transform function on the transformation tree object. Specify what the target coordinate frame of this transformation is. In this example, use robot_base.

tfpt = transform(tftree, 'robot_base', pt)

tfpt = struct with fields:
    MessageType: 'geometry_msgs/PointStamped'
         header: [1×1 struct]
          point: [1×1 struct]

Besides PointStamped messages, the transform function allows you to transform other entities like poses (geometry_msgs/PoseStamped), quaternions (geometry_msgs/QuaternionStamped), and point clouds (sensor_msgs/PointCloud2).

If you want to store a transformation, you can retrieve it with the getTransform function.

robotToCamera = getTransform(tftree, 'robot_base', 'camera_center')

robotToCamera = struct with fields:
       MessageType: 'geometry_msgs/TransformStamped'
            header: [1×1 struct]
    child_frame_id: 'camera_center'
         transform: [1×1 struct]

This transformation can be used to transform coordinates in the camera_center frame into coordinates in the robot_base frame.

robotToCamera.transform.translation

ans = struct with fields:
    MessageType: 'geometry_msgs/Vector3'
              x: 1
              y: 0
              z: 0.5000

robotToCamera.transform.rotation

ans = struct with fields:
    MessageType: 'geometry_msgs/Quaternion'
              x: 0
              y: 0.7071
              z: 0
              w: 0.7071

Send Transformations

You can also broadcast a new transformation to the ROS 2 network.

Assume that you have a simple transformation that describes the offset of the wheel coordinate frame relative to the robot_base coordinate frame. The wheel is mounted -0.2 meters along the y-axis and -0.3 along the z-axis. The wheel has a relative rotation of 30 degrees around the y-axis.

Create the corresponding geometry_msgs/TransformStamped message that describes this transformation. The source coordinate frame, wheel, is placed to the child_frame_id property. The target coordinate frame, robot_base, is added to the header.FrameId property.

tfStampedMsg = ros2message('geometry_msgs/TransformStamped');
tfStampedMsg.child_frame_id = 'wheel';
tfStampedMsg.header.frame_id = 'robot_base';

The transformation itself is described in the Transform property. It contains a Translation and a Rotation. Fill in the values that are listed above.

The Rotation is described as a quaternion. To convert the 30 degree rotation around the y-axis to a quaternion, you can use the axang2quat (Navigation Toolbox) function. The y-axis is described by the [0 1 0] vector and 30 degrees can be converted to radians with the deg2rad function.

tfStampedMsg.transform.translation.x = 0;
tfStampedMsg.transform.translation.y = -0.2;
tfStampedMsg.transform.translation.z = -0.3;

quatrot = axang2quat([0 1 0 deg2rad(30)]);
tfStampedMsg.transform.rotation.w = quatrot(1);
tfStampedMsg.transform.rotation.x = quatrot(2);
tfStampedMsg.transform.rotation.y = quatrot(3);
tfStampedMsg.transform.rotation.z = quatrot(4);

Use ros2time to retrieve the current system time and use that to timestamp the transformation. This lets the recipients know at which point in time this transformation was valid.

tfStampedMsg.header.stamp = ros2time(node,'now');

Broadcast this transformation over the ROS 2 network.

sendTransform(tftree, tfStampedMsg)

The new wheel coordinate frame is now also in the list of available coordinate frames.

tftree.AvailableFrames

ans = 4×1 cell
    {'camera_center' }
    {'mounting_point'}
    {'robot_base'    }
    {'wheel'         }

The final visual representation of all four coordinate frames looks as follows.

You can see that the wheel coordinate frame has the translation and rotation that you specified in sending the transformation.

Stop Example Publisher

Stop the example transformation publisher.

exampleHelperROS2StopTfPublisher

Clear the node.

clear('node')
