Generate a Standalone ROS 2 Node

Prerequisites

To run this example, you require access to:

Control ROS 2 - Enabled Robot

Open the function robotROS2FeedbackControl, which contains a proportional controller introduced in the Feedback Control of a ROS-Enabled Robot example. This function subscribes to the /odom topic to get the current odometry status of the robot, and then publishes the output of a proportional controller as a geometry_msgs/Twist message to the /cmd_vel topic. This provides the control commands for the robot to move towards the desired position.

Copy the robotROS2FeedbackControl function to your local directory and change the defaultDesiredPos variable to the desired coordinates.

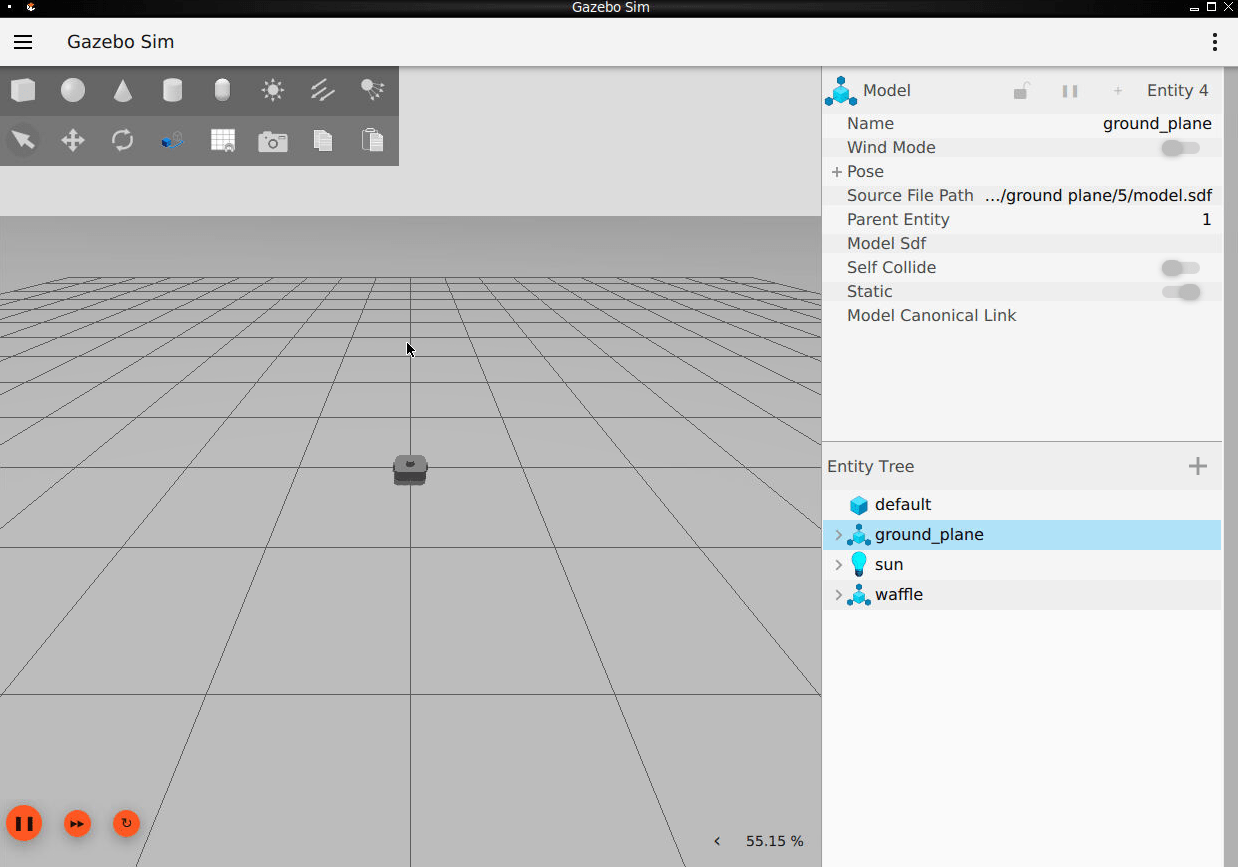

Start a Gazebo Empty World environment for ROS 2 from the Linux virtual machine by running these running commands on the desktop. In the Linux virtual machine for ROS Toolbox, the turtlebot robot is located at the [0,0] location by default. This Gazebo world contains a Turtlebot robot, which publishes and subscribes to messages on a ROS 2 network.

~$ source /opt/ros/foxy/local_setup.bash
~$ export TURTLEBOT3_MODEL=burger && ros2 launch turtlebot3_gazebo empty_world.launch.py

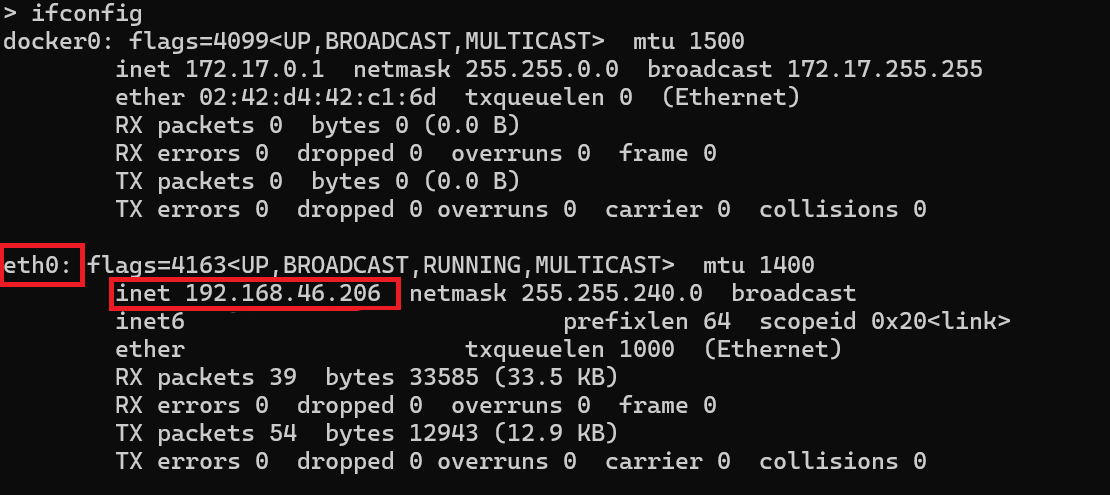

Create a ros2device object. Specify the deviceAddress, username, and password values of the Virtual Machine running Gazebo. This establishes an SSH connection between the ROS 2 device and MATLAB.

gazeboVMDevice = ros2device('172.21.17.220',"user","password")

Create a MATLAB ROS 2 node in the same ROS network as the virtual machine. See the list of available ROS 2 nodes.

ros2 node list

Run the controller. The robot is moving towards the published destination. At the same time, observe the trajectory of the robot. Keep this figure open to compare the behavior of MATLAB execution and the generated executable node.

robotROS2FeedbackControl

To change the destination while the robot is moving. Open a new terminal in the virtual machine, source the ROS repository, and publish the new destination coordinates in the form of a std_msgs/Float64MultiArray message to the /dest topic.

~$ source /opt/ros/foxy/local_setup.bash
~$ ros2 topic pub -1 /dest std_msgs/Float64MultiArray "{data:[0,0]}"

You can also adjust the distanceThre, linearVelocity, and rotationGain values in the robotROS2FeedbackControl.m to change the desired robot behavior. For the proportional controller in this example, you must specify values in these ranges to ensure robust performance. Alternatively, you can replace the proportional controller with a custom controller for performance comparison. To view the behavior, reset the robot on the virtual machine by pressing Ctrl-R in Gazebo.

distanceThre: 0<x<1
linearVelocity: 0<x<3
rotationGain: 0<x<6

The controller loop terminates after the robot reaches the goal or if more than 40 seconds has elapsed since the start time. Alternatively, you can terminate the controller at any time using Ctrl-C or entering this command in the terminal from the virtual machine. If you open a new terminal in the virtual machine, you must source the ROS repository.

~$ ros2 topic pub -1 /stop std_msgs/Bool "data: 1"

Create a Function for Code Generation

To generate a standalone C++ node, modify the function to make it compatible for code generation.

Generate Executable for robotROS2FeedbackControlCodegen

Reset the Gazebo scene after simulation using Ctrl-R on the virtual machine.

Generate an executable node for the robotROS2FeedbackControlCodegen function. Specify the hardware as "Robot Operating System 2 (ROS 2)". Set the build action to "Build and run" so that the ROS 2 node starts running after you generate it. Specify the coder configuration parameters for remote deployment. This example specifies the remote device parameters of the virtual machine running Gazebo. Note that the actual values might be different for your remote device. Verify them before deployment.

cfg = coder.config("exe");
cfg.Hardware = coder.hardware("Robot Operating System 2 (ROS 2)");
cfg.Hardware.BuildAction = "Build and run";
cfg.Hardware.RemoteDeviceAddress = '172.21.17.220';
cfg.Hardware.RemoteDeviceUsername = "user";
cfg.Hardware.RemoteDevicePassword = "password";
cfg.Hardware.DeployTo = "Remote Device";
codegen robotROS2FeedbackControlCodegen -args {} -config cfg

Reset the Gazebo scene by using Ctrl-R on the virtual machine and call plotPathFeedbackControl to plot the robot trajectory.

plotPathFeedbackControl

The configuration generates and runs the ROS 2 node on your remote device. You can opt to deploy and run the ROS 2 node on the local machine by modifying the coder configuration object, cfg.

cfg = coder.config('exe');
cfg.Hardware = coder.hardware('Robot Operating System 2 (ROS 2)');
cfg.Hardware.BuildAction = 'Build and run';
cfg.Hardware.DeployTo = 'Localhost';
codegen robotROS2FeedbackControlCodegen -args {} -config cfg
plotPathFeedbackControl

Verify Generated ROS Node

After the generated executable starts running for the specified destination coordinates, you verify the trajectory of the robot against the MATLAB execution. You can also observe the robot moving in Gazebo on the virtual machine. You can publish a different destination coordinate while the robot is in motion. The Control a ROS-Enabled Robot with a Function section, which shows how to publish a new set of destination coordinates through a virtual machine terminal.

Terminate the generated ROS 2 node by using the stopNode function of the ros2Device object. Alternatively, you can terminate the execution by pressing Ctrl-C or sending a message to the /stop topic. Reset the Gazebo scene by using Ctrl-R on VM Machine.

stopNode(gazeboVMDevice,'robotROS2FeedbackControlCodegen')
