report

Generate reports from Report Explorer setup files

collapse all in page

Syntax

report
[rptFile1,...,rptFileN] = report(setup1,...,setupN)
rptFile = report(simulinkModel)
[___] = report(___,outFormat)
[___] = report(___,outFormat,formatTemplate)
[___] = report(___,outFormat,formatStyleSheet)
[___] = report(___,targetFolder)
[___] = report(___,targetFile)
[___] = report(___,genOpt1,...,genOptN)

Description

report opens the Report Explorer as the active window.

[rptFile1,...,rptFileN] = report(setup1,...,setupN) generates reports from the specified report setup files and returns the full paths of the generated report files. The function generates the reports according to the configuration of the report setup files.

rptFile = report(simulinkModel) generates a report from the report setup file associated with the specified Simulink® model.

Note

  • You can use this syntax only if you have Simulink Report Generator™ installed.

  • Load the Simulink model before using this syntax.

example

[___] = report(___,outFormat) generates the reports in the specified format.

[___] = report(___,outFormat,formatTemplate) generates the reports using the specified template of outFormat.

example

[___] = report(___,outFormat,formatStyleSheet) generates the reports using the specified style sheet of outFormat.

example

[___] = report(___,targetFolder) creates the generated report files in the specified folder.

example

[___] = report(___,targetFile) specifies the target root name for the generated report files.

example

[___] = report(___,genOpt1,...,genOptN) uses one or more options when generating the reports.

Examples

collapse all

Open Live Script

Use variables to store the names of the report setup files.

rpt_file_1 = "first_rpt.rpt";
rpt_file_2 = "second_rpt.rpt";
rpt_file_3 = "third_rpt.rpt";

Define the folder for the generated reports and store the path in the variable generated_reports_folder. Include the backslash (\) at the end so the report function identifies the path as a folder and not as a root file name.

generated_reports_folder = "generated_reports\"
generated_reports_folder =
"generated_reports\"

Define the output path argument for the report function in the variable out_path_param.

out_path_param = "-o"+generated_reports_folder
out_path_param =
"-ogenerated_reports\"

Use the report function once to generate and view reports for all three setup files. Specify the folder to generate the reports in by using the out_path_param variable. Specify the generated reports type to be in the format dom-pdf with the template default-rg-docx-numbered.

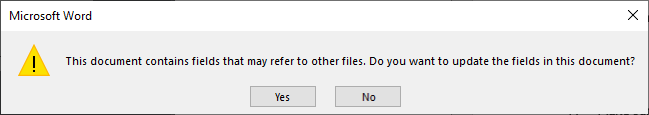

The function generates and opens temporary DOCX files and converts the DOCX files to PDF files. If you get a Microsoft® Word pop up warning about allowing the document to update the fields, click Yes.

Store the paths of the generated report files in the string array report_file_paths and display the names of the files.

[report_file_paths(1),report_file_paths(2),report_file_paths(3)] = ...
              report(rpt_file_1,rpt_file_2,rpt_file_3,...
                    "-fdom-pdf","-sdefault-rg-docx-numbered",out_path_param);
    Beginning report
    Converting report
Document conversion failed. Generating a PDF report from a template supported only on Windows platforms.
Error running report
Generating a PDF report from a template supported only on Windows platforms.
    Beginning report
    Converting report
Document conversion failed. Generating a PDF report from a template supported only on Windows platforms.
Error running report
Generating a PDF report from a template supported only on Windows platforms.
    Beginning report
    Converting report
Document conversion failed. Generating a PDF report from a template supported only on Windows platforms.
Error running report
Generating a PDF report from a template supported only on Windows platforms.

[~,generated_report_names] = fileparts(report_file_paths);
disp(generated_report_names');
    ""
    ""
    ""

This example uses:

Open Live Script

This example shows how to use the Report Explorer to report on a Simulink model. You must have Simulink Report Generator installed to run this example.

Load the model and check which report setup file is associated with the model.

model_name = "simple_model";
load_system(model_name);
model_report_name = get_param(model_name,"ReportName")
model_report_name =
'simple_RPT.rpt'

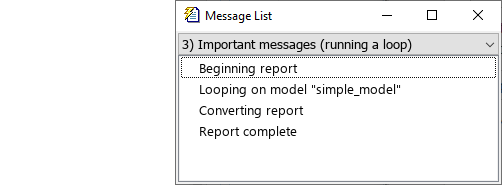

Use the report function to generate a report named reportOnSimpleModel in the current directory using the dom-pdf-direct format. Launch the Message List dialog box of the Report Explorer by using the -graphical option.

Store the path of the generated report file in the variable generated_report_path and display the file name and extension.

generated_report_path = report(model_name,"-fdom-pdf-direct","-oreportOnSimpleModel","-graphical");
[~,generated_report_name,generated_report_extension] = fileparts(generated_report_path)
generated_report_name =
"reportOnSimpleModel"

generated_report_extension =
".pdf"
Open Live Script

This example shows how to avoid overwriting when generating multiple reports with the same root name.

Configure the Report Setup Files

Use variables to store the names of the report setup files.

rpt_file_1 = "my_first_rpt.rpt";
rpt_file_2 = "my_second_rpt.rpt";
rpt_file_3 = "my_third_rpt.rpt";

Use the function setedit to open the report setup files in the Report Explorer. Make sure the If report already exists, increment to prevent overwriting check box is selected for all three files.

setedit(rpt_file_1);
setedit(rpt_file_2);
setedit(rpt_file_3);

Generate the Reports

Define the base path for the generated reports.

base_report_path = fullfile("","generated_reports","myGeneratedReport")
base_report_path =
"generated_reports/myGeneratedReport"

Define the output path argument for the report function in the variable out_path_param. The function appends a different number to base_report_path for each report and generates report files with different names.

out_path_param = "-o"+base_report_path
out_path_param =
"-ogenerated_reports/myGeneratedReport"

Use the report function to generate and view reports for the three setup files simultaneously. Specify the root name for the generated reports using the out_path_param parameter. Specify the generated reports type to be in the format pdf-fop with the style sheet fo-YesChapterNumbers. Store the paths of the generated report files in the string array report_file_paths and display the names of the files. Note that the generated report files have different names because the increment to prevent overwriting option is selected.

[report_file_paths(1),report_file_paths(2),report_file_paths(3)] = ...
      report(rpt_file_1,rpt_file_2,rpt_file_3,...
                "-fpdf-fop","-sfo-YesChapterNumbers",out_path_param);
    Beginning report
    Converting report
    Report complete
    Beginning report
    Converting report
    Report complete
    Beginning report
    Converting report
    Report complete

[~,generated_report_names] = fileparts(report_file_paths);
disp(generated_report_names');
    "myGeneratedReport0"
    "myGeneratedReport1"
    "myGeneratedReport2"

Input Arguments

collapse all

Names of report setup files to generate reports from, specified as string scalars or character vectors.

Name of the Simulink model associated with the report setup file from which to generate the report, specified as a character vector or string scalar.

To see which report setup file is associated with a model, check the value of the ReportName property of the model. For example:

model_name = "myModel";
load_system(model_name);
model_report_name = get_param(model_name,"ReportName")
ans =
    'modelRptFile.rpt'
To associate a report setup file with a model, set the value of the ReportName property to the name of the report setup file. For example:
model_name = "myModel";
new_rpt_file_name = "modelRptFile.rpt";
load_system(model_name);
set_param(model_name,"ReportName",new_rpt_file_name);

Note

The report setup file name must include the .rpt file extension.

By default, all models are associated with simulink-default.rpt, which is a report setup file that generates a report for the current Simulink system.

Output report format, specified as a character vector or string scalar in the form of -fFORMAT, where FORMAT is a valid format value.

To get the list of DOM formats use:

rptconvert("-domformatlist")
To get the list of legacy, non-DOM formats use:
rptconvert("-formatlist")

Template of outFormat to use for generating the report, specified as a character vector or string scalar in the form of -sTEMPLATE, where TEMPLATE is a valid template for the format outFormat. Legacy formats do not have templates. All DOM formats have templates. To see the list of valid templates for the outFormat format, which can be any valid DOM format, enter the command:

rptconvert("-templatelist",outFormat)

Style sheet of outFormat to use for generating the report, specified as a character vector or string scalar in the form of -sSTYLE_SHEET, where STYLE_SHEET is a valid style sheet for the format outFormat. DOM formats do not have style sheets. All non-DOM formats, except db, have style sheets. To see the list of valid style sheets for the outFormat format, which can be any valid non-DOM format except db, enter the command:

rptconvert("-stylesheetlist",outFormat)

Base target file name for the created report files, specified as a character vector or string scalar in the form of -oNAME, where NAME is the base name or path of the files to create.

Note

Specify targetFile as a single base name or path. To prevent the function from trying to generate multiple report files with the same name, when using this syntax with multiple report setup files, select each report setup file in the Outline pane of the Report Explorer and, in the Properties pane, ensure that you select the If report already exists, increment to prevent overwriting check box. The function then creates each report file with a different name by appending a different number to the base file name or path.

Report setup file is selected and the check box is selected

Target folder in which to create report files, specified as a character vector or string scalar in the form of -oPATH, where PATH is a relative or full path.

Note

PATH must end with a slash (/) or back-slash (\).

Options for generating the report, specified as:

ValueDescription
"-noview"

Does not open the generated reports for viewing

"-graphical"

Loads the report setup files in the Report Explorer and launches the Message List dialog box prior to generating the report. Setup files that were not loaded in the Report Explorer before report generation are unloaded after the reports are generated.

"-debug"

Outputs debugging info in the MATLAB® command line.

"-quiet"

Suppresses command-line output. This option is ignored when used with the -debug option.

Output Arguments

collapse all

Full paths of the generated report files, returned as one or more string scalars, one for each generated report file.

Version History

Introduced before R2006a
