使用报告 API 生成系统设计报告

function gensdd(model,doctype)
%GENSDD Generates a system design description from the system"s model
%   gensdd() generates a PDF system design description for the sf_car
%   model.
%
%   gensdd(model) generates a PDF system design description for the
%   specified model.
%
%   gensdd(model, doctype) generates a system design description
%   document from the specified model and document type: "html",
%   "docx", or "pdf".
%
%   The generated document is a description of a dynamic system"s design
%   generated from its Simulink model. The description contains the
%   following sections:
%
%   * Title Page
%   * Table of Contents
%   * List of Figures
%   * List of Tables
%   * System Hierarchy
%   * Root System Chapter -- Contains root block diagram, notes
%     (if any), task and block execution order, and properties of each
%     block in the root diagram.
%   * Subsystems Chapter -- Contains diagram, , notes (if any), block
%     execution order, and block properties of the subsystems.
%   * Charts Chapter -- Contains charts and chart object properties of
%     each of the charts in the model.
%   * Design Data Chapter -- Contains the model variables.
%   * System Model Configuration Chapter -- Contains details about the
%     active configuration set for the model.

import mlreportgen.dom.*
import mlreportgen.report.*
import slreportgen.report.*

if nargin < 1
    model = "sf_car";
    doctype = "pdf";
end

if nargin < 2
    doctype = "pdf";
end

hModel = load_system(model);
rpt = slreportgen.report.Report(...
    "sdd_" + get_param(model, "Name"), doctype);
open(rpt);

makeTitlePage(rpt, hModel);
add(rpt, TableOfContents);
add(rpt, ListOfFigures);
add(rpt, ListOfTables);
makeSystemHierarchy(rpt, hModel);
makeRootSystemChapter(rpt, hModel);
makeSubsystemsChapter(rpt, hModel);
makeChartsChapter(rpt, hModel);
makeDesignDataChapter(rpt, hModel);
makeModelConfigurationChapter(rpt, hModel);

close(rpt);
rptview(rpt);

close_system(model);

end

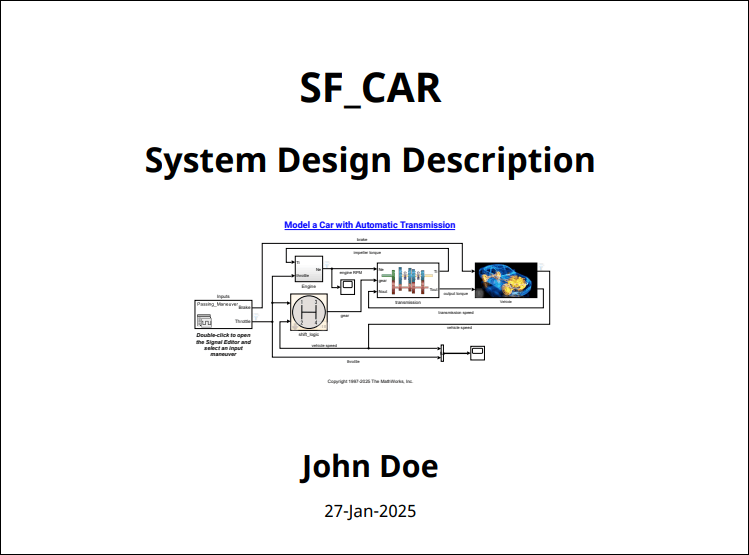

function makeTitlePage(rpt, hModel)
import mlreportgen.report.*
import slreportgen.report.*

tp = TitlePage;
tp.Title = upper(get_param(hModel, "Name"));
tp.Subtitle = "System Design Description";
tp.Author = "John Doe";

diag = Diagram(hModel);
diag.Scaling = "custom";
diag.Height = "2in";
diag.Width = "3in";
tp.Image = getSnapshotImage(diag, rpt);
add(rpt, tp);
end

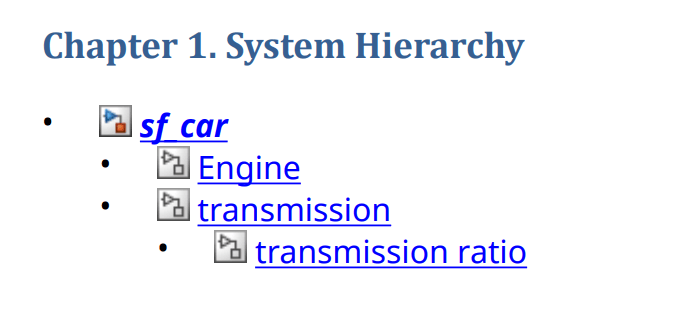

function makeSystemHierarchy(rpt, hModel)
% Create a chapter reporting on the system hierarchy
import mlreportgen.report.*
import slreportgen.report.*
ch = Chapter("Title", "System Hierarchy");
add(ch,SystemHierarchy(hModel));
add(rpt, ch);
end

function makeRootSystemChapter(rpt, hModel)
% Create a chapter reporting on the root system diagram and its blocks
% and add the chapter to the main report.
import mlreportgen.report.*
import slreportgen.report.*
import slreportgen.finder.*

ch = Chapter("Title", "Root System");
diag = Diagram(hModel);
add(ch, diag);

add(ch, SystemIO(hModel));

% If model has notes, add Notes section
makeNotesSection(ch, hModel);

% Add block execution order section
makeExecutionOrderSection(ch, hModel);

% Add subsections containing the properties for each block in the
% subsystem diagram.
makeBlockSections(ch, hModel);

add(rpt, ch);
end

function makeSubsystemsChapter(rpt, hModel)
% Create a chapter reporting on the subsystems and the blocks that
% they contain and add the chapter to the main report.
import mlreportgen.report.*
import slreportgen.report.*
import slreportgen.finder.*

% Create a chapter to hold the subsystems.
ch = Chapter("Title", "Subsystems");

% Use a finder to find all the subsystem diagrams in the model. The
% finder returns an array of SystemDiagramResult objects, each of which
% contains a Diagram reporter that creates a snapshot of the subsystem
% diagram
finder = SystemDiagramFinder(hModel);
finder.IncludeRoot = false;
systems = find(finder);

% Add the subsystem diagram results to the chapter.
for system = systems

    % Create a subsection to contain the subsystem diagram.
    section = Section("Title", system.Name);

    % Add the subsystem diagram reporter to the diagram subsection.
    % Add the subsystem diagram results to the chapter.
    diag = getReporter(system);
    diag.MaskedSystemLinkPolicy = "system";
    add(section, diag);

    % If subsystem has notes, add Notes section
    makeNotesSection(section, system)

    ioSect = Section("Title", "System Interface");
    add(ioSect, SystemIO("Object", system, "ShowDetails", false));
    add(section, ioSect);

    % If the subsystem is nonvirtual, add a subsection detailing the
    % block execution order
    if strcmp(system.Type, "Simulink.BlockDiagram")  || ...
            strcmp(get_param(system.Object, ...
            "IsSubsystemVirtual"), "off")
        makeExecutionOrderSection(section, system);
    end

    % Add subsections containing the properties for each block in the
    % subsystem diagram.
    makeBlockSections(section, system);

    % Add the subsystem diagram section to the chapter.
    add(ch, section);
end

% Add the subsystems chapter to the main report.
add(rpt, ch);

end

function makeChartsChapter(rpt, hModel)
% Create a chapter reporting on the Stateflow charts and the
% objects that they contain and add the chapter to the main report.

import mlreportgen.report.*
import slreportgen.report.*
import slreportgen.finder.*

finder = ChartDiagramFinder(hModel);
charts = find(finder);

if ~isempty(charts)
    ch = Chapter("Title", "Charts");
    for chart = charts
        section = Section("Title", chart.Name);
        diag = getReporter(chart);
        add(section, diag);

        % Report the objects in this chart
        objFinder = StateflowDiagramElementFinder(chart);
        sfObjects = find(objFinder);
        for sfObj = sfObjects
            objSection = Section("Title", sfObj.Name);
            add(objSection, sfObj);
            add(section, objSection);
        end

        add(ch, section);
    end
    add(rpt, ch);
end

end

function makeDesignDataChapter(rpt, hModel)
% Create a chapter reporting on the model variables

import mlreportgen.dom.*
import mlreportgen.report.*
import slreportgen.report.*
import slreportgen.finder.*

ch = Chapter("Title", "Design Data");

finder = ModelVariableFinder(hModel);

results = find(finder);
n = numel(results);

if n > 0
    s = Section("Title", "Design Data Summary");

    vars = cell(n, 4);
    for i = 1:n
        result = results(i);
        % Get link target for variable reporter
        lt = getVariableID(result);
        value = getVariableValue(results(i));
        vars{i, 1} = InternalLink(lt, results(i).Name);
        vars{i, 2} = class(value);
        vars{i, 3} = results(i).Source;
        vars{i, 4} = results(i).SourceType;
    end

    t = FormalTable(["Name", "Type", "Source", "Source Type"], vars);
    % Set styles for table header
    t.Header.TableEntriesStyle = {Bold, BackgroundColor("lightgrey")};
    % Set styles for entire table
    t.Width = "100%";
    t.Border = "solid";
    t.RowSep = "solid";
    t.ColSep = "solid";

    add(s, t);
    add(ch, s);

    s = Section("Title", "Design Data Details");
    % Separate multiple variable details be a horizontal rule
    if n > 1
        for result = results(1:end-1)
            add(s, result);
            add(s, HorizontalRule);
        end
    end
    add(s, results(end));
    add(ch, s);

    add(rpt, ch);
end

end

function makeModelConfigurationChapter(rpt, hModel)
% Create a chapter reporting on the active configuration set of the
% reported model.

import mlreportgen.report.*
import slreportgen.report.*

ch = Chapter("Title", "System Model Configuration");

modelConfig = ModelConfiguration(hModel);

% Add the reporter to the chapter and chapter to the report
add(ch,modelConfig);
add(rpt,ch);
end

function section = makeBlockSections(parent, system)
% Create subsections containing the properties of each block in the
% system and add it to the parent chapter or subsection.
import mlreportgen.report.*
import slreportgen.finder.*

blocksSection = Section("Title", "Blocks");
finder = BlockFinder(system);
elems = find(finder);
for elem = elems
    section = Section("Title", strrep(elem.Name, newline, " "));
    add(section, elem);

    % If this block creates a bus or selects signals from a bus, report
    % the bus signal details
    busRptr = slreportgen.report.Bus(elem);
    add(section, busRptr);

    add(blocksSection, section);
end
add(parent, blocksSection);
end

function makeExecutionOrderSection(parent, system)
% Create a section to display a list of blocks in the system in order of
% execution. If the system is a top-level model, display information
% about all tasks in the model.
import mlreportgen.report.*
import slreportgen.report.*
section = Section("Title", "Block Execution Order");

eo = ExecutionOrder(system);
if ~slreportgen.utils.isModel(system)
    % Only show task details for top-level models
    eo.ShowTaskDetails = false;
end

add(section, eo)
add(parent, section);
end

function makeNotesSection(parent, system)
% Create a section to display any existing model notes
import mlreportgen.report.*
import slreportgen.report.*
section = Section("Title", "Notes");

notes = Notes(system);
if ~isequal(notes.NoteType,"None")
    add(section,notes);
    add(parent,section);
end

end
