Open Example Model

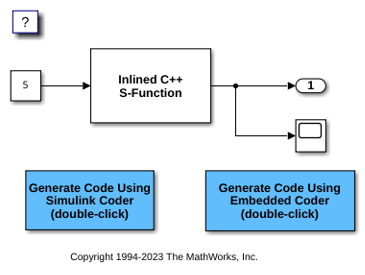

Open the example model CppSFunctionExternalCode.

open_system('CppSFunctionExternalCode');

Configure C++ Compiler

1. In the MATLAB® Command Window, enter this command:

mex -setup

2. When prompted, select a C++ compiler that is installed on your development computer.

Integrate C++ Code

You can integrate C++ code into a model by using S-functions.

1. Prepare the S-function source.

2. Open the Simulink Coder or Embedded Coder app.

3. Configure S-function source files and folders. Open the Model Configuration Parameter dialog box, navigate to the Code Generation > Custom Code pane, and add the S-function source files and include folders.

4. Inline the S-function to eliminate overhead of S-functions in the generated code.

Edit sfun_cppcount_cpp.tlc.

Configure Model for C++ Code Generation

Set model configuration parameter Language to C++.

Generate and review code

Generate and review the C++ code.
