sigwin.gausswin Class

Namespace: sigwin

Construct Gaussian window object

Description

Note

The use of sigwin.gausswin is not recommended. Use gausswin instead.

sigwin.gausswin creates a handle to a Gaussian window object for use in spectral analysis and FIR filtering by the window method. Object methods enable workspace import and ASCII file export of the window values.

The following equation defines the Gaussian window of length N:

$w (x) = e^{- \frac{1}{2} (α^{2} x^{2} / M^{2})}, - M \leq x \leq M$

where M=(N-1)/2 and x is a linearly spaced vector of length N.

Equating $α$ with the usual standard deviation of a Gaussian value, $σ$ , note:

$α = \frac{(N - 1)}{2 σ}$

Construction

H = sigwin.gausswin returns a Gaussian window object H of length 64 and dispersion parameter alpha of 2.5.

H = sigwin.gausswin(Length) returns a Gaussian window object H of length Length and dispersion parameter alpha of 2.5. Length requires a positive integer. Entering a positive noninteger value for Length rounds the length to the nearest integer. Entering a 1 for Length results in a window with a single value of 1.

H = sigwin.gausswin(Length,Alpha) returns a Gaussian window object with dispersion parameter alpha. alpha requires a nonnegative real number and is inversely proportional to the standard deviation of a Gaussian value.

Properties

`Length`	Gaussian window length. The window length requires a positive integer. Entering a positive noninteger value for `Length` rounds the length to the nearest integer. Entering a 1 for `Length` results in a window with a single value of 1.
`Alpha`	Width of Gaussian window. `Alpha` is inversely proportional to the standard deviation of a Gaussian. Larger values of `Alpha` produce Gaussian windows with inflection points closer to the peak value, or narrower windows. In the frequency domain, larger values of `Alpha` produce a Gaussian window with increased spread of the main lobe in frequency but decreased sidelobe energy.

Methods

generate	Generates Gaussian window
info	Display information about Gaussian window object
winwrite	Save Gaussian window in ASCII file

Copy Semantics

Handle. To learn how copy semantics affect your use of the class, see Copying Objects in the MATLAB^® Programming Fundamentals documentation.

Examples

collapse all

Gaussian Windows

Open Live Script

Generate two Gaussian windows of length N = 64. Specify α values of 4 and 2. Show information about the window objects. Display the windows.

H4 = sigwin.gausswin(64,4);
H2 = sigwin.gausswin(64,2);

wvt = wvtool(H4,H2);
legend(wvt.CurrentAxes,'\alpha=4','\alpha=2')

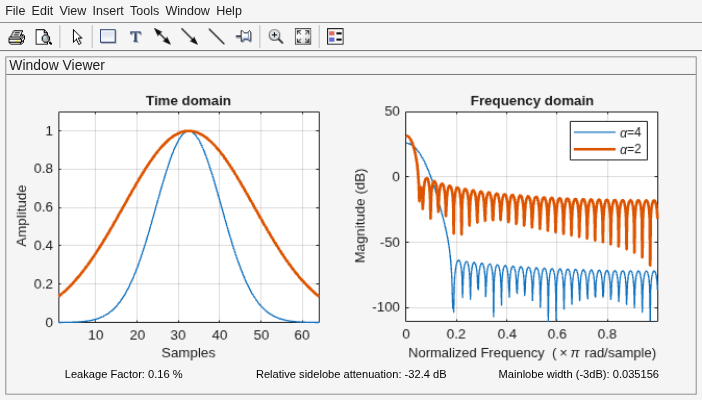

$Figure Window Visualization Tool contains 2 axes objects and other objects of type uimenu, uitoolbar, uipanel. Axes object 1 with title Time domain, xlabel Samples, ylabel Amplitude contains 2 objects of type line. Axes object 2 with title Frequency domain, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains 2 objects of type line. These objects represent \alpha=4, \alpha=2.$

The window with α = 4 has a wider mainlobe and less sidelobe energy.

Generate a Gaussian window with N = 16 and α = 3. Return the window values as a column vector. Show information about the window object. Display the window.

H = sigwin.gausswin(16,3);

win = generate(H)

wininfo = info(H)

wininfo = 4×15 char array
    'Gaussian Window'
    '---------------'
    'Length  : 16   '
    'Alpha   : 3    '

wvtool(H)

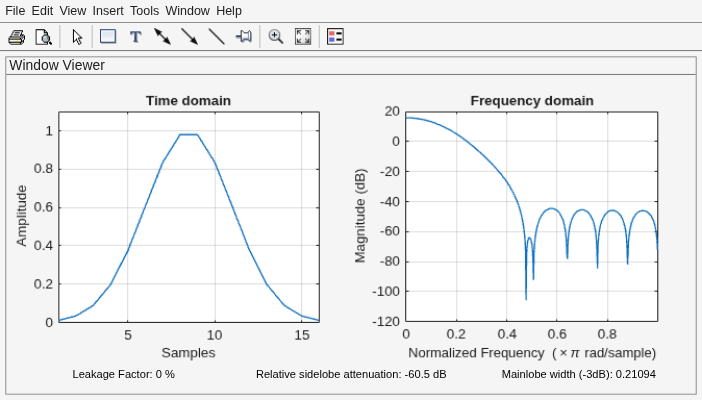

$Figure Window Visualization Tool contains 2 axes objects and other objects of type uimenu, uitoolbar, uipanel. Axes object 1 with title Time domain, xlabel Samples, ylabel Amplitude contains an object of type line. Axes object 2 with title Frequency domain, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.$

References

harris, fredric j. “On the Use of Windows for Harmonic Analysis with the Discrete Fourier Transform.” Proceedings of the IEEE^®. Vol. 66, January 1978, pp. 51–83.
