Deployment and Custom Blocks

Enable model protection using Simulink Coder™ and author blocks using Simscape™ language

Share your model with a third party and conceal its proprietary contents by enabling model protection mode and creating a protected model in the SLXP file format. Speed up iterative, long-running, computationally expensive simulations such as Monte Carlo simulation or system optimizations on your RF system using rapid accelerator and model reference accelerator modes.

Create your own RF blocks and models using the Simscape language.

Blocks

expand all

Utilities

Configuration	Define system simulation settings
Inport	Convert Simulink input signal to RF Blockset signal
Outport	Convert RF Blockset signal to Simulink output signals
Ground	Simulate connection to electrical ground

Topics

Enable Model Protection and Accelerator Modes in RF Blockset Models

Conceal implementation details and enable accelerator modes in your RF Blockset model.
- STEP 1: Design RF Direct-Conversion Receiver
- STEP 2: Protect Circuit Envelope Model
- STEP 3: Implement Automatic Gain Control for RF Receiver

Featured Examples

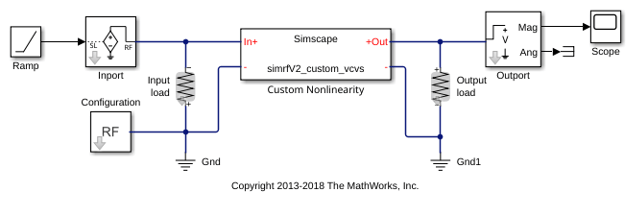

Create Custom RF Blockset Models

Write your own RF Blockset Circuit Envelope model in Simscape language for complex baseband simulation.

Open Script
