线性运算符
R2026a用于对物理信号的连续时间函数进行仿真的模块
此库包含用于对物理信号的连续时间函数进行仿真的模块。
Simscape 模块
 | PS Integrator | Integrate physical signal |
 | PS State-Space | Implement linear state-space system (自 R2025a 起) |
 | PS Transfer Function | Model low-pass and lead-lag filters |
主题
- Physical Signal Unit Propagation
Physical signal blocks propagate units.
- Upgrading Models with Legacy Physical Signal Blocks
Prior to R2019a, physical signal blocks did not propagate units.
精选示例
非线性电感器
此示例展示了非线性电感器的实现，其中电感取决于电流。tanh 函数定义非线性磁通-电流关系。磁通会在较大的电流下饱和，例如，在铁芯电感器中会出现这种情况。
电磁铁
此示例展示了一个带有弹簧复位的电磁铁。该电磁铁被建模为一个电感，其值 L 取决于柱塞位置 x。时变电感的反电动势为：
Heat Sink Using PS State-Space Block

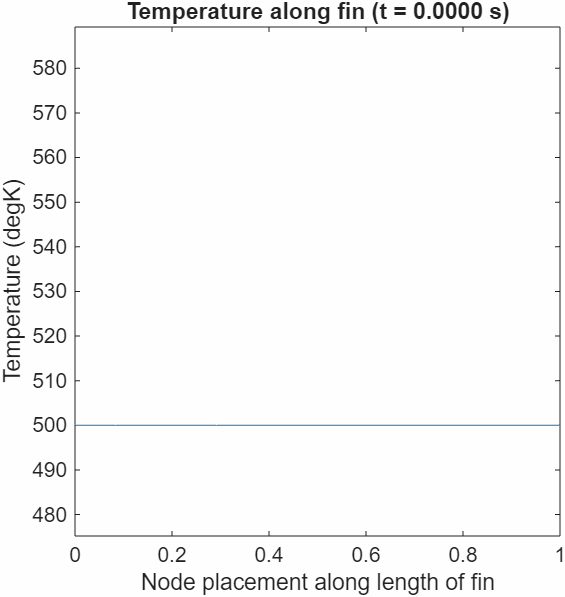

Use the PS State-Space block to model a heat sink in air. The heat sink represents rods with distributed masses along their lengths. One end of each rod is fixed to a base and undergoes conduction. Heat conducts along the length of each rod. The length of each rod is also exposed to air and undergoes convection with the air.
