Create and Activate Variant Configurations

R2026b

A model might contain several variant blocks or variant parameters, each with many variant choices. A variant configuration is used to represent a combination of such variant choices across the model hierarchy. For example, in a plant-controller system, a linear controller with a basic plant or a nonlinear controller with a trial plant represent two different variant configurations.

You can use Variant Manager to create and manage variant configurations for a model. Variant Manager defines a variant configuration as a set of variant control variables and their values that can activate a specific variation in the model hierarchy. For more information on variant configurations, see Variant Configurations. For an overview of Variant Manager, see Simulink Variant Manager.

Steps to Create Variant Configurations

You can create multiple named variant configurations for a model or you can create variant control variables in the data sources used by the model to use as a temporary variant configuration for the model.

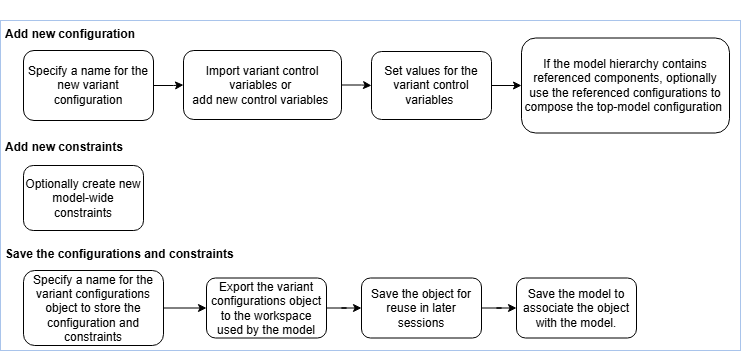

This image shows the high-level workflow to create and save a new named variant configuration for a model.

Workflow to create a named variant configuration

Open Variant Manager

Open the model for which you want to create new variant configurations. Here, open the slexVariantManagement model using the following command.

openExample('simulink_variants/VariantConfigurationObjectForAModelRefPageExample');
open_system('slexVariantManagement');

On the Modeling tab, open the Design section and click Variant Manager.

Configurations Tab in Variant Manager

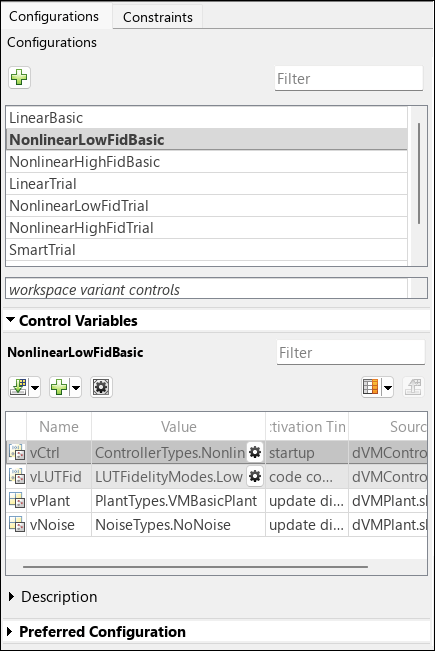

View the Configurations tab in Variant Manager.

Variant configurations pane in Variant Manager

The table lists the named variant configurations created for the model. These configurations are stored in the variant configurations object (of type Simulink.VariantConfigurations) associated with the model.
The workspace variant controls read-only box indicates the variant control variables and their values currently defined in the data sources used by the model. This configuration is temporary because it is not saved to the variant configurations object associated with the model.
The table in the Control Variables section shows the variant control variables and their values defined in a selected configuration. All control variables are listed in the table, either when the variant configurations object for the model is loaded, or when you import them from the workspace.
In the Control Variables table of a top-level variant configuration, the control variables that are populated using a referenced component configuration are read-only and appear with a gray background color.
You can click the workspace variant controls box and then import the control variables currently defined in the data sources used by the model.
The Preferred Configuration section allows you to select a named configuration that is suitable for the model for common workflows.

Add New Variant Configuration

To add a new named variant configuration, click the Add variant configuration button in the Configurations tab. A new row is added to the table of named configurations. Type a name for this configuration in the box.

Variant configurations pane in Variant Manager with a new configuration named Configuration

Add, Import, or Export Control Variables in Variant Configuration

In the Configurations tab, scroll down to see the Control Variables section. The section shows the name of the currently selected variant configuration.
In this section, click the Import control variables across model hierarchy button to import any existing control variables used by the model to the variant configuration.
To import variant control variables of type Simulink.VariantControl defined in the base workspace or a data dictionary linked to the model even if the variant control is not yet used by the model, click the down arrow on the Import control variables across model hierarchy button and select Import control variables from model data source.
To add a new control variable to the variant configuration, click the Add control variable button . By default, this operation adds a new control variable of type Simulink.VariantControl with a normal MATLAB^® variable as its value to the control variables table. To add other types of control variables, click the down arrow on the button. You can update the values in this table. For a list of actions that you can perform from the control variables table, see Edit Control Variables in Variant Configuration.
To export the control variables to the data sources where they are stored, click the Export control variables to workspace(s) button .
You can use the Description section to provide an optional description for the configuration.

Control variables section in Configurations tab

Edit Control Variables in Variant Configuration

You can perform these operations from the Control Variables section.

Operation	Action
Add new control variables to a configuration	Click the Add control variable button . The default type of a new control variable is `Simulink.VariantControl`, with a normal MATLAB variable as its value. You can also add these types of variables. To see all the options, click the down arrow on the button. Normal MATLAB variable `Simulink.Parameter` `AUTOSAR.Parameter` User-defined data class that derives from `Simulink.Parameter`
Import variant control variables used by the model hierarchy	Click the Import control variables across model hierarchy button . Note Control variables from blocks in `Label` mode are not imported as they are not variant control variables.
Import variant control variables of type Simulink.VariantControl from the base workspace or a data dictionary linked to the model even if the variant control is not yet used by the model	Click the down arrow on the Import control variables across model hierarchy button. Select `Import control variables from model data source`.
Export control variables to the data sources where they are stored.	Click the Export control variables to workspace(s) button .
Filter content in the table	Enter the search term in the Filter text box. Press Esc to clear the text box.
Show or hide the usage of control variables in a configuration	To find the usage of a particular variant control variable in a variant configuration, right-click the control variable. In the context menu, select Show usage. The rows that contain the variable appear highlighted in the model hierarchy table. For variant parameters in the model hierarchy, the control variable usage is shown in the Variant Parameters tab with View by set to `Choice per row`. (since R2024a) To hide the usage of a variant control variable, right-click the variable and select Hide usage. Tip You can navigate the model hierarchy to understand the usage of control variables in a configuration. After you activate a variant configuration, enable Show usage for the required variant control variables. Now select `variable usage` from the Navigate list in the model hierarchy table. Use the arrow key to step through the model hierarchy rows that use those variables.
Copy or delete a control variable	Right-click the variable and select Copy or Delete.
Change the data type of a control variable in a configuration	Right-click the control variable. In the context menu, select Convert to to see the options for conversion. You can convert the control variables to any of these types: `Simulink.VariantControl` with a `Simulink.Parameter` object as its value `Simulink.VariantControl` with a MATLAB variable as its value `Simulink.VariantControl` with a user-defined type that inherits from `Simulink.Parameter` as its value `Simulink.Parameter` `AUTOSAR.Parameter` MATLAB variable
Edit `Simulink.Parameter` or `AUTOSAR.Parameter` control variables	Right-click the control variable. In the context menu, select Edit parameter. To specify `Simulink.Parameter` control variable as an expression, set the Value property of the parameter object by using an equal sign (=) followed by a mathematical expression. For example, enter `= A + B`.

Set Up Variant Configurations for Referenced Components

Your model may consist of referenced models that have predefined variant configurations. The variant configurations for a top-level model must also define the variant control variables used by any referenced components in the model hierarchy, such as referenced models. This approach helps to maintain a single consistent definition for a variant control across the hierarchy.

If the referenced component has existing named variant configurations of its own, you can use them to set up the corresponding variant control variables in the top-level model configuration. You can use the Referenced Configurations view in Variant Manager to select the referenced component configurations to be used for the initialization. See Compose Variant Configurations and Constraints for Top Model Using Referenced Configurations.

Define Constraints for Variant Configurations

A constraint is a user-defined check that you can use to prevent invalid variant combinations in a model. You can define model-wide constraints that must be satisfied by all variant configurations created for the model. A model-wide constraint is represented as a condition expression created using variant control variables, referenced component configurations (since R2025a), or both. The expression must evaluate to true to satisfy the constraint. When you activate a variant configuration, Variant Manager validates the configuration against the applicable constraints.

Note

Variant Manager constraints are also validated when you compile the model for an active configuration. However, these constraints are not validated post compilation, for example, at startup variant activation time.

Click the Constraints tab in the Variant Manager window. The Constraints table lists any existing constraints created for the model.
To add a new constraint, click the Add constraint button . A new row is added.
Enter a name for the constraint in the box.
In the Constraint Definition section, in the Condition box, enter the boolean condition expression defined in terms of variant control variables. The condition must evaluate to true to satisfy the constraint.
In the Description box, enter an optional description for the constraint.

Constraints tab in Variant Manager

For more information on defining constraints using component configurations, see Compose Variant Configurations and Constraints for Top Model Using Referenced Configurations.

Tip

You can select multiple configurations or constraints simultaneously for bulk operations such as copy or delete. Hold down the Shift key as you click each row that you want to include in the multi-selection.

You can change the layout of the Variant Manager window to keep the Configurations and Constraints panes next to each other. This layout allows you to refer the Control Variables section when defining constraints. To move a pane, click at the top of the pane and drag.

Save Variant Configurations

You can use a variant configurations object of type Simulink.VariantConfigurations to store all named variant configurations and constraints for a model. You can define the object in the base workspace or in the Design Data section of a data dictionary. If the model is not yet associated with a variant configurations object, Variant Manager helps you to setup a new variant configurations object.

Type a name for the variant configurations object in the Simulink.VariantConfigurations text box in the Variant Manager toolstrip.
To export the variant configurations object to the base workspace or Simulink^® data dictionary used by the model, click Apply changes. This action also associates the object with the model.
To reload the object from the base workspace or data dictionary used by the model, click Reload object. This allows you to revert the changes that are not yet exported to the data sources used by the model.
When you export the variant control variables in a variant configuration or when you activate a variant configuration, the control variables are pushed to the data sources where the variables are stored. Reloading the variant configurations object from Variant Manager does not revert these changes.
To disassociate the variant configurations object from the model, set the Simulink.VariantConfigurations box to empty and click Apply changes.
To export the variant configurations object to a MAT file or MATLAB script, click Export to file.
If the variant configurations object is defined in the base workspace, this step allows you to save the object and reuse it later by importing it into Variant Manager. However, if the object is defined in a data dictionary, you need not export the object to a MAT file or MATLAB script. Instead, you must save changes to the data dictionary.
To load the variant configurations object saved in a file into Variant Manager, click Import from file.

Note

After you click Apply changes, save the model to save the changes made from Variant Manager.

Validate and Activate Variant Configuration

To activate the model using a named variant configuration or the workspace variant controls, select the corresponding entry from the Configurations tab and click Activate Configuration.
The operation validates the configuration and applies the selected configuration to the model. Activation also pushes control variables in the configuration to the data sources where they are stored.
Any errors related to the process are reported in the Diagnostics pane.
On successful activation, the model hierarchy table reflects the changes. You can:
- Explore the active variant choices in the Blocks or System tab of the model hierarchy. You can also navigate the hierarchy using the Navigate filter to understand control variable usage, active choices, and invalid choices.
- Compile or simulate the model for the active configuration.

To activate a model programmatically, see Simulink.VariantManager.activateModel.

For information on how the activation process differs from model compilation (update diagram), see Differences Between Variant Manager Activation and Update Diagram Process.

Use Model Compilation Information in Variant Manager

Since R2024b

You can obtain model compilation information in Variant Manager to produce more accurate results for user workflows such as importing control variables to a configuration, activation, and identifying variant parameters used by the model hierarchy. Click Update Model in the Variant Manager toolstrip or use the Simulink.VariantManager.updateModel function. For more information, see Obtain and Use Model Compilation Information in Variant Manager.

Apply Variant Configuration on Model

Once you have saved the validated variant configuration to a file, you might want to simulate your model for the configuration at a later time.

Open Variant Manager for the model.
If the variant configurations object is not loaded into Variant Manager, click Import from file to import the object from a file.
In the Configurations tab, click the required configuration.
The Control Variables section lists the control variables in the selected configuration. Click the Export control variables to workspace(s) button .
The operation exports the variant configurations object to workspace and applies the selected variant configuration to the model and any referenced components in the model hierarchy. This allows you to quickly switch the configuration without validating it. You can now simulate the model for this configuration.

To programmatically apply a configuration on your model before compiling or simulating the model, use the Simulink.VariantManager.applyConfiguration method.
