Convert Subsystem to Referenced Model

Open Live Script

This example shows how you can convert a subsystem to a referenced model by using the Model Reference Conversion Advisor or the Simulink.SubSystem.convertToModelReference function.

Open the sldemo_mdlref_conversion model. For the conversion to succeed, the model that contains the subsystem must compile successfully. To compile the model, on the Modeling tab of the Simulink® Toolstrip, click Update Model or Run.

mdl = "sldemo_mdlref_conversion";
open_system(mdl)
set_param(mdl,SimulationCommand="Update")

Block diagram of sldemo_mdlref_conversion model

The sldemo_mdlref_conversion model contains a Subsystem block named Bus Counter. The Subsystem block represents an atomic subsystem that implements a counter algorithm.

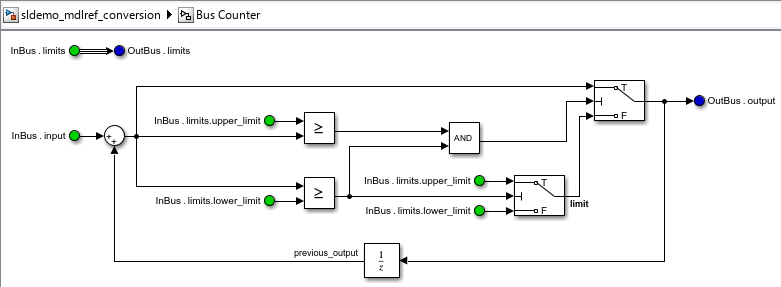

Block diagram of Bus Counter subsystem

The subsystem interface uses In Bus Element and Out Bus Element blocks to pass a virtual bus into and out of the subsystem. The virtual buses inherit their data types.

To open the Model Reference Conversion Advisor, select a Subsystem block. Then, on the Subsystem Block tab, select Convert > Model Block.

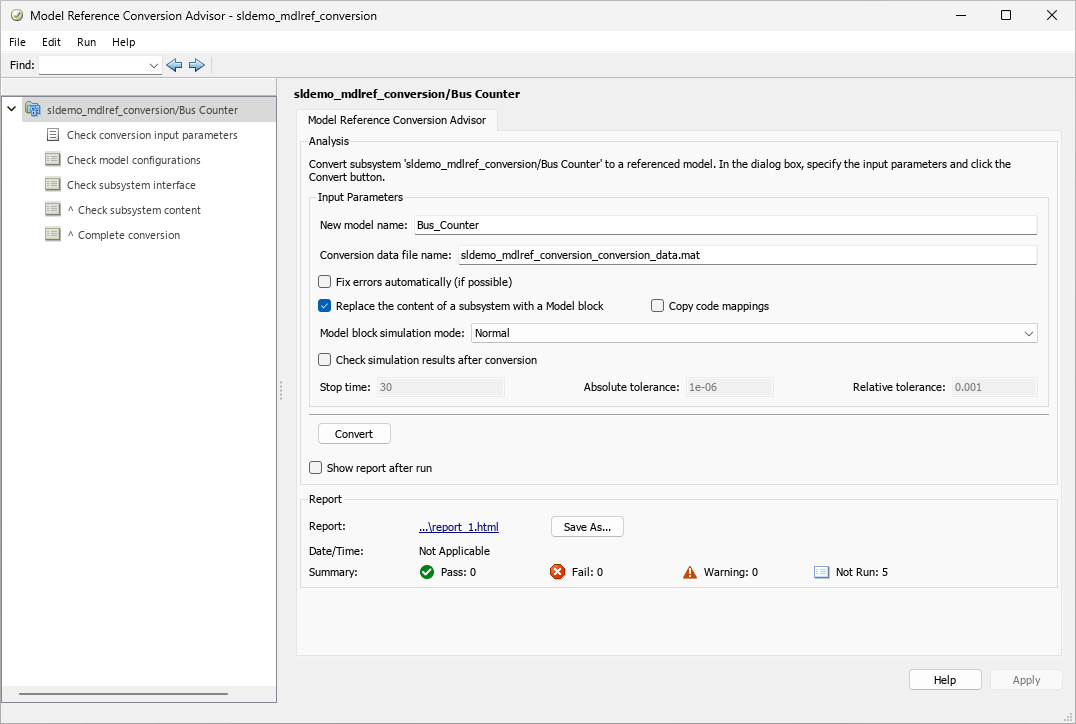

Model Reference Conversion Advisor

In the Model Reference Conversion Advisor, set New model name to sldemo_bus_counter, then click Convert.

Alternatively, to convert the subsystem to a referenced model without using the Model Reference Conversion Advisor, enter these commands in the MATLAB® Command Window.

blk = "sldemo_mdlref_conversion/Bus Counter";
newmdl = "sldemo_bus_counter";
Simulink.SubSystem.convertToModelReference(blk,newmdl,...
    ReplaceSubsystem=true);
### Successfully converted Subsystem block to Model block.

A Model block replaces the Subsystem block. The Model block references the new model named sldemo_bus_counter.

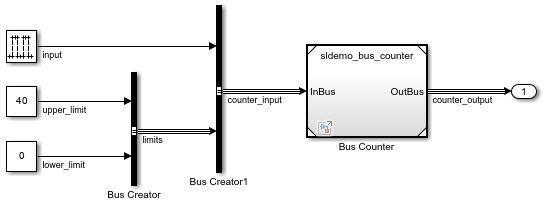

Updated block diagram of sldemo_mdlref_conversion model

When possible, the new model uses the same block diagram as the original subsystem.

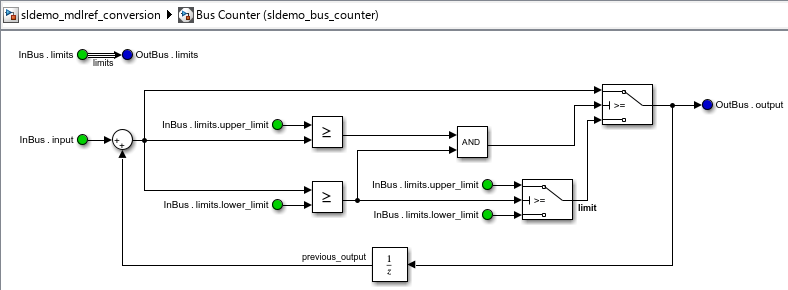

Block diagram of new model

By default, the conversion does not create Simulink.Bus objects. To more strongly define the interface of the new model, create bus objects and use them as the data types of the buses. To create bus objects as part of the conversion, use the Simulink.SubSystem.convertToModelReference function with the CreateBusObjectsForAllBuses argument set to true.
