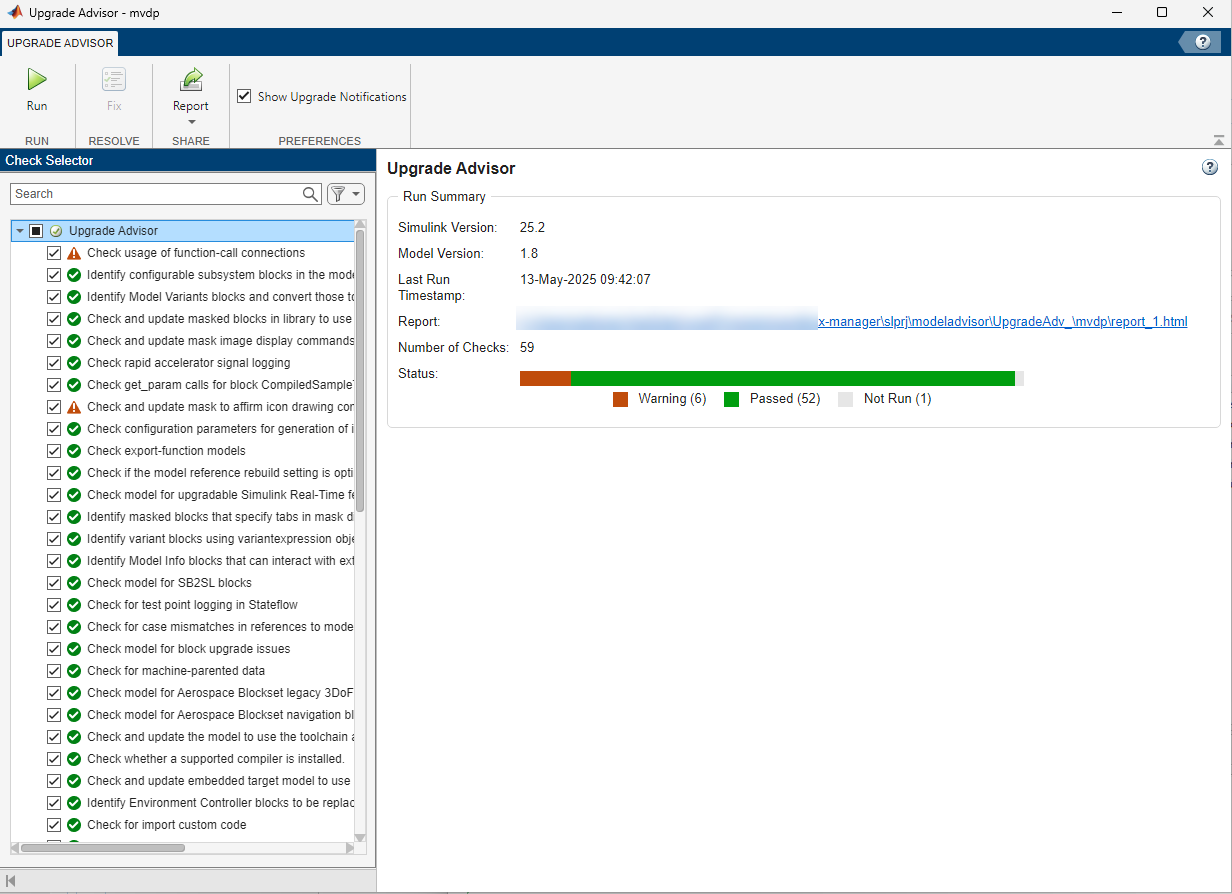

升级顾问
修复模型并将其升级到当前版本
说明
使用升级顾问修复您的 Simulink® 模型并将其升级到当前版本。
升级顾问可以帮助您：
确定由于 Simulink 中的行为变化或改进而不再有效的模型。
确定您可以通过使用 Simulink 中新发布的功能和设置来增强的模型。
通过执行自动升级或提供手动修复说明，转换为新技术并升级模型层次结构。
有关将升级顾问用于您的模型的详细信息，请参阅使用升级顾问升级模型。
打开 升级顾问
Simulink 编辑器：在建模选项卡中，选择模型顾问 > 升级顾问。
MATLAB® 命令行窗口：
upgradeadvisor("modelname")模型顾问：在模型顾问中，点击升级顾问。
示例
打开 vdp 示例模型。
openExample("vdp.slx");
要运行单个检查，请右键点击该检查并选择运行此检查。或者，选择该检查并使用右窗格中的按钮。
打开
vdp示例模型的升级顾问。openExample("vdp.slx"); upgradeadvisor("vdp")
您也可以打开当前所选模型的升级顾问。
upgradeadvisor(bdroot)
此示例说明如何分析和升级您的模型，然后在自动修复可用时应用它们。
1.加载您的模型并创建一个 upgrader 对象。在此示例中，要加载并打开示例模型，请打开包含该模型的工程。
openProject("ModelReferenceHierarchy"); upgrader = upgradeadvisor("sldemo_mdlref_depgraph.slx")
upgrader =
Upgrader with properties:
ChecksToSkip: {}
SkipLibraries: 0
SkipBlocksets: 1
OneLevelOnly: 0
ShowReport: 1
VerboseLogging: 0
EnableBackups: 1
RootModel: 'sldemo_mdlref_depgraph'
ReportFile: ''
Run "upgrade" on this Upgrader object to analyze and automatically upgrade your models.
2.分析模型是否适合推荐的升级、跟踪库链接和模型引用。
analyze(upgrader);
(1/-) Analyzing Model "sldemo_mdlref_depgraph" Updating Model Advisor cache... Model Advisor cache updated. For new customizations, to update the cache, use the Advisor.Manager.refresh_customizations method. (2/14) Analyzing Model "sldemo_mdlref_heat2cost" (3/14) Analyzing Model "sldemo_mdlref_house" (4/14) Analyzing Model "sldemo_mdlref_F2C" (5/14) Analyzing Model "sldemo_mdlref_outdoor_temp" (6/14) Analyzing Model "sldemo_mdlref_thermostat" (7/14) Analyzing Model "sldemo_mdlref_heater" (8/14) Analyzing Model "sldemo_mdlref_heat2cost" using compile time information (9/14) Analyzing Model "sldemo_mdlref_house" using compile time information (10/14) Analyzing Model "sldemo_mdlref_F2C" using compile time information (11/14) Analyzing Model "sldemo_mdlref_outdoor_temp" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Unable to find Simulink cache file "sldemo_mdlref_outdoor_temp.slxc". ### Unable to find Simulink cache file "sldemo_mdlref_F2C.slxc". ### Total of 2 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target (sldemo_mdlref_F2C.c) for model sldemo_mdlref_F2C was out of date. sldemo_mdlref_F2C.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_F2C ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C ### Invoking Target Language Compiler on sldemo_mdlref_F2C.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................... ### Writing header file sldemo_mdlref_F2C_types.h ### Writing header file sldemo_mdlref_F2C.h ### Writing header file rtwtypes.h ### Writing header file multiword_types.h . ### Writing source file sldemo_mdlref_F2C.c ### Writing header file sldemo_mdlref_F2C_private.h ### TLC code generation complete (took 2.546s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C/sldemo_mdlref_F2C.mk' ... ### Building 'sldemo_mdlref_F2C_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_F2C.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_F2C -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_F2C.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C/sldemo_mdlref_F2C.c" ### Creating static library ./sldemo_mdlref_F2C_rtwlib.a ... ar ruvs ./sldemo_mdlref_F2C_rtwlib.a sldemo_mdlref_F2C.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_F2C_rtwlib.a a - sldemo_mdlref_F2C.o ### Created: ./sldemo_mdlref_F2C_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_F2C ### Simulink cache artifacts for 'sldemo_mdlref_F2C' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_F2C.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ============================================================================================================ sldemo_mdlref_F2C Target (sldemo_mdlref_F2C.c) did not exist. Code generated and compiled. 0h 0m 13.508s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 14.591s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Total of 1 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_F2C Build Summary Model reference simulation targets: Model Build Reason Status Build Duration ===================================================================================================================== sldemo_mdlref_F2C Target (sldemo_mdlref_F2C_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 8.3592s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 8.7998s ### Searching for referenced models in model 'sldemo_mdlref_outdoor_temp'. ### Total of 1 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. Build Summary 0 of 1 models built (1 models already up to date) Build duration: 0h 0m 1.2251s (12/14) Analyzing Model "sldemo_mdlref_thermostat" using compile time information (13/14) Analyzing Model "sldemo_mdlref_heater" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Unable to find Simulink cache file "sldemo_mdlref_heater.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Unable to find Simulink cache file "sldemo_mdlref_thermostat.slxc". ### Total of 3 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Checking for structural changes in sldemo_mdlref_F2C because the model reference rebuild option is set to 'If changes detected'. Structural changes cause the model reference code generation target to be rebuilt. ### Checking for structural changes in model reference code generation target for: sldemo_mdlref_F2C ### Generating code and artifacts to 'Model specific' folder structure ### Code for the model reference code generation target for model sldemo_mdlref_F2C is up to date because no functional changes were found in referenced model. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target (sldemo_mdlref_thermostat.c) for model sldemo_mdlref_thermostat was out of date. sldemo_mdlref_thermostat.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_thermostat ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat ### Invoking Target Language Compiler on sldemo_mdlref_thermostat.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................... ### Writing header file sldemo_mdlref_thermostat_types.h ### Writing header file sldemo_mdlref_thermostat.h ### Writing source file sldemo_mdlref_thermostat.c . ### Writing header file sldemo_mdlref_thermostat_private.h ### TLC code generation complete (took 1.674s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat/sldemo_mdlref_thermostat.mk' ... ### Building 'sldemo_mdlref_thermostat_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_thermostat.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_thermostat -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_thermostat.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat/sldemo_mdlref_thermostat.c" ### Creating static library ./sldemo_mdlref_thermostat_rtwlib.a ... ar ruvs ./sldemo_mdlref_thermostat_rtwlib.a sldemo_mdlref_thermostat.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_thermostat_rtwlib.a a - sldemo_mdlref_thermostat.o ### Created: ./sldemo_mdlref_thermostat_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_thermostat ### Simulink cache artifacts for 'sldemo_mdlref_thermostat' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_thermostat.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ========================================================================================================================== sldemo_mdlref_thermostat Target (sldemo_mdlref_thermostat.c) did not exist. Code generated and compiled. 0h 0m 5.0019s 1 of 2 models built (1 models already up to date) Build duration: 0h 0m 6.2568s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Total of 1 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_thermostat Build Summary Model reference simulation targets: Model Build Reason Status Build Duration =================================================================================================================================== sldemo_mdlref_thermostat Target (sldemo_mdlref_thermostat_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 5.0163s 1 of 1 models built (0 models already up to date) Build duration: 0h 0m 5.4301s ### Searching for referenced models in model 'sldemo_mdlref_heater'. ### Total of 1 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. Build Summary 0 of 1 models built (1 models already up to date) Build duration: 0h 0m 1.1789s (14/14) Analyzing Model "sldemo_mdlref_depgraph" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Unable to find Simulink cache file "sldemo_mdlref_depgraph.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heat2cost.slxc" because the file does not have the relevant build artifacts. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heater.slxc" because the file does not have the relevant build artifacts. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_thermostat.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_house.slxc" because the file does not have the relevant build artifacts. ### Unable to find Simulink cache file "sldemo_mdlref_outdoor_temp.slxc". ### Total of 7 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heat2cost'. ### Model reference code generation target (sldemo_mdlref_heat2cost.c) for model sldemo_mdlref_heat2cost was out of date. sldemo_mdlref_heat2cost.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_heat2cost ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost ### Invoking Target Language Compiler on sldemo_mdlref_heat2cost.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code .................................................. ### Writing header file sldemo_mdlref_heat2cost_types.h ### Writing header file sldemo_mdlref_heat2cost.h ### Writing source file sldemo_mdlref_heat2cost.c . ### Writing header file sldemo_mdlref_heat2cost_private.h ### TLC code generation complete (took 1.465s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost/sldemo_mdlref_heat2cost.mk' ... ### Building 'sldemo_mdlref_heat2cost_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_heat2cost.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=0 -DMODEL=sldemo_mdlref_heat2cost -DNUMST=1 -DNCSTATES=1 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_heat2cost.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heat2cost/sldemo_mdlref_heat2cost.c" ### Creating static library ./sldemo_mdlref_heat2cost_rtwlib.a ... ar ruvs ./sldemo_mdlref_heat2cost_rtwlib.a sldemo_mdlref_heat2cost.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_heat2cost_rtwlib.a a - sldemo_mdlref_heat2cost.o ### Created: ./sldemo_mdlref_heat2cost_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_heat2cost ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target for sldemo_mdlref_thermostat is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_house'. ### Model reference code generation target (sldemo_mdlref_house.c) for model sldemo_mdlref_house was out of date. sldemo_mdlref_house.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_house ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house ### Invoking Target Language Compiler on sldemo_mdlref_house.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ....................................................... ### Writing header file sldemo_mdlref_house_types.h . ### Writing header file sldemo_mdlref_house.h ### Writing source file sldemo_mdlref_house.c ### Writing header file sldemo_mdlref_house_private.h ### TLC code generation complete (took 1.349s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house/sldemo_mdlref_house.mk' ... ### Building 'sldemo_mdlref_house_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_house.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=0 -DMODEL=sldemo_mdlref_house -DNUMST=1 -DNCSTATES=1 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_house.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_house/sldemo_mdlref_house.c" ### Creating static library ./sldemo_mdlref_house_rtwlib.a ... ar ruvs ./sldemo_mdlref_house_rtwlib.a sldemo_mdlref_house.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_house_rtwlib.a a - sldemo_mdlref_house.o ### Created: ./sldemo_mdlref_house_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_house ### Checking status of model reference code generation target for model 'sldemo_mdlref_heater'. ### Model reference code generation target (sldemo_mdlref_heater.c) for model sldemo_mdlref_heater was out of date. sldemo_mdlref_heater.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_heater ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Invoking Target Language Compiler on sldemo_mdlref_heater.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ............................................ ### Writing header file sldemo_mdlref_heater_types.h ### Writing header file sldemo_mdlref_heater.h ### Writing source file sldemo_mdlref_heater.c ### Writing header file sldemo_mdlref_heater_private.h . ### TLC code generation complete (took 1.326s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater/sldemo_mdlref_heater.mk' ... ### Building 'sldemo_mdlref_heater_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_heater.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_heater -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_thermostat -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_heater.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_heater/sldemo_mdlref_heater.c" ### Creating static library ./sldemo_mdlref_heater_rtwlib.a ... ar ruvs ./sldemo_mdlref_heater_rtwlib.a sldemo_mdlref_heater.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_heater_rtwlib.a a - sldemo_mdlref_heater.o ### Created: ./sldemo_mdlref_heater_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_heater ### Checking status of model reference code generation target for model 'sldemo_mdlref_outdoor_temp'. ### Model reference code generation target (sldemo_mdlref_outdoor_temp.c) for model sldemo_mdlref_outdoor_temp was out of date. sldemo_mdlref_outdoor_temp.c did not exist. ### Updating model reference code generation target for: sldemo_mdlref_outdoor_temp ### Generating code and artifacts to 'Model specific' folder structure ### Generating code into build folder: /tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Invoking Target Language Compiler on sldemo_mdlref_outdoor_temp.rtw ### Using System Target File: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/grt/grt.tlc ### Loading TLC function libraries ....... ### Initial pass through model to cache user defined code . ### Caching model source code ............................................... ### Writing header file sldemo_mdlref_outdoor_temp_types.h ### Writing header file sldemo_mdlref_outdoor_temp.h . ### Writing header file model_reference_types.h ### Writing source file sldemo_mdlref_outdoor_temp.c ### Writing header file sldemo_mdlref_outdoor_temp_private.h ### TLC code generation complete (took 1.314s). ### Saving binary information cache. ### Using toolchain: GNU gcc/g++ | gmake (64-bit Linux) ### Creating '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp/sldemo_mdlref_outdoor_temp.mk' ... ### Building 'sldemo_mdlref_outdoor_temp_rtwlib': "/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/bin/glnxa64/gmake" -j 4 -l 4 -f sldemo_mdlref_outdoor_temp.mk all gcc -c -fwrapv -fPIC -O0 -DCLASSIC_INTERFACE=1 -DALLOCATIONFCN=0 -DMAT_FILE=0 -DONESTEPFCN=0 -DTERMFCN=1 -DMULTI_INSTANCE_CODE=0 -DINTEGER_CODE=0 -DMT=0 -DTID01EQ=1 -DMODEL=sldemo_mdlref_outdoor_temp -DNUMST=2 -DNCSTATES=0 -DHAVESTDIO -DRT -DUSE_RTMODEL -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_F2C -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/extern/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/simulink/include -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src -I/mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.2988451/build/runnable/matlab/rtw/c/src/ext_mode/common -I/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/_sharedutils -o "sldemo_mdlref_outdoor_temp.o" "/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/slprj/grt/sldemo_mdlref_outdoor_temp/sldemo_mdlref_outdoor_temp.c" ### Creating static library ./sldemo_mdlref_outdoor_temp_rtwlib.a ... ar ruvs ./sldemo_mdlref_outdoor_temp_rtwlib.a sldemo_mdlref_outdoor_temp.o ar: `u' modifier ignored since `D' is the default (see `U') ar: creating ./sldemo_mdlref_outdoor_temp_rtwlib.a a - sldemo_mdlref_outdoor_temp.o ### Created: ./sldemo_mdlref_outdoor_temp_rtwlib.a ### Successfully generated all binary outputs. gmake: Nothing to be done for `all'. ### Successfully updated the model reference code generation target for: sldemo_mdlref_outdoor_temp ### Simulink cache artifacts for 'sldemo_mdlref_heat2cost' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_heat2cost.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_house' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_house.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_heater' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_heater.slxc'. ### Simulink cache artifacts for 'sldemo_mdlref_outdoor_temp' were created in '/tmp/Bdoc25b_2988451_1122719/tp9177620d/simulink-ex10270988/ModelReferenceHierarchy/sldemo_mdlref_outdoor_temp.slxc'. Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ============================================================================================================================== sldemo_mdlref_heat2cost Target (sldemo_mdlref_heat2cost.c) did not exist. Code generated and compiled. 0h 0m 4.3104s sldemo_mdlref_house Target (sldemo_mdlref_house.c) did not exist. Code generated and compiled. 0h 0m 3.7066s sldemo_mdlref_heater Target (sldemo_mdlref_heater.c) did not exist. Code generated and compiled. 0h 0m 5.0344s sldemo_mdlref_outdoor_temp Target (sldemo_mdlref_outdoor_temp.c) did not exist. Code generated and compiled. 0h 0m 3.7878s 4 of 6 models built (2 models already up to date) Build duration: 0h 0m 17.694s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Successfully updated the model reference simulation target for: sldemo_mdlref_heat2cost ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Successfully updated the model reference simulation target for: sldemo_mdlref_house ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Successfully updated the model reference simulation target for: sldemo_mdlref_outdoor_temp Build Summary Model reference simulation targets: Model Build Reason Status Build Duration ======================================================================================================================================= sldemo_mdlref_heat2cost Target (sldemo_mdlref_heat2cost_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 4.5956s sldemo_mdlref_house Target (sldemo_mdlref_house_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 5.0955s sldemo_mdlref_outdoor_temp Target (sldemo_mdlref_outdoor_temp_msf.mexa64) did not exist. Code generated and compiled. 0h 0m 6.4151s 3 of 5 models built (2 models already up to date) Build duration: 0h 0m 17.353s ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Model reference simulation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 5 models built (5 models already up to date) Build duration: 0h 0m 0.2318s
3.指定输出以找到此报告的位置。
reportLocation = upgrader.ReportFile;
4.在分析或升级模型之前配置选项。
默认情况下，
upgradeadvisor会在升级过程中为模型生成备份副本。要关闭备份文件的生成，请设置EnableBackups属性。
upgrader.EnableBackups = false;
要跳过检查，请在升级顾问中右键点击该检查，选择将检查 ID 发送到工作区，并设置
ChecksToSkip属性。
upgrader.ChecksToSkip = {"mathworks.design.CSStoVSSConvert"};要分析或升级当前模型，而不分析库链接、模型引用或另存为外部模型的测试框架，请启用
OneLevelOnly属性。
upgrader.OneLevelOnly = true;
要分析或升级当前模型和模型引用，但不分析或升级库链接，请启用
SkipLibraries属性。
upgrader.SkipLibraries = true;
要分析和升级模块集或工具箱中的当前模型和文件，请禁用
SkipBlocksets属性。默认情况下，升级顾问不会升级模块集或工具箱中的文件。升级顾问会从ver函数的输出中检测模块集并检测是否存在Contents文件。
upgrader.SkipBlocksets = false;
要在分析或升级模型后不显示报告，请禁用
ShowReport属性。
upgrader.ShowReport = false;
5.升级模型并在自动修复可用时应用它们。
upgrade(upgrader);
(1/2) Upgrading Model "sldemo_mdlref_depgraph" (2/2) Upgrading Model "sldemo_mdlref_depgraph" using compile time information ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Unable to find Simulink cache file "sldemo_mdlref_depgraph.slxc". ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heat2cost.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_heater.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_F2C.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_thermostat.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_house.slxc" because the relevant build artifacts on disk are up to date. ### Skipped unpacking from Simulink cache file "sldemo_mdlref_outdoor_temp.slxc" because the relevant build artifacts on disk are up to date. ### Total of 7 models to build. ### Starting serial code generation build. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heat2cost'. ### Model reference code generation target for sldemo_mdlref_heat2cost is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_F2C'. ### Model reference code generation target for sldemo_mdlref_F2C is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_thermostat'. ### Model reference code generation target for sldemo_mdlref_thermostat is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_house'. ### Model reference code generation target for sldemo_mdlref_house is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_heater'. ### Model reference code generation target for sldemo_mdlref_heater is up to date. ### Checking status of model reference code generation target for model 'sldemo_mdlref_outdoor_temp'. ### Model reference code generation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 6 models built (6 models already up to date) Build duration: 0h 0m 0.28789s codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable codeInterfacePackaging: Nonreusable function codeInterfacePackaging: NonReusable ### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date.### Searching for referenced models in model 'sldemo_mdlref_depgraph'. ### Total of 5 models to build. ### Starting serial model build. ### Model reference simulation target for sldemo_mdlref_heat2cost is up to date. ### Model reference simulation target for sldemo_mdlref_thermostat is up to date. ### Model reference simulation target for sldemo_mdlref_house is up to date. ### Model reference simulation target for sldemo_mdlref_F2C is up to date. ### Model reference simulation target for sldemo_mdlref_outdoor_temp is up to date. Build Summary 0 of 5 models built (5 models already up to date) Build duration: 0h 0m 0.11675s
升级顾问会显示已发现问题和自动修复的列表。
升级顾问将修复保存到模型文件中。
相关示例
编程用途
提示
对于没有层次结构的模型，默认情况下，升级顾问会选择并运行除分析模型层次结构并继续升级序列检查之外的所有检查。
对于模型层次结构，使用分析模型层次结构并继续升级序列检查来指导您完成升级检查。您必须按以下顺序运行升级检查：首先运行不需要编译时间信息并且不触发 Update Diagram 的检查，然后运行编译检查。有关详细信息，请参阅分析模型层次结构并继续升级序列。
有关各个升级顾问检查的列表，请参阅模型升级。
有关如何升级整个 MATLAB 工程的示例，请参阅Check for Compatibility Issues and Upgrade Simulink Models Using Project Upgrade。
版本历史记录
在 R2012b 中推出
