Trim and Linearize an Airframe

Open Script

This example shows how to trim and linearize an airframe using Simulink® Control Design™ software.

The goal is to find the elevator deflection and the resulting trimmed body rate that generate a given angle of incidence when the airframe is traveling at a set speed.

Once you find the trim condition, you can compute a linear model for the dynamics of the states around the trim condition.

Fixed parameters:

  • Angle of incidence (Theta)

  • Body attitude (U)

  • Position

Trimmed steady-state parameters:

  • Elevator deflection (w)

  • Body rate (q)

Compute Operating Points

Open the model.

mdl = 'scdairframe';

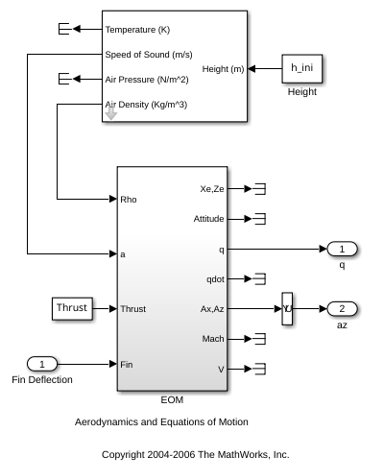

open_system(mdl)

Create an operating point specification object for the model using the model initial conditions.

opspec = operspec(mdl)

opspec =


 Operating point specification for the Model scdairframe.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
     x         Known    SteadyState     Min         Max        dxMin       dxMax
___________ ___________ ___________ ___________ ___________ ___________ ___________

(1.) scdairframe/EOM/ Equations of Motion (Body Axes)/Position
     0         false       true        -Inf         Inf        -Inf         Inf
-3047.9999     false       true        -Inf         Inf        -Inf         Inf
(2.) scdairframe/EOM/ Equations of Motion (Body Axes)/Theta
     0         false       true        -Inf         Inf        -Inf         Inf
(3.) scdairframe/EOM/ Equations of Motion (Body Axes)/U,w
    984        false       true        -Inf         Inf        -Inf         Inf
     0         false       true        -Inf         Inf        -Inf         Inf
(4.) scdairframe/EOM/ Equations of Motion (Body Axes)/q
     0         false       true        -Inf         Inf        -Inf         Inf

Inputs:
----------
  u   Known  Min   Max
_____ _____ _____ _____

(1.) scdairframe/Fin Deflection
  0   false -Inf   Inf

Outputs:
----------
  y   Known  Min   Max
_____ _____ _____ _____

(1.) scdairframe/q
  0   false -Inf   Inf
(2.) scdairframe/az
  0   false -Inf   Inf

Specify which states in the model are:

  • Known at the operating point

  • At steady state at the operating point

Specify that the Position states are known and not at steady state. For the state values, specified in opspec.States(1).x, use the default values from the model initial condition.

opspec.States(1).Known = [1;1];
opspec.States(1).SteadyState = [0;0];

Specify that the second state, which corresponds to the angle of incidence Theta, is known but not at steady state. As with the position states, use the default state value from the model initial condition.

opspec.States(2).Known = 1;
opspec.States(2).SteadyState = 0;

The third state specification includes the body axis angular rates U and w. Specify that both states are known at the operating point and that w is at steady state.

opspec.States(3).Known = [1 1];
opspec.States(3).SteadyState = [0 1];

Search for the operating point that meets these specifications.

op = findop(mdl,opspec);

 Operating point search report:
---------------------------------

opreport =


 Operating point search report for the Model scdairframe.
 (Time-Varying Components Evaluated at time t=0)

Operating point specifications were successfully met.
States:
----------
    Min          x          Max        dxMin        dx         dxMax
___________ ___________ ___________ ___________ ___________ ___________

(1.) scdairframe/EOM/ Equations of Motion (Body Axes)/Position
     0           0           0         -Inf         984         Inf
-3047.9999  -3047.9999  -3047.9999     -Inf          0          Inf
(2.) scdairframe/EOM/ Equations of Motion (Body Axes)/Theta
     0           0           0         -Inf     -0.0097235      Inf
(3.) scdairframe/EOM/ Equations of Motion (Body Axes)/U,w
    984         984         984        -Inf       22.6897       Inf
     0           0           0           0      -1.4367e-11      0
(4.) scdairframe/EOM/ Equations of Motion (Body Axes)/q
   -Inf     -0.0097235      Inf          0      6.3122e-16       0

Inputs:
----------
   Min        u        Max
_________ _________ _________

(1.) scdairframe/Fin Deflection
  -Inf    0.0014161    Inf

Outputs:
----------
   Min         y         Max
__________ __________ __________

(1.) scdairframe/q
   -Inf    -0.0097235    Inf
(2.) scdairframe/az
   -Inf     -0.24207     Inf

Linearize Model

To linearize the model at the computed operating point, first specify the linearization input and output points.

io(1) = linio('scdairframe/Fin Deflection',1,'input');
io(2) = linio('scdairframe/EOM',3,'output');
io(3) = linio('scdairframe/Selector',1,'output');

Linearize the model at the operating point.

sys = linearize(mdl,op,io);

Plot the Bode magnitude response for the linear model.

bodemag(sys)

bdclose('scdairframe')
