Check Against Reference
Check that model signal tracks reference signal during simulation
Libraries:
Simulink Design Optimization /
Model Verification
Simulink Design Optimization /
Signal Constraints
Description
Check that a signal remains within the tolerance bounds of a reference signal during simulation.
If the signal satisfies all bounds, the block does nothing.
If the signal does not satisfy a bound, a warning message appears in the MATLAB® command window. You can also specify that the block:
Evaluate a MATLAB expression.
Stop the simulation and return an error message.
During simulation, the block can also return a logical assertion signal.
If the signal satisfies all bounds, the assertion signal is true (
1
).If the signal does not satisfy a bound, the assertion signal is false (
0
).
You can add Check Against Reference blocks to multiple signals to check that they track reference signals. You can also plot the reference signal on a time plot to graphically verify the signal tracking.
This block and the other blocks in the Model Verification library test that a signal remains within specified time-domain characteristic bounds. When a model does not violate any bound, you can disable the block by clearing the assertion option. If you modify the model, you can re-enable assertion to ensure that your changes do not cause the model to violate a bound.
If the signal does not satisfy the bounds, you can optimize the model parameters to satisfy the bounds. If you have Simulink® Control Design™ software, you can add frequency-domain bounds, such as the Bode magnitude, and optimize the model response to satisfy both time-domain and frequency-domain requirements.
The block can be used in all simulation modes for signal monitoring, but only in
Normal
or Accelerator
simulation
mode for response optimization.

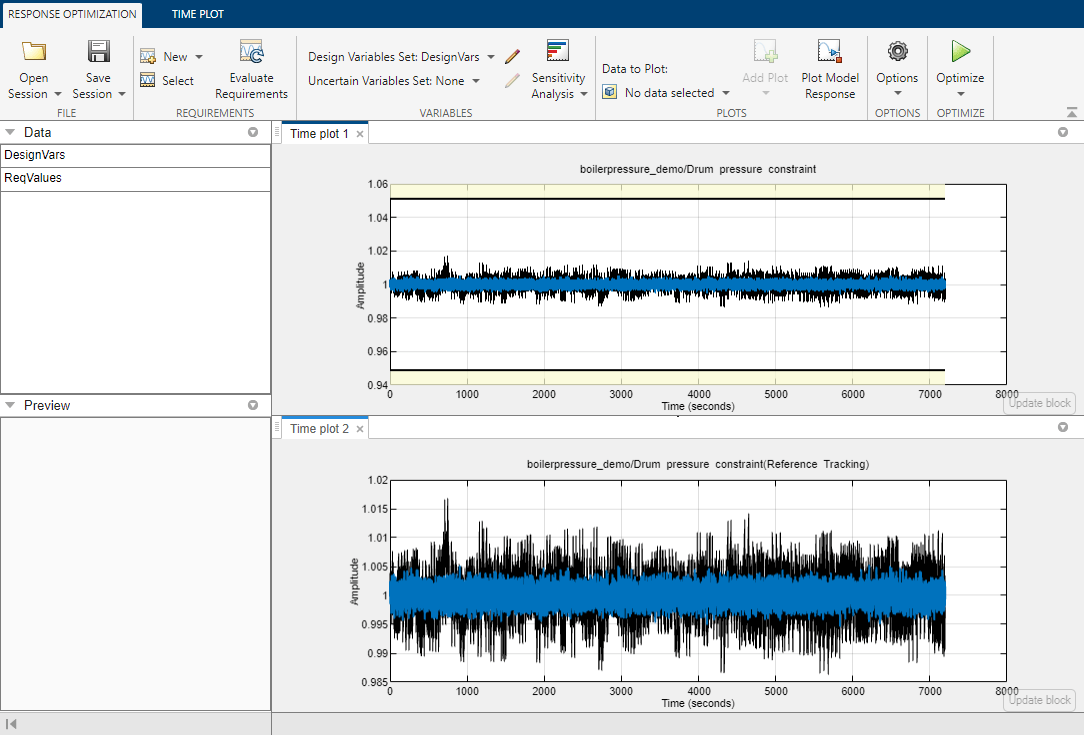

Examples
Ports
Input
Port_1 (u) — Signal to check against specified reference signal
scalar | vector | matrix
Signal to check against the reference signal specified in Amplitudes and Times during simulation.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
| enumerated
| bus
Output
Port_1 (out) — Output assertion signal
1
| 0
Output signal indicating if the input signal is within bounds of the specified assertion signal. At each time step, the output is returned as one of the following:
True (
1
) if the assertion succeeds, that is, the input signal satisfies all boundsFalse (
0
) if the assertion fails, that is, the signal violates a bound
The data type of the output signal is double by default. To set the output data type as Boolean for all blocks that generate logic signals in your Simulink model, select Implement logic signals as Boolean data in Configuration Parameters.
Dependencies
To enable this port, on the Assertion tab, select the Output assertion signal parameter.
Data Types: Boolean
| double
Parameters
Show Plot — Open plot window
button
Use the plot to view the following.
System characteristics and signals computed during simulation — Click this button before you simulate the model to view the system characteristics or signal.
You can display additional characteristics, such as the peak response time, by right-clicking the plot and selecting Characteristics.
Bounds — You can specify bounds on the Bounds tab or by right-clicking the plot and selecting Bounds > New Bound.
You can modify bounds by dragging the bound segment or by right-clicking the plot and selecting Bounds > Edit Bound. Before you simulate the model, click Update Block to update the bound value in the block parameters.
Typical tasks that you perform in the plot window include:
Opening the Block Parameters dialog box by clicking
or selecting Edit.
Finding the block that the plot window corresponds to by clicking
or selecting View > Highlight Simulink Block. This action makes the model window active and highlights the block.
Simulating the model by clicking
. This action also linearizes the portion of the model between the specified linearization input and output.
Adding a legend on the linear system characteristic plot by clicking
.
Show plot on block open — Double-click block to open plot
off
(default) | on
Open the plot window instead of the block parameters when you double-click the block in the Simulink model.
Use this parameter if you prefer to open and perform tasks, such as adding
or modifying bounds, in the plot window instead of the block parameters. If
you want to access the block parameters from the plot window, select
Edit or click .
For more information on the plot, see the Show plot parameter.
Programmatic Use
Parameter:
LaunchViewOnOpen |
Type: character vector |
Value:
'on' | 'off' |
Default:
'off' |
Response Optimization — Open Response Optimizer
button
Open the Response Optimizer to optimize the model response to meet design requirements specified on the Bounds tab.
See Also
Bounds Tab
Include reference signal tracking in assertion — Check that signal tracks reference signal
on
(default) | off
Check that the input signal to the block tracks the reference signal specified in Amplitudes and Times during simulation. The software displays a warning if the signal does not track the reference signal.
When you disable this parameter, the software stops checking that the input signal tracks the reference during simulation.
To view only the reference signal on the plot, disable Enable assertion.
The reference signal appears on a time plot if you select Show plot, as shown in the figure.
Dependencies
To use this parameter, select Enable assertion in block parameters. When Enable assertion is disabled, the software does not use the reference signal for assertion, but it continues to appear on the plot.
Programmatic Use
Parameter:
EnableReferenceBound
|
Type: character vector |
Value:
'on' | 'off' |
Default:
'on' |
Times — Time vector
linspace(0,10)
(default) | vector of positive values | MATLAB expression
Time vector for the reference signal in seconds, specified as a monotonically increasing vector of positive values. You can also specify a MATLAB expression that evaluates to a vector. Specify the corresponding amplitudes using the Amplitudes parameter. The Times vector must have the same dimension as the Amplitudes vector.
Programmatic Use
Parameter:
ReferenceTimes
|
Type: vector |
Value: vector of positive values | MATLAB expression |
Default:
linspace(0,10)
|
Amplitudes — Reference signal amplitude
1-exp(-linspace(0,10)/2)
(default) | vector | MATLAB expression
Amplitude of the reference signal, specified as a real and finite vector, corresponding to the time vector specified in Times. You can also specify a MATLAB expression that evaluates to a vector. The Amplitudes vector must have the same dimension as the Times (seconds) vector.
Programmatic Use
Parameter:
ReferenceAmplitudes
|
Type: vector |
Value: vector | MATLAB expression |
Default:
1-exp(-linspace(0,10)/2)
|
Absolute tolerance — Absolute tolerance for signal
eps^(1/3)
(default) | positive real scalar
Absolute tolerance used to determine bounds as the input signal approaches the reference signal, specified as a positive real scalar. During simulation, the signal must remain within upper and lower limits respective to the reference signal given by
yu = (1 + RelTol)yr + AbsTol
yl = (1 – RelTol)yr – AbsTol
Here:
yr is the value of the reference at a certain time.
yu is the upper tolerance bound corresponding to that time point.
yl is the lower tolerance bound corresponding to that time point.
RelTol sets the relative tolerance between input and reference signal amplitudes at each time step. To set RelTol, use the Relative tolerance parameter.
AbsTol sets the absolute tolerance between input and reference signal amplitudes at each time step. To set AbsTol, use the Absolute tolerance parameter.
The block asserts if the signal violates these limits.
Programmatic Use
Parameter:
AbsTolerance
|
Type: scalar |
Value: positive real scalar |
Default:
eps^(1/3)
|
Relative tolerance — Relative tolerance for signal
0.01
(default) | positive real scalar
Relative tolerance used to determine bounds as the input signal approaches the reference signal, specified as a positive real scalar. During simulation, the signal must remain within upper and lower limits respective to the reference signal given by
yu = (1 + RelTol)yr + AbsTol
yl = (1 – RelTol)yr – AbsTol
Here:
yr is the value of the reference at a certain time.
yu is the upper tolerance bound.
yl is the lower tolerance bound.
RelTol sets the relative tolerance between input and reference signal amplitudes at each time step. To set RelTol, use the Relative tolerance parameter.
AbsTol sets the absolute tolerance between input and reference signal amplitudes at each time step. To set AbsTol, use the Absolute tolerance parameter.
The block asserts if the signal violates these limits.
Programmatic Use
Parameter:
RelTolerance
|
Type: scalar |
Value: positive real scalar |
Default:
0.01
|
Assertion Tab
Enable assertion — Enable or disable check
on
(default) | off
Enable the block to check that bounds specified and included for assertion on the Bounds tab are satisfied during simulation. Assertion fails if a bound is not satisfied. A warning, reporting the assertion failure, appears at the MATLAB prompt.
If the assertion fails, you can optionally specify that the block:
Execute a MATLAB expression, specified in Simulation callback when assertion fails (optional).
Stop the simulation and return an error message, by selecting Stop simulation when assertion fails.
This parameter has no effect if you do not specify any bounds.
When you disable this parameter, the block no longer checks that the input signal satisfies the specified bounds. The block icon also updates to indicate that assertion is disabled.
In the Simulink model, in the Configuration Parameters, the Model Verification block enabling parameter lets you enable or disable all model verification blocks in a model, regardless of the setting of this option in the block.
Programmatic Use
Parameter:
enabled |
Type: character vector |
Value:
'on' | 'off' |
Default:
'on' |
Simulation callback when assertion fails (optional) — Expression to evaluate when assertion fails
''
(default) | MATLAB expression
MATLAB expression to execute when assertion fails.
Because the expression is evaluated in the MATLAB workspace, first define all variables used in the expression in the workspace.
Dependencies
To enable this parameter, select Enable assertion.
Programmatic Use
Parameter:
callback |
Type: character vector |
Value: MATLAB expression |
Default:
'' |
Stop simulation when assertion fails — Halt simulation when assertion fails
off
(default) | on
Stop the simulation when the input signal violates a bound specified on the Bounds tab during simulation, that is, when assertion fails.
If you run the simulation from a Simulink model window, the Simulation Diagnostics window opens to display an error message. The block where the bound violation occurs is highlighted in the model.
Because selecting this option stops the simulation as soon as the assertion fails, the software does not report assertion failures that might occur later during the simulation. If you want to report all assertion failures, do not select this option.
Dependencies
To enable this parameter, select Enable assertion.
Programmatic Use
Parameter:
stopWhenAssertionFail |
Type: character vector |
Value:
'on' | 'off' |
Default:
'off' |
Output assertion signal — Create output signal
off
(default) | on
Output a Boolean signal that, at each time step, is:
True (
1
) if assertion succeeds, that is, the input signal satisfies all boundsFalse (
0
) if assertion fails, that is, the input signal violates a bound
The data type of the output signal is double by default. To set the output data type as Boolean for all blocks that generate logic signals in your Simulink model, select Implement logic signals as Boolean data in Configuration Parameters.
Selecting this parameter adds an output port to the block that you can connect to any block in the model.
Use this parameter to design complex assertion logic. For an example, see Verify Model Using Simulink Control Design and Simulink Verification Blocks (Simulink Control Design).
Programmatic Use
Parameter:
export |
Type: character vector |
Value:
'on' | 'off' |
Default:
'off' |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Code generation is available only when the Output assertion signal parameter is enabled.
Version History
Introduced in R2011b
