sdo.setCheckBlockEnabled

Namespace: sdo

Enable or disable all check blocks in model

collapse all in page

Syntax

chk_blk_state = sdo.setCheckBlockEnabled(modelname,state)

Description

chk_blk_state = sdo.setCheckBlockEnabled(modelname,state) sets the Enabled parameter of all the check blocks in an open Simulink® model to the specified value. The function returns the original value of the Enabled parameter of all the model check blocks.

Use this function to disable the check blocks (model verification blocks) in a model before running an optimization for the model. After optimization completes, you can restore the enabled state of the model check blocks by calling this function again. Use the output from the previous call as the second input for the function.

example

Examples

collapse all

Open Script

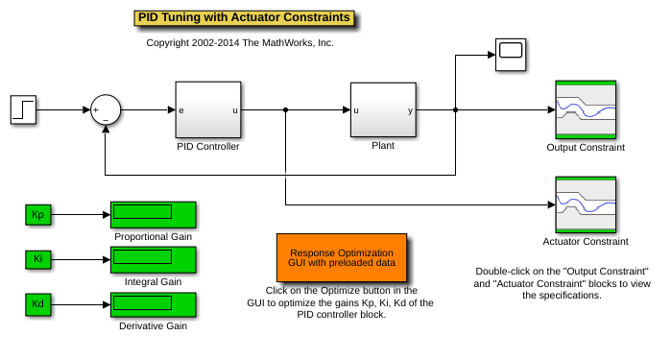

Open the model.

modelname = 'pidtune_demo';
open_system(modelname);

Disable the model check blocks in a model.

state = 'off';
chkBlkState = sdo.setCheckBlockEnabled(modelname,state);

Restore the enabled state of the model check blocks.

sdo.setCheckBlockEnabled(modelname,chkBlkState);

Input Arguments

collapse all

Simulink model name, specified as a character vector or string. For example, 'pidtune_demo'.

The model must be open.

Switch enabling or disabling model check blocks.

To restore the enabled state of the model check blocks, specify state as the output from the previous call to sdo.setCheckBlockEnabled.

Output Arguments

collapse all

Original values of the Enabled block parameter of the model check blocks, returned as a cell array of character vectors.

Alternatives

You can open each model verification block in a model and select or clear the Enable assertion check box.

Version History

Introduced in R2012b
