Defining and Extending Existing Tests Cases

Model Characteristics That Motivate Test Case Extension

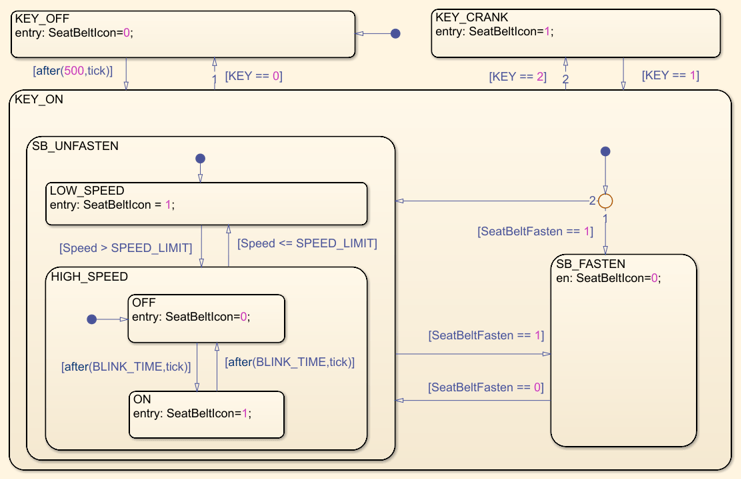

The sldvdemo_sbr_extend_design model includes the Stateflow® Chart SBR that uses temporal logic so that very long test cases are required to make a transition from the KEY_OFF state to the KEY_ON state. This type of time-delay characteristic is common in designs where a delay is used to reject spurious behavior or to wait for a physical system or user to respond. In this design, satisfying the temporal logic in this transition is a common obstacle to testing any of the states and transitions within the KEY_ON state.

Fortunately, this type of time-delay characteristic is usually easy to identify and satisfy with a manually authored test case.

open_system('sldvdemo_sbr_extend_design');
sf('Open',sldvdemo_ssid_to_sfid('sldvdemo_sbr_extend_design/SBR',11));

Creating a Harness Model and Defining Starting Tests

The Simulink Design Verifier function sldvmakeharness creates a harness model with a block that generates input values to the test model included by way of a Model block.

You can modify the test data in a harness model by manually editing the data values using the Signal Builder user interface. You can also add more test cases by creating new signal groups in the block. Alternatively, you can use the signalbuilder command to programmatically accomplish the same thing.

In this example, you specify a test case that keeps the system in the KEY_OFF state for 5 seconds:

%[~, harnessModelFilePath] = sldvmakeharness('sldvdemo_sbr_extend_design',[],[],true);
%[~, harnessModel] = fileparts(harnessModelFilePath);

%startingTestTime = 0:0.5:5;
%startingTestData = cell(3, 1);
%lengthStartingTest = length(startingTestTime);
%startingTestData{1} = zeros(1,lengthStartingTest);
%startingTestData{2} = zeros(1,lengthStartingTest);
%startingTestData{3} = ones(1,lengthStartingTest);

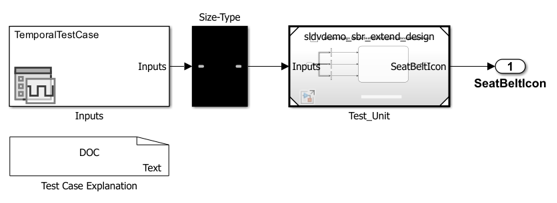

%signalBuilderBlock = sldvdemo_signalbuilder_block(harnessModel);
%signalbuilder(signalBuilderBlock,'Append',...
   % startingTestTime, startingTestData,...
    %{'Inputs.Speed','Inputs.SeatBeltFasten','Inputs.KEY'},'Starting Test Case');

%signalbuilder(signalBuilderBlock, 'ActiveGroup', 2);
%open_system(signalBuilderBlock);

Logging Starting Tests

In order to leverage the starting test case defined above, you use the sldvlogsignals function to capture the input values in the necessary logged data format.

The first input to sldvlogsignals is the path to a Model block, and the second input is the index of signal group(s) within the harness model. When you invoke sldvlogsignals, the parent model that contains the Model block is simulated.

The parent model is not restricted to Simulink Design Verifier harness models. Alternatively, you might log data from a closed-loop simulation model that uses a Model block to include the controller so that controller test cases more realistically reflect the continuous time behavior expected in the closed-loop system.

%[~, modelBlock] = find_mdlrefs(harnessModel, false);
%loggeddata = sldvlogsignals(modelBlock{1},2);

Extending Existing Tests During Test Generation

Before you can use existing test data during test generation, the data must be saved to a MAT-file. You enable test case extension in the Test Generation pane of the Simulink Design Verifier configuration parameters. Select Extend existing test cases, and specify the MAT file in the Data file field.

Generated tests either extend one of the starting test cases with one or more new time steps or will specify one or more time steps starting from the initial, or default, configuration.

%save('existingtestcase.mat', 'loggeddata');

%opts = sldvoptions;
%opts.ExtendExistingTests = 'on';
%opts.ExistingTestFile = 'existingtestcase.mat';
%opts.SaveHarnessModel = 'off';
%opts.SaveReport = 'off';

%[~, fileNames] = sldvrun('sldvdemo_sbr_extend_design', opts, true);

Verifying Complete Coverage

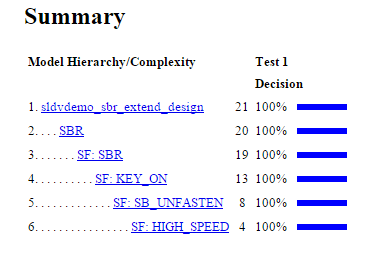

The sldvruntest function verifies that the new test suite achieves complete model coverage. The cvhtml (Simulink Coverage) function produces a coverage report that indicates 100% Decision coverage is achieved with the generated test vectors.

%[~, finalCov] = sldvruntest('sldvdemo_sbr_extend_design', fileNames.DataFile, [], true);
%cvhtml('Final Coverage', finalCov);

Clean Up

To complete the demo, close all models and remove the saved logged data file.

%close_system(harnessModel,0);
close_system('sldvdemo_sbr_extend_design');
%delete('existingtestcase.mat');
