Box-Behnken design

collapse all in page

Syntax

dBB = bbdesign(n)
dBB = bbdesign(n,Name=Value)
[dBB,blocks] = bbdesign(___)

Description

dBB = bbdesign(n) returns a numeric matrix dBB containing a Box-Behnken design for n factors, where n is a positive integer scalar greater than or equal to 3. The size of dBB is m-by-n, where m is the number of runs (points) in the design. Each row of dBB contains the settings for all factors in a run, scaled between –1 and 1.

dBB = bbdesign(n,Name=Value) returns dBB with additional options specified by one or more name-value arguments. For example, you can specify the number of center points, and the maximum number of points per block.

example

[dBB,blocks] = bbdesign(___) additionally returns a 1-by-m vector containing the block numbers for each run, using any of the input argument combinations in the previous syntaxes. The blocks indicate the runs to measure under similar conditions in order to minimize the effect of inter-block differences on the parameter estimates.

Examples

collapse all

Open Live Script

Create a three-factor Box-Behnken design with four center points.

dBB = bbdesign(3,Center=4);

Display the last five runs of the design.

disp(dBB(end-4:end,:))
     0     1     1
     0     0     0
     0     0     0
     0     0     0
     0     0     0

The design contains four center points for a more uniform estimate of the prediction variance over the entire design space.

Visualize the design using the plot3 function.

plot3(dBB(:,1),dBB(:,2),dBB(:,3),"ro", ...
         MarkerFaceColor="b")
set(gca,Box="on",BoxStyle="full")
axis square equal

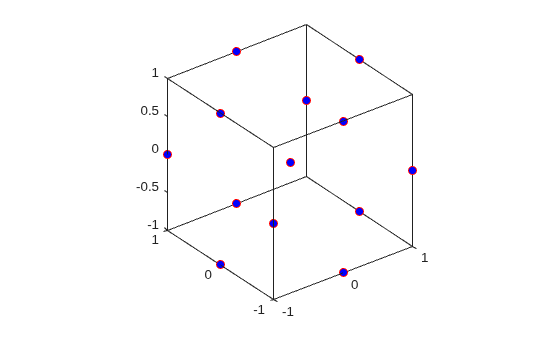

Figure contains an axes object. The axes contains a line object which displays its values using only markers.

The coordinates of each marked point in the cube represent the factor settings of a run in the design.

Input Arguments

collapse all

Number of factors in the design, specified as a positive integer scalar greater than or equal to 3.

Example: 3

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: bbdesign(3,Center=2) creates a Box-Behnken design for three factors that contains two center points.

Number of center points in the design, specified as a nonnegative integer. The default value depends on n.

Example: Center=3

Data Types: single | double

Maximum number of points per block, specified as a positive integer. The default value is Inf.

Example: BlockSize=3

Data Types: single | double

Output Arguments

collapse all

Box-Behnken design for n factors, returned as a numeric matrix of size m-by-n, where m is the number of runs (points) in the design. Each row of dBB contains the settings for all factors in a run, scaled between –1 and 1.

Block numbers for each run (point), returned as an m-by-1 numeric vector, where m is the number of runs in the design. The blocks indicate the runs to measure under similar conditions in order to minimize the effect of inter-block differences on the parameter estimates. For more information, see [1].

References

[1] Box, G. E. P., W. G. Hunter, and J. S. Hunter. Statistics for Experimenters. Hoboken, NJ: Wiley-Interscience, 1978.
