Display the confusion matrix for data with two misclassifications and one missing classification.

Create vectors for the known groups and the predicted groups.

g1 = [3 2 2 3 1 1]';	% Known groups
g2 = [4 2 3 NaN 1 1]';	% Predicted groups

Return the confusion matrix.

C = confusionmat(g1,g2)

C = 4×4

     2     0     0     0
     0     1     1     0
     0     0     0     1
     0     0     0     0

The indices of the rows and columns of the confusion matrix C are identical and arranged by default in the sorted order of [g1;g2], that is, (1,2,3,4).

The confusion matrix shows that the two data points known to be in group 1 are classified correctly. For group 2, one of the data points is misclassified into group 3. Also, one of the data points known to be in group 3 is misclassified into group 4. confusionmat treats the NaN value in the grouping variable g2 as a missing value and does not include it in the rows and columns of C.

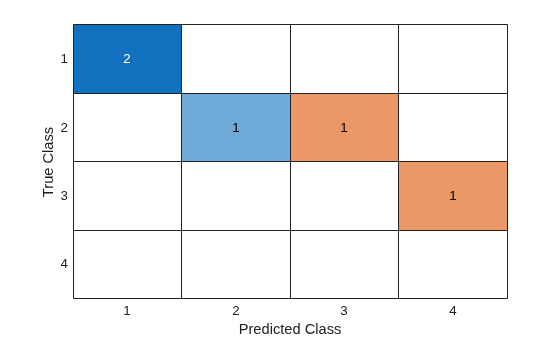

Plot the confusion matrix as a confusion matrix chart by using confusionchart.

confusionchart(C);

You do not need to calculate the confusion matrix first and then plot it. Instead, plot a confusion matrix chart directly from the true and predicted labels by using confusionchart.

cm = confusionchart(g1,g2)

cm =
  ConfusionMatrixChart with properties:

    NormalizedValues: [4x4 double]
         ClassLabels: [4x1 double]

  Show all properties

The ConfusionMatrixChart object stores the numeric confusion matrix in the NormalizedValues property and the classes in the ClassLabels property. Display these properties using dot notation.

cm.NormalizedValues

ans = 4×4

     2     0     0     0
     0     1     1     0
     0     0     0     1
     0     0     0     0

cm.ClassLabels

ans = 4×1

     1
     2
     3
     4

Display the confusion matrix for data with two misclassifications and one missing classification, and specify the group order.

Create vectors for the known groups and the predicted groups.

g1 = [3 2 2 3 1 1]';	% Known groups
g2 = [4 2 3 NaN 1 1]';	% Predicted groups

Specify the group order and return the confusion matrix.

C = confusionmat(g1,g2,'Order',[4 3 2 1])

C = 4×4

     0     0     0     0
     1     0     0     0
     0     1     1     0
     0     0     0     2

The indices of the rows and columns of the confusion matrix C are identical and arranged in the order specified by the group order, that is, (4,3,2,1).

The second row of the confusion matrix C shows that one of the data points known to be in group 3 is misclassified into group 4. The third row of C shows that one of the data points belonging to group 2 is misclassified into group 3, and the fourth row shows that the two data points known to be in group 1 are classified correctly. confusionmat treats the NaN value in the grouping variable g2 as a missing value and does not include it in the rows and columns of C.

Perform classification on a sample of the fisheriris data set and display the confusion matrix for the resulting classification.

Load Fisher's iris data set.

load fisheriris

Randomize the measurements and groups in the data.

rng(0,'twister'); % For reproducibility
numObs = length(species);
p = randperm(numObs);
meas = meas(p,:);
species = species(p);

Train a discriminant analysis classifier by using measurements in the first half of the data.

half = floor(numObs/2);
training = meas(1:half,:);
trainingSpecies = species(1:half);
Mdl = fitcdiscr(training,trainingSpecies);

Predict labels for the measurements in the second half of the data by using the trained classifier.

sample = meas(half+1:end,:);
grouphat = predict(Mdl,sample);

Specify the group order and display the confusion matrix for the resulting classification.

group = species(half+1:end);
[C,order] = confusionmat(group,grouphat,'Order',{'setosa','versicolor','virginica'})

C = 3×3

    29     0     0
     0    22     2
     0     0    22

order = 3x1 cell array
    {'setosa'    }
    {'versicolor'}
    {'virginica' }

The confusion matrix shows that the measurements belonging to setosa and virginica are classified correctly, while two of the measurements belonging to versicolor are misclassified as virginica. The output order contains the order of the rows and columns of the confusion matrix in the sequence specified by the group order {'setosa','versicolor','virginica'}.

Perform classification on a tall array of the fisheriris data set, compute a confusion matrix for the known and predicted tall labels by using the confusionmat function, and plot the confusion matrix by using the confusionchart function.

When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. If you want to run the example using the local MATLAB session when you have Parallel Computing Toolbox, you can change the global execution environment by using the mapreducer function.

Load Fisher's iris data set.

load fisheriris

Convert the in-memory arrays meas and species to tall arrays.

tx = tall(meas);

Starting parallel pool (parpool) using the 'local' profile ...
Connected to the parallel pool (number of workers: 4).

ty = tall(species);

Find the number of observations in the tall array.

numObs = gather(length(ty));   % gather collects tall array into memory

Evaluating tall expression using the Parallel Pool 'local':
Evaluation completed in 0.78 sec

Set the seeds of the random number generators using rng and tallrng for reproducibility, and randomly select training samples. The results can vary depending on the number of workers and the execution environment for the tall arrays. For details, see Control Where Your Code Runs (MATLAB).

rng('default')
tallrng('default')
numTrain = floor(numObs/2);
[txTrain,trIdx] = datasample(tx,numTrain,'Replace',false);
tyTrain = ty(trIdx);

Fit a decision tree classifier model on the training samples.

mdl = fitctree(txTrain,tyTrain);

Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 2: Completed in 6.3 sec
- Pass 2 of 2: Completed in 3.9 sec
Evaluation completed in 15 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 4: Completed in 2.7 sec
- Pass 2 of 4: Completed in 3 sec
- Pass 3 of 4: Completed in 7 sec
- Pass 4 of 4: Completed in 8.5 sec
Evaluation completed in 25 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 4: Completed in 3.1 sec
- Pass 2 of 4: Completed in 3.5 sec
- Pass 3 of 4: Completed in 8.2 sec
- Pass 4 of 4: Completed in 7.2 sec
Evaluation completed in 25 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 4: Completed in 2.1 sec
- Pass 2 of 4: Completed in 3.8 sec
- Pass 3 of 4: Completed in 8.4 sec
- Pass 4 of 4: Completed in 8.5 sec
Evaluation completed in 27 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 4: Completed in 2.3 sec
- Pass 2 of 4: Completed in 3.2 sec
- Pass 3 of 4: Completed in 6.6 sec
- Pass 4 of 4: Completed in 6.2 sec
Evaluation completed in 21 sec

Predict labels for the test samples by using the trained model.

txTest = tx(~trIdx,:);
label = predict(mdl,txTest);

Compute the confusion matrix for the resulting classification.

tyTest = ty(~trIdx);
[C,order] = confusionmat(tyTest,label)

C =

  MxNx... tall array

    ?    ?    ?    ...
    ?    ?    ?    ...
    ?    ?    ?    ...
    :    :    :
    :    :    :


order =

  MxNx... tall array

    ?    ?    ?    ...
    ?    ?    ?    ...
    ?    ?    ?    ...
    :    :    :
    :    :    :

Use the gather function to perform the deferred calculation and return the result of confusionmat in memory.

gather(C)

Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 4.6 sec
Evaluation completed in 5.5 sec

ans = 3×3

    20     0     0
     1    25     5
     0     0    24

gather(order)

Evaluating tall expression using the Parallel Pool 'local':
Evaluation completed in 0.059 sec

ans = 3x1 cell array
    {'setosa'    }
    {'versicolor'}
    {'virginica' }

The confusion matrix shows that three measurements in the versicolor class are misclassified. All the measurements belonging to setosa and virginica are classified correctly.

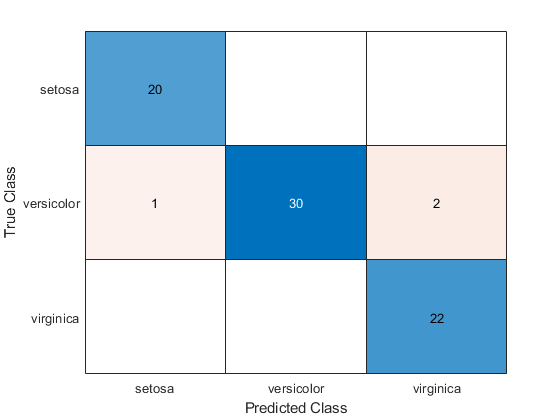

To compute and plot the confusion matrix, use confusionchart instead.

cm = confusionchart(tyTest,label)

Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 2.7 sec
Evaluation completed in 3.9 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 2.4 sec
Evaluation completed in 3.1 sec

cm =
  ConfusionMatrixChart with properties:

    NormalizedValues: [3x3 double]
         ClassLabels: {3x1 cell}

  Show all properties
