# plotprofile

## Description

returns
an array of `lines`

= plotprofile(___)`Line`

objects for the lines in the plot.

## Examples

### Plot Means for One-Way MANOVA

Load the `fisheriris`

data set.

`load fisheriris`

The column vector `species`

contains iris flowers of three different species: setosa, versicolor, and virginica. The matrix `meas`

contains four types of measurements for the flower: the length and width of sepals and petals in centimeters.

Perform a one-way MANOVA with `species`

as the factor and the measurements in `meas`

as the response variables.

maov = manova(species,meas,FactorNames="species",ResponseNames=["SepalLength" "SepalWidth"... "PetalLength" "PetalWidth"])

maov = 1-way manova SepalLength,SepalWidth,PetalLength,PetalWidth ~ 1 + species Source DF TestStatistic Value F DFNumerator DFDenominator pValue _______ ___ _____________ ______ ______ ___________ _____________ __________ species 2 pillai 1.1919 53.466 8 290 9.7422e-53 Error 147 Total 149 Properties, Methods

`maov`

is a `manova`

object that contains the results of the one-way MANOVA. The small *p*-value for `species`

indicates that the flower species has a statistically significant effect on at least one of the flower measurements.

Create a profile plot of the mean measurements for each flower species.

plotprofile(maov) legend

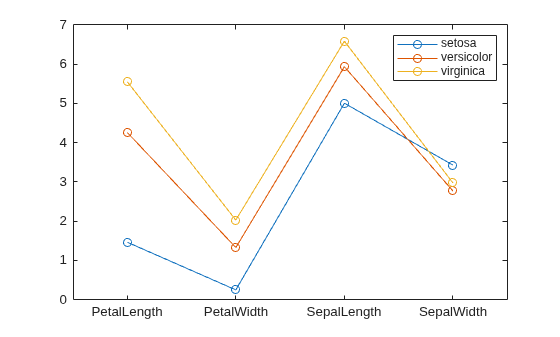

The profile plot shows that the means are the most spread out for the petal length measurement, and that setosa has smaller measurements, on average, than the other two flower species.

### Plot Means for Two-Way MANOVA

Load the `carsmall`

data set.

`load carsmall`

The variable `Model_Year`

contains data for the year a car was manufactured, and the variable `Cylinders`

contains data for the number of engine cylinders in the car. The `Acceleration`

and `Displacement`

variables contain data for car acceleration and displacement.

Use the `table`

function to create a table from the data in `Model_Year`

, `Cylinders`

, `Acceleration`

, and `Displacement`

.

tbl = table(Model_Year,Cylinders,Acceleration,Displacement,VariableNames=["Year" "Cylinders" "Acceleration" "Displacement"]);

Perform a two-way MANOVA using the table variables `Year`

and `Cylinders`

as factors, and the `Acceleration`

and `Displacement`

variables as response variables.

`maov = manova(tbl,"Acceleration,Displacement ~ Cylinders + Year")`

maov = 2-way manova Acceleration,Displacement ~ 1 + Year + Cylinders Source DF TestStatistic Value F DFNumerator DFDenominator pValue _________ __ _____________ ________ ______ ___________ _____________ __________ Year 2 pillai 0.084893 2.1056 4 190 0.081708 Cylinders 2 pillai 0.94174 42.27 4 190 2.5049e-25 Error 95 Total 99 Properties, Methods

`maov`

is a `manova`

object that contains the results of the two-way MANOVA. The table output shows that the *p*-value for the MANOVA model term `Year`

is too large to conclude that `Year`

has a statistically significant effect on the mean response vector. However, the small *p*-value for `Cylinders`

indicates that enough evidence exists to conclude that `Cylinders`

has a statistically significant effect on the mean response vector.

Create a profile plot of the means for `Acceleration`

and `Displacement`

grouped by the combinations of values for `Year`

and `Cylinders`

. Use the `axes`

function to create axes that plot lines in magenta, green, and black.

lineColors = [1 0 1; 0 1 0; 0 0 0]; ax = axes(ColorOrder=lineColors); plotprofile(ax,maov,["Year" "Cylinders"]) legend

The profile plot shows that the means for `Acceleration`

are similar. However, the color coding shows that the means for `Displacement`

are clustered by their corresponding values in `Cylinders`

. The top cluster, shown in black, corresponds to cars with eight-cylinder engines. The middle cluster, shown in green, corresponds to cars with six-cylinder engines. The bottom cluster, shown in magenta, corresponds to cars with four-cylinder engines. This result supports the conclusion that `Cylinders`

has a statistically significant effect on the mean response vector, but `Year`

does not.

## Input Arguments

`maov`

— MANOVA results

`manova`

object

MANOVA results, specified as a `manova`

object.
The properties of `maov`

contain the factor values and response data
used by `plotprofile`

to create the profile plot.

`factors`

— Factors used to group response data

string vector | cell array of character vectors

Factors used to group the response data, specified as a string vector or a cell
array of character vectors. The `plotprofile`

function groups the
response data by the combinations of values for the factors in
`factors`

. The `factors`

argument must be one or
more categorical factor names in `maov.FactorNames`

.

**Example: **`["Factor1","Factor2"]`

**Data Types: **`string`

| `cell`

`ax`

— Target axes

`Axes`

object

Target axes, specified as an `Axes`

object. If you do not specify the
axes, then `plotprofile`

uses the current axes (`gca`

).

## Output Arguments

`lines`

— Profile plot lines

array of `Line`

objects

Profile plot lines, returned as an array of `Line`

object handles.
You can modify the properties of the `Line`

objects to customize the
profile plot. For a complete list of `Line`

properties, see Line Properties.

## Version History

**Introduced in R2023b**
