cvloss

Class: RegressionTree

Regression error by cross validation

expand all in page

Syntax

E = cvloss(tree)
[E,SE] = cvloss(tree)
[E,SE,Nleaf] = cvloss(tree)
[E,SE,Nleaf,BestLevel] = cvloss(tree)
[E,...] = cvloss(tree,Name,Value)

Description

E = cvloss(tree) returns the cross-validated regression error (loss) for tree, a regression tree.

[E,SE] = cvloss(tree) returns the standard error of E.

[E,SE,Nleaf] = cvloss(tree) returns the number of leaves (terminal nodes) in tree.

[E,SE,Nleaf,BestLevel] = cvloss(tree) returns the optimal pruning level for tree.

[E,...] = cvloss(tree,Name,Value) cross validates with additional options specified by one or more Name,Value pair arguments. You can specify several name-value pair arguments in any order as Name1,Value1,…,NameN,ValueN.

Input Arguments

expand all

Trained regression tree, specified as a RegressionTree object constructed using fitrtree.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Pruning level, specified as the comma-separated pair consisting of 'Subtrees' and a vector of nonnegative integers in ascending order or 'all'.

If you specify a vector, then all elements must be at least 0 and at most max(tree.PruneList). 0 indicates the full, unpruned tree and max(tree.PruneList) indicates the completely pruned tree (i.e., just the root node).

If you specify 'all', then cvloss operates on all subtrees (i.e., the entire pruning sequence). This specification is equivalent to using 0:max(tree.PruneList).

cvloss prunes tree to each level indicated in Subtrees, and then estimates the corresponding output arguments. The size of Subtrees determines the size of some output arguments.

To invoke Subtrees, the properties PruneList and PruneAlpha of tree must be nonempty. In other words, grow tree by setting 'Prune','on', or by pruning tree using prune.

Example: 'Subtrees','all'

Data Types: single | double | char | string

Tree size, specified as the comma-separated pair consisting of 'TreeSize' and one of the following:

  • 'se' — cvloss uses the smallest tree whose cost is within one standard error of the minimum cost.

  • 'min' — cvloss uses the minimal cost tree.

Number of folds to use in a cross-validated tree, specified as the comma-separated pair consisting of 'KFold' and a positive integer value greater than 1.

Example: 'KFold',8

Output Arguments

expand all

Cross-validation mean squared error (loss), returned as a vector or scalar depending on the setting of the Subtrees name-value pair.

Standard error of E, returned as vector or scalar depending on the setting of the Subtrees name-value pair.

Number of leaf nodes in tree, returned as a vector or scalar depending on the setting of the Subtrees name-value pair. Leaf nodes are terminal nodes, which give responses, not splits.

Best pruning level as defined in the TreeSize name-value pair, returned as a scalar whose value depends on TreeSize:

  • If TreeSize is 'se', then BestLevel is the largest pruning level that achieves a value of E within SE of the minimum error.

  • If TreeSize is 'min', then BestLevel is the smallest value in Subtrees.

Examples

expand all

Open Live Script

Compute the cross-validation error for a default regression tree.

Load the carsmall data set. Consider Displacement, Horsepower, and Weight as predictors of the response MPG.

load carsmall
X = [Displacement Horsepower Weight];

Grow a regression tree using the entire data set.

Mdl = fitrtree(X,MPG);

Compute the cross-validation error.

rng(1); % For reproducibility
E = cvloss(Mdl)
E = 27.6976

E is the 10-fold weighted, average MSE (weighted by number of test observations in the folds).

Open Live Script

Apply k-fold cross validation to find the best level to prune a regression tree for all of its subtrees.

Load the carsmall data set. Consider Displacement, Horsepower, and Weight as predictors of the response MPG.

load carsmall
X = [Displacement Horsepower Weight];

Grow a regression tree using the entire data set. View the resulting tree.

Mdl = fitrtree(X,MPG);
view(Mdl,'Mode','graph')

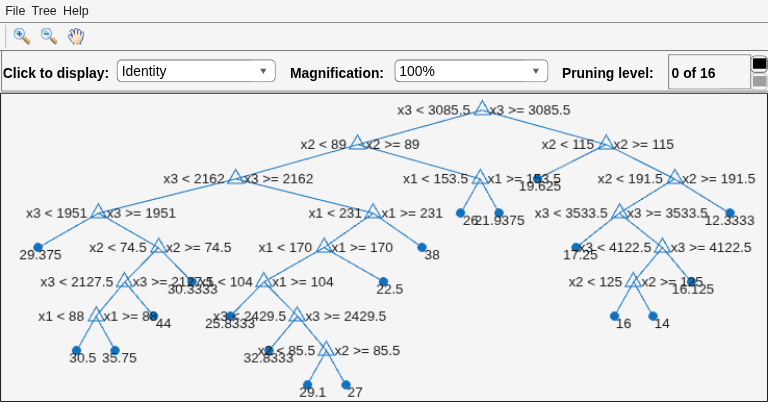

Figure Regression tree viewer contains an axes object and other objects of type uimenu, uicontrol. The axes object contains 60 objects of type line, text. One or more of the lines displays its values using only markers

Compute the 5-fold cross-validation error for each subtree except for the first two lowest and highest pruning level. Specify to return the best pruning level over all subtrees.

rng(1); % For reproducibility
m = max(Mdl.PruneList) - 1
m = 15

[~,~,~,bestLevel] = cvloss(Mdl,'SubTrees',2:m,'KFold',5)
bestLevel = 14

Of the 15 pruning levels, the best pruning level is 14.

Prune the tree to the best level. View the resulting tree.

MdlPrune = prune(Mdl,'Level',bestLevel);
view(MdlPrune,'Mode','graph')

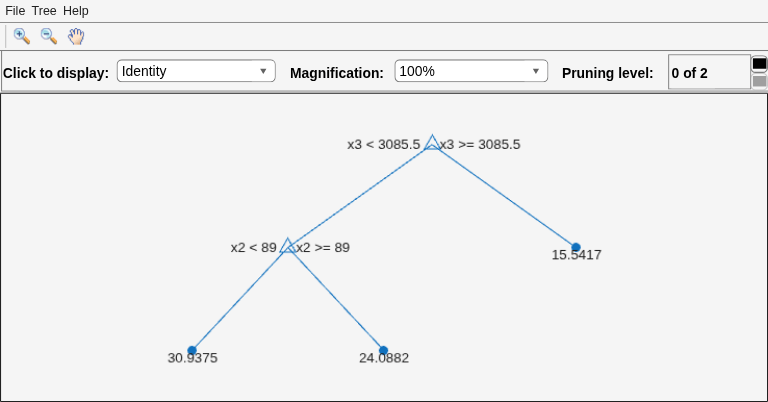

Figure Regression tree viewer contains an axes object and other objects of type uimenu, uicontrol. The axes object contains 12 objects of type line, text. One or more of the lines displays its values using only markers

Alternatives

You can construct a cross-validated tree model with crossval, and call kfoldLoss instead of cvloss. If you are going to examine the cross-validated tree more than once, then the alternative can save time.

However, unlike cvloss, kfoldLoss does not return SE, Nleaf, or BestLevel.
