代码生成
符号计算的结果通常用于仅使用标准双精度算术的数值代码中。Symbolic Math Toolbox™ 提供用于直接从符号表达式生成 MATLAB 函数、Simulink Function 模块和基于 Simscape 语言的方程的函数。
使用这些函数，您可以将符号计算的结果转换为基于数值计算的函数，以便在程序的其他部分使用。使用生成的 MATLAB 函数不需要 Symbolic Math Toolbox 的许可证。您还可以将符号表达式转换为 C、Fortran、MathML 和 TeX 代码。
函数
主题
- Generate C or Fortran Code from Symbolic Expressions
Convert symbolic expressions to C or Fortran code.
- Generate MATLAB Functions from Symbolic Expressions
Convert symbolic expressions to MATLAB functions that accepts numeric values.
- Generate MATLAB Function Blocks from Symbolic Expressions
Convert symbolic expressions to Simulink blocks.
- Generate Simscape Equations from Symbolic Expressions
Translate results of symbolic computations to Simscape language equations.
- Deploy Generated MATLAB Functions from Symbolic Expressions with MATLAB Compiler
Generate MATLAB functions from symbolic expressions and create standalone applications with MATLAB Compiler™.
- Generate C Code from Symbolic Expressions Using the MATLAB Coder App
Generate MATLAB functions from symbolic expressions and generate C code with MATLAB Coder™.
精选示例
Derive Quadrotor Dynamics for Nonlinear Model Predictive Control
Derive a continuous-time nonlinear model of a quadrotor using Symbolic Math Toolbox.
Using Symbolic Mathematics with Optimization Toolbox Solvers
Use the Symbolic Math Toolbox functions jacobian and matlabFunction
to provide analytical derivatives to optimization solvers.
Improving Accuracy and Performance in Optimization
Demonstrates that the Symbolic Math Toolbox™ helps minimize errors when solving a nonlinear system of equations.
Analytical Model of Cantilever Truss Structure for Simscape
Find parameterized analytical expressions for the displacement of a joint of a cantilever truss structure in both the static and frequency domains.

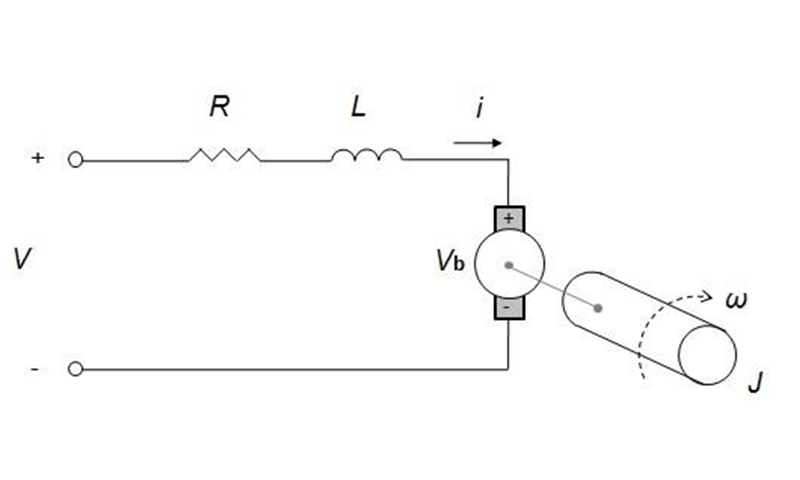

Customize and Extend Simscape Libraries for a Custom DC Motor
Create custom-equation-based components for the Simscape library using Symbolic Math Toolbox.

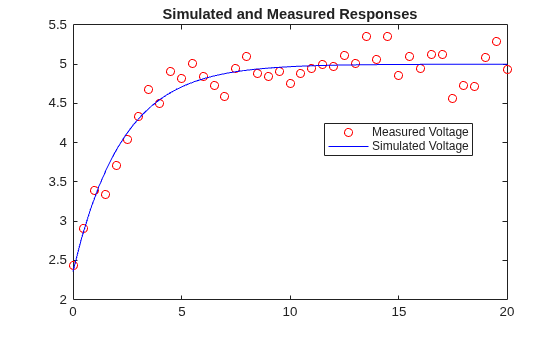

Estimate Model Parameters of a Symbolically Derived Plant Model in Simulink
Uses Simulink Design Optimization to estimate the unknown capacitance and initial voltage of a symbolically derived algebraic model of a simple resistor-capacitor (RC) circuit. The example solves the same problem and uses the same experimental data as Estimate Model Parameters and Initial States (Code) (Simulink Design Optimization), but uses the closed-form solution for the RC circuit instead of the differential form.
