Interprocess Data Write

Send messages to another processor using interprocessor data write

Since R2020b

Libraries:
SoC Blockset / Processor Interconnect
C2000 Microcontroller Blockset / Target Communication
Embedded Coder Support Package for Infineon AURIX TC3x Microcontrollers / Target Communication
Embedded Coder Support Package for Infineon AURIX TC4x Microcontrollers / Target Communication

Description

The Interprocess Data Write block asynchronously sends messages to another processor in an SoC using an interprocess data channel. The Interprocess Data Write block connects to an Interprocess Data Channel block that similarly connects to an Interprocess Data Read block contained in a separate processor reference model. In simulation, data from the current processor is asynchronously sent and processed in the processor containing the Interprocess Data Read block and associated asynchronous task. This diagram shows a generalized view of the interprocess data channel.

Note

Ensure that the number of buffers specified must same at both the Tx and Rx side.
If you are using multiprocessor modeling approach with single model triggering multiple cores using Task manager, use the Interprocess Data Read and Interprocess Data Write blocks to send and receive data between cores.
Use IPC Receive and IPC Transmit blocks to receive or sent data to either core for multi-core processors. Use these blocks for flat model approach where you are using separate models for each core.
To help you choose the right solution for your application, see Communication Between Cores Using IPC Blocks for the detailed comparison between the IPC Transmit/Receive blocks and Interprocess Data Read/Write blocks

Interprocess data channel diagram.

Examples

One Way Interprocess Communication

One-way interprocess data communication between two bare metal processors.

(SoC Blockset)

Two Way Interprocess Communication

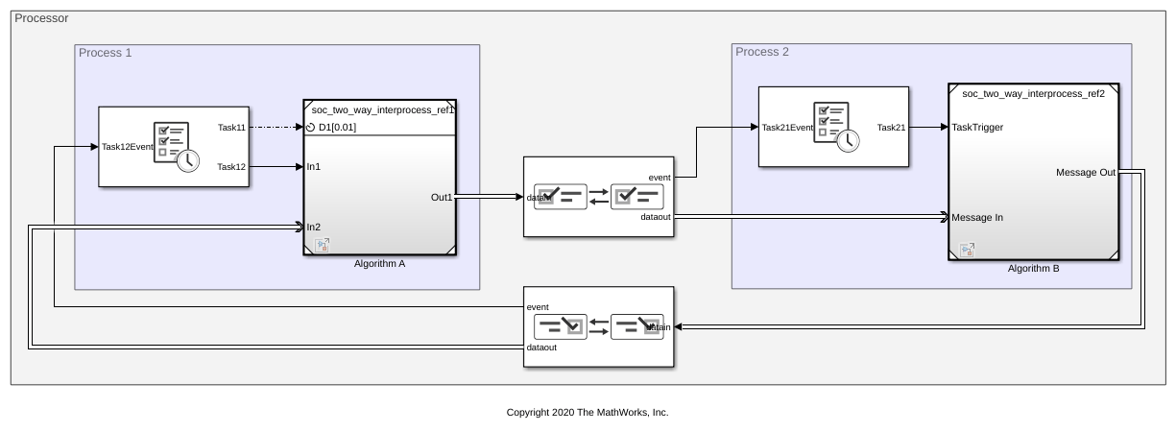

Two-way interprocess data communication between two processors running in an operating system managed processor.

(SoC Blockset)

Partition Motor Control for Multiprocessor MCUs

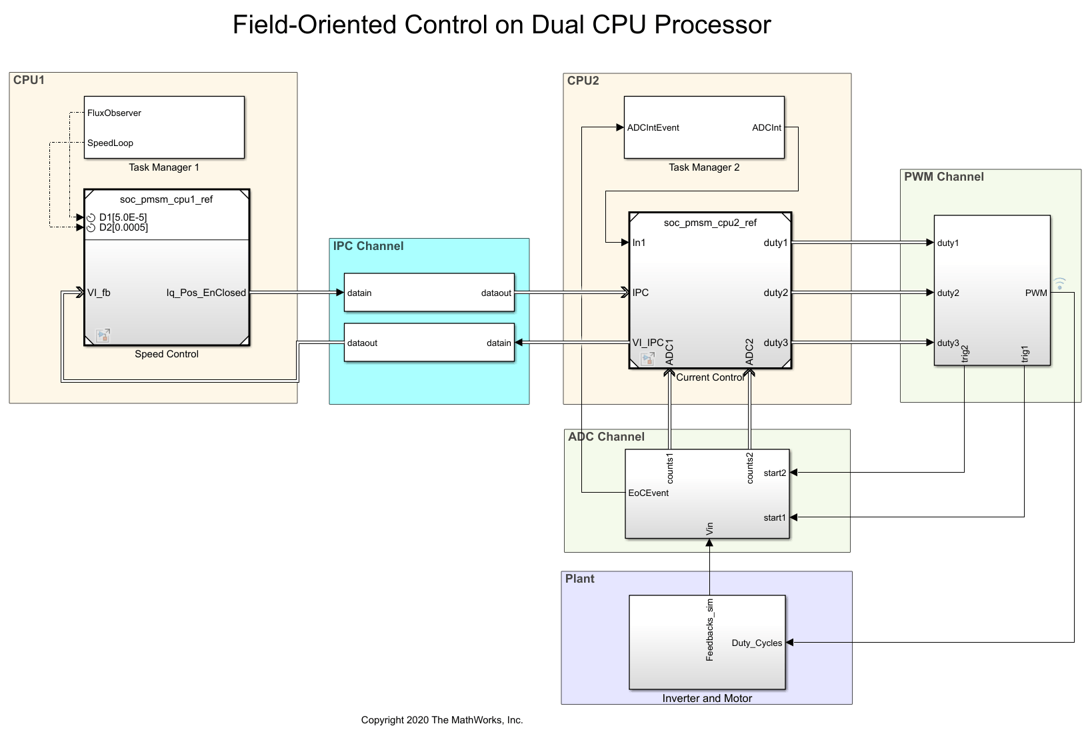

Partition real-time motor control application on to multiple processors to achieve design modularity and improved control performance.

Open Model

Ports

Input

expand all

data — Data input
vector

This port receives a data vector to send to another processor over the interprocess data channel.

Output

expand all

msg — Output data message
scalar

This message port sends the output data as a message to the connected Interprocess Data Channel block. For more information on messages, see Messages.

Dependencies

This port appears only when Enable simulation port parameter is enabled.

Data Types: SoCData

Parameters

expand all

Enable simulation port — Enable peripheral simulation port to block
`on` (default) | `off`

Select this parameter to configure the msg output port to enable peripheral simulation capability.

Channels number — Select the channel number
`0` (default) | `1` | `2` | `...`

Select the channel where you want to send the data.

Dependencies

This parameter is visible only when you disable the Enable simulation port parameter.

Circular FIFO depth — Number of storage buffers
`1` (default) | positive integer

Buffers are circular buffers created in shared message RAM. Number of buffer is the number of elements stored at a time in the shared message RAM. These are not FIFO but will be overwritten at next instance.

Ensure that the number of buffers specified must same at both the Tx and Rx side.

Dependencies

This parameter is visible only when you disable the Enable simulation port parameter.

Trigger interrupt on receiving core — Select to trigger interrupt
`off` (default) | `on`

Select this parameter to trigger IPC interrupt at the receiving core.

Dependencies

This parameter is visible only when you disable the Enable simulation port parameter.

Participating cores — Select the participating cores of the processor
`The options vary based on the hardware board you select`

Select the participating cores as per the Hardware board you select in the Configuration Parameters window.

Dependencies

This parameter is visible only when you disable the Enable simulation port parameter.

Note

Ensure that Channel number, Number of buffers and Participating cores parameters match for the corresponding Interprocess Data Read and Interprocess Data Write blocks of the model.
