Draw Shapes

Examples

Draw Rectangles on Image

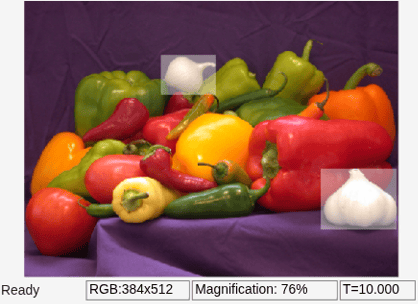

Draw rectangles on an image by overwriting the pixel values of the input image.

Open Model

Draw Circles on Image

Draw circles on an image by overwriting the pixel values of the input image.

Open Model

Ports

Input

expand all

Image — Input image or video stream
M-by-N matrix of intensity values | M-by-N-by-3 array of color values

Input image, specified as either an M-by-N matrix of intensity values or an M-by-N-by-3 matrix of color values with 3 color planes.

When the input is a video stream, the block processes it frame by frame.

R — Red color channel of the image or video frame
M-by-N matrix

Red color channel of the image or video frame, specified as an M-by-N matrix. The R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Image signal parameter to Separate color signals.

G — Green color channel of the image or video frame
M-by-N matrix

Green color channel of the input image or video frame, specified as an M-by-N matrix. The R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Image signal parameter to Separate color signals.

B — Blue color channel of the image or video frame
M-by-N matrix

Blue color channel of the input image or video frame, specified as an M-by-N matrix. The R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Image signal parameter to Separate color signals.

Pts — Shape coordinates
M-by-3 matrix | M-by-4 matrix | M-by-2L matrix

Coordinates of the input shapes to be drawn on the input. The format of the points depends on the type of shape you specify with the Shape parameter.

Rectangles — M-by-4 matrix of the form [x y width height]. M is the number of rectangles.

Shape Input to the Pts Port Drawn Shape

Single Rectangle

Shape	Input to the Pts Port	Drawn Shape
Single Rectangle	Four-element row vector in the format `[x y width height]`, where: `x` and `y` are the coordinates of the upper-left corner of the rectangle. `width` and `height` parameters are the width and height of the rectangle, in pixels. The values of `width` and `height` must be greater than 0.
M Rectangles	M-by-4 matrix in the format $[\begin{matrix} x_{1} & y_{1} & w i d t h_{1} & h e i g h t_{1} \\ x_{2} & y_{2} & w i d t h_{2} & h e i g h t_{2} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ x_{M} & y_{M} & w i d t h_{M} & h e i g h t_{M} \end{matrix}]$ ,where each row of the matrix corresponds to a different rectangle and is of the same form as the vector for a single rectangle.

Four-element row vector in the format
[x y width height], where:

x and y are the coordinates of the upper-left corner of the rectangle.
width and height parameters are the width and height of the rectangle, in pixels. The values of width and height must be greater than 0.

M Rectangles

M-by-4 matrix in the format

$[\begin{matrix} x_{1} & y_{1} & w i d t h_{1} & h e i g h t_{1} \\ x_{2} & y_{2} & w i d t h_{2} & h e i g h t_{2} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ x_{M} & y_{M} & w i d t h_{M} & h e i g h t_{M} \end{matrix}]$

,where each row of the matrix corresponds to a different rectangle and is of the same form as the vector for a single rectangle.

Lines — M-by-2L matrix of the form [x₁, y₁, x₂, y₂,…,x_L, y_L]. M is the number of polylines.

Shape Input to the Pts Port Drawn Shape

Single Line

Shape	Input to the Pts Port	Drawn Shape
Single Line	Four-element row vector in the format `[x₁ y₁ x₂ y₂]`, where: `x₁` and `y₁` are the coordinates of the beginning of the line. `x₂` and `y₂` are the coordinates of the end of the line.
M Lines	M-by-4 matrix in the format $[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} \\ x_{21} & y_{21} & x_{22} & y_{22} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} \end{matrix}]$ ,where each row of the matrix corresponds to a different line and is of the same form as the vector for a single line.
Single Polyline with (L-1) Segments	Vector of size 2L, where L is the number of vertices, in the format, `[x₁, y₁, x₂, y₂, ..., x_L, y_L]`, where x₁ and y₁ are the coordinates of the beginning of the first line segment. x₂ and y₂ are the coordinates of the end of the first line segment and the beginning of the second line segment. x_L and y_L are the coordinates of the end of the (L-1)^th line segment. The polyline always contains (L-1) number of segments because the first and last vertex points do not connect. The block produces an error message when the number of columns is less than two or not a multiple of two.
M Polylines with (L-1) Segments	M-by-2L matrix in the format $[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} & \dots & x_{1 L} & y_{1 L} \\ x_{21} & y_{21} & x_{22} & y_{22} & \dots & x_{2 L} & y_{2 L} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} & \dots & x_{M L} & y_{M L} \end{matrix}]$ , where each row of the matrix corresponds to a different polyline and is of the same form as the vector for a single polyline. When one of the polylines contains less than (L–1) number of segments, fill the matrix by repeating the coordinates of the last vertex. The block produces an error message if the number of columns is less than two or not a multiple of two.

Four-element row vector in the format [x₁ y₁ x₂ y₂], where:

x₁ and y₁ are the coordinates of the beginning of the line.
x₂ and y₂ are the coordinates of the end of the line.

M Lines

M-by-4 matrix in the format

$[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} \\ x_{21} & y_{21} & x_{22} & y_{22} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} \end{matrix}]$

,where each row of the matrix corresponds to a different line and is of the same form as the vector for a single line.

Single Polyline with (L-1) Segments

Vector of size 2L, where L is the number of vertices, in the format, [x₁, y₁, x₂, y₂, ..., x_L, y_L], where

x₁ and y₁ are the coordinates of the beginning of the first line segment.
x₂ and y₂ are the coordinates of the end of the first line segment and the beginning of the second line segment.
x_L and y_L are the coordinates of the end of the (L-1)^th line segment.

The polyline always contains (L-1) number of segments because the first and last vertex points do not connect.

The block produces an error message when the number of columns is less than two or not a multiple of two.

M Polylines with (L-1) Segments

M-by-2L matrix in the format

$[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} & \dots & x_{1 L} & y_{1 L} \\ x_{21} & y_{21} & x_{22} & y_{22} & \dots & x_{2 L} & y_{2 L} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} & \dots & x_{M L} & y_{M L} \end{matrix}]$

, where each row of the matrix corresponds to a different polyline and is of the same form as the vector for a single polyline. When one of the polylines contains less than (L–1) number of segments, fill the matrix by repeating the coordinates of the last vertex.

The block produces an error message if the number of columns is less than two or not a multiple of two.

Polygons — M-by-2L matrix of the form [x₁, y₁, x₂, y₂,…,x_L, y_L]. M is the number of polygons. The points are specified in consecutive order to form a polygon.

Shape Input to the Pts Port Drawn Shape

Shape	Input to the Pts Port	Drawn Shape
Single Polygon with L line segments	Row vector of size 2L, where L is the number of vertices, in the format `[x₁ y₁ x₂ y₂ ... x_L y_L]`, where: x₁ and y₁ are the coordinates of the beginning of the first line segment. x₂ and y₂ are the coordinates of the end of the first line segment and the beginning of the second line segment. x_L and y_L are the coordinates of the end of the (L-1)^th line segment and the beginning of the L^th line segment. The block connects `[x₁ y₁]` to `[x_L y_L]` to complete the polygon. The block produces an error if the number of columns is less than two or not a multiple of two.
M Polygons with the largest number of line segments in any line being L	M-by-2L matrix in the format $[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} & \dots & x_{1 L} & y_{1 L} \\ x_{21} & y_{21} & x_{22} & y_{22} & \dots & x_{2 L} & y_{2 L} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} & \dots & x_{M L} & y_{M L} \end{matrix}]$ , where each row of the matrix corresponds to a different polygon and is of the same form as the vector for a single polygon. When one of the polygons contains less than L number of segments, fill the matrix by repeating the coordinates of the last vertex. The block produces an error message if the number of columns is less than two or not a multiple of two.

Single Polygon with L line segments

Row vector of size 2L, where L is the number of vertices, in the format [x₁ y₁ x₂ y₂ ... x_L y_L], where:

x₁ and y₁ are the coordinates of the beginning of the first line segment.
x₂ and y₂ are the coordinates of the end of the first line segment and the beginning of the second line segment.
x_L and y_L are the coordinates of the end of the (L-1)^th line segment and the beginning of the L^th line segment.

The block connects [x₁ y₁] to [x_L y_L] to complete the polygon. The block produces an error if the number of columns is less than two or not a multiple of two.

M Polygons with the largest number of line segments in any line being L

M-by-2L matrix in the format

$[\begin{matrix} x_{11} & y_{11} & x_{12} & y_{12} & \dots & x_{1 L} & y_{1 L} \\ x_{21} & y_{21} & x_{22} & y_{22} & \dots & x_{2 L} & y_{2 L} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ x_{M 1} & y_{M 1} & x_{M 2} & y_{M 2} & \dots & x_{M L} & y_{M L} \end{matrix}]$

, where each row of the matrix corresponds to a different polygon and is of the same form as the vector for a single polygon.

When one of the polygons contains less than L number of segments, fill the matrix by repeating the coordinates of the last vertex.

The block produces an error message if the number of columns is less than two or not a multiple of two.

Circles — M-by-3 matrix of the form [x y radius]. M is the number of circles.

Shape Input to the Pts Port Drawn Shape

Single Circle

Shape	Input to the Pts Port	Drawn Shape
Single Circle	Three-element row vector in the format `[x y radius]`, where: `x` and `y` are coordinates for the center of the circle. `radius` is the radius of the circle, which must be greater than 0.
M Circles	M-by-3 matrix in the format $[\begin{matrix} x c t r_{1} & y c t r_{1} & r a d i u s_{1} \\ x c t r_{2} & y c t r_{2} & r a d i u s_{2} \\ ⋮ & ⋮ & ⋮ \\ x c t r_{M} & y c t r_{M} & r a d i u s_{M} \end{matrix}]$ , where each row of the matrix corresponds to a different circle and is of the same form as the vector for a single circle.

Three-element row vector in the format
[x y radius], where:

x and y are coordinates for the center of the circle.
radius is the radius of the circle, which must be greater than 0.

M Circles

M-by-3 matrix in the format

$[\begin{matrix} x c t r_{1} & y c t r_{1} & r a d i u s_{1} \\ x c t r_{2} & y c t r_{2} & r a d i u s_{2} \\ ⋮ & ⋮ & ⋮ \\ x c t r_{M} & y c t r_{M} & r a d i u s_{M} \end{matrix}]$

, where each row of the matrix corresponds to a different circle and is of the same form as the vector for a single circle.

Dependencies

Double-precision floating point is only supported if the input to the Image or R, G, and B ports is floating point.
Single-precision floating point is only supported if the input to the Image or R, G, and B ports is floating point.

ROI — Region of interest
4-element vector

Region of interest, specified as a four-element vector of the form [x y width height]. The region defines a rectangular area to draw shapes. The first two elements represent the one-based coordinates of the upper-left corner of the area. The remaining two elements represent the width and height of the area.

Dependencies

To enable this port, set the Draw shapes in parameter to Specify region of interest via port.

Clr — Color of shape
3-element vector | M-by-3 matrix

Color of the shape, specified as either a 3-element vector or an M-by-3 matrix. M is the number of shapes and three denotes the number of color planes. You can specify different color for each of the M shapes, or specify one color for all shapes.

Dependencies

To enable this port, set the Border color source or Fill color source parameter to Input port.

Output

expand all

Port_1 — Output image
M-by-N matrix of intensity values | M-by-N-by-3 array of color values

Output image, returned as an M-by-N matrix or M-by-N-by-3 array. The output image is of the same dimension as the input image.

Parameters

expand all

Main Tab

Shape — Shape to draw
`Rectangles` (default) | `Lines` | `Polygons` | `Circles`

One or more shapes to draw on the image, specified as one of the following:

Rectangles — Draw one or more rectangles on the input image or the video frame using the specified shape coordinates.
Lines — Draw one or more lines on the input image or the video frame using the specified shape coordinates.
Polygons — Draw one or more polygons on the input image or the video frame using the specified shape coordinates.
Circles — Draw one or more circles on the input image or the video frame using the specified shape coordinates.

Fill shapes — Fill shapes with color
off (default) | on

Select Fill shapes to enable the color parameters to fill shapes.

Note

If you are generating the code and selecting the Fill shapes check box, the word length of the block input(s) cannot exceed 16 bits.

Line width — Line width for the shapes
1 (default) | positive scalar

Specify the line width for the shapes to be drawn, as a positive scalar.

Fill color source — Input source to specify fill color
`Specify via dialog` (default) | `Input port`

Specify the input source for the fill color value. Select Fill color source as one of the following:

Specify via dialog — To specify the color value by using Fill color parameter.
Input port — To specify the color value by using Clr port.

Dependencies

To enable this parameter, select Fill shapes.

Fill color — Color to fill the shapes
`Black` (default) | `White` | `User-specified value`

Specify the shape fill color as either Black, White or User-specified value. The User-specified value can be scalar or a 3-element vector. Use a scalar to specify an intensity value and 3-element vector to specify RGB color value.

Color Value(s) for Filling One Shape or Multiple Shapes with the Same Color	Color Value(s) for Filling Multiple Shapes with Unique Colors
Scalar intensity value	R-element vector, where R is the number of shapes.
3-element RGB vector	R-by-3 matrix, where 3 is the number of color planes and R is the number of shapes.

For each value in the Color Value(s) parameter, enter a number between the minimum and maximum values that can be represented by the data type of the input image. If you enter a value outside this range, the block produces an error message.

Dependencies

To enable this parameter, select the Fill shapes parameter.

Border color source — Input source to specify border color
`Specify via dialog` (default) | `Input port`

Specify the input source for the border color value. Select Border color source as one of the following:

Specify via dialog — To specify the color value by using Border color parameter.
Input port — To specify the color value by using Clr port.

Border color — Outline color of the shape
`Black` (default) | `White` | `User-specified value`

Specify the border color of shape as either Black, White or User-specified value. The User-specified value can be scalar or a 3-element vector. Use a scalar to specify an intensity value and 3-element vector to specify RGB color value.

Color Value(s) for Drawing One Shape or Multiple Shapes with the Same Color	Color Value(s) for Drawing Multiple Shapes with Unique Colors
Scalar intensity value	R-element vector, where R is the number of shapes.
3-element RGB vector	R-by-3 matrix, where three is the number of color planes and R is the number of shapes.

For each value in the Color Value(s) parameter, enter a number between the minimum and maximum values that can be represented by the data type of the input image. If you enter a value outside this range, the block produces an error message.

Color value(s) — Color value to draw the border or fill the shape
scalar | 3-element vector

Specify color value to draw the border or fill the shape as a scalar or 3-element vector. Use a scalar to specify intensity value and a 3-element vector for RGB color value.

Tunable: Yes

Dependencies

To enable this parameter set the Border color or Fill color parameter to User-specified value.

Opacity factor (between 0 and 1) — Opacity of the color
value in the range [0,1] | R-element vector

Specify the opacity of the color as a positive value in the range [0, 1]. 0 is transparent and 1 is opaque.

Opacity Factor value for Filling One Shape or Multiple Shapes with the Same Color	Opacity Factor value for Filling Multiple Shapes with Unique Colors
Scalar intensity value	R-element vector where R is the number of shapes

Dependencies

To enable this parameter, select the Fill shapes parameter.

Use antialiasing — Smoothing algorithm
off | on

Performs smoothing on the line, polygon, or circle.

Dependencies

To enable this parameter, set the Shape parameter to either Lines, Polygons, or Circles.

Draw shapes in — Region to draw the shape
`Entire image` (default) | `Specify region of interest via port`

Specify the extent of the region to draw the specified shape. Select the value as one of the following:

Entire image — To draw the shape on the entire image.
Specify region of interest via port — To draw the shape within an ROI specified by the input ROI port.

Image signal — Number of input ports for the image signal
`One multidimensional signal` (default) | `Separate color signals`

Specify the number of input ports to use for specifying the input image. Select the value as one of the following:

One multidimensional signal — To specify intensity or color image using a single port. The block enables the Image port for a M-by-N-by-3 color image, or a M-by-N intensity image.
Separate color signals — To specify red, green, and, blue color planes of the input color image. The block enables the R,G, and, B input ports. Each port accepts the M-by-N plane of an RGB color image.

Data Types Tab

For details on the fixed-point block parameters, see Specify Fixed-Point Attributes for Blocks (DSP System Toolbox).

Block Characteristics

Data Types	`Boolean` \| `double` \| `fixed point` \| `integer` \| `single`
Multidimensional Signals	`yes`
Variable-Size Signals	`yes`

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a

Draw Shapes

Description

Examples

Draw Rectangles on Image

Draw Circles on Image

Ports

Input

Image — Input image or video stream M-by-N matrix of intensity values | M-by-N-by-3 array of color values

R — Red color channel of the image or video frame M-by-N matrix

Dependencies

G — Green color channel of the image or video frame M-by-N matrix

Dependencies

B — Blue color channel of the image or video frame M-by-N matrix

Dependencies

Pts — Shape coordinates M-by-3 matrix | M-by-4 matrix | M-by-2L matrix

Dependencies

ROI — Region of interest 4-element vector

Dependencies

Clr — Color of shape 3-element vector | M-by-3 matrix

Dependencies

Output

Port_1 — Output image M-by-N matrix of intensity values | M-by-N-by-3 array of color values

Parameters

Shape — Shape to draw Rectangles (default) | Lines | Polygons | Circles

Fill shapes — Fill shapes with color off (default) | on

Line width — Line width for the shapes 1 (default) | positive scalar

Fill color source — Input source to specify fill color Specify via dialog (default) | Input port

Dependencies

Fill color — Color to fill the shapes Black (default) | White | User-specified value

Dependencies

Border color source — Input source to specify border color Specify via dialog (default) | Input port

Border color — Outline color of the shape Black (default) | White | User-specified value

Color value(s) — Color value to draw the border or fill the shape scalar | 3-element vector

Dependencies

Opacity factor (between 0 and 1) — Opacity of the color value in the range [0,1] | R-element vector

Dependencies

Use antialiasing — Smoothing algorithm off | on

Dependencies

Draw shapes in — Region to draw the shape Entire image (default) | Specify region of interest via port

Image signal — Number of input ports for the image signal One multidimensional signal (default) | Separate color signals

Block Characteristics

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

Fixed-Point Conversion Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

See Also

Image — Input image or video stream
M-by-N matrix of intensity values | M-by-N-by-3 array of color values

R — Red color channel of the image or video frame
M-by-N matrix

G — Green color channel of the image or video frame
M-by-N matrix

B — Blue color channel of the image or video frame
M-by-N matrix

Pts — Shape coordinates
M-by-3 matrix | M-by-4 matrix | M-by-2L matrix

ROI — Region of interest
4-element vector

Clr — Color of shape
3-element vector | M-by-3 matrix

Port_1 — Output image
M-by-N matrix of intensity values | M-by-N-by-3 array of color values

Shape — Shape to draw
`Rectangles` (default) | `Lines` | `Polygons` | `Circles`

Fill shapes — Fill shapes with color
off (default) | on

Line width — Line width for the shapes
1 (default) | positive scalar

Fill color source — Input source to specify fill color
`Specify via dialog` (default) | `Input port`

Fill color — Color to fill the shapes
`Black` (default) | `White` | `User-specified value`

Border color source — Input source to specify border color
`Specify via dialog` (default) | `Input port`

Border color — Outline color of the shape
`Black` (default) | `White` | `User-specified value`

Color value(s) — Color value to draw the border or fill the shape
scalar | 3-element vector

Opacity factor (between 0 and 1) — Opacity of the color
value in the range [0,1] | R-element vector

Use antialiasing — Smoothing algorithm
off | on

Draw shapes in — Region to draw the shape
`Entire image` (default) | `Specify region of interest via port`

Image signal — Number of input ports for the image signal
`One multidimensional signal` (default) | `Separate color signals`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
