cwtft2

2-D continuous wavelet transform

collapse all in page

Syntax

cwtstruct = cwtft2(X)
cwtstruct = cwtft2(___,Name=Value)

Description

cwtstruct = cwtft2(X) returns the 2-D continuous wavelet transform (CWT) of X.

example

cwtstruct = cwtft2(___,Name=Value) specifies options using one or more name-value arguments in addition to the input argument in the previous syntax.

example

Examples

collapse all

Open Live Script

Load and display the star image.

img = imread("star.jpg");
image(img)

Figure contains an axes object. The axes object contains an object of type image.

Obtain the 2-D CWT of the star image using the default function values. Visualize the magnitudes of the coefficients at the finest scale.

cwtout = cwtft2(img);
sca = 1;
imagesc(abs(cwtout.cfs(:,:,1,1,sca)))

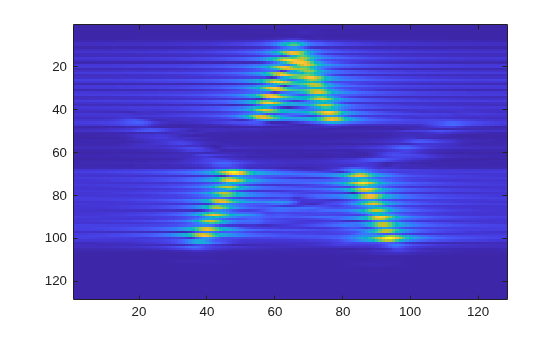

Figure contains an axes object. The axes object contains an object of type image.

Open Live Script

This example shows how an isotropic wavelet does not discern the orientation of features while an anisotropic wavelet does. In the example, you use the Marr isotropic wavelet and the directional (anisotropic) Cauchy wavelet.

Load and view the hexagon image.

img = imread("hexagon.jpg");
imagesc(img)

Figure contains an axes object. The axes object contains an object of type image.

Obtain the 2-D CWT of the image using both the Marr and Cauchy wavelets. Specify a scale equal to 1. Specify a vector of angles going from 0 to 15π/8 radians in π/8 increments.

cwtScales = 1;
cwtAngles = 0:pi/8:2*pi-pi/8;

cwtCauchy = cwtft2(img,wavelet="cauchy",scales=cwtScales, ...
    angles=cwtAngles);
cwtMarr = cwtft2(img,wavelet="marr",scales=cwtScales, ...
    angles=cwtAngles);

There are 16 angles. Visualize the scale-one 2-D CWT coefficient magnitudes at any two consecutive angles. Confirm that using the Marr isotropic wavelet does not discern the orientation of features, but the Cauchy wavelet does.

angz = {"0", "pi/8", "pi/4", "3pi/8", "pi/2", "5pi/8", "3pi/4", ...
    "7pi/8","pi", "9pi/8", "5pi/4", "11pi/8", "3pi/2", ...
    "13pi/8" "7pi/4", "15pi/8"};

indexAngle1 = 7;
indexAngle2 = 8;

tiledlayout(2,2)
for k=[indexAngle1 indexAngle2]
    nexttile
    imagesc(abs(cwtMarr.cfs(:,:,1,1,k)))
    title(["Marr Wavelet at " angz(k) "radians"])
    nexttile
    imagesc(abs(cwtCauchy.cfs(:,:,1,1,k)))
    title(["Cauchy Wavelet at " angz(k) "radians"])
end

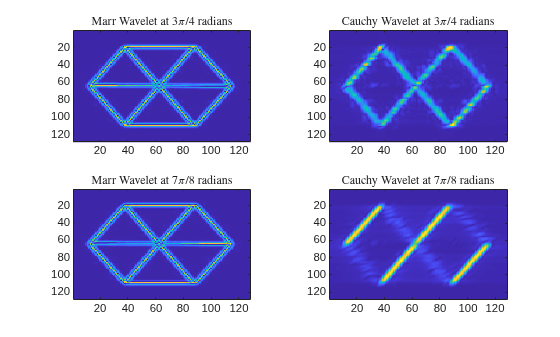

Figure contains 4 axes objects. Axes object 1 with title Marr Wavelet at 3pi/4 radians contains an object of type image. Axes object 2 with title Cauchy Wavelet at 3pi/4 radians contains an object of type image. Axes object 3 with title Marr Wavelet at 7pi/8 radians contains an object of type image. Axes object 4 with title Cauchy Wavelet at 7pi/8 radians contains an object of type image.

Visualize the 2-D CWT coefficient magnitudes obtained using the Marr isotropic wavelet at any two angles. Confirm the wavelet does not discern the orientation of features.

indexAngle1 = 2;
indexAngle2 = 7;

tiledlayout(1,2)
for k=[indexAngle1 indexAngle2]
    nexttile
    imagesc(abs(cwtMarr.cfs(:,:,1,1,k)))
    title(["Marr Wavelet at " angz(k) "radians"])
end

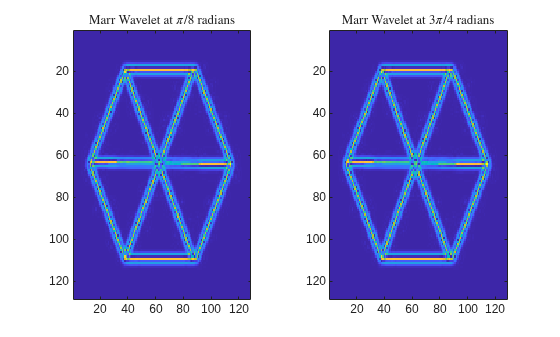

Figure contains 2 axes objects. Axes object 1 with title Marr Wavelet at pi/8 radians contains an object of type image. Axes object 2 with title Marr Wavelet at 3pi/4 radians contains an object of type image.

Input Arguments

collapse all

Input data, specified as a numeric array. X can be an M-by-N array representing an indexed image or an M-by-N-by-3 array representing a truecolor image.

Data Types: double | single | uint8 | uint16

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: wavelet="paul",scales=2.^(0:5) specifies the Paul wavelet and a vector of scales.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "wavelet","paul","scales",2.^(0:5) specifies the Paul wavelet and a vector of scales.

Angles in radians used in the 2-D CWT, specified as a scalar or a vector.

Example: angles=[0 pi/2 pi]

Normalization to use in the 2-D CWT, specified as one of these:

  • "L2" — The Fourier transform of the analyzing wavelet at a given scale is multiplied by the corresponding scale. "L2" is the default normalization.

  • "L1" — The Fourier transform of the analyzing wavelet is multiplied by 1 at all scales.

  • "L0" — The Fourier transform of the analyzing wavelet at a given scale is multiplied by the square of the corresponding scale.

Example: norm="L1"

Scales to use in the 2-D CWT, specified as a real-valued scalar or vector. Scales must be greater than or equal to 1.

Example: scales=[1 2 3 5 8]

Data Types: double | single

Analyzing wavelet, specified as a character vector, a string scalar, a structure, or a cell array. cwtftinfo2 provides a comprehensive list of supported wavelets and associated parameters.

If you specify wavelet as a structure, the structure must contain two fields:

  • name — Character vector or string scalar corresponding to a supported wavelet.

  • param — Cell array containing optional parameters, which depend on the wavelet. If you do not wish to specify optional parameters, use an empty cell array in the field.

If you specify wavelet as a cell array, wav, the cell array must contain two elements:

  • wav{1} — Character vector or string scalar corresponding to a supported wavelet.

  • wav{2} — Cell array with the parameters of the wavelet.

Example: wavelet={"morlet",{6,1,1}} specifies the Morlet wavelet as a cell array.

Example: wavelet=struct("name","paul","param",{{2}}) specifies the Paul wavelet as a structure array.

Output Arguments

collapse all

The 2-D CWT, returned as a structure with the following fields:

Analyzing wavelet and parameters, returned as a structure with the following fields:

  • wname — Wavelet name

  • param — Wavelet parameters

Normalization constants, returned as an M-by-N matrix, where M is the number of scales and N is the number of angles.

CWT coefficients, returned as an N-D array.

  • The row and column dimensions of the array equal the row and column dimensions of the input data.

  • The third page of the array is equal to 1 or 3, depending on whether the input data is a grayscale or truecolor image, respectively.

  • The fourth page of the array is equal to the number of scales.

  • The fifth page of the array is equal to the number of angles.

Scales for the 2-D CWT, returned as a row vector.

Angles for the 2-D CWT, returned as a row vector.

Mean of the input data, returned as a scalar.

Algorithms

The cwtft2 function uses a Fourier transform-based algorithm in which the 2-D Fourier transforms of the input data and analyzing wavelet are multiplied together and inverted.

Extended Capabilities

Version History

Introduced in R2013b
