Introduction to Custom OFDM on NI USRP Radio

Introduction

In this example, you start with a Simulink® model of a custom OFDM transceiver. Follow the step-by-step guide to generate a bitstream from the model in Simulink and deploy it on an NI USRP radio using a generated MATLAB® host interface script. The example enables you to view the total bits received, number of error bits, and the constellation diagram of the decoded data.

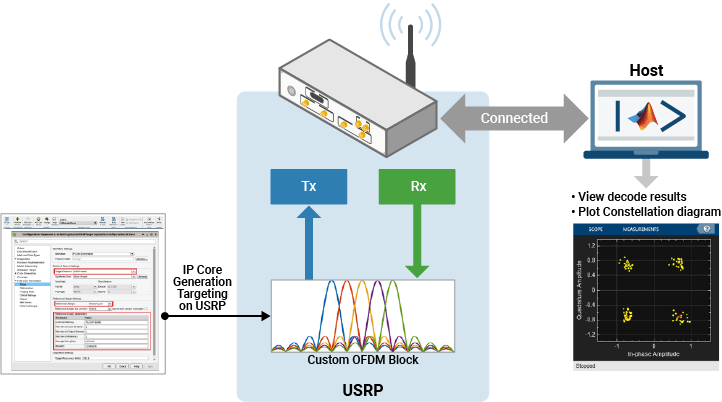

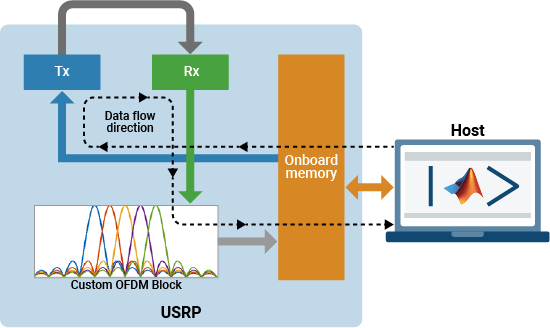

The diagram shows the workflow.

For more information about how to prototype and deploy software-defined radio (SDR) algorithms on the FPGA of an NI USRP radio, see Target NI USRP Radios Workflow.

Supported Hardware

For details about the USRP radio hardware you can use with this example, see Supported Radio Devices.

When you use this example with a USRP E320 radio, some verification modes are not supported due to hardware limitations.

Design Overview

The example implements a transmitter and receiver for a custom OFDM communication system. It uses the algorithm from the Introduction to Custom OFDM (Wireless HDL Toolbox) example and provides an additional wrapper that enables you to generate a bitstream suitable for deployment on the FPGA of an NI USRP radio.

The algorithm sends an OFDM signal to the radio for transmission. It then receives the transmitted signal and decodes the data, which it sends to the host as a constellation through the onboard PL DDR buffer.

On the host, you visualize the constellation and calculate the error vector magnitude (EVM) to verify the accuracy of the demodulated OFDM data.

Open Simulink Model

The Simulink model implements the custom OFDM transceiver using a hardware modeling style and uses blocks that support HDL code generation. It uses fixed-point arithmetic and includes control signals to control the flow of data through the model.

Open the model from MATLAB.

open_system('wtCustomOFDMSL');

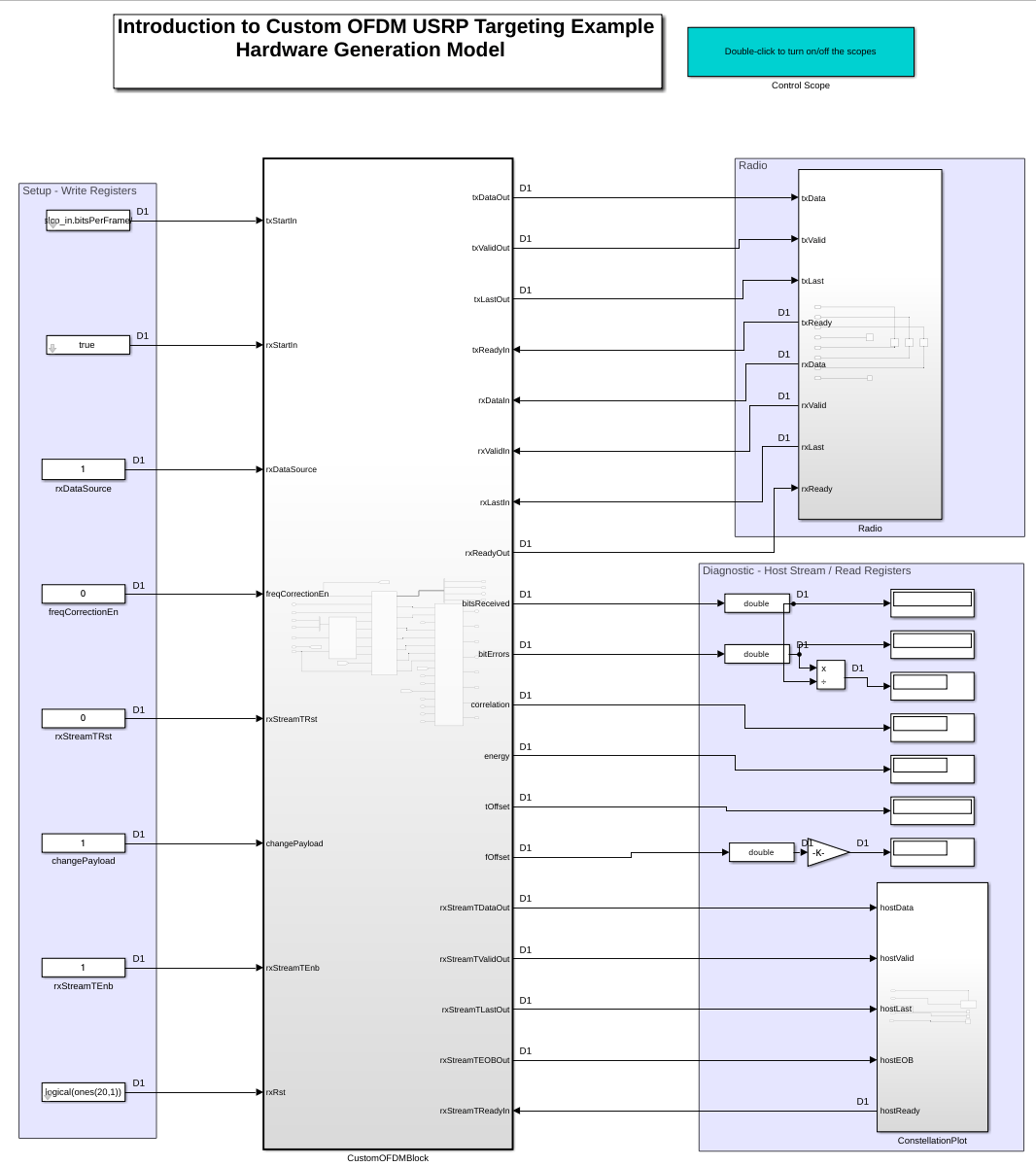

The model generates input data for and reads and plots output data from the CustomOFDMBlock subsystem.

Open the CustomOFDMBlock subsystem. This subsystem is the DUT that you generate HDL code for in this example. The CustomOFDMBlock subsystem contains three subsystems: OFDM Transceiver, Radio and Utilities, and Self-Check.

The OFDM Transceiver subsystem implements the algorithm from the Introduction to Custom OFDM (Wireless HDL Toolbox) example, which includes and an OFDM transmitter and receiver.

The Radio and Utilities subsystem contains the following subsystems and blocks:

Open the Radio Interface subsystem.

This subsystem contains a transmit path and a receive path.

The Self-Check block checks if the OFDM data is decoded correctly. You can check how many bits are received from the bitsReceived register and number of error bits from the bitErrors register.

The ConstellationStreamOut block in the Radio and Utilities subsystem uses the Data Packager block to format the constellation data into packets that conform with the simplified AXI-stream protocol. For more information, see Simplified AXI-Stream Protocol. The packetized data is sent to the host.

The Prebuffer and Data Packager blocks can be found in the targetingLib library.

which("targetingLib")

Set Up Environment and Radio

To target an NI USRP radio with Wireless Testbench™, you must first install and configure additional toolboxes, support packages, and third-party tools. For more information, see Installation for Targeting NI USRP Radios.

If you have not previously saved a radio setup configuration for your radio hardware, use the radioSetupWizard function to open the Radio Setup wizard and follow the steps. To see your previously saved radio setup configurations, use the radioConfigurations function.

Configure Model for IP Core Generation

First, use the hdlsetuptoolpath (HDL Coder) function to set up the Xilinx® tool chain. Specify the path to your Vivado® bin directory. For more information, see Set Up Third-Party Tools.

>> hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath','/opt/Xilinx/Vivado/2021.1/bin');

From the Apps tab in the Simulink Toolstrip, select HDLCoder. Open the HDL Code tab and follow these steps:

Configure HDL Code Generation Settings

Click Settings in the HDL Code tab to open the Configuration Parameters dialog box.

In the basic options of the HDL Code Generation panel, ensure that Language is set to Verilog. By default, HDL Coder generates the Verilog files in the hdlsrc folder. You can select an alternative location. If you make any changes, click Apply.

Configure HDL Code Generation Target

4. In HDL Code generation > Target > Objective Settings, set Target Frequency (MHz) to 61.44.

5. In HDL Code Generation > Optimization > Distributed Pipelining Settings, select Distributed pipelining.

6. Click Apply.

For more information, see Configure HDL Code Generation Settings.

Configure Target Interface

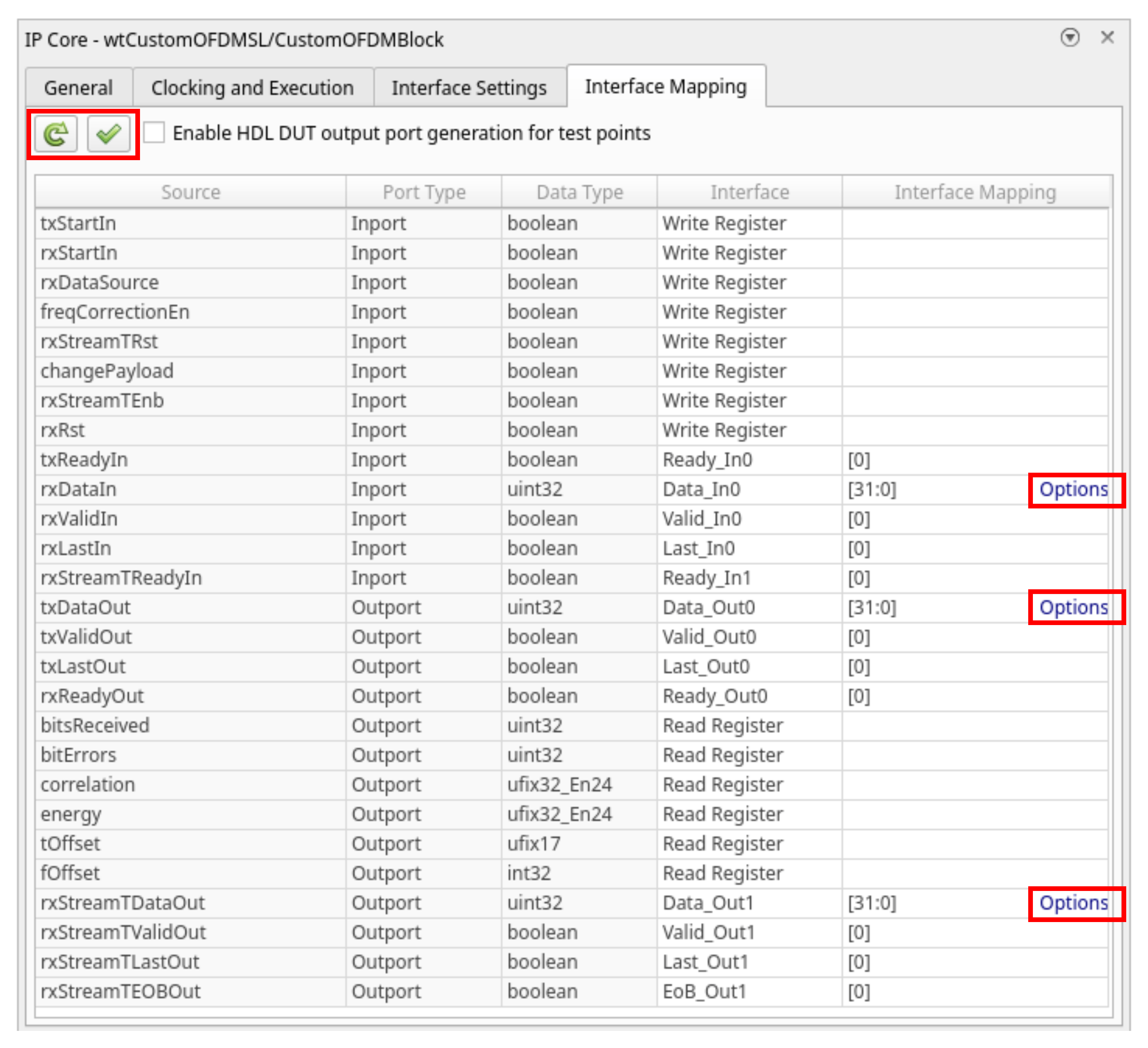

In the HDL Code tab, click Target Interface to open the IP Core editor. In the Interface Mapping tab, reload the port interface mapping options by clicking .

Each data input and output port has an options menu. For the rxDataIn options, set the source connection to Radio. The input samples to the DUT are received from the radio. Set the stream buffer size to 32768, which is the default setting. The buffer size must be a power of two to ensure optimal use of the FPGA RAM resources. The buffer size is specified in terms of the number of samples, with each sample having a size of 8 bytes.

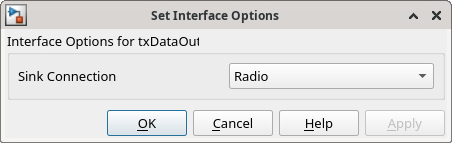

For txDataOut options, select Radio as the sink connection. The generated data will be sent to the radio for transmission through this port.

For the rxStreamTDataOut options, select the PL DDR buffer as the sink connection. The DUT streams samples first to the onboard radio memory buffer, then to MATLAB for post-processing.

Click to validate the interface mapping.

For more information, see Map Target Interfaces.

Generate and Load Bitstream

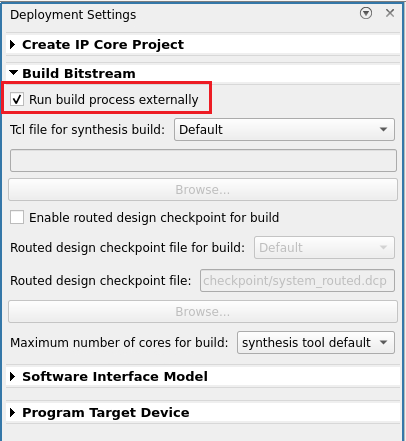

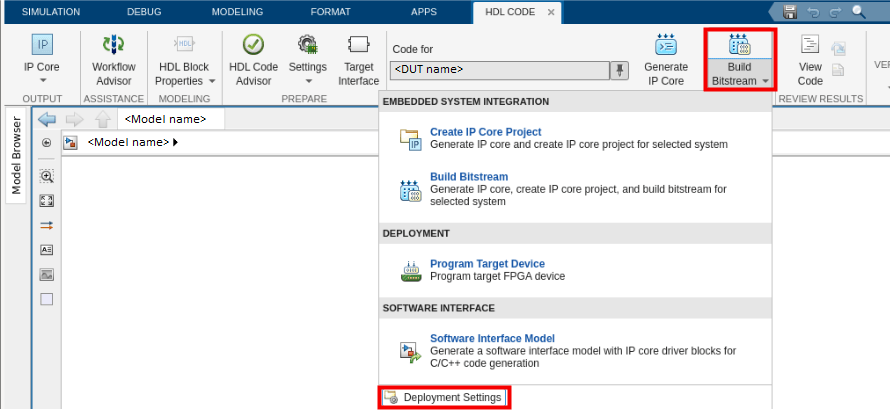

To generate a bitstream from the IP core, first open the deployment settings from the Build Bitstream dropdown and ensure that the Run build process externally option is selected. This setting is the default and it ensures that the bitstream build executes in an external shell, which allows you to continue using MATLAB while building the FPGA image.

Click Build Bitstream to create a Vivado IP core project and build the bitstream. After the basic project checks complete, the Diagnostic Viewer displays a Build Bitstream Successful message along with warning messages. However, you must wait until the external shell displays a successful build message before you move to the next step. Closing the external shell before this terminates the build. The bitstream for this project generates with the name x4xx.bit and is located in the build_X410_HG/build_X410_HG folder of the working directory after a successful bitstream build.

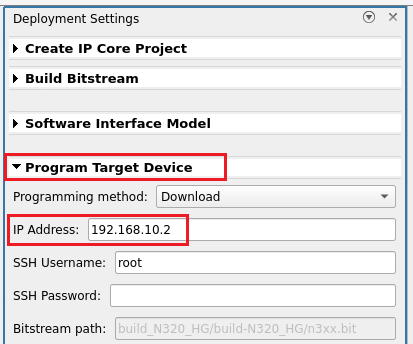

From Build Bitstream, open the deployment settings. In the Program Target Device settings, set the IP address. The default is 192.168.10.2. If you changed the IP address from the default when you set up your hardware using the Radio Setup wizard, set the IP address accordingly. To load the bitstream onto the device, click Program Target Device.

Alternatively, if you want to load the bitstream outside of this workflow, use the programFPGA function in the generated host interface script.

For more information, see Generate Bitstream and Program FPGA.

Generate and Modify Host Interface Setup Script

In the HDL Code tab, select Host Interface Script to generate MATLAB scripts that enable you to connect to and run your deployed design on your radio. These scripts are specific to the target interface mapping of your IP core. For more information, see Run and Verify Hardware Implementation.

The gs_wtCustomOFDMscriptSL_setup.m file configures the fpga object with the hardware interfaces and ports from your DUT algorithm. It also contains DUT port objects that have the port name, direction, data type, and interface mapping information. It maps these DUT ports to the corresponding interfaces. Before you run the host interface script, you must first modify the configuration of the DataOut port.

Increase the value of RX_STREAM0_FrameSize to 3e5.

%% Add RFNoC Stream Interface
RX_STREAM0_FrameSize = 3e5;

Verify Design

After you have generated the bitstream, the following live script enables you to connect to, configure, and control your radio device with the custom OFDM block deployed on the FPGA.

Set Up Radio

Call the radioConfigurations function. The function returns all available radio setup configurations that you saved using the Radio Setup wizard.

savedRadioConfigurations = radioConfigurations;

To update the dropdown menu with your saved radio setup configuration names, click Update. Then select the radio to use with this example.

savedRadioConfigurationNames = [string({savedRadioConfigurations.Name})];
radio = savedRadioConfigurationNames(1);

Create a usrp System object™. This System object enables you to configure the radio front end properties, stream samples from the radio front end to your DUT, and transmit and receive IQ data to and from the host. Create a structure, deviceConfig, to store your radio configuration name, usrp object, and fpga object. You pass this structure into a helper function to verify the design.

deviceConfig.hDevice = usrp(radio);

If you have not yet programmed your device with the bitstream, select the program bitstream option. Update the code with your bitstream and hand-off information files. You can find the file names in the host interface script, gs_wtCustomOFDMSL_interface. If your radio device is a USRP X310, you require only a bitstream file to program the FPGA.

programBitstream = false;
if(programBitstream)
     programFPGA(deviceConfig.hDevice,...
        "x410_hg.bit",...  % replace with your .bit file
        "x410_hg.dts");  % replace with your .dts file
end

Use the describeFPGA function to configure the DUT interfaces according to the hand-off information file.

describeFPGA(deviceConfig.hDevice,"wtCustomOFDMSL_wthandoffinfo.mat");

Set up the antennas, transmit and receive gain, center frequency, and sample rate. The design requires an input sample rate of 7.68 MS/s.

deviceConfig.hDevice.SampleRate = 7.68e6;
deviceConfig.hDevice.ReceiveCenterFrequency = 2.45e9;
deviceConfig.hDevice.TransmitRadioGain = 25;
deviceConfig.hDevice.ReceiveRadioGain = 25;

Select transmit and receive antennas from the dropdown menus.

captureAntennaSelection = hCaptureAntennas(radio);
deviceConfig.hDevice.DUTInputAntennas = captureAntennaSelection(2);
transmitAntennaSelection = hTransmitAntennas(radio);
deviceConfig.hDevice.DUTOutputAntennas = transmitAntennaSelection(2);

Create an fpga object to access the DUT on the FPGA of your radio device. Use the setup function script gs_wtCustomOFDMSL_setup to configure the fpga object with the hardware interfaces and ports from your DUT algorithm.

deviceConfig.hFPGA = fpga(deviceConfig.hDevice);
gs_wtCustomOFDMSL_setup(deviceConfig.hFPGA);

Deploy Transmitter and Receiver

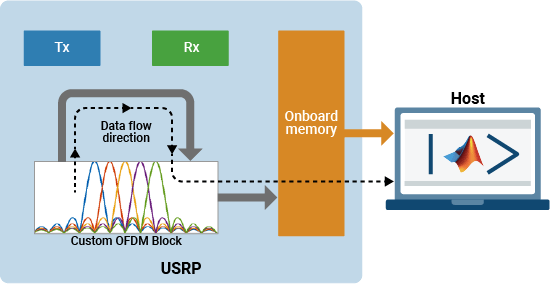

To verify both the transmitter and receiver running in real time on the FPGA, set the verification mode to Tx and Rx.

verificationMode = "Tx and Rx" ;

In this configuration, the DUT sends OFDM data to the radio for transmission, the radio receives the data and sends it back to the DUT, where the algorithm demodulates the data and sends it back to the host for post-processing.

Set the loopback mode to FPGA. This means that the data is not transmitted and receiver over the air from the radio antennas, avoiding noise from the analog to digital converter (ADC) and any other environmental noise.

deviceConfig.LoopbackMode = "FPGA";

Use the hApplyVerifyMode helper function to configure the control registers for this verification setup based on the verification mode you select in the verificationMode variable.

deviceConfig = hApplyVerifyMode(verificationMode,deviceConfig, radio);


Run Verification and Plot Constellation Diagram

Use the hVerifyCustomOFDM helper function to verify the results from hardware. This function does the following:

data = hVerifyCustomOFDM(verificationMode,deviceConfig);

Number of bits received: 8849870
Number of error bits: 0

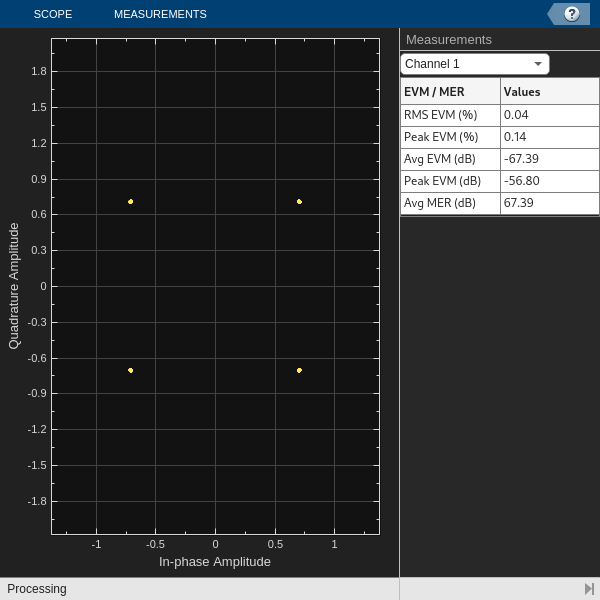

Plot the constellation diagram.

constDiagram = comm.ConstellationDiagram(ShowReferenceConstellation=false,EnableMeasurements=true);
constDiagram(data);

Alternate Verification Modes

Four verification modes enable you to verify different configurations of the hardware implementation.

To run these verification, use the hVerifyCustomOFDM helper function with the verification mode as the first input argument.

Deploy Transmitter and Post-Process in MATLAB

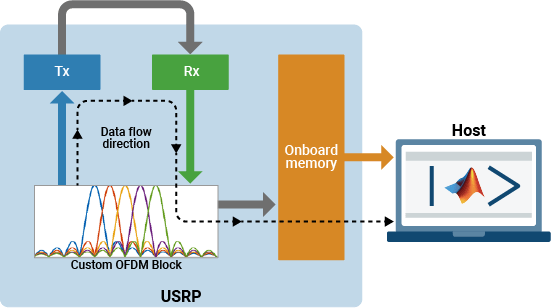

To verify the transmitter alone running in real-time on the FPGA, set the verification mode to Tx Only. In this configuration, the transmitted data is read directly from the receiver to MATLAB for post-processing.

This verification mode is not supported on USRP E320 radios.

Transmit Repeat and Deploy Receiver

To verify the receiver alone running in real-time on the FPGA, set the verification mode to Rx Only. In this configuration, the host transmits data continuously and the radio receives data to the DUT, where the algorithm demodulates the OFDM data and sends it to MATLAB for post-processing.

This verification mode is not supported on USRP E320 radios.

Deploy Transmitter and Receiver with Internal Loopback

In this mode, set the verificationMode value to Internal Loopback. In this configuration, the DUT transmitter output is connected directly back to the receiver input, where the algorithm demodulates the OFDM data and sends it to MATLAB for post-processing. The radio is not used.
