drawframe(1);
Write your drawframe function below
function drawframe(f)
H = ceil(f/4); % Decomposition parameter
M = 3; % Number of dimensions
I = M * eye(M);
W = zeros(1,M);
edgeW = W;
for i = 1 : H
edgeW = repmat(edgeW,M,1) + repelem(I,height(edgeW),1);
edgeW = unique(edgeW,'rows');
edgeW(all(edgeW,2),:) = [];
W = [W+1;edgeW];
end
W = W / (M*H);

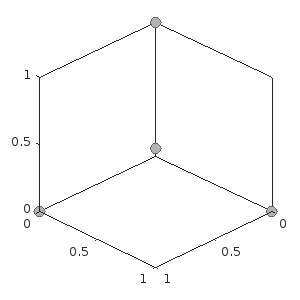

plot3(W(:,1),W(:,2),W(:,3),'o','MarkerSize',8, ...
'Markerfacecolor',[.7 .7 .7],'Markeredgecolor',[.4 .4 .4]);
view(135,30);
box on
%--------------------------------- Reference ----------------------------------
% T. Takagi, K. Takadama, and H. Sato, Incremental lattice design of weight
% vector set, Proceedings of the Genetic and Evolutionary Computation
% Conference Companion, 2020, 1486-1494.
%------------------------------------------------------------------------------
end
