Kinect Matlab

版本 (6.2 MB) 作者: Dirk-Jan Kroon
Microsoft Kinect, OpenNI wrapper, Skeleton, Depth

21.8K 次下载

更新时间 2013/6/6


This zip-file contains c++ wrapper functions for the Microsoft Kinect, OpenNI 1.* and OpenNI 2.* libary.
This code is compatible with Matlab 32bit and 64bit, Windows, MacOs and Linux.

Note!, OpenNI 2.* only depth/video stream support.

To compile the code to mex-files use the Microsoft Visual Studio (Express) or MacOS/Linux Gcc (x64/x86) C++ compiler.

To use OpenNI version 1.* install:
- OpenNI
- SensorKinect093 v5.1.2.1

To use OpenNI version 2.* install:
- OpenNI 2.2.0
- NITE 2.2.0
- Microsoft KinectSDK v1.7

Start Matlab, go to OpenNi1 or OpenNI2 and execute compile_cpp_files. Now the mex-files are ready to use.

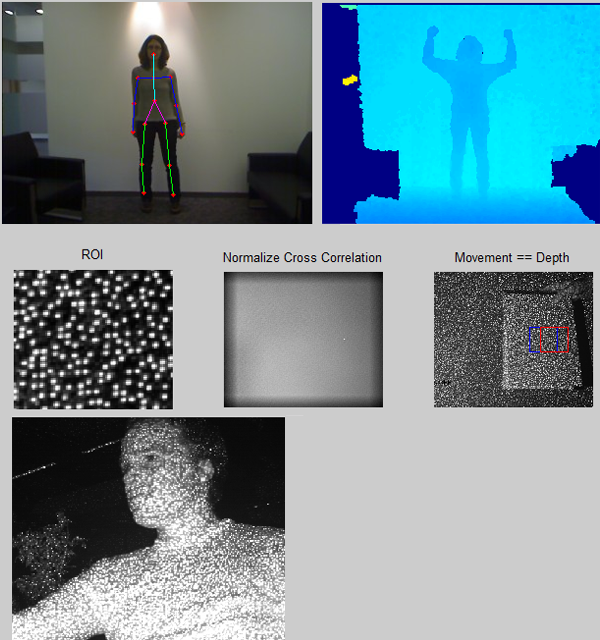

- Example : Will load an recorded Kinect file, and show the depth and image movie.

- ExampleIR : Will connect to your Kinect Hardware, and show a high-res IR image.

- ExampleRS : Will show the difference between the IR reference and measurement, Depth of a ROI is equal to movement of the ROI between reference and measurement. This depth can be calculated using a horizontal "tilt and scaling" invariant normalized cross correlation (included version is not invariant).

- ExampleSK : Will show Skeleton tracking on recorded Kinect movie.

- ExampleRW: Will show a depth surface overlay-ed with the photo-camera stream in real-world coordinates (mm)

- ExampleCP : Will capture the Kinect streams to a file


Dirk-Jan Kroon (2022). Kinect Matlab (, MATLAB Central File Exchange. 检索来源 .
