Motor Control with TI LaunchPad

版本 1.5.0.0 (90.1 KB) 作者: Antonin
Permanent Magnet Synchronous Motor Field-Oriented Control with TI LaunchPad and BOOSTXL-DRV8301
10.1K 次下载
更新时间 2023/9/13

查看许可证

This example shows how to use a closed-loop Field-Oriented Control (FOC) algorithm to regulate the speed and torque of a three-phase Permanent Magnet Synchronous Motor (PMSM). This example uses C28x peripheral blocks and C28x DMC library blocks from the Embedded Coder Support Package for Texas Instruments C2000 Processors.
For newer versions and other hardware setup, check the shipping version of this example on this page: https://www.mathworks.com/help/ti-c2000/ug/sensorless-foc-example.html

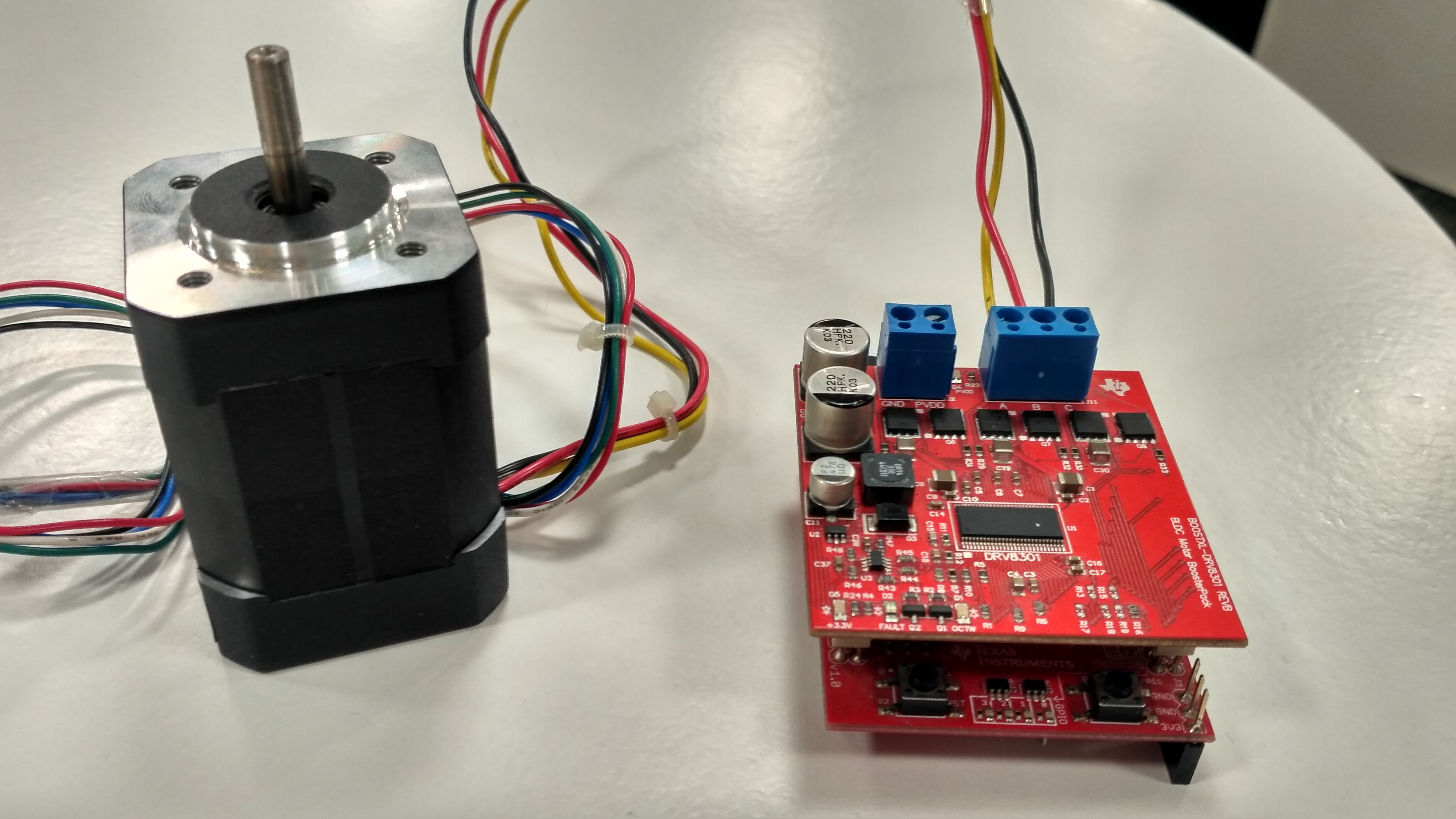

Required Hardware:
- TI F28027 LaunchPad
- BOOSTXL-DRV8301 with a 3-phase brushless motor and a 12-24V power supply.
More information on how the models have been created and how to use them in the following video:

引用格式

Antonin (2024). Motor Control with TI LaunchPad (https://www.mathworks.com/matlabcentral/fileexchange/45124-motor-control-with-ti-launchpad), MATLAB Central File Exchange. 检索来源 .

MATLAB 版本兼容性
创建方式 R2013b
与 R2013b 及更高版本兼容
平台兼容性
Windows macOS Linux
社区

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Launchpad_Motor_Control

版本 已发布 发行说明
1.5.0.0

Updated link to the newer version of the example in the description

1.4.0.0

Fixed a factor of 2 in the speed calculation

1.3.0.0

Added a picture to this post
Added video link

1.2.0.0

Updated models
