addCursor

Create a dipole antenna and calculate its directivity at a frequency of 270 MHz.

d = dipole;
D = pattern(d,270e6,0,0:1:360);

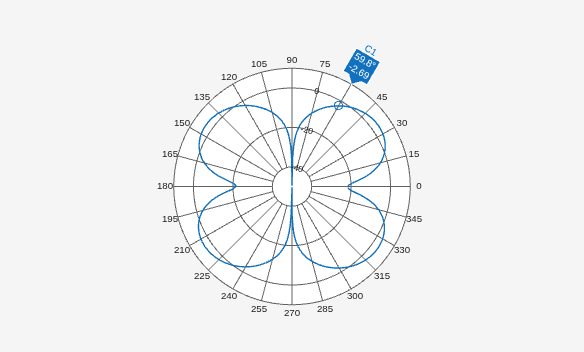

Add a cursor to the polar plot at approximately 60 degrees. To place the cursor at 60 degrees, move it there by placing the pointer on the cursor and dragging.

p = polarpattern(D);
addCursor(p,60);

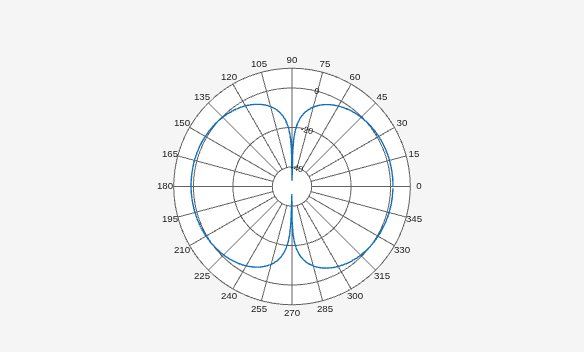

Create a top-hat monopole and plot its directivity at a frequency of 75 MHz.

m = monopoleTopHat;
M = pattern(m,75e6,0,0:1:360);
P = polarpattern(M);

Create a dipole antenna and calculate its directivity at a frequency of 270 MHz.

d = dipole;
D = pattern(d,270e6,0,0:1:360);

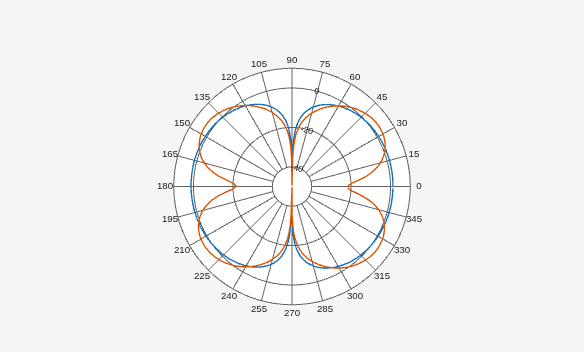

Add the directivity pattern of the dipole to the polar plot of the top-hat monopole.

add(P,D);

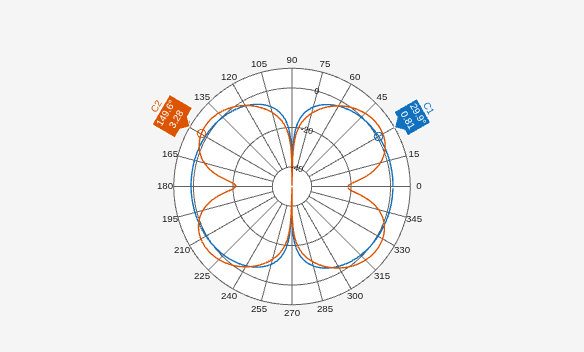

Add a cursor at approximately 30 degrees to the top-hat monopole polar pattern (data set 1) and at approximately 150 degrees to the dipole polar pattern (data set 2).

addCursor(P,[30 150],[1 2]);
