Urban Link and Coverage Analysis using Ray Tracing

This example shows how to use ray tracing to analyze communication links and coverage areas in an urban environment. Within the example:

  • Import and visualize 3-D buildings data into Site Viewer

  • Define a transmitter site and ray tracing propagation model corresponding to a 5G urban scenario

  • Analyze a link in non-line-of-sight conditions

  • Visualize coverage using shooting and bouncing ray (SBR) ray tracing method with different number of reflections and launched rays

  • Optimize a non-line-of-sight link using beam steering and Phased Array System Toolbox™

Import and Visualize Buildings Data

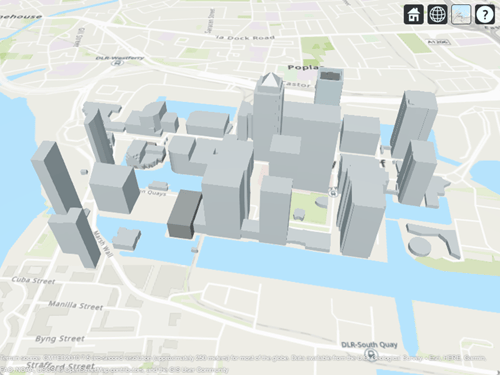

Import an OpenStreetMap (.osm) file corresponding to Canary Wharf in London, UK. The file was downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/. The buildings information contained within the OpenStreetMap file is imported and visualized in Site Viewer.

viewer = siteviewer("Buildings","canarywharf.osm","Basemap","topographic");

Define Transmitter Site

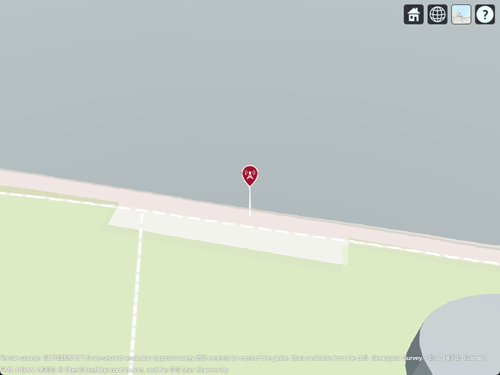

Define a transmitter site to model a small cell scenario in a dense urban environment. The transmitter site represents a base station that is placed on a pole servicing the surrounding area which includes a neighboring park. The transmitter uses the default isotropic antenna, and operates at a carrier frequency of 28 GHz with a power level of 5 W.

tx = txsite("Name","Small cell transmitter", ...
    "Latitude",51.50375, ...
    "Longitude",-0.01843, ...
    "AntennaHeight",10, ...
    "TransmitterPower",5, ...
    "TransmitterFrequency",28e9);
show(tx)

View Coverage Map for Line-of-Sight Propagation

Create a ray tracing propagation model using the shooting and bouncing ray (SBR) method. The SBR propagation model uses ray tracing analysis to compute propagation paths and their corresponding path losses. Path loss is calculated from free-space loss, reflection loss due to material, and antenna polarization loss.

Set the maximum number of reflections to 0 in order to limit the initial analysis to line-of-sight propagation paths only. Set the building and terrain material types to model perfect reflection.

rtpm = propagationModel("raytracing", ...
    "Method","sbr", ...
    "MaxNumReflections",0, ...
    "BuildingsMaterial","perfect-reflector", ...
    "TerrainMaterial","perfect-reflector");

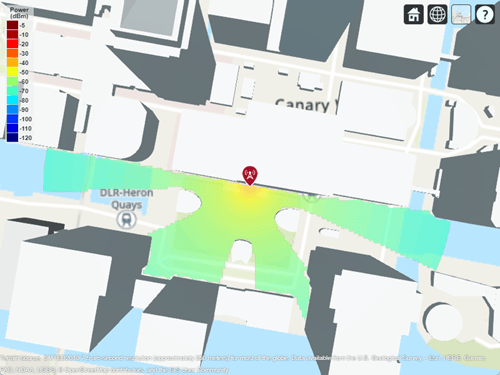

View the corresponding coverage map for a maximum range of 250 meters from the base station. The coverage map shows received power for a receiver at each ground location but is not computed for building tops or sides.

coverage(tx,rtpm, ...
    "SignalStrengths",-120:-5, ...
    "MaxRange",250, ...
    "Resolution",3, ...
    "Transparency",0.6)

Define Receiver Site in Non-Line-of-Sight Location

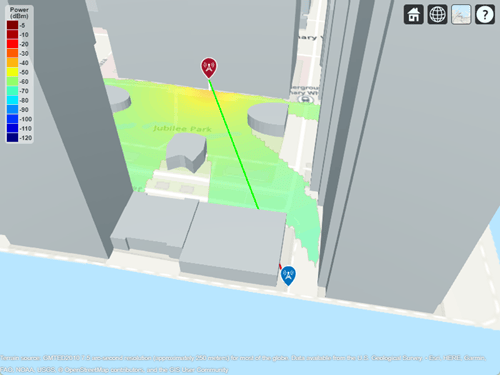

The coverage map for line-of-sight propagation shows shadowing due to obstructions. Define a receiver site to model a mobile receiver in an obstructed location. Plot the line-of-sight path to show the obstructed path from the transmitter to the receiver.

rx = rxsite("Name","Small cell receiver", ...
    "Latitude",51.50216, ...
    "Longitude",-0.01769, ...
    "AntennaHeight",1);

los(tx,rx)

Plot Propagation Path using Ray Tracing

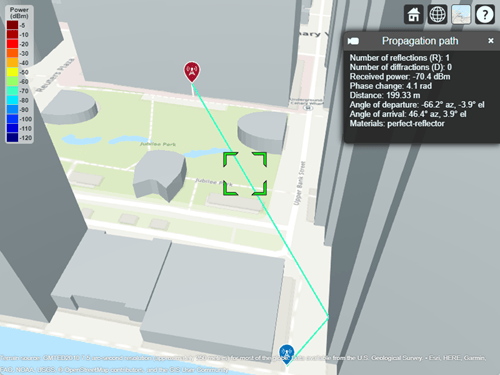

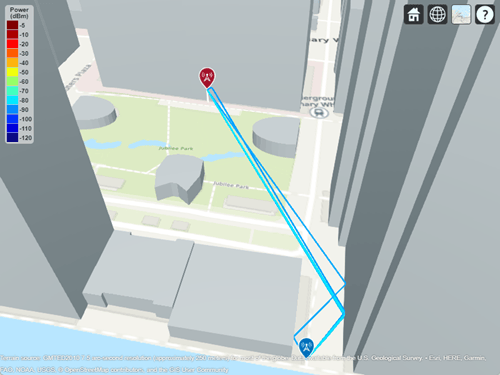

Adjust the ray tracing propagation model to include single-reflection paths, and plot the rays. The result shows signal propagation along a single-reflection path. The path does not end exactly at the receiver site because the SBR ray tracing method computes approximate paths. Select the plotted path to view the corresponding propagation characteristics, which include received power, phase change, distance, and angles of departure and arrival.

rtpm.MaxNumReflections = 1;
clearMap(viewer)
raytrace(tx,rx,rtpm)

Analyze Signal Strength and Effect of Materials

Compute the received power using the propagation model which was previously configured to model perfect reflection. Then assign a more realistic material type and re-compute the received power. Update the rays shown in Site Viewer. The use of realistic material reflection results in about 8 dB of power loss compared to perfect reflection.

ss = sigstrength(rx,tx,rtpm);
disp("Received power using perfect reflection: " + ss + " dBm")
Received power using perfect reflection: -70.3924 dBm
rtpm.BuildingsMaterial = "concrete";
rtpm.TerrainMaterial = "concrete";

raytrace(tx,rx,rtpm)
ss = sigstrength(rx,tx,rtpm);
disp("Received power using concrete materials: " + ss + " dBm")
Received power using concrete materials: -78.9591 dBm

Include Weather Loss

Adding weather impairments to the propagation model and re-computing the received power results in another 1.5 dB of loss.

rtPlusWeather = rtpm + propagationModel("gas") + propagationModel("rain");
raytrace(tx,rx,rtPlusWeather)

ss = sigstrength(rx,tx,rtPlusWeather);
disp("Received power including weather loss: " + ss + " dBm")
Received power including weather loss: -80.4766 dBm

View Coverage Map with Single-Reflection Paths

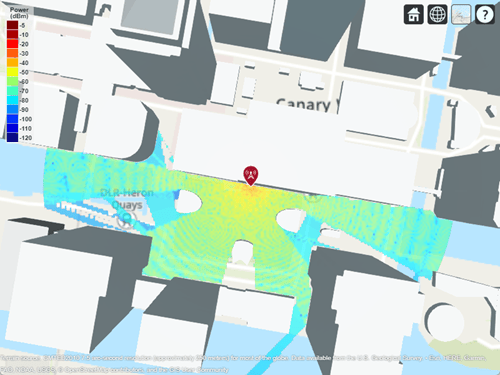

Use the configured propagation model and re-generate a coverage map including single-reflection paths and weather impairments. Code to re-generate the coverage results is included but commented out. The results, producible by running the code, are loaded from file to save several minutes of computation time in the example presentation. The resultant coverage map shows received power in the area around the non-line-of-site receiver analyzed above.

clearMap(viewer)

% Load coverage results and plot. Coverage results were generated using
% commented coverage call below, which takes a couple of minutes to complete.
show(tx)

coverageResults = load("coverageResults.mat");
contour(coverageResults.propDataSingleRef, ...
    "Type","power", ...
    "Transparency",0.6)

% coverage(tx,rtPlusWeather, ...
%     "SignalStrengths",-120:-5, ...
%     "MaxRange", 250, ...
%     "Resolution",2, ...
%     "Transparency",0.6);

Plot Propagation Paths including Two Reflections

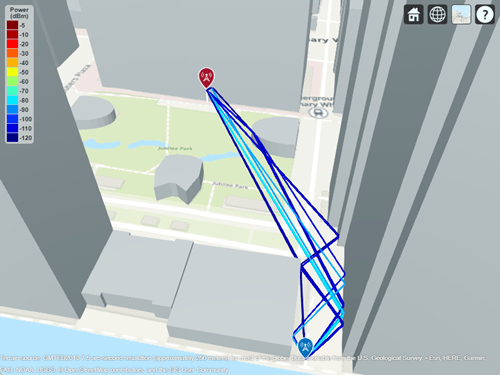

Expand the point-to-point analysis to include two-reflection paths and choose a smaller angular separation between launched rays for the SBR method. The visualization shows two clusters of propagation paths and the total received power increases by approximately 3 dB compared to the single-reflection paths.

rtPlusWeather.PropagationModels(1).MaxNumReflections = 2;
rtPlusWeather.PropagationModels(1).AngularSeparation = "low";

ss = sigstrength(rx, tx, rtPlusWeather);
disp("Received power with two-reflection paths: " + ss + " dBm")
Received power with two-reflection paths: -77.1445 dBm
clearMap(viewer)
raytrace(tx,rx,rtPlusWeather)

View Coverage Map with Two-Reflection Paths

Visualize a pre-computed coverage map that includes two-reflection paths and weather impairments as defined by the combined propagation model above. The resultant coverage map shows received power in more area than the coverage map with single-reflection paths above. Notice that some regions remain where no signal appears to reach.

clearMap(viewer)

% Use pre-loaded coverage results to plot. Coverage results were generated
% using commented coverage call below,  which may take half hour or so to
% complete depending on the computer hardware.
show(tx)

contour(coverageResults.propDataDoubleRef, ...
    "Type","power", ...
    "Transparency",0.6)

% coverage(tx,rtPlusWeather, ...
%     "SignalStrengths",-120:-5, ...
%     "MaxRange", 250, ...
%     "Resolution",2, ...
%     "Transparency",0.6);

View Coverage Map with Four-Reflection Paths

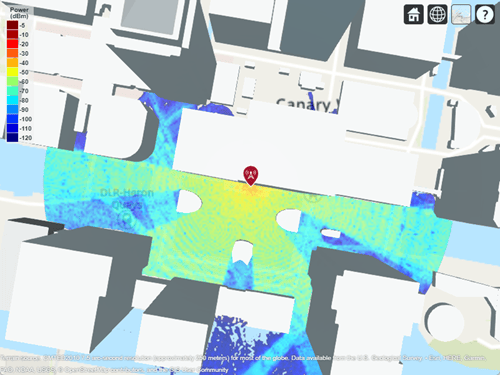

Account for more propagation paths and generate a more accurate coverage map by increasing the maximum number of reflections for the ray tracing analysis to 4. Visualize a pre-computed coverage map again which shows nearly full coverage for the area around the transmitter site.

rtPlusWeather.PropagationModels(1).MaxNumReflections = 4;

clearMap(viewer)

% Use pre-loaded coverage results to plot. Coverage results were generated using
% commented coverage call below, which may take one hour or so to
% complete depending on the computer hardware.
show(tx)

contour(coverageResults.propDataFourRef, ...
    "Type","power", ...
    "Transparency",0.6)

% coverage(tx,rtPlusWeather, ...
%     "SignalStrengths",-120:-5, ...
%     "MaxRange", 250, ...
%     "Resolution",2, ...
%     "Transparency",0.6);

Use Beam Steering to Enhance Received Power

Many modern communications systems use techniques to steer the transmitter antenna to achieve optimal link quality. This section uses Phased Array System Toolbox™ to optimally steer a beam to maximize received power for a non-line-of-sight link.

Define a custom antenna from Report ITU-R M.2412 [1] for evaluating 5G radio technologies. Create an 8-by-8 uniform rectangular array from the element pattern defined in Section 8.5 of the report, point it south, and view the radiation pattern.

tx.Antenna = helperM2412PhasedArray(tx.TransmitterFrequency);
tx.AntennaAngle = -90;

clearMap(viewer)
show(rx)
pattern(tx,"Transparency",0.6)
hide(tx)

Call raytrace with an output to access the rays that were computed. The returned comm.Ray objects include both the geometric and propagation-related characteristics of each ray.

rtPlusWeather.PropagationModels(1).MaxNumReflections = 1;
ray = raytrace(tx,rx,rtPlusWeather);
disp(ray{1})
  Ray with properties:

      PathSpecification: 'Locations'
       CoordinateSystem: 'Geographic'
    TransmitterLocation: [3×1 double]
       ReceiverLocation: [3×1 double]
            LineOfSight: 0
    ReflectionLocations: [3×1 double]
              Frequency: 2.8000e+10
         PathLossSource: 'Custom'
               PathLoss: 117.4546
             PhaseShift: 3.8184

   Read-only properties:
       PropagationDelay: 6.6489e-07
    PropagationDistance: 199.3293
       AngleOfDeparture: [2×1 double]
         AngleOfArrival: [2×1 double]
         NumReflections: 1

Get the angle-of-departure for the single-reflection path and apply this angle to steer the antenna in the optimal direction to achieve higher received power. The angle-of-departure azimuth is offset by the physical antenna angle azimuth to convert it to the steering vector azimuth defined in the local coordinate system of the phased array antenna.

aod = ray{1}.AngleOfDeparture;
steeringaz = wrapTo180(aod(1)-tx.AntennaAngle(1));
steeringVector = phased.SteeringVector("SensorArray",tx.Antenna);
sv = steeringVector(tx.TransmitterFrequency,[steeringaz;aod(2)]);
tx.Antenna.Taper = conj(sv);

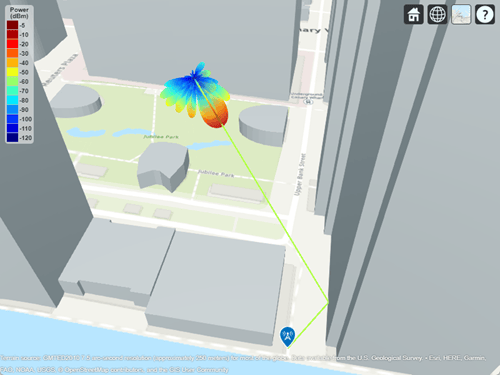

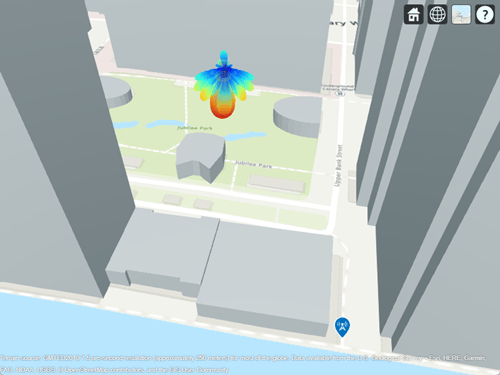

Plot the radiation pattern to show the antenna energy directed along the propagation path. The new received power increases by about 20 dB. The increased received power corresponds to the peak gain of the antenna.

pattern(tx,"Transparency",0.6)
raytrace(tx,rx,rtPlusWeather);
hide(tx)

ss = sigstrength(rx, tx, rtPlusWeather);
disp("Received power with beam steering: " + ss + " dBm")
Received power with beam steering: -57.5126 dBm

Conclusion

This example used ray tracing for link and coverage analysis in an urban environment. The analysis shows:

  • How to use ray tracing analysis to predict signal strength for non-line-of-sight links where reflected propagation paths exist

  • Analysis with realistic materials has a significant impact on the calculated path loss and received power

  • Analysis with higher number of reflections results in increased computation time but reveals additional areas of signal propagation

  • Usage of a directional antenna with beam steering significantly increases the received power for receivers, even if they are in non-line-of-sight locations

This example analyzed received power and path loss for links and coverage. To see how to use ray tracing to configure a channel model for link-level simulation, see the Indoor MIMO-OFDM Communication Link using Ray Tracing (Communications Toolbox) example.

References

[1] Report ITU-R M.2412, "Guidelines for evaluation of radio interface technologies for IMT-2020", 2017. https://www.itu.int/pub/R-REP-M.2412
