getCosts

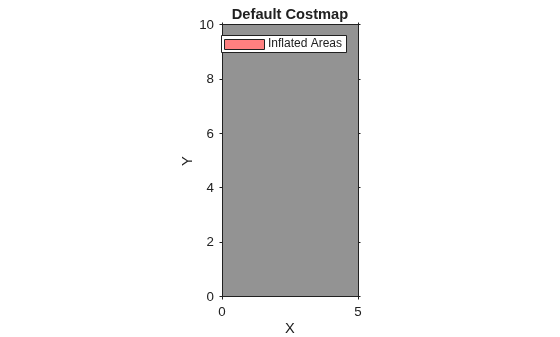

Create a 5-by-10 meter vehicle costmap. Cells have side length 1, in the world units of meters. Set the inflation radius to 1. Plot the costmap, and get the default cost matrix.

costmap = vehicleCostmap(5,10);
costmap.CollisionChecker.InflationRadius = 1;
plot(costmap)
title('Default Costmap')

getCosts(costmap)

ans = 10×5

    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250
    0.4250    0.4250    0.4250    0.4250    0.4250

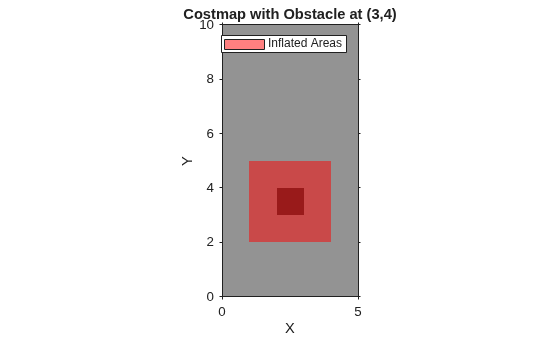

Mark an obstacle at the (x,y) coordinate (3,4) by increasing the cost of that cell.

setCosts(costmap,[3,4],0.8);
plot(costmap)
title('Costmap with Obstacle at (3,4)')

Get the cost of three cells: the cell with the obstacle, a cell adjacent to the obstacle, and a cell outside the inflation radius of the obstacle.

costVal = getCosts(costmap,[3 4;2 4;4 7])

costVal = 3×1

    0.8000
    0.4250
    0.4250

Although the plot of the costmap displays the cell with the obstacle and its adjacent cells in shades of red, only the cell with the obstacle has a higher cost value of 0.8. The other cells still have the default cost value of 0.425.
