designMultistageDecimator

Initialization

Choose a decimation factor of 48, input sample rate of $30.72\times 48\mathrm{MHz}$, one-sided bandwidth of 10 MHz, and a stopband attenuation of 90 dB.

M = 48;
Fin = 30.72e6*M;
Astop = 90;
BW = 1e7;

Using the designMultirateFIR Function

Designing the decimation filter using the designMultirateFIR function yields a single-stage design. Set the half-polyphase length to a finite integer, in this case 8.

HalfPolyLength = 8;
b = designMultirateFIR(1,M,HalfPolyLength,Astop);
d = dsp.FIRDecimator(M,b)

d =
  dsp.FIRDecimator with properties:

   Main
    DecimationFactor: 48
     NumeratorSource: 'Property'
           Numerator: [0 -5.7242e-08 -1.2617e-07 -2.0736e-07 -3.0130e-07 -4.0841e-07 -5.2899e-07 -6.6324e-07 -8.1124e-07 -9.7294e-07 -1.1482e-06 -1.3365e-06 -1.5376e-06 -1.7507e-06 -1.9749e-06 -2.2093e-06 -2.4527e-06 -2.7036e-06 ... ] (1x768 double)
           Structure: 'Direct form'

  Use get to show all properties

Compute the cost of implementing the decimator. The decimation filter requires 753 coefficients and 720 states. The number of multiplications per input sample and additions per input sample are 15.6875 and 15.6667, respectively.

cost(d)

ans = struct with fields:
                  NumCoefficients: 753
                        NumStates: 720
    MultiplicationsPerInputSample: 15.6875
          AdditionsPerInputSample: 15.6667

Using the designMultistageDecimator Function

Design a multistage decimator with the same filter specifications as the single-stage design. Compute the transition width using the following relationship:

Fc = Fin/(2*M);
TW = 2*(Fc-BW);

By default, the number of stages given by the NumStages argument is set to 'Auto', yielding an optimal design that tries to minimize the number of multiplications per input sample.

c = designMultistageDecimator(M,Fin,TW,Astop)

c =
  dsp.FilterCascade with properties:

         Stage1: [1x1 dsp.FIRDecimator]
         Stage2: [1x1 dsp.FIRDecimator]
         Stage3: [1x1 dsp.FIRDecimator]
         Stage4: [1x1 dsp.FIRDecimator]
    CloneStages: false

Calling the info function on c shows that the filter is implemented as a cascade of four dsp.FIRDecimator objects, with decimation factors of 3, 2, 2, and 4, respectively.

Compute the cost of implementing the decimator.

cost(c)

ans = struct with fields:
                  NumCoefficients: 78
                        NumStates: 99
    MultiplicationsPerInputSample: 7.2708
          AdditionsPerInputSample: 6.6667

The NumCoefficients and the MultiplicationsPerInputSample parameters are lower for the four-stage filter designed by the designMultistageDecimator function, making it more efficient.

Compare the magnitude response of both the designs.

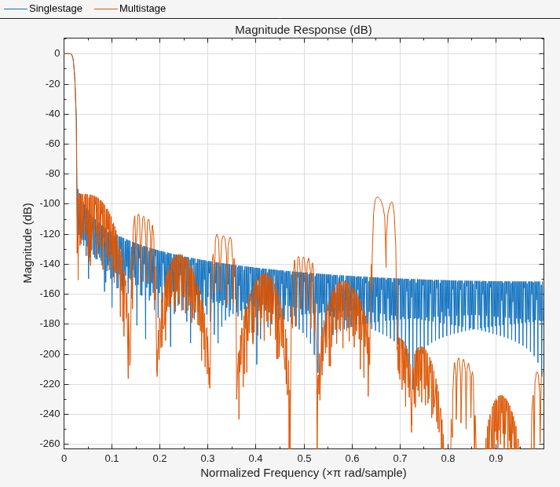

filterAnalyzer(b,c,FilterNames=["Singlestage","Multistage"]);

The magnitude response shows that the transition width of both the filters is the same, making the filters comparable. The cost function shows that implementing the multistage design is more efficient compared to implementing the single-stage design.

Using the 'design' Option in the designMultistageDecimator Function

The filter can be made even more efficient by setting the 'CostMethod' argument of the designMultistageDecimator function to 'design'. By default, this argument is set to 'estimate'.

In the 'design' mode, the function designs each stage and computes the filter order. This yields an optimal design compared to the 'estimate' mode, where the function estimates the filter order for each stage and designs the filter based on the estimate.

Note that the 'design' option can take much longer compared to the 'estimate' option.

cOptimal = designMultistageDecimator(M,Fin,TW,Astop,'CostMethod','design')

cOptimal =
  dsp.FilterCascade with properties:

         Stage1: [1x1 dsp.FIRDecimator]
         Stage2: [1x1 dsp.FIRDecimator]
         Stage3: [1x1 dsp.FIRDecimator]
         Stage4: [1x1 dsp.FIRDecimator]
    CloneStages: false

cost(cOptimal)

ans = struct with fields:
                  NumCoefficients: 70
                        NumStates: 93
    MultiplicationsPerInputSample: 7
          AdditionsPerInputSample: 6.5417

Initialization

Choose a decimation factor of 24, input sample rate of 6 kHz, stopband attenuation of 90 dB, and a transition width of $0.03\times \frac{6000}{2}$.

M = 24;
Fs = 6000;
Astop = 90;
TW = 0.03*Fs/2;

Design the Filter

Design the two filters using the designMultistageDecimator function.

cAuto = designMultistageDecimator(M,Fs,TW,Astop,NumStages="auto")

cAuto =
  dsp.FilterCascade with properties:

         Stage1: [1x1 dsp.FIRDecimator]
         Stage2: [1x1 dsp.FIRDecimator]
         Stage3: [1x1 dsp.FIRDecimator]
    CloneStages: false

cTwo = designMultistageDecimator(M,Fs,TW,Astop,NumStages=2)

cTwo =
  dsp.FilterCascade with properties:

         Stage1: [1x1 dsp.FIRDecimator]
         Stage2: [1x1 dsp.FIRDecimator]
    CloneStages: false

View the filter information using the info function. The 'auto' configuration designs a cascade of three FIR decimators with decimation factors 2, 3, and 4, respectively. The two-stage configuration designs a cascade of two FIR decimators with decimation factors 4 and 6, respectively.

Compare the Cost

Compare the cost of implementing the two designs using the cost function.

cost(cAuto)

ans = struct with fields:
                  NumCoefficients: 73
                        NumStates: 94
    MultiplicationsPerInputSample: 8.6250
          AdditionsPerInputSample: 7.9167

cost(cTwo)

ans = struct with fields:
                  NumCoefficients: 100
                        NumStates: 118
    MultiplicationsPerInputSample: 8.9583
          AdditionsPerInputSample: 8.6667

The 'auto' configuration decimation filter yields a three-stage design that out-performs the two-stage design on all cost metrics.

Compare the Magnitude Response

Comparing the magnitude response of the two filters, both the filters have the same transition-band behavior and follow the design specifications.

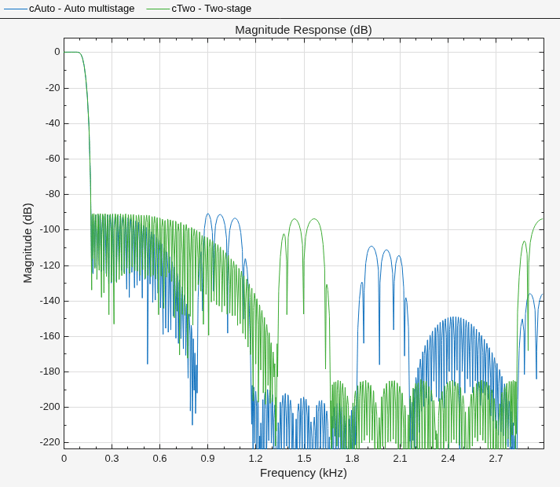

hfvt = filterAnalyzer(cAuto,cTwo,Analysis="magnitude");
setLegendStrings(hfvt,["Auto multistage","Two-stage"])

However, to understand where the computational savings are coming from in the three-stage design, look at the magnitude response of the three stages individually.

autoSt1 = cAuto.Stage1;
autoSt2 = cAuto.Stage2;
autoSt3 = cAuto.Stage3;

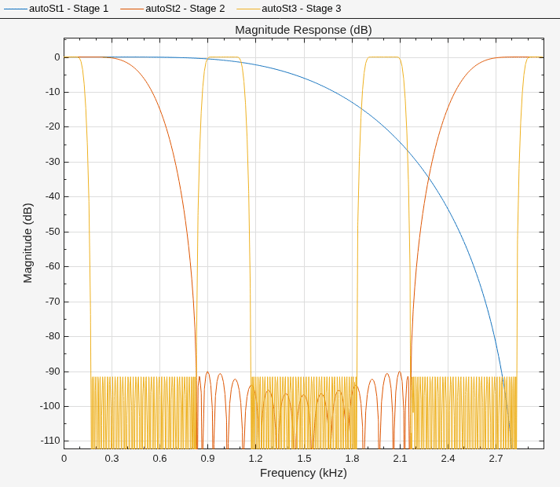

hfvt = filterAnalyzer(autoSt1, autoSt2, autoSt3,Analysis="magnitude");
setLegendStrings(hfvt,["Stage 1","Stage 2","Stage 3"])

The third stage provides the narrow transition width required for the overall design (0.03$\times$Fs/2). However, the third stage operates at 1.5 kHz and has spectral replicas centered at that frequency and its harmonics.

The first stage removes such replicas. This first and second stages operate at a faster rate but can afford a wide transition width. The result is a decimate-by-2 first-stage filter with only 7 nonzero coefficients and a decimate-by-3 second-stage filter with only 19 nonzero coefficients. The third stage requires 47 coefficients. Overall, there are 73 nonzero coefficients for the three-stage design and 100 nonzero coefficients for the two-stage design.
