dsp.IFFT

Inverse discrete Fourier transform (IDFT)

Description

The dsp.IFFT System object™ computes the inverse discrete Fourier transform (IDFT) of the input. The object uses one or more of the following fast Fourier transform (FFT) algorithms depending on the complexity of the input and whether the output is in linear or bit-reversed order:

Double-signal algorithm
Half-length algorithm
Radix-2 decimation-in-time (DIT) algorithm
Radix-2 decimation-in-frequency (DIF) algorithm
An algorithm chosen from FFTW [1], [2]

The dsp.IFFT object and the ifft function both compute the inverse discrete Fourier transform (IDFT) of the input. However, the object can process large streams of real-time data and handle system states automatically. The function performs one-time computations on data that is readily available and cannot handle system states. For a comparison between the two, see System Objects vs MATLAB Functions.

To compute the IFFT of the input:

Create the dsp.IFFT object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

ift = dsp.IFFT

ift = dsp.IFFT(Name,Value)

Description

ift = dsp.IFFT returns an IFFT object, ift, that computes the IDFT of a column vector or N-D array. For column vectors or N-D arrays, the IFFT object computes the IDFT along the first dimension of the array. If the input is a row vector, the IFFT object computes a row of single-sample IDFTs and issues a warning.

ift = dsp.IFFT(Name,Value) returns an IFFT object, ift, with each property set to the specified value. Enclose each property name in single quotes. Unspecified properties have default values.

example

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`FFTImplementation` — FFT implementation
`Auto` (default) | `Radix-2` | `FFTW`

Specify the implementation used for the FFT as Auto, Radix-2, or FFTW. When you set this property to Radix-2, the FFT length must be a power of two.

`BitReversedInput` — Enable bit-reversed order interpretation of input elements
`false` (default) | `true`

Set this property to true if the order of Fourier transformed input elements to the IFFT object are in bit-reversed order. The default is false, which denotes linear ordering.

Dependencies

This property applies only when the FFTLengthSource property is Auto.

`ConjugateSymmetricInput` — Enable conjugate symmetric interpretation of input
`false` (default) | `true`

Set this property to true if the input is conjugate symmetric to yield real-valued outputs. The discrete Fourier transform of a real valued sequence is conjugate symmetric, and setting this property to true optimizes the IDFT computation method. Setting this property to false for conjugate symmetric inputs may result in complex output values with nonzero imaginary parts. This occurs due to rounding errors. Setting this property to true for nonconjugate symmetric inputs results in invalid outputs.

Dependencies

This property applies only when the FFTLengthSource property is Auto.

`Normalize` — Enable dividing output by FFT length
`true` (default) | `false`

Specify whether to divide the IFFT output by the FFT length. The default is true and each element of the output is divided by the FFT length.

`FFTLengthSource` — Source of FFT length
`Auto` (default) | `Property`

Specify how to determine the FFT length as Auto or Property. When you set this property to Auto, the FFT length equals the number of rows of the input signal.

Dependencies

This property applies only when both the BitReversedInput and ConjugateSymmetricInput properties are false.

`FFTLength` — FFT length
`64` (default) | integer

Specify the FFT length as an integer greater than or equal to 2.

This property must be a power of two if any of these conditions apply:

The input is a fixed-point data type.
The FFTImplementation property is Radix-2.

Dependencies

This property applies when you set the BitReversedInput and ConjugateSymmetricInput properties to false, and the FFTLengthSource property to 'Property'.

`WrapInput` — Boolean value of wrapping or truncating input
`true` (default) | `false`

Wrap input data when FFTLength is shorter than input length. If this property is set to true, modulo-length data wrapping occurs before the FFT operation, given FFTLength is shorter than the input length. If this property is set to false, truncation of the input data to the FFTLength occurs before the FFT operation.

Fixed-Point Properties

`RoundingMethod` — Rounding method for fixed-point operations
`Floor` (default) | `Ceiling` | `Convergent` | `Nearest` | `Round` | `Simplest` | `Zero`

Specify the rounding method.

`OverflowAction` — Overflow action for fixed-point operations
`Wrap` (default) | `Saturate`

Specify the overflow action as Wrap or Saturate.

`SineTableDataType` — Sine table word and fraction lengths
`Same word length as input` (default) | `Custom`

Specify the sine table data type as Same word length as input or Custom.

`CustomSineTableDataType` — Sine table word and fraction lengths
`numerictype([],16)` (default) | numerictype

Specify the sine table fixed-point type as an unscaled numerictype (Fixed-Point Designer) object with a Signedness of Auto.

Dependencies

This property applies when you set the SineTableDataType property to Custom.

`ProductDataType` — Product word and fraction lengths
`Full precision` (default) | `Same as input` | `Custom`

Specify the product data type as Full precision, Same as input, or Custom.

`CustomProductDataType` — Product word and fraction lengths
`numerictype([],32,30)` (default) | numerictype

Specify the product fixed-point type as a scaled numerictype (Fixed-Point Designer) object with a Signedness of Auto.

Dependencies

This property applies when you set the ProductDataType property to Custom.

`AccumulatorDataType` — Accumulator word and fraction lengths
`Full precision` (default) | `Same as input` | `Same as product` | `Custom`

Specify the accumulator data type as Full precision, Same as input, Same as product, or Custom.

`CustomAccumulatorDataType` — Accumulator word and fraction lengths
`numerictype([],32,30)` (default) | numerictype

Specify the accumulator fixed-point type as a scaled numerictype (Fixed-Point Designer) object with a Signedness of Auto.

Dependencies

This property applies when you set the AccumulatorDataType property to Custom.

`OutputDataType` — Output word and fraction lengths
`Full precision` (default) | `Same as input` | `Custom`

Specify the output data type as Full precision, Same as input, or Custom.

`CustomOutputDataType` — Output word and fraction lengths
`numerictype([],16,15)` (default) | numerictype

Specify the output fixed-point type as a scaled numerictype (Fixed-Point Designer) object with a Signedness of Auto.

Dependencies

This property applies when you set the OutputDataType property to Custom.

Usage

Syntax

y = ift(x)

Description

y = ift(x) computes the inverse discrete Fourier transform (IDFT) , y, of the input x along the first dimension of x.

example

Input Arguments

expand all

`x` — Data input
vector | matrix | N-D array

Data input, specified as a vector, matrix, or N-D array.

When the FFTLengthSource property is Auto, the length of x along the first dimension must be a positive integer power of two. When the FFTLengthSource property is 'Property', the length of x along the first dimension can be any positive integer and the FFTLength property must be a positive integer power of two.

Variable-size input signals are only supported when the FFTLengthSource property is set to 'Auto'.

Output Arguments

expand all

`y` — Inverse discrete Fourier transform of input signal
vector | matrix | N-D array

Inverse discrete Fourier transform of input signal, returned as a vector, matrix, or N-D array.

When FFTLengthSource property is set to 'Auto', the FFT length is same as the number of rows in the input signal. When FFTLengthSource property is set to 'Property', the FFT length is specified through the FFTLength property.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Examples

collapse all

Construct a Sinusoidal Signal Using High Energy FFT Coefficients

Open Live Script

Compute the FFT of a noisy sinusoidal input signal. The energy of the signal is stored as the magnitude square of the FFT coefficients. Determine the FFT coefficients which occupy 99.99% of the signal energy and reconstruct the time-domain signal by taking the IFFT of these coefficients. Compare the reconstructed signal with the original signal.

Consider a time-domain signal $x [n]$ , which is defined over the finite time interval $0 \leq n \leq N - 1$ . The energy of the signal $x [n]$ is given by the following equation:

$E_{N} = \sum_{n = 0}^{N - 1} {| x [n] |}^{2}$

FFT coefficients, $X [k]$ , are considered signal values in the frequency domain. The energy of the signal $x [n]$ in the frequency-domain is therefore the sum of the squares of the magnitude of the FFT coefficients:

$E_{N} = \frac{1}{N} \sum_{k = 0}^{N - 1} {| X [k] |}^{2}$

According to Parseval's theorem, the total energy of the signal in time or frequency-domain is the same.

$E_{N} = \sum_{n = 0}^{N - 1} {| x [n] |}^{2} = \frac{1}{N} \sum_{k = 0}^{N - 1} {| X [k] |}^{2}$

Initialization

Initialize a dsp.SineWave System object to generate a sine wave sampled at 44.1 kHz and has a frequency of 1000 Hz. Construct a dsp.FFT and dsp.IFFT objects to compute the FFT and the IFFT of the input signal.

The 'FFTLengthSource' property of each of these transform objects is set to 'Auto'. The FFT length is hence considered as the input frame size. The input frame size in this example is 1020, which is not a power of 2, so select the 'FFTImplementation' as 'FFTW'.

L = 1020;
Sineobject = dsp.SineWave('SamplesPerFrame',L,...
    'PhaseOffset',10,...
    'SampleRate',44100,...
    'Frequency',1000);
ft = dsp.FFT('FFTImplementation','FFTW');
ift = dsp.IFFT('FFTImplementation','FFTW',...
    'ConjugateSymmetricInput',true);
rng(1);

Streaming

Stream in the noisy input signal. Compute the FFT of each frame and determine the coefficients that constitute 99.99% energy of the signal. Take IFFT of these coefficients to reconstruct the time-domain signal.

numIter = 1000;
for Iter = 1:numIter
    Sinewave1 = Sineobject();
    Input = Sinewave1 + 0.01*randn(size(Sinewave1));
    FFTCoeff = ft(Input);
    FFTCoeffMagSq = abs(FFTCoeff).^2;

    EnergyFreqDomain = (1/L)*sum(FFTCoeffMagSq);
    [FFTCoeffSorted, ind] = sort(((1/L)*FFTCoeffMagSq),...
        1,'descend');

    CumFFTCoeffs = cumsum(FFTCoeffSorted);
    EnergyPercent = (CumFFTCoeffs/EnergyFreqDomain)*100;
    Vec = find(EnergyPercent > 99.99);
    FFTCoeffsModified = zeros(L,1);
    FFTCoeffsModified(ind(1:Vec(1))) = FFTCoeff(ind(1:Vec(1)));
    ReconstrSignal = ift(FFTCoeffsModified);
end

99.99% of the signal energy can be represented by the number of FFT coefficients given by Vec(1):

Vec(1)

ans =
296

The signal is reconstructed efficiently using these coefficients. If you compare the last frame of the reconstructed signal with the original time-domain signal, you can see that the difference is very small and the plots match closely.

max(abs(Input-ReconstrSignal))

ans =
0.0431

plot(Input,'*');
hold on;
plot(ReconstrSignal,'o');
hold off;

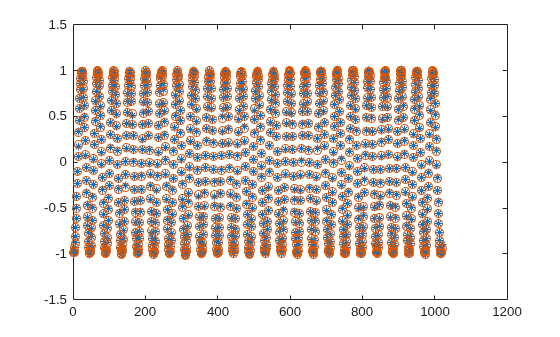

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Algorithms

This object implements the algorithm, inputs, and outputs described on the IFFT block reference page. The object properties correspond to the block parameters, except the Output sampling mode parameter is not supported by dsp.IFFT.

References

[1] FFTW (https://www.fftw.org)

[2] Frigo, M. and S. G. Johnson, “FFTW: An Adaptive Software Architecture for the FFT,” Proceedings of the International Conference on Acoustics, Speech, and Signal Processing, Vol. 3, 1998, pp. 1381-1384.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).
When the following conditions apply, the executable generated from this System object relies on prebuilt dynamic library files (.dll files) included with MATLAB^®:
- FFTImplementation is set to 'FFTW'.
- FFTImplementation is set to 'Auto', FFTLengthSource is set to 'Property', and FFTLength is not a power of two.
Use the packNGo function to package the code generated from this System object and all the relevant files in a compressed zip file. Using this zip file, you can relocate, unpack, and rebuild your project in another development environment where MATLAB is not installed. For more details, see How To Run a Generated Executable Outside MATLAB.
When the FFT length is a power of two, you can generate standalone C and C++ code from this System object.

Version History

Introduced in R2012a
