Moving Variance

R2026b

Moving variance

Libraries:
DSP System Toolbox / Statistics

Description

The Moving Variance block computes the moving variance of the input signal along each channel independently over time. The block uses either the sliding window method or the exponential weighting method to compute the moving variance. In the sliding window method, a window of specified length moves over the data sample by sample, and the block computes the variance over the data in the window. In the exponential weighting method, the block subtracts each sample of the data from the average, squares the difference, and multiplies the squared result by a weighting factor. The block then computes the variance by adding all the weighted data.

You can change the window length during simulation by selecting the Make window length tunable parameter. Specify the tunable window length from the block dialog box by updating the Window length parameter or through the input port WL by selecting the Specify window length from input port parameter. For more details, see Algorithms. (since R2026b)

Examples

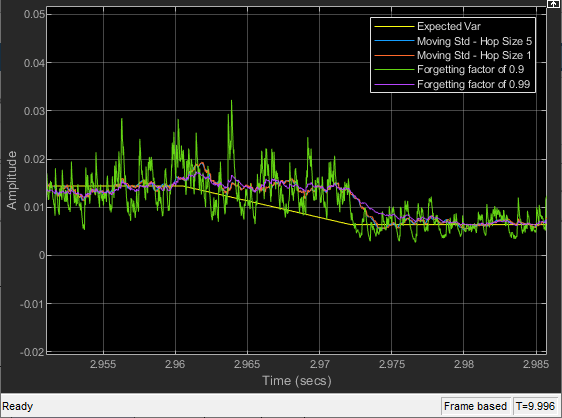

Compute Moving Variance of Noisy Square Wave Signal

Compare the sliding window variance method and the exponentially weighted variance method in Simulink^® using the Moving Variance block.

Open Model

Ports

Input

expand all

x — Data input
vector | matrix

The block computes the moving variance of the data specified at this input port. Specify real- or complex-valued multichannel inputs of the size m-by-n, where m ≥ 1 and n ≥ 1.

When the Allow arbitrary frame length for fixed-size input signals parameter appears and is not selected, and you input a fixed-size signal, the frame length must be a multiple of the hop size (window length − overlap length). In all other cases, the input frame length can be arbitrary.

The block accepts variable-size inputs (frame length changes during simulation). When you input a variable-size signal, the frame length of the signal can be arbitrary.

This port is unnamed until you enable the WL input port or the lambda input port.

Data Types: single | double
Complex Number Support: Yes

lambda — Forgetting factor
nonnegative real scalar in the range [0,1]

Specify the forgetting factor as a nonnegative real scalar in the range [0,1]. The forgetting factor determines how much weight the block gives the past data. A forgetting factor of 0.9 gives more weight to the older data than does a forgetting factor of 0.1. A forgetting factor of 1.0 indicates infinite memory and all previous samples are given an equal weight. A forgetting factor of 0 indicates no memory and the past samples have no weight on the current computation.

Dependencies

To enable this port, set Method to Exponential weighting and select Specify forgetting factor from input port.

Data Types: single | double

WL — Tunable window length input
positive integer

Since R2026b

Specify the tunable window length as a positive integer. The block uses this value as the sliding window length for computing the moving variance.

When you select Auto-adjust invalid window length, the block adjusts invalid window length values from the input port and issues a warning. For more information on what values are invalid, see the Auto-adjust invalid window length parameter description.

When you clear the Auto-adjust invalid window length parameter, the block throws an error for invalid window length values.

Dependencies

To enable this port, set Method to Sliding window, and select these parameters:

Specify window length
Make window length tunable
Specify window length from input port

Data Types: single | double

Output

expand all

Port_1 — Moving variance output
column vector | row vector | matrix

Moving variance output, returned as a vector or a matrix. The block computes the moving variance based on the Method parameter settings using either the sliding window method or the exponential weighting method. For more details, see Algorithms.

This table provides more details on the dimensions of the output signal.

Input Signal Input Dimensions Output Dimensions When Allow arbitrary frame length for fixed-size input signals Appears Output Dimensions When Allow arbitrary frame length for fixed-size input signals Does Not Appear

Fixed-size signal

Input Signal	Input Dimensions	Output Dimensions When Allow arbitrary frame length for fixed-size input signals Appears	Output Dimensions When Allow arbitrary frame length for fixed-size input signals Does Not Appear
Fixed-size signal	m-by-n, where m is a multiple of the hop size (window length − overlap length)	(m/hop size)-by-n	m-by-n
Fixed-size signal	m-by-n, where m is not a multiple of the hop size (window length − overlap length)	`ceil`(m/hop size)-by-n when you select Allow arbitrary frame length for fixed-size input signals. If you do not select Allow arbitrary frame length for fixed-size input signals, the block errors.	m-by-n
Variable-size signal	m-by-n	`ceil`(m/hop size)-by-n	m-by-n

m-by-n, where m is a multiple of the hop size (window length − overlap length)

(m/hop size)-by-n

m-by-n

Fixed-size signal

m-by-n, where m is not a multiple of the hop size (window length − overlap length)

ceil(m/hop size)-by-n when you select Allow arbitrary frame length for fixed-size input signals.

If you do not select Allow arbitrary frame length for fixed-size input signals, the block errors.

m-by-n

Variable-size signal

m-by-n

ceil(m/hop size)-by-n

m-by-n

When the output has an upper bound size of ceil(m/hop size)-by-n, during simulation, the size of the first dimension varies in this bound and the size of the second dimension remains constant. For an example that shows this behavior, see Compute Moving Variance of Noisy Square Wave Signal.

Data Types: single | double
Complex Number Support: Yes

Parameters

expand all

If a parameter is listed as tunable, then you can change its value during simulation.

Method — Moving variance method
`Sliding window` (default) | `Exponential weighting`

Sliding window — A window of length Window length moves over the input data along each channel. For every sample the window moves over, the block computes the variance over the data in the window.
Exponential weighting — The block subtracts each sample of the data from the average, squares the difference, and multiplies the squared result by a weighting factor. The block then computes the variance by adding all the weighted data. The magnitude of the weighting factors decreases exponentially as the age of the data increases, but the magnitude never reaches zero.

For more details on these methods, see Algorithms.

Specify window length — Option to specify window length
`on` (default) | `off`

When you select this check box, the length of the sliding window is equal to the value you specify in Window length. When you clear this parameter, the length of the sliding window is infinite. In this mode, the block computes the variance of the current sample with respect to all the previous samples in the channel.

Dependencies

To enable this parameter, set Method to Sliding window.

Window length — Length of sliding window
`4` (default) | positive integer

Specify the length of the sliding window in samples as a positive integer.

When you select the Make window length tunable parameter, the window length you specify is tunable and must be less than or equal to the value you specify in the Maximum window length parameter. When you clear the Make window length tunable parameter, the window length is fixed. (since R2026b)

Dependencies

To enable this parameter, set Method to Sliding window and select Specify window length. In addition, if you select Make window length tunable, you must clear the Specify window length from input port parameter.

Overlap length — Number of overlapped samples between sliding windows
`3` (default) | nonnegative integer

Specify the number of overlapped samples between sliding windows as a nonnegative integer. The value of overlap length varies in the range [0, Window length−1].

Dependencies

To enable this parameter, set Method to Sliding window, select Specify window length, and clear Make window length tunable.

Make window length tunable — Option to enable tunable window length
`off` (default) | `on`

Since R2026b

Select this parameter to make the window length tunable, that is, you can change the window length during simulation through the block dialog box by updating the Window length parameter or through the input port WL by selecting the Specify window length from input port parameter.

When you clear this parameter, the window length is fixed and you cannot change it during simulation. Specify the window length through the Window length parameter.

Dependencies

To enable this parameter, set Method to Sliding window and select Specify window length.

Specify window length from input port — Source of tunable window length
`off` (default) | `on`

Since R2026b

When you select this parameter, the block reads the tunable window length from the input port, WL. When you clear this parameter, the block reads the tunable window length from the Window length parameter.

Dependencies

To enable this parameter, set Method to Sliding window, and select these parameters:

Specify window length
Make window length tunable

Maximum window length — Maximum value of tunable window length
`20` (default) | positive integer

Since R2026b

Specify the maximum value of the tunable window length as a positive integer. The window length you specify during simulation cannot exceed this value.

Dependencies

To enable this parameter, set Method to Sliding window, and select these parameter:

Specify window length
Make window length tunable

Auto-adjust invalid window length — Automatically adjust invalid window length values
`on` (default) | `off`

Since R2026b

When you select this parameter, the block adjusts invalid window length values from the input port and issues a warning.

If the tunable window length value is greater than Maximum window length, the block uses Maximum window length.
If the tunable window length value is less than 1, the block uses 1.
If the tunable window length value is not an integer, the block uses the floored value.

When you clear this parameter, the block throws an error for invalid window length values.

Dependencies

To enable this parameter, set Method to Sliding window, and select these parameters:

Specify window length
Make window length tunable
Specify window length from input port

Allow arbitrary frame length for fixed-size input signals — Allow arbitrary frame length for fixed-size input signals
`off` (default) | `on`

Specify whether fixed-size input signals (whose size does not change during simulation) can have an arbitrary frame length, where the frame length does not have to be a multiple of the hop size. Hop size is defined as Window length − Overlap length. The block uses this parameter setting only for fixed-size input signals and ignores this parameter if the input has a variable-size.

When the input signal is a variable-size signal, the signal can have arbitrary frame length, that is, the frame length does not have to be a multiple of the hop size.

For fixed-size input signals, if you:

Select the Allow arbitrary frame length for fixed-size input signals parameter, the frame length of the signal does not have to be a multiple of the hop size. If the input is not a multiple of the hop size, then the output is generally a variable-size signal. So, to support arbitrary input size, the block must also support variable-size operations, which you can enable by selecting the Allow arbitrary frame length for fixed-size input signals parameter.
Clear the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length must be a multiple of the hop size.

Dependencies

To enable this parameter, set Method to Sliding window, select Specify window length, and clear Make window length tunable.

Specify forgetting factor from input port — Option to specify forgetting factor
`off` (default) | `on`

When you select this check box, the forgetting factor is input through the lambda port. When you clear this check box, the forgetting factor is specified on the block dialog box through the Forgetting factor parameter.

Dependencies

To enable this parameter, set Method to Exponential weighting.

Forgetting factor — Exponential weighting factor
0.9 (default) | nonnegative real scalar in the range [0,1]

Specify the exponential weighting factor as a nonnegative real scalar in the range [0,1]. This value determines how much weight the past data is given. A forgetting factor of 0.9 gives more weight to the older data than does a forgetting factor of 0.1. A forgetting factor of 1.0 indicates infinite memory and all the past samples are given an equal weight. A forgetting factor of 0 indicates no memory and the past samples have no weight on the current computation.

Tunable: Yes

Dependencies

To enable this parameter, set Method to Exponential weighting and clear the Specify forgetting factor from input port check box.

Simulate using — Type of simulation to run
`Interpreted execution` (default) | `Code generation`

Specify the type of simulation to run. You can set this parameter to:

Interpreted execution — Simulate model using the MATLAB^® interpreter. This option shortens startup time.
Code generation — Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time but provides faster subsequent simulations.

Block Characteristics

Data Types	`double` \| `single`
Multidimensional Signals	`No`
Variable-Size Signals	`Yes`

Algorithms

expand all

Sliding Window Method

In the sliding window method, the output at the current sample is the variance of the current sample with respect to the data in the window. To compute the first output sample, the algorithm waits until it receives the hop size number of input samples. Hop size is defined as window length – overlap length. Remaining samples in the window are considered to be zero. As an example, if the window length is 5 and the overlap length is 2, then the algorithm waits until it receives 3 samples of input to compute the first sample of the output. After generating the first output, it generates the subsequent output samples for every hop size number of input samples.

When you do not specify the window length, the algorithm chooses an infinite window length. In this mode, the output is the moving variance of the current sample with respect to all previous samples in the channel.

Consider an example of computing the moving variance of a streaming input data using the sliding window method. The algorithm uses a window length of 4 and an overlap length of 3. With each input sample that comes in, the window of length 4 moves along the data.

Sliding window method for moving variance with window length 4 and input samples [-1, -2, 3, 2, 5, 2]. At each time step n=0 through n=5, the window fills with zeros until length 4 is reached, then moves along the data. Moving variance computes var for each window position, producing values 0.250, 0.916, 4.667, 5.667, 8.667, 2.000 at n=5

Exponential Weighting Method

In the exponential weighting method, the moving variance is computed recursively using these formulas:

$\begin{array}{l} s^{2}_{N, λ} = \frac{1}{v_{N, λ}} \sum_{k = 1}^{N} λ^{N - k} {[x_{k} - {\bar{x}}_{N, λ}]}^{2} \\ v_{N, λ} = \frac{2 λ (1 - λ^{N - 1})}{(1 - λ) (1 + λ)} \end{array}$

To compute the moving variance, the algorithm implements these equations recursively.

$s^{2}_{N, λ}$ — Moving variance of the current data sample with respect to the rest of the data in the channel.
${\bar{x}}_{N, λ}$ — Moving average at the current sample. For details on computing the moving average, see dsp.MovingAverage.
${[x_{k} - {\bar{x}}_{N, λ}]}^{2}$ — Difference between each data sample and the average of the data, squared.
$\sum_{k = 1}^{N} λ^{N - k} {[x_{k} - {\bar{x}}_{N, λ}]}^{2}$ — Difference between each data sample and the average of the data, squared and multiplied with the forgetting factor. All the squared terms are added.
$\frac{1}{v_{N, λ}}$ — Weighting factor applied to the sum.
λ — Forgetting factor you can specify through the ForgettingFactor property.

As the age of the data increases, the magnitude of the weighting factor decreases exponentially, and never reaches zero. In other words, the recent data has more influence on the current variance, than the older data.

The value of the forgetting factor determines the rate of change of the weighting factors. A forgetting factor of 0.9 gives more weight to the older data than does a forgetting factor of 0.1. A forgetting factor of 1.0 indicates infinite memory. All the past samples are given an equal weight.

Consider an example of computing the moving variance using the exponential weighting method. The forgetting factor is 0.9.

Exponential weighting method for moving variance with forgetting factor 0.9. Three input frames: [2,3,4,5] at n=0 producing outputs [0.0000, 0.5000, 0.9982, 1.6587], [6,7,8,9] at n=1 producing outputs [2.4780, 3.4514, 4.5734, 5.8375], and [3,4,6,8] at n=2 producing outputs [6.2519, 5.5814, 4.7901, 4.9790]

Tunable Window Length Algorithm

When you specify the window length to be tunable, the moving variance algorithm maintains an internal buffer of size MaxWL−1 to store past input samples, where MaxWL is the maximum window length. At each time step, the moving variance algorithm performs these operations:

Concatenates the buffer with the current input to form an extended data sequence.
Extracts the most recent window length samples from the extended data sequence.
Computes the moving variance over the extracted samples using a sliding window and discards the endpoints.
Stores the most recent MaxWL−1 samples in the buffer for the next time step.

This approach allows you to change the window length at each time step while the algorithm maintains continuity of the output signal.

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2016b

expand all

R2026b: Tunable window length

You can now change the window length during simulation by selecting the Make window length tunable parameter. Specify the tunable window length from the block dialog box by updating the Window length parameter or through the WL input port by selecting Specify window length from input port. The Maximum window length parameter sets the upper bound for the tunable window length. Select Auto-adjust invalid window length to control whether invalid window length values are automatically adjusted with a warning or cause an error.

R2024b: Specify a forgetting factor of 0

You can now specify a forgetting factor of 0 in the Moving Variance block.

R2024a: Change in the default value of Simulate using parameter

The default value of the Simulate using parameter is now Interpreted execution. With this change, the block uses the MATLAB interpreter for simulation by default.

R2022b: New Overlap length parameter

Starting in R2022b, you can specify the overlap length between sliding windows using the Overlap length parameter.

R2022b: Support for arbitrary input frame length

Moving Variance block supports input signals with arbitrary frame lengths when the:

Input signal is a fixed-size signal (frame length does not change during simulation) and you select the Allow arbitrary frame length for fixed-size input signals parameter (if enabled).
Input signal is a variable-size signal (frame length changes during simulation).

When this block supports an arbitrary frame length input signal, the input frame length does not have to be a multiple of the hop size.

Moving Variance

Description

Examples

Compute Moving Variance of Noisy Square Wave Signal

Ports

Input

x — Data input vector | matrix

lambda — Forgetting factor nonnegative real scalar in the range [0,1]

Dependencies

WL — Tunable window length input positive integer

Dependencies

Output

Port_1 — Moving variance output column vector | row vector | matrix

Parameters

Method — Moving variance method Sliding window (default) | Exponential weighting

Specify window length — Option to specify window length on (default) | off

Dependencies

Window length — Length of sliding window 4 (default) | positive integer

Dependencies

Overlap length — Number of overlapped samples between sliding windows 3 (default) | nonnegative integer

Dependencies

Make window length tunable — Option to enable tunable window length off (default) | on

Dependencies

Specify window length from input port — Source of tunable window length off (default) | on

Dependencies

Maximum window length — Maximum value of tunable window length 20 (default) | positive integer

Dependencies

Auto-adjust invalid window length — Automatically adjust invalid window length values on (default) | off

Dependencies

Allow arbitrary frame length for fixed-size input signals — Allow arbitrary frame length for fixed-size input signals off (default) | on

Dependencies

Specify forgetting factor from input port — Option to specify forgetting factor off (default) | on

Dependencies

Forgetting factor — Exponential weighting factor 0.9 (default) | nonnegative real scalar in the range [0,1]

Dependencies

Simulate using — Type of simulation to run Interpreted execution (default) | Code generation

Block Characteristics

Algorithms

Sliding Window Method

Exponential Weighting Method

Tunable Window Length Algorithm

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

Version History

R2026b: Tunable window length

R2024b: Specify a forgetting factor of 0

R2024a: Change in the default value of Simulate using parameter

R2022b: New Overlap length parameter

R2022b: Support for arbitrary input frame length

See Also

Blocks

Objects

Topics

x — Data input
vector | matrix

lambda — Forgetting factor
nonnegative real scalar in the range [0,1]

WL — Tunable window length input
positive integer

Port_1 — Moving variance output
column vector | row vector | matrix

Method — Moving variance method
`Sliding window` (default) | `Exponential weighting`

Specify window length — Option to specify window length
`on` (default) | `off`

Window length — Length of sliding window
`4` (default) | positive integer

Overlap length — Number of overlapped samples between sliding windows
`3` (default) | nonnegative integer

Make window length tunable — Option to enable tunable window length
`off` (default) | `on`

Specify window length from input port — Source of tunable window length
`off` (default) | `on`

Maximum window length — Maximum value of tunable window length
`20` (default) | positive integer

Auto-adjust invalid window length — Automatically adjust invalid window length values
`on` (default) | `off`

Allow arbitrary frame length for fixed-size input signals — Allow arbitrary frame length for fixed-size input signals
`off` (default) | `on`

Specify forgetting factor from input port — Option to specify forgetting factor
`off` (default) | `on`

Forgetting factor — Exponential weighting factor
0.9 (default) | nonnegative real scalar in the range [0,1]

Simulate using — Type of simulation to run
`Interpreted execution` (default) | `Code generation`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
