Modeling

Prepare model for hardware connection, add blocks to support hardware protocols

Prepare Simulink^® models for hardware connection, add blocks to support hardware protocols, examples featuring various applications.

Blocks

ALSA Audio Capture	Capture audio from sound card using ALSA
ALSA Audio Playback	Send audio to sound card for playback using ALSA
Analog Input	Measure voltage of analog input pin
GPIO Read	Read logical value of GPIO pin configured as input
GPIO Write	Write logical value of GPIO pin configured as output
LED	Illuminate built-in LED
PWM	Vary power output of digital output pin
SDL Video Display	Display video using SDL
ThingSpeak Write	Publish data to Internet of Things using ThingSpeak
UDP Receive	Receive UDP packet
UDP Send	Send UDP message
V4L2 Video Capture	Capture video from USB camera using V4L2

Topics

Model Configuration Parameters for BeagleBone Black Hardware Board
Parameter and configuration options for creating and running applications on an BeagleBone^® Black hardware board.
Open Block Library for BeagleBone Black Hardware
Locate the block library for BeagleBone Black hardware.
Publish Data to Internet of Things Using ThingSpeak
Publish Data to Internet of Things using ThingSpeak™.

Featured Examples

Get Started with Embedded Coder Support Package for BeagleBone Black Hardware

Use Embedded Coder® Support Package for BeagleBone® Black Hardware to run a Simulink® model on BeagleBone Black hardware.

Open Model

Pin Muxing

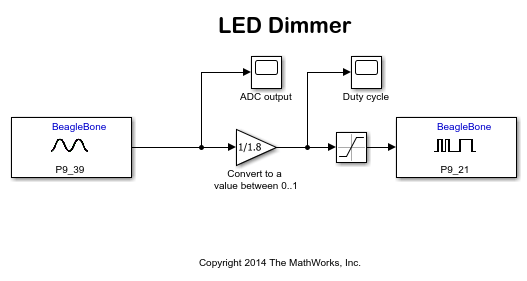

Use Embedded Coder® Support Package for BeagleBone® Black Hardware to set the correct hardware pin mux configuration to run Simulink® models accessing the physical pins of the BeagleBone Black hardware.

Open Model

Parametric Audio Equalizer

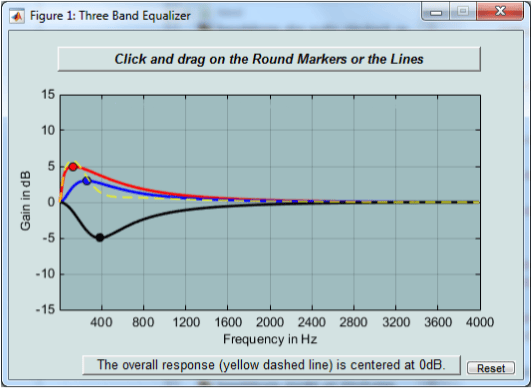

Use the ALSA Audio Playback block from the BeagleBone® Black block library to implement a parametric audio equalizer algorithm on BeagleBone Black hardware.

Open Model

Image Inversion

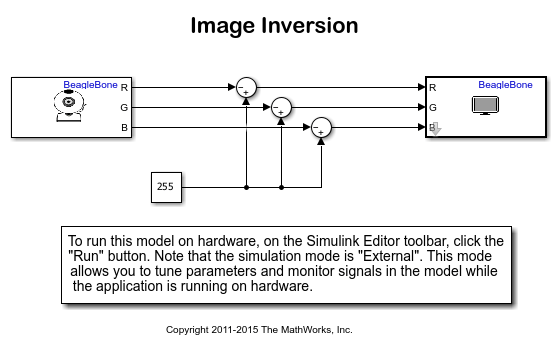

Use the V4L2 Video Capture and the SDL Video Display blocks from the BeagleBone® Black block library to implement an image inversion algorithm with a Simulink® model, and to run the model on BeagleBone® Black hardware.

Open Model
